ES LD048H-CU08054-M48E Constant Current LED Driver, 800mA 43-54V 43W

SKU: 666561420451

Description

Model LD048H-CU08054-M48E
Input Voltage 110-277V AC
Input Current 0.55-0.22A
Input Frequency 50/60Hz
Output Voltage 43-54V
Output Regulated Current 800 mA
Output Power 43.2W max
Dimmable Yes

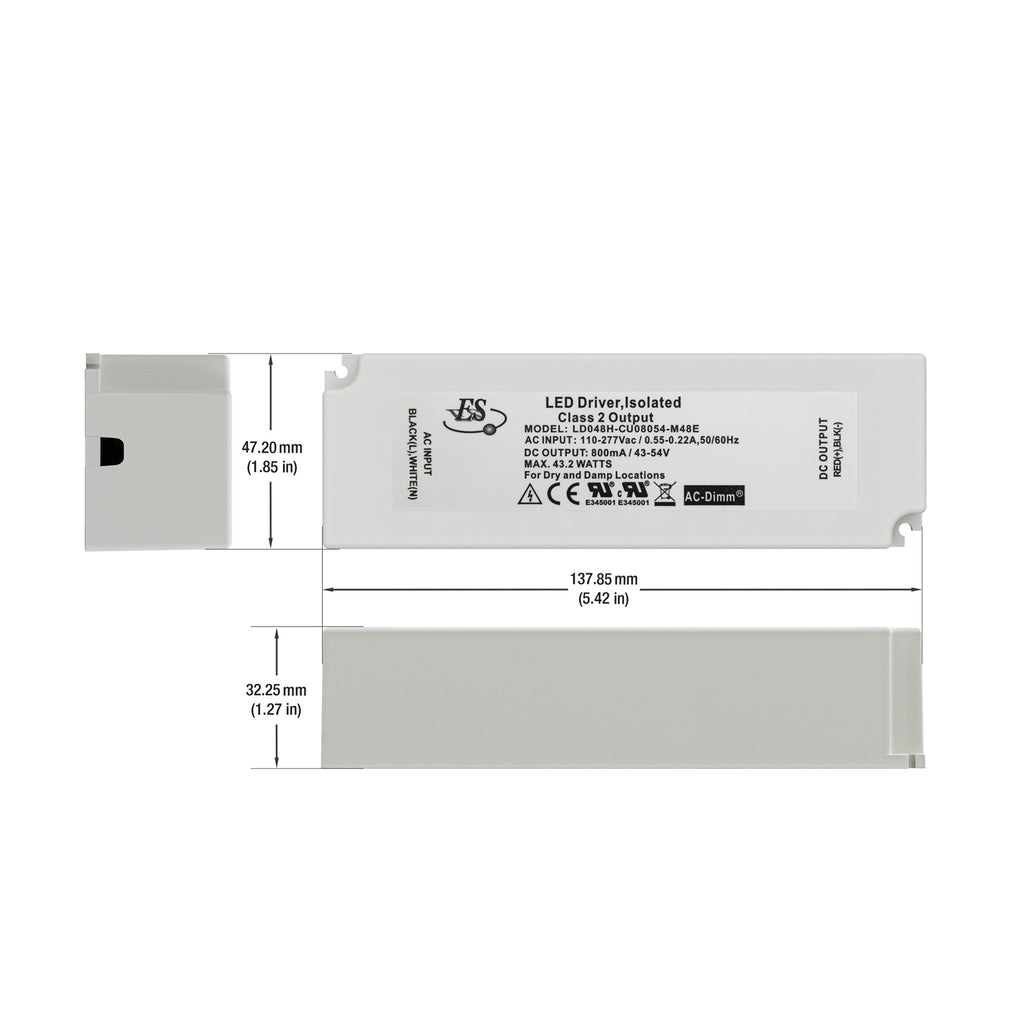

Dimensions 137 x 45.75 x 32mm (5.4 x 1.8 x 1.25 in)
Class Certification Class 2
Certification
Applicable for dry and damp locations
Suitable for operation with main supply dimmer



Features:

  • The ES LD048H-CU08054-M48E is a constant current LED driver designed for powering LED lights.
  • Regulated output current: 800mA.
  • Output voltage range: 43-54V DC.
  • Input voltage range: 110-277V AC.
  • Input current range: 0.55A to 0.22A.
  • Frequency: 50/60Hz.
  • Dimmable, allowing control over the brightness of connected LED lights.
  • Maximum output power: 43.2W.
  • Class 2 certified, meeting safety requirements for indoor lighting applications.
  • Dimensions: 137 x 45.75 x 32mm (5.4 x 1.8 x 1.25 in), compact and easy to install.
  • Reliable and efficient, providing constant and regulated power to connected LED lights.
  • Suitable for LED lights requiring an output voltage between 43-54V DC and a maximum current of 800mA.
