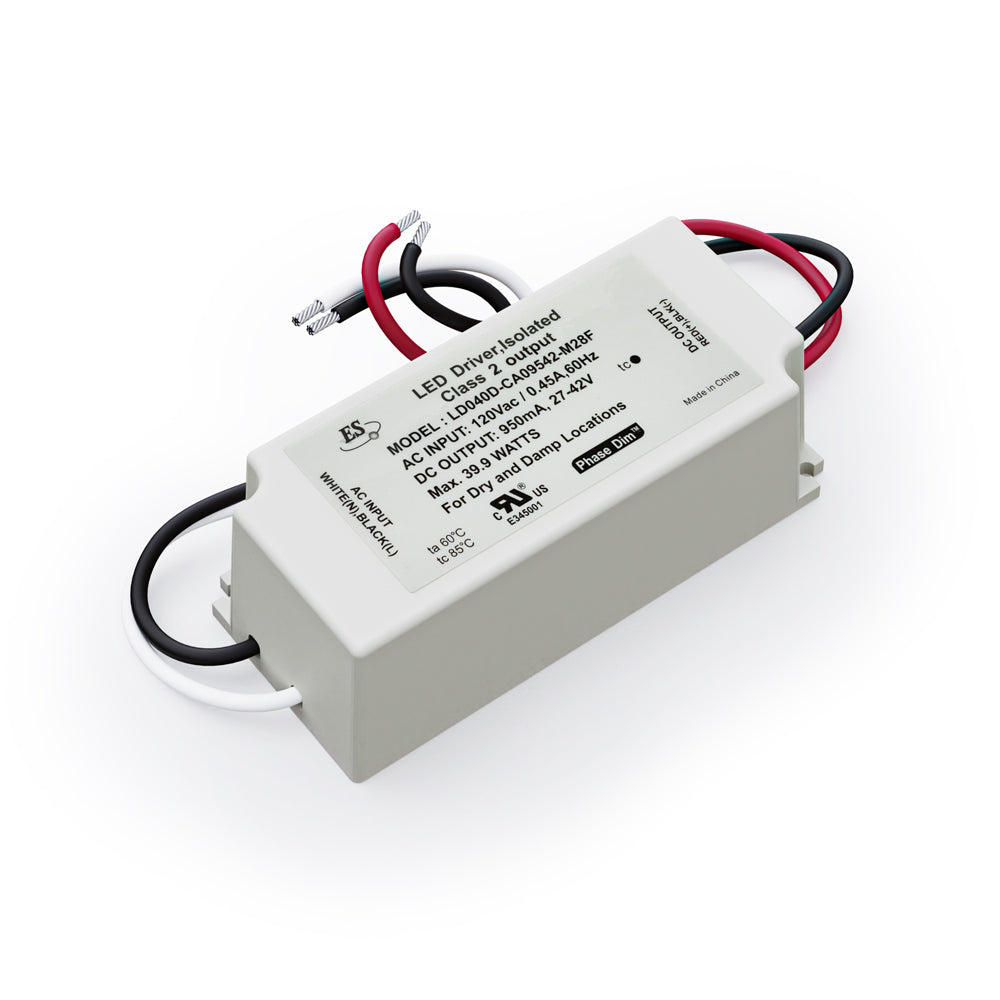

ES LD040D-CA09542-M28F Constant Current LED Driver, 950mA 27-42V 39.9W max

SKU: 666561430276

Description

Model LD040D-CA09542-M28F
Input Voltage 120V AC
Input Current 0.45A
Frequency 60Hz
Output Regulated Current 950mA
Output Power 39.9W
Output Voltage 27-42V DC
Dimmable  Yes
Class Certification Class 2/ Class II

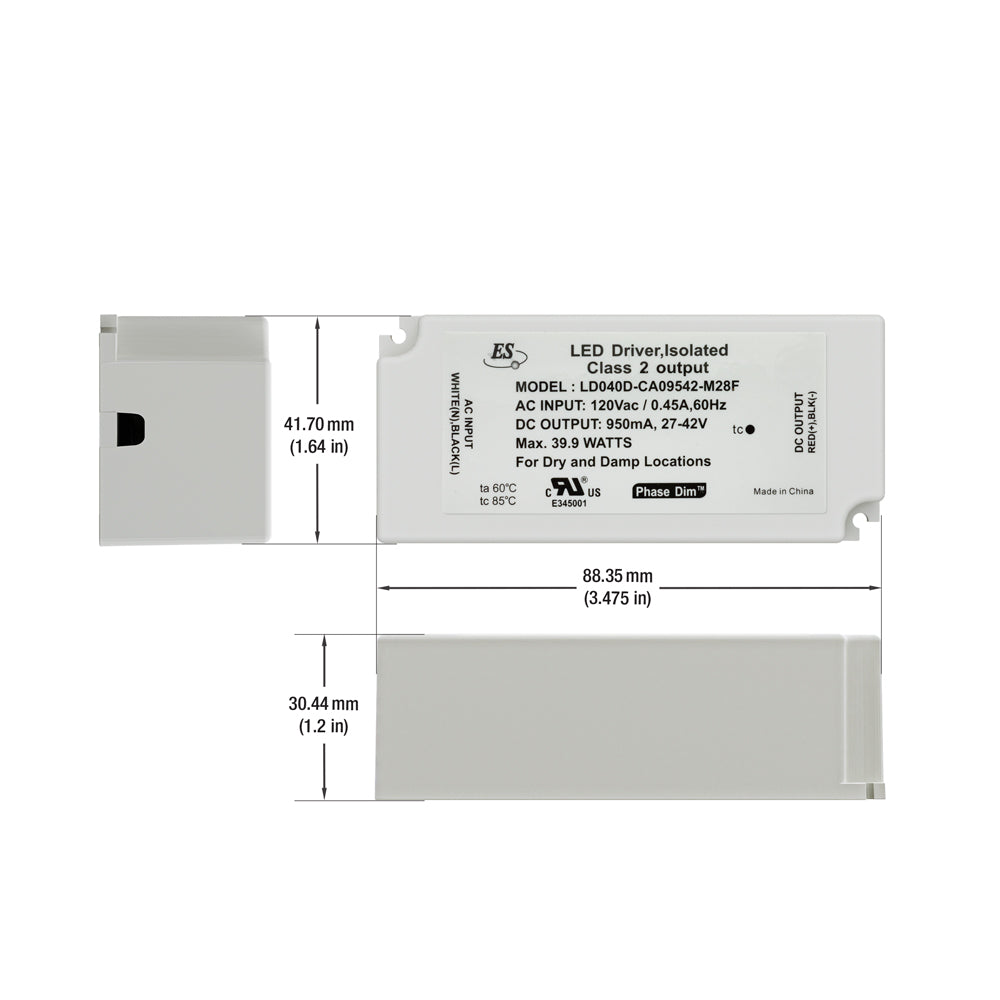

Dimensions 88.35 x 41.7 x 30.4mm (3.4 x 1.6 x 1.2 in)
Certification



Features:

  • Constant current LED driver designed to regulate current supplied to LED lighting fixtures
  • Model number: LD040D-CA09542-M28F
  • Designed for an input voltage of 120V AC and input current of 0.45A at 60Hz frequency
  • Provides regulated output current of 950mA and maximum output power of 39.9W
  • Output voltage range of 27-42V DC, compatible with a wide range of LED lighting fixtures
  • Dimmable feature allows for easy control over brightness of connected fixtures
  • Class 2/Class II certified for meeting safety standards for low voltage equipment
  • Compact dimensions of 88.35 x 41.7 x 30.4mm (3.4 x 1.6 x 1.2 in) for easy installation in various settings
  • Reliable and efficient LED driver suitable for powering LED lighting fixtures, offering regulated current and dimmable capabilities for versatile applications.
