Input/Output Voltage | 12~24V DC |
Total Output | 20A |
Frequency | 600Hz |
Working Temp. | -20~60°C |
Dimensions | 150 x 78 x 25mm (5.90 x 3 x 0.98in) |
Certification |
![]() ![]() |
Feature:

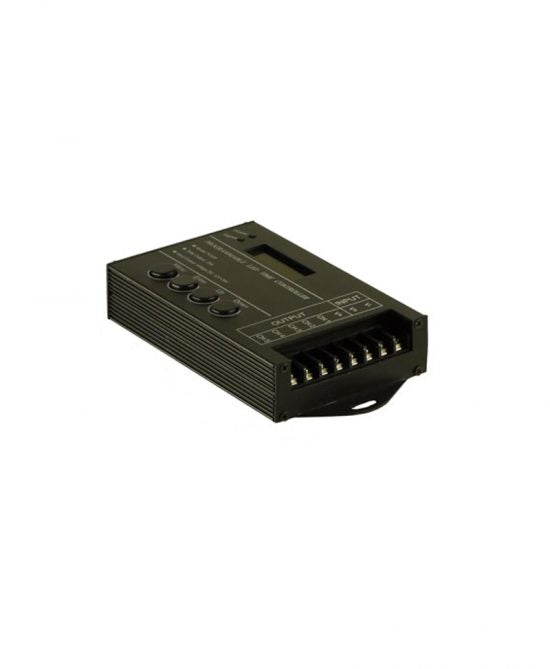

- TC420 LED Time controller extensively schedules time for 5 channels.
- It uses a smart Windows application (CD-ROM included) for setting the timer.
- The LED time controller plays the program with variable time fade-in and fade-out transitions.
- You can create multiple programs for all 5 channels and upload them via USB to the LED timer controller.
- The 5-channel time controller is suitable for both 12 and 24-volt power supplies and LED strips
- It uses 4A per channel and 20A max.
- Make sure to choose a suitable power supply for this controller that manages the load for the lights
- One can set the timers for up to 5 outputs.
- It can either be five single colors LED strips, RGB color LED strips with 2 single-color LED strips for example warm white and cool white, an RGBW LED strip + a single color strip, or a single WRGBWW LED strip that has five wires
- One can play with this time and it is not just limited to any set program but can also be used as a perfect sunrise/sunset program for every season with custom colors based on your needs and desires.
