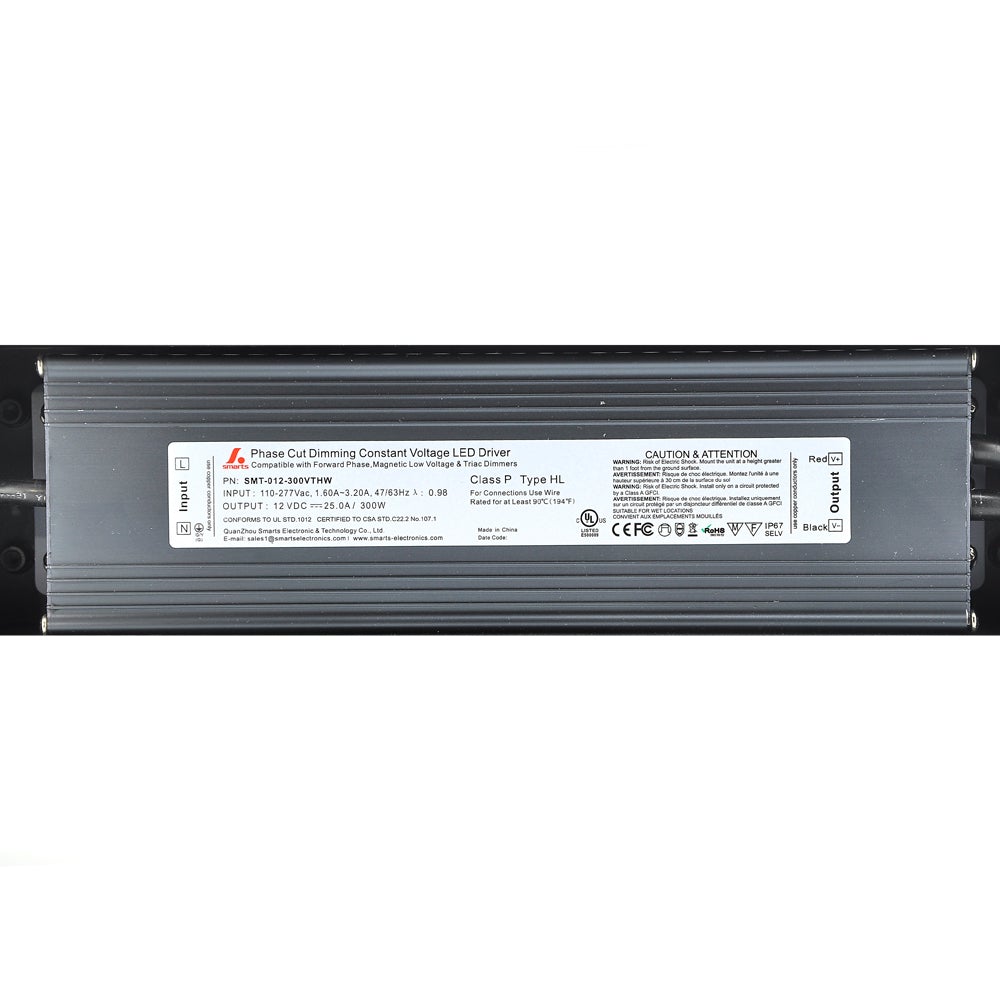

SMART SMT-012-300VTHW2J Dimmable LED Driver, 12V 25A 300W(5*60W)

SKU: 666561416461


Model SMT-012-300VTHW2J
Input Voltage 100-277V AC
Input Current 3.6A
Frequency 50/60 Hz
Output Voltage 24V
Output regulated Current 25A (5*5A)
Output Power 300W (5*60W)
Power Factor 0.95
Dimmable Yes
IP Rating IP67

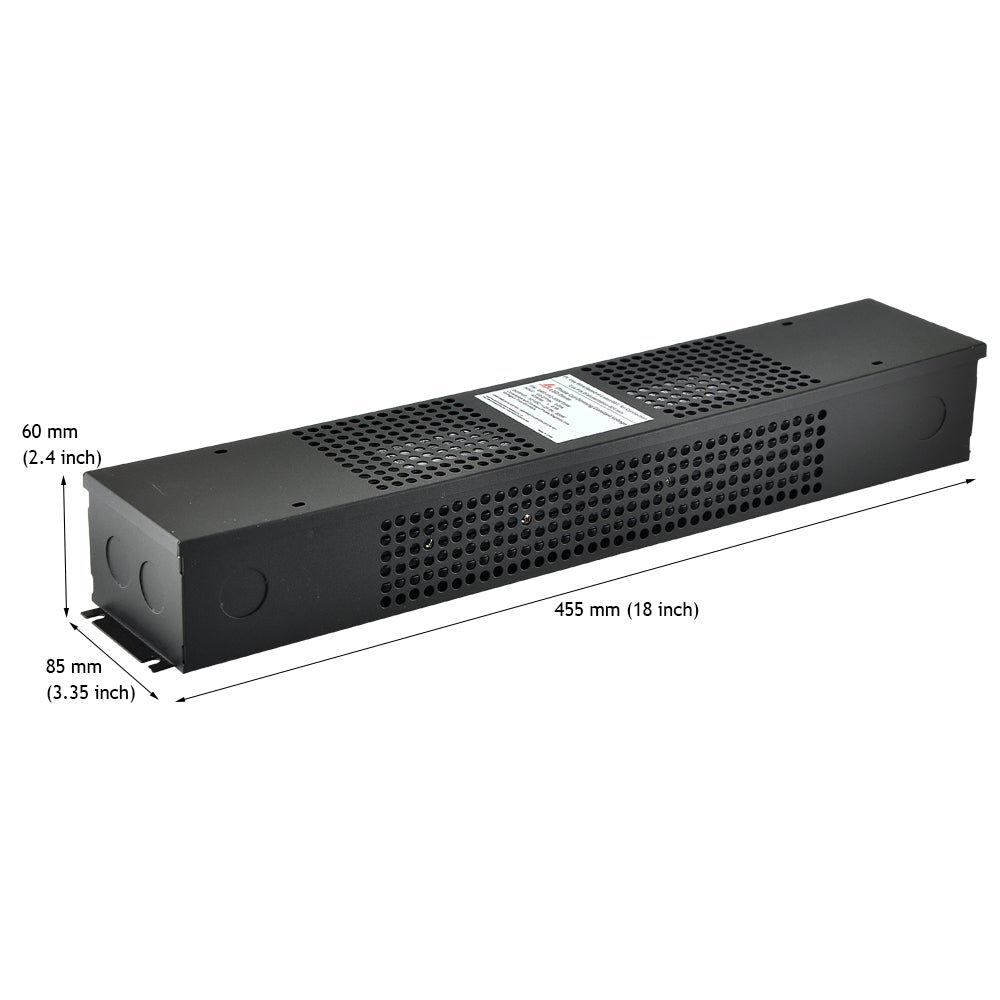

Dimensions Length – 455 mm (18 inch)
Width – 85 mm (3.35 inch)
Depth – 60 mm (2.4 inch)



  • SMART SMT-012-300VTHW2J is a dimmable LED driver designed for 12V LED lighting systems.
  • It operates with an input voltage range of 100-277V AC, allowing for wide compatibility with different electrical systems.
  • The driver has an input current of 3.6A and a frequency of 50/60 Hz, providing stable and reliable power for LED lighting applications.
  • With an output voltage of 24V and a regulated current of 25A (55A), it delivers a total output power of 300W (560W), making it suitable for powering multiple LED fixtures or larger installations.
  • The driver has a high power factor of 0.95, indicating its high power efficiency and effective utilization of electricity.
  • It is equipped with dimming capabilities, allowing for smooth and adjustable lighting intensity control.
  • The driver has an IP67 rating, indicating its high level of protection against dust and water immersion, making it suitable for both indoor and outdoor use.
  • In terms of dimensions, the driver measures 455 mm (18 inches) in length, 85 mm (3.35 inches) in width, and 60 mm (2.4 inches) in depth, offering a compact size for easy installation and integration into lighting systems.
  • The SMART SMT-012-300VTHW2J LED driver is certified, ensuring its compliance with relevant safety and quality standards.
