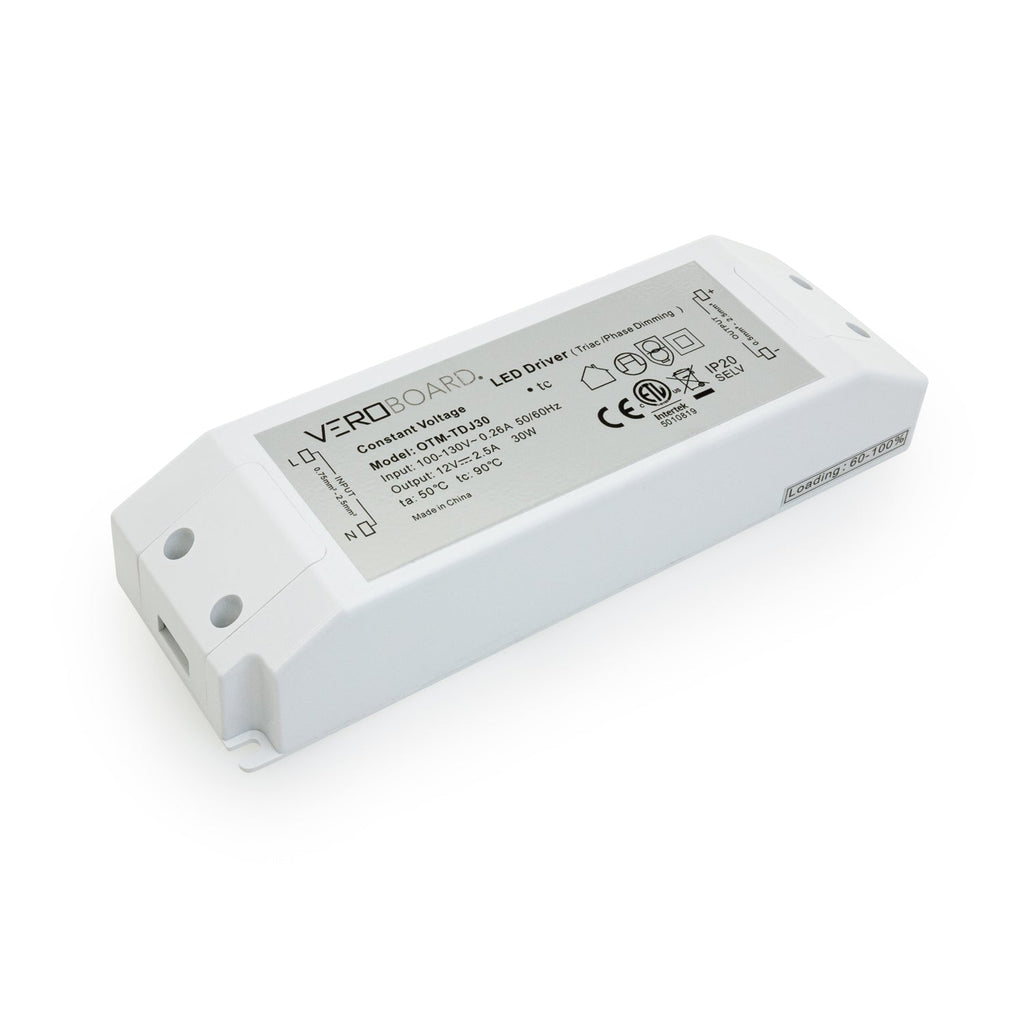

OTM-TDJ30 Constant Voltage Triac Dimming LED Driver,12V 2.5A 30W

SKU: 666561425470



Model OTM-TDJ30
Input Voltage 100-130V AC
Input Current 0.26A
Frequency 50/60Hz
Output Voltage 12V DC
Output regulated Current 2.5A
Output Power 30W
Dimmable Yes (Triac/Phase dimming)
IP Rating IP20 (Indoor Rated)
Ambient Temperature (Ta) 50°C
Case Temperature (Tc) 90°C
Class Certification Class II/ SELV
Dimensions 180 x 59.85 x 34.5mm (7 x 2.35 x 1.35in)
Compatible with Forward-Phase & Triac dimmers
Applicable for Dry and Damp locations
Short circuit and overload protected
Class II certified, Double-layer insulation



  • OTM-TDJ30 Triac dimmable constant voltage LED driver
  • Input voltage: 100-130V AC, input current: 0.26A, frequency: 50/60Hz
  • Output voltage: 12V DC, regulated current: 2.5A, output power: 30W
  • Dimmable through Triac/Phase dimming
  • IP20 rating for indoor use
  • Ambient temperature range: up to 50°C, case temperature: up to 90°C
  • Class II/SELV certification for enhanced safety
  • Dimensions: 180 x 59.85 x 34.5mm (7 x 2.35 x 1.35in)
  • ETL certified for safety and compliance.
