Type 17, Linear Architectural LED Aluminum channel VBD-CH-RF3, 3Meters (118inches)

SKU: 666561423360


• Available in Custom Color


Model Type 17 (VBD-CH-RF3)
Material Aluminum
Diffuser Material Opal
Fixture color Finish Silver Grey
Package content

3 meter Aluminum channel with frosted Diffuser
1 pair of Endcaps (with and without holes)

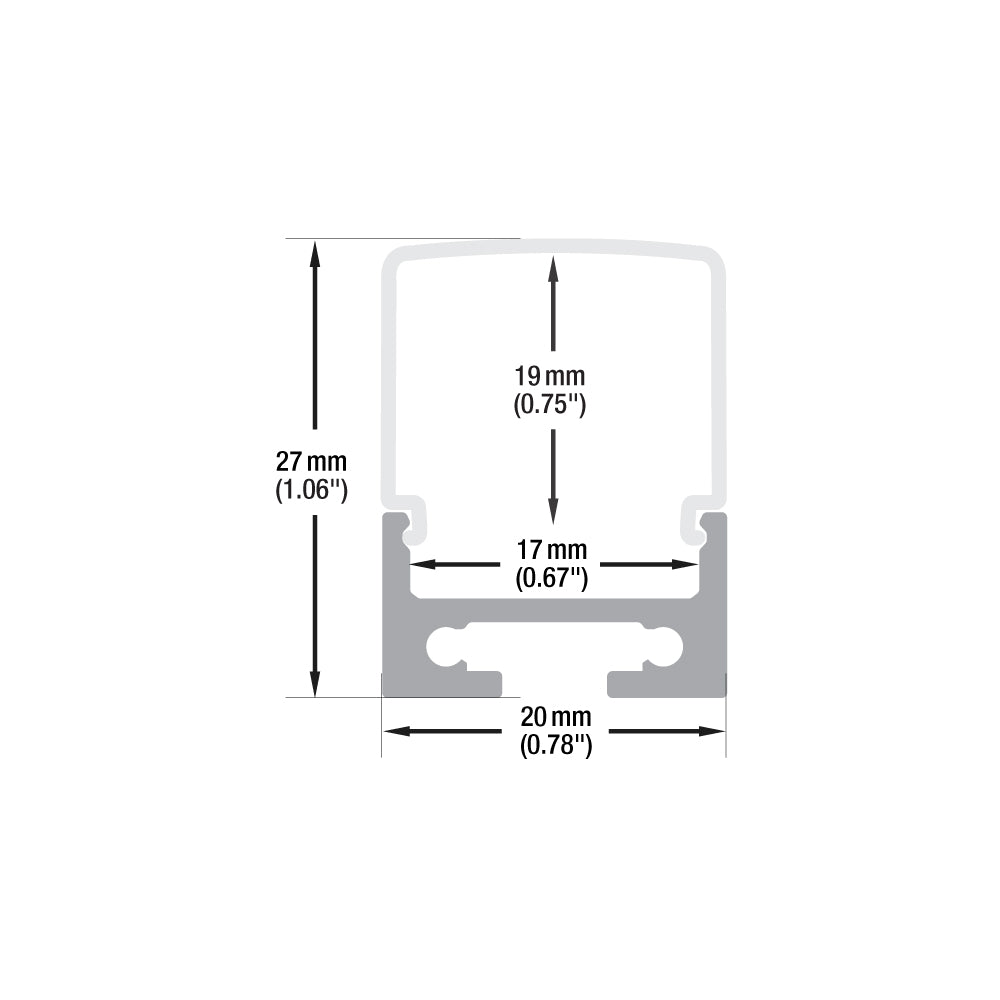

Dimensions 3000mm x 20mm x 27mm
(118in x 0.78in x 0.43in)
  • Mount using mounting clips
  • Suspended Mount using an aircraft cable
Extra Accessories (sold separately) 2 pairs Endcaps VBD-ENCH-RF3 SKU:666561426804
4 pcs Mounting clips VBD-CLCH-RF3 SKU:666561427221
1 pair Suspension Kit VBD-AIRC-10F-ERWS SKU: 666561417468



  • Comes in 9.8 feet/ 118 inches which can be cut into any custom size. We can also cut the channels and stick strip lights and pass along the right transformer.
  • Can be hanged using Aircraft cables or can also be mounted on the surface using double-sided tape.
  • Widely used as a pendant light using Aircraft cables
  • The most popular application is over the kitchen islands and billiard area giving more focused light for ambiance or task lighting.
  • Can be cut using a regular hack saw.
  • Can be used as a working light in a work area.
  • It Has a 3-side diffuser that helps in illuminating more light spreading more widely.
  • Applicable for cabinets, shelves, closets, ceiling, shower doors, windows, accent lighting, showcases in the stores, etc.
  • Several lengths can be positioned together.
  • Acts as a heat sink for the LED Strip installed in it, increasing the lifetime of  the LEDs
  • Comes with a frosted diffuser along with the end caps with wiring holes.
  • Endcaps can be easily mounted at the end of the project.
  • With inside width, 17 mm, 2 layers of strips (8 mm width) can be installed for more brightness depending upon the job.
  • The diffuser helps in reducing light glare.
  • The diffuser gives protection from dust and avoids any kind of damage to the LEDs.
  • The diffuser material is resistant to UV rays and also protects from moisture.
  • Lightweight and environment-friendly channel.
  • For any queries, contact us and we can guide you for any of our products.
