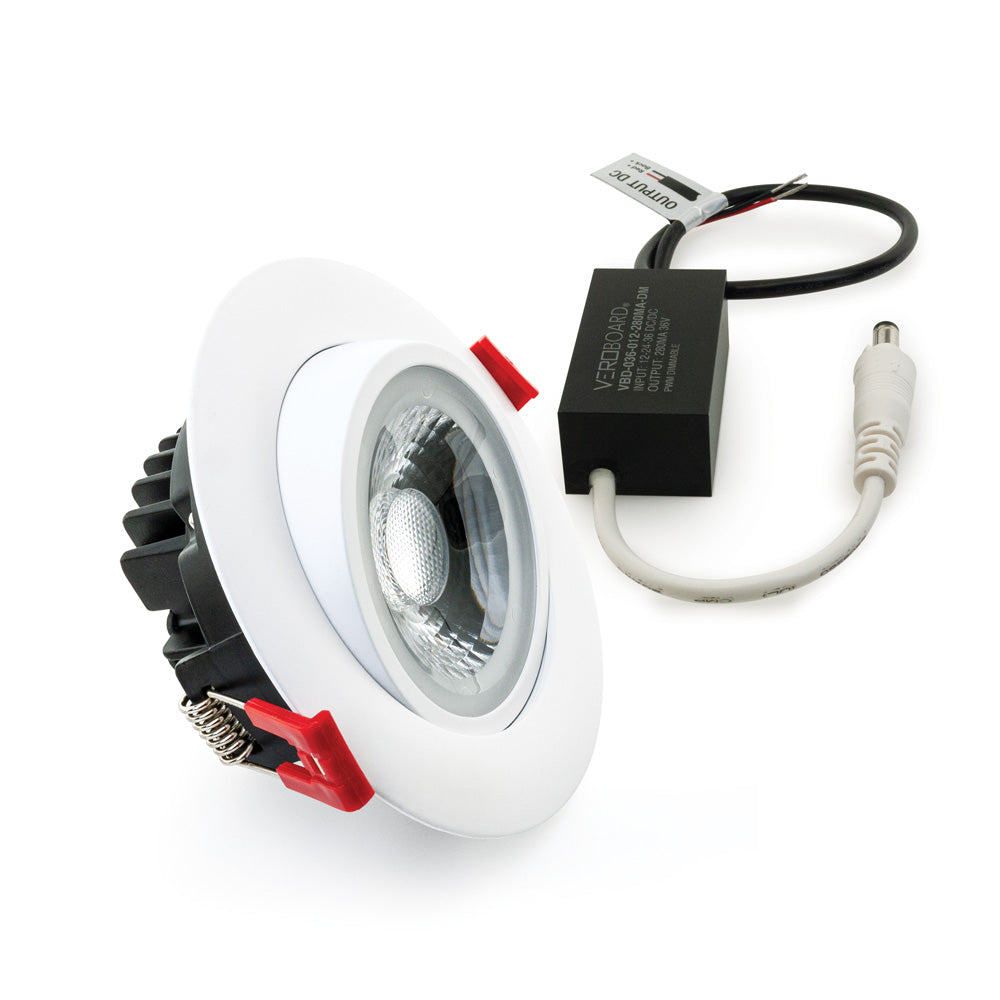

Description
| Model | AD-LED-4-S12W-1224V-5CCTWH-EY |
| Input Voltage | 12V~36V DC (Constant Voltage) |
| Output Voltage | 36V DC (Constant Current) |
| Output Current | 280mA |
| Wattage | 12W |

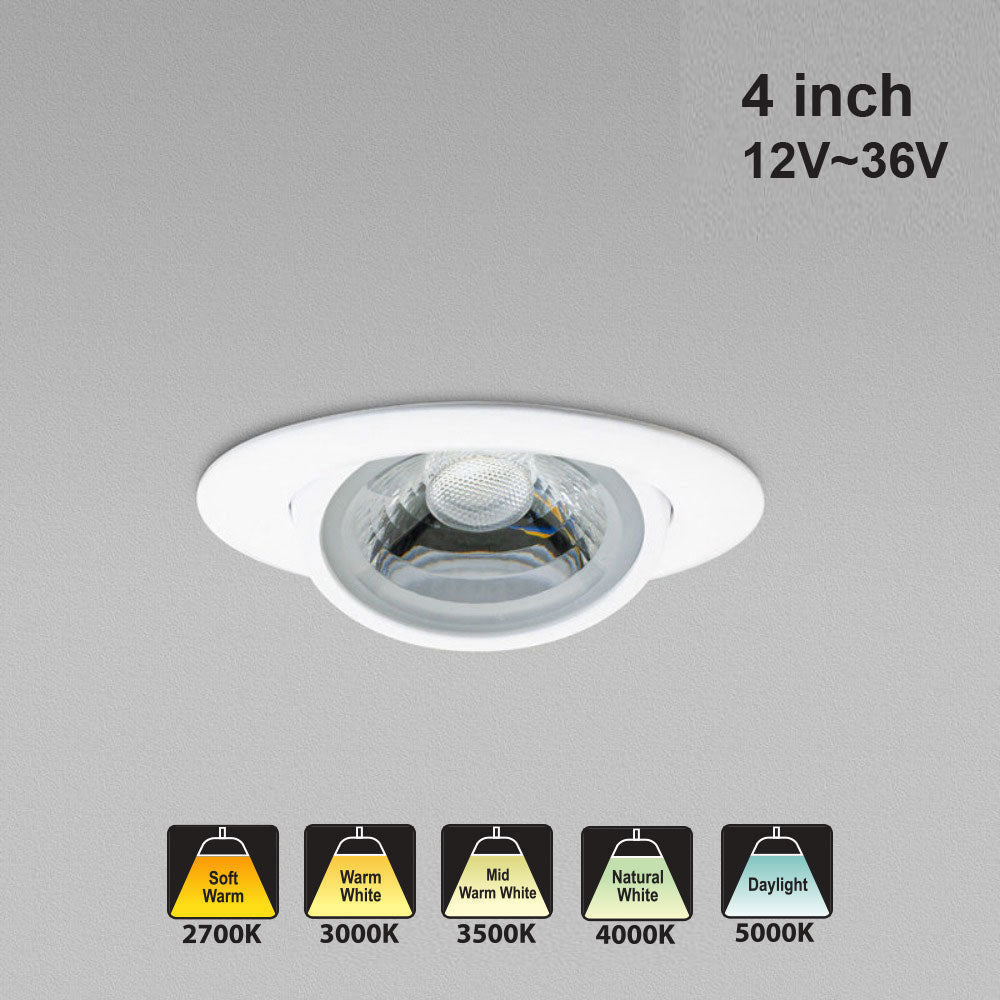

| Color Temperature: | 5CCT Selectable Color Temperature (2700K-3000K-3500K-4000K-5000K) |
| Brightness | 1000 Lumens |
| Beam Angle | 40° |
| Dimmable | Yes (PWM Dimmable) |
| Rendering Index | CRI>90 |
| LED Type | Integrated COB LED |
| LED Driver | IC Rated |
| IP Rating | IP44 |
| Outer Dimensions | 125mm x 50.50mm (4.9in x 2in) Depth |
| LED Driver | Included |
| Mounting Plate (Sold Separately) |
MP-UNV-346 SKU: 666561433796 MP4 SKU: 666561433789 |

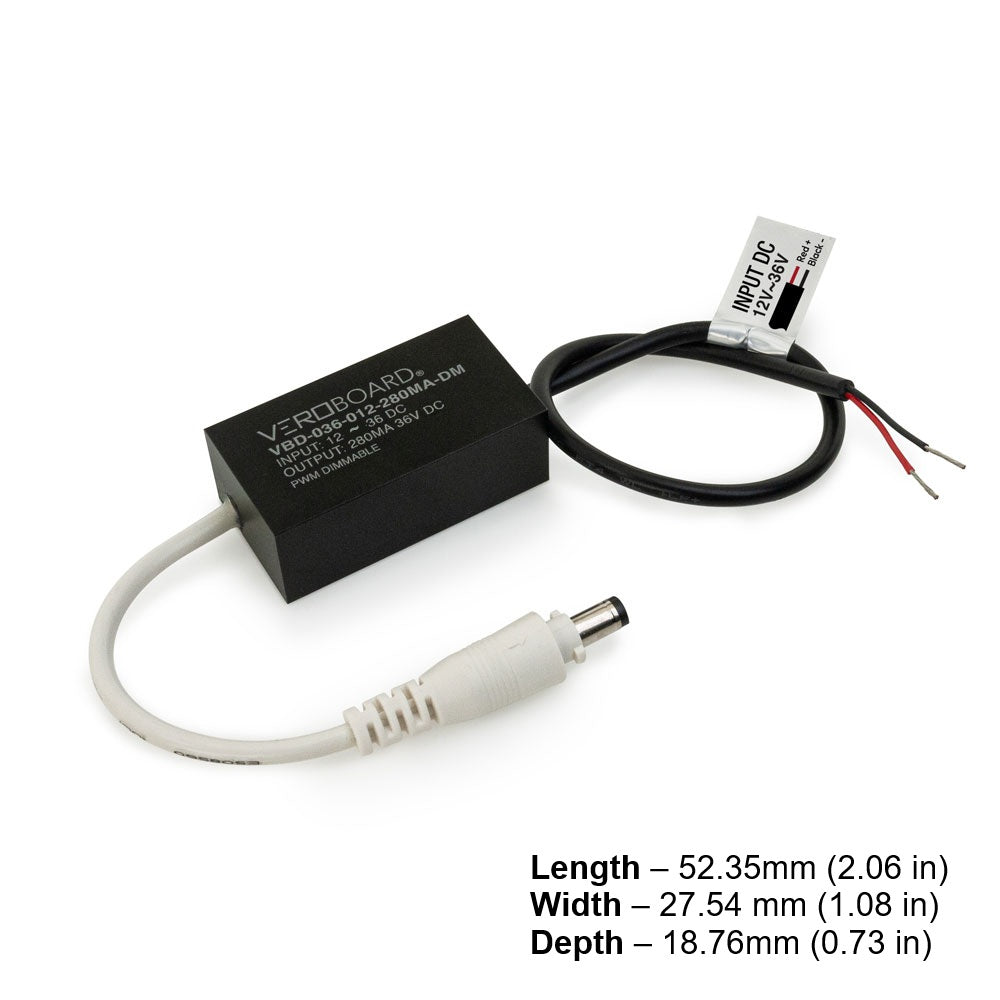

| LED Driver Dimensions |
Length – 52.35mm (2.06 inches) Width – 27.54 mm (1.08 inches) Depth – 18.76mm (0.73 inch) |
| Certification |

|
Features:
- This downlight is suitable for various indoor applications and has universal ceiling compatibility due to its adjustable angle feature.
- The temperature of the light can be adjusted to the desired application using the DIP switch located in the junction box.
- The junction box provides selectable color temperature options ranging from 2700K to 5000K.
- It is well suited for both residential and commercial indoor spaces.
- Bright, energy-efficient LED downlight provides reliable RV lighting, boat lighting, and camper interior illumination.
- Rugged, vibration-resistant design ensures dependable RV ceiling lighting and marine lighting performance on rough roads and waters.
- Moisture-resistant marine LED light is safe for RV bathrooms, boat galleys, and other damp areas.
- Compact, easy-to-install fixture with recessed or surface mounting options fits tight spaces in RVs, caravans, yachts, and sailboats.
