Description
| Model | OTM-VPA20-DIP |
| Input Voltage | 120-277V AC |
| Input Wattage | 25.5W |
| Input Current | 0.3A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 3-42V |
| Output Power | 20W max |

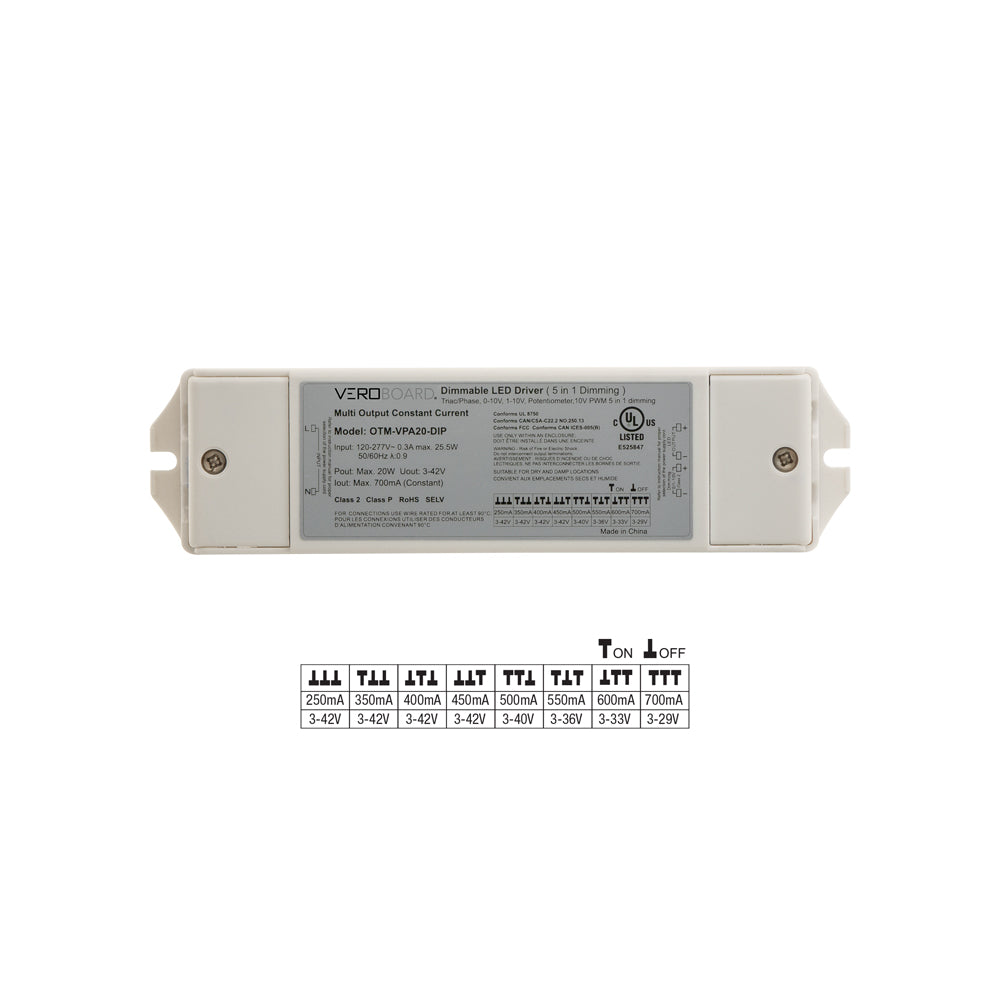

| Output Regulated Current | 250mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 700mA |
| Dimmable | Yes (Triac/Phase, 0-10V, 1-10V, Potentiometer, 10V PWM 5 in 1 Dimming) |
| IP Rating | IP20 (Indoor Rated) |

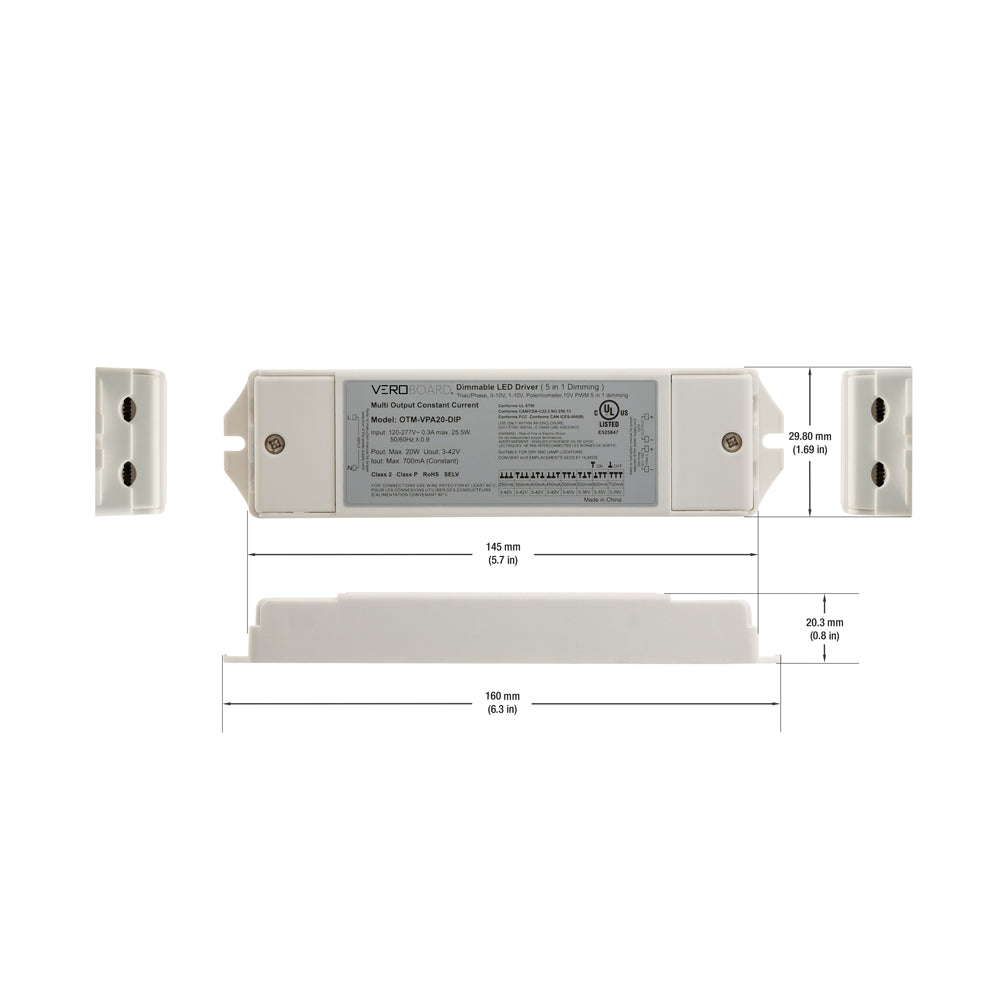

| Dimensions | 145 x 29.80 x 20.30mm (5.71 x 1.17 x 0.80 in) |
| Class Certification | Class 2, Class P |
| Certification |
  |
Features:
- Operates on a wide input voltage range of 120-277V AC, ensuring compatibility with diverse electrical systems.
- Low input current of 0.3A and a frequency of 50/60 Hz optimize energy consumption while maintaining a stable power supply.
- Offers a versatile output voltage range from 3-42V, accommodating various LED configurations for customized lighting solutions.
- Enhances control with dimmable options supporting Triac/Phase, 0-10V, 1-10V, Potentiometer, and 10V PWM 5 in 1 dimming choices.
- Designed for indoor use with an IP20 rating, ensuring reliability in various indoor environments.
