Description

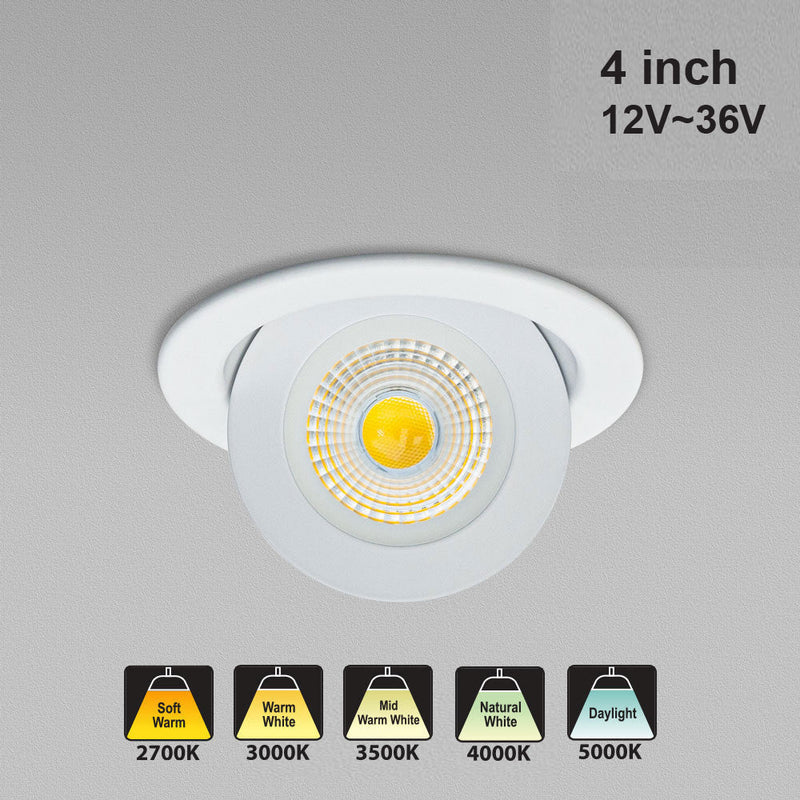

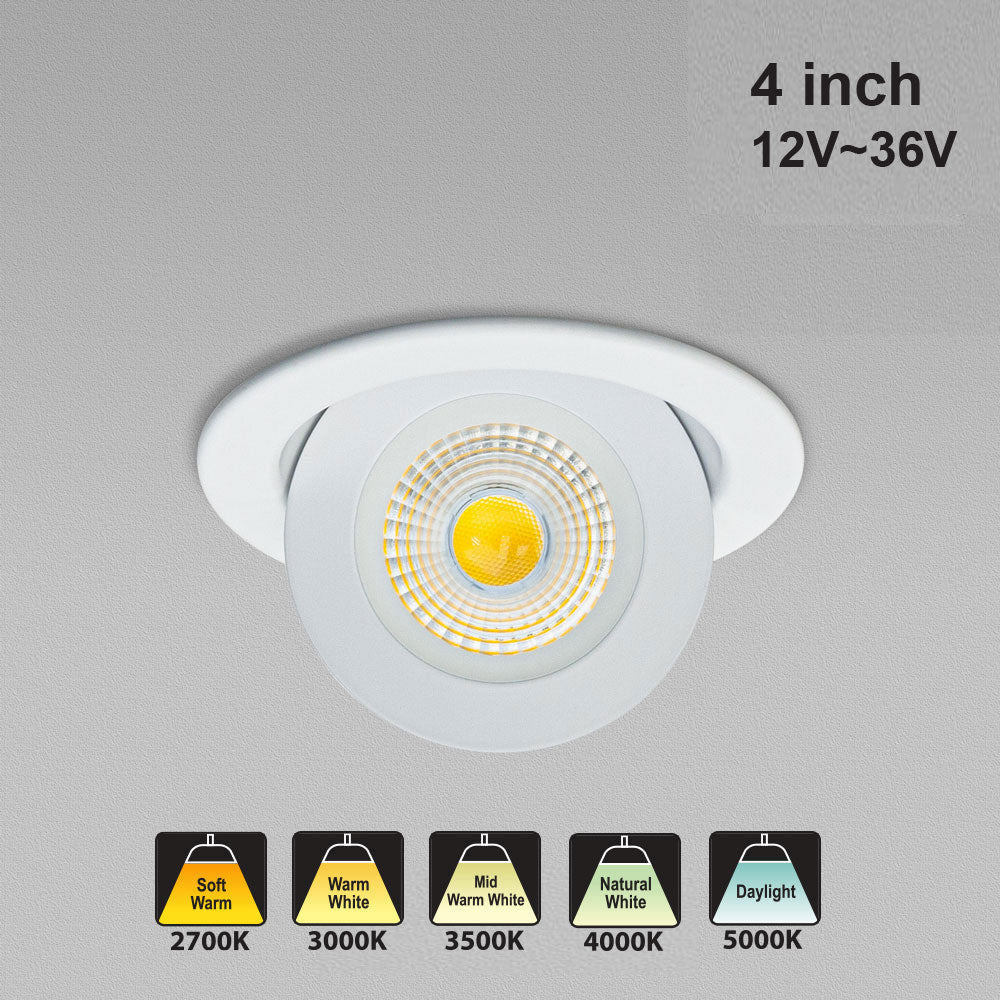

| Model | LED-4-S9W-1224V-5CCTWH-EFG |
| Input Voltage | 12V~36V DC (Constant Voltage) |
| Output Voltage | 36V DC (Constant Current) |
| Output Current | 280mA |
| Wattage | 9W |
| Color Temperature | 5CCT Selectable Color Temperature (2700K-3000K-3500K-4000K-5000K) |
| Brightness | 700 Lumens |
| Beam Angle | 38° |
| Dimmable | Yes (PWM Dimmable) |
| Rendering Index | CRI>90 |
| LED Type | Integrated COB LED |
| LED Driver | IC Rated |
| IP Rating | IP44 |
| Outer Dimensions | 125.24mm x 38mm (4.93in x 1.5in) Depth |
| LED Driver | Included |
| Mounting Plate (Sold Separately) |
MP-UNV-346 SKU: 666561433796 MP4 SKU: 666561433789 |

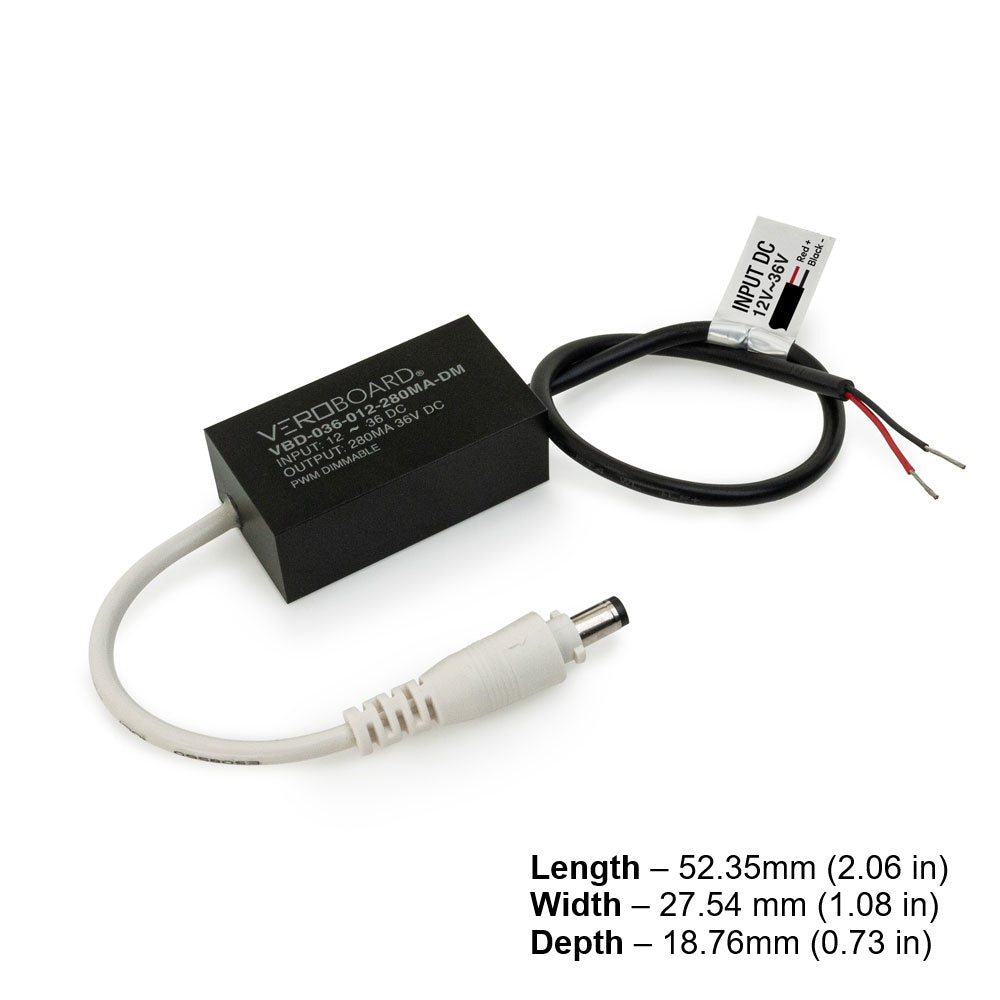

| LED Driver Dimensions | Length – 52.35mm (2.06 inches) Width – 27.54 mm (1.08 inches) Depth – 18.76mm (0.73 inch) |
| Certification |

|
Features:
- Versatile downlight suitable for various indoor applications
- Universal ceiling applications with adjusting angle feature
- Adjustable light temperature from the junction box DIP switch to fit the desired application
- Selectable color temperature options (2700K-3000K-3500K-4000K-5000K) from the junction box
- Well suited for both residential and commercial indoor spaces
- Bright, energy-efficient LED downlight provides reliable RV lighting, boat lighting, and camper interior illumination.
- Rugged, vibration-resistant design ensures dependable RV ceiling lighting and marine lighting performance on rough roads and waters.
- Moisture-resistant marine LED light is safe for RV bathrooms, boat galleys, and other damp areas.
- Compact, easy-to-install fixture with recessed or surface mounting options fits tight spaces in RVs, caravans, yachts, and sailboats.
