Description
| Model No |
5WW14E33-Y6C (For 3000K, 3500K) |
| Voltage |
15-17V DC(For 3000K) |
| Wattage | 5W |
| Current | 350mA |
| Available Color Temperature | 3000K(Warm White) 3500K (Mid-Warm White) 4000K (Natural Light) 6000K (Cool White) |
| Luminous Flux | 300-350lm (For 3000K) & 350-450lm (For 3500K, 4000K, 6000K) |
| Material | Metallic base |

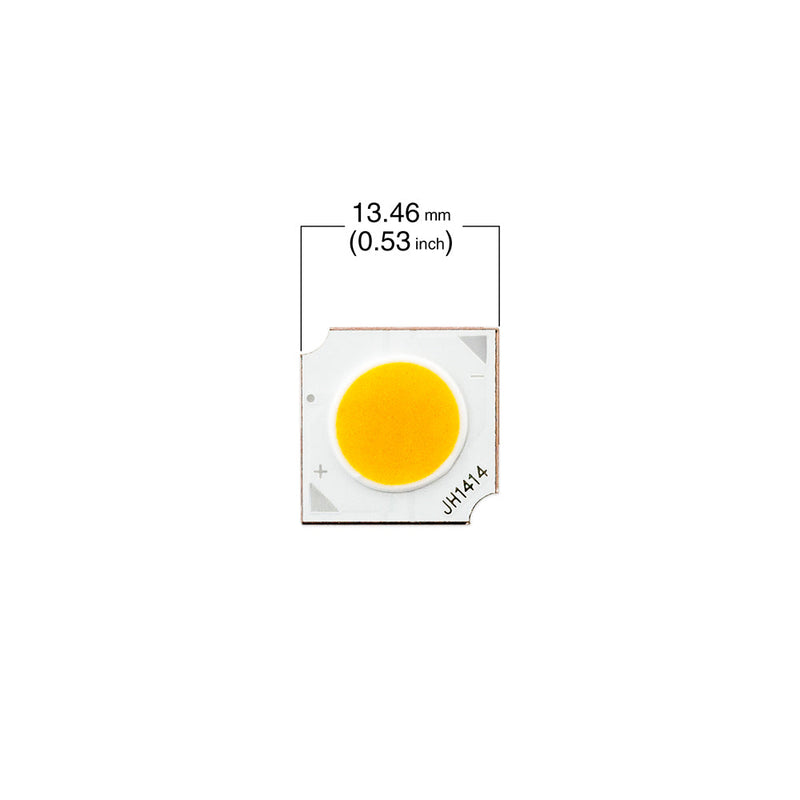

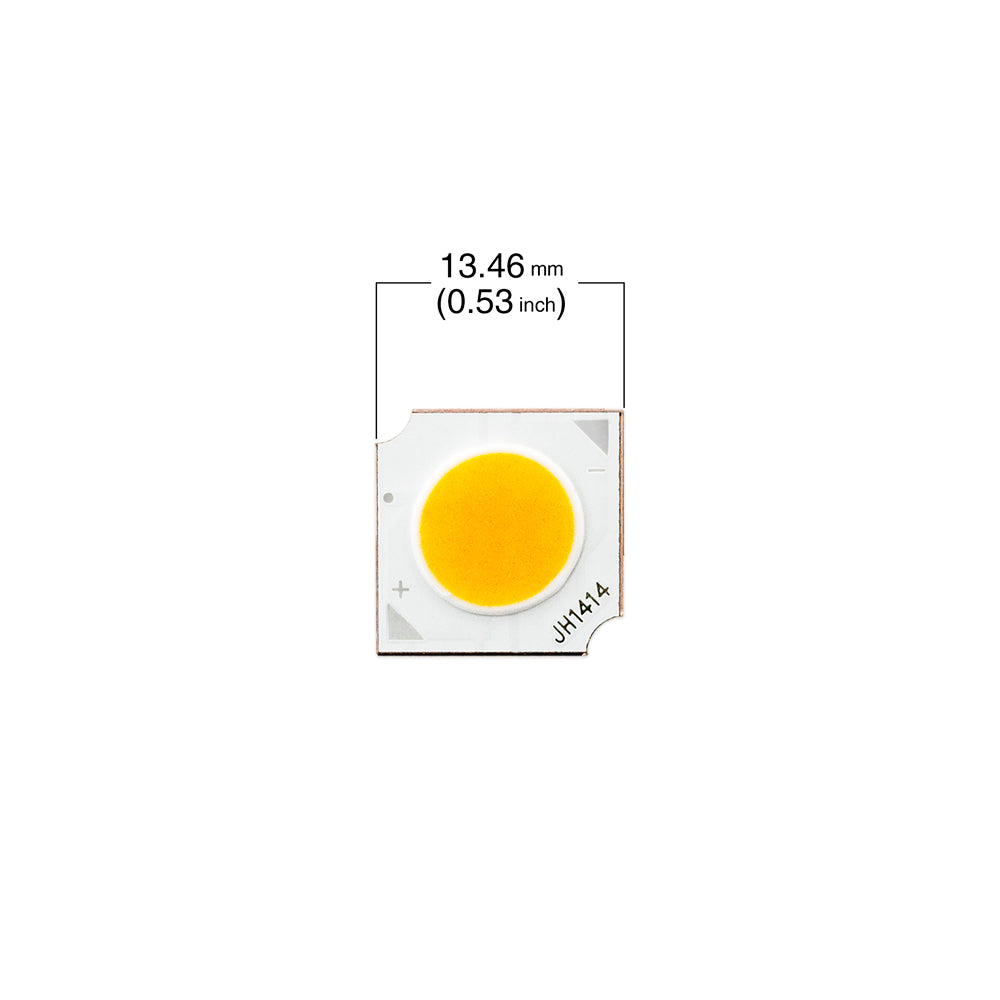

| Dimensions | 13.4 x 13.4 x 1.5mm (0.5 x 0.5 x 0.05inch) |
Features:
- The Constant Current COB LED Module provides low power consumption and high energy efficiency.
- Model number: 5WW14E33-Y6C (for 3000K, 3500K) and 5W14E33-Y6C (for 4000K, 6000K).
- Voltage range: 15-17V DC (for 3000K) and 14-16V DC (for 3500K, 4000K, 6000K).
- Wattage: 5W and current: 350mA. Luminous flux: 300-350lm (for 3000K) and 350-450lm (for 3500K, 4000K, 6000K).
- Dimensions: 13.4 mm x 13.4 mm (0.5 inch x 0.5 inch) with a metallic base material.
- Available in different color temperatures: Warm White, Natural White, and Cool White.
- Good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage.
- Provides high-quality illumination and is energy-efficient and versatile in its applications.
- Use Thermal Grease or Thermal Pad for installation.
