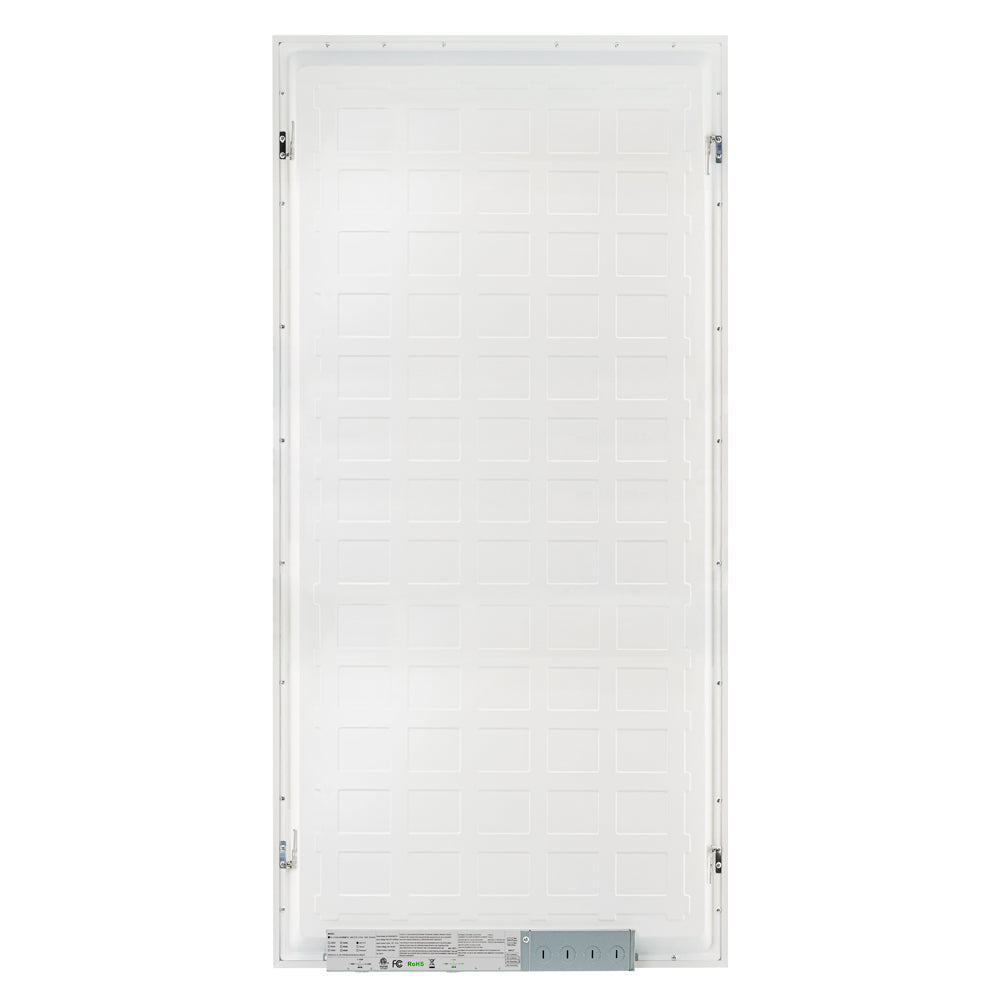

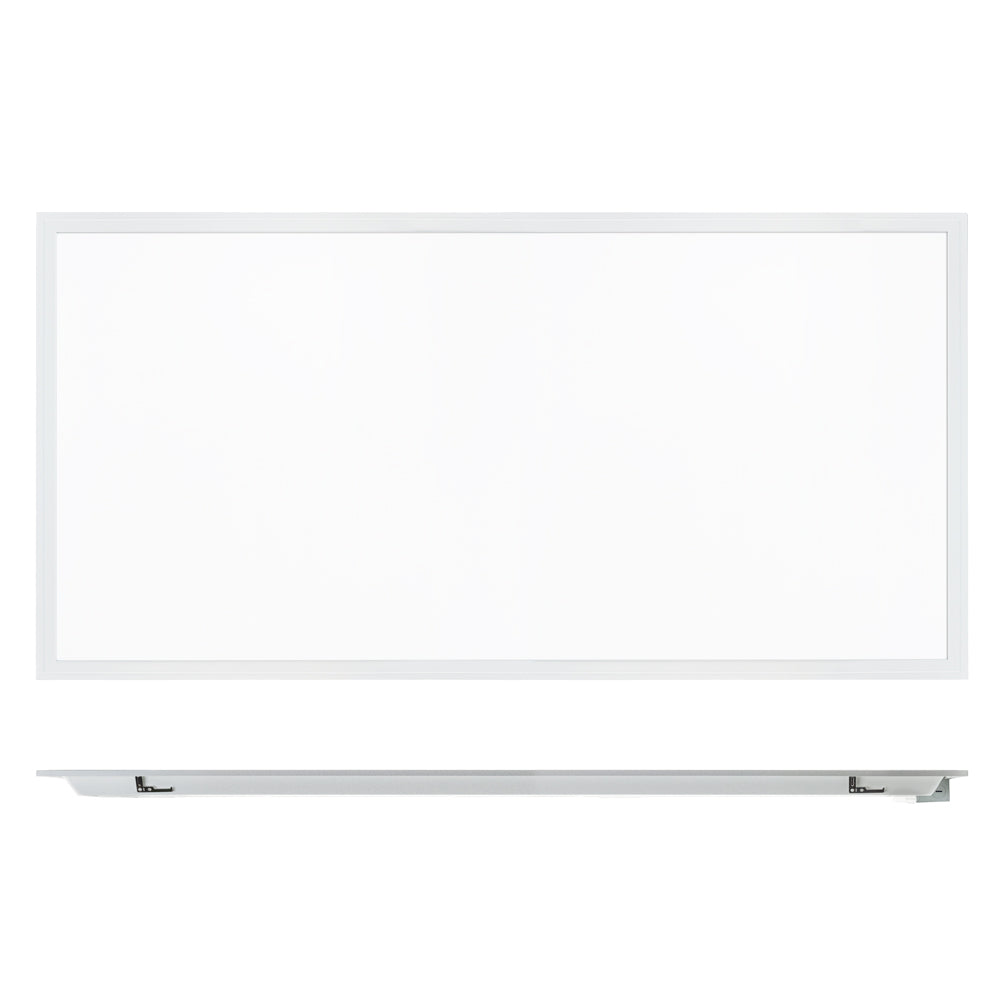

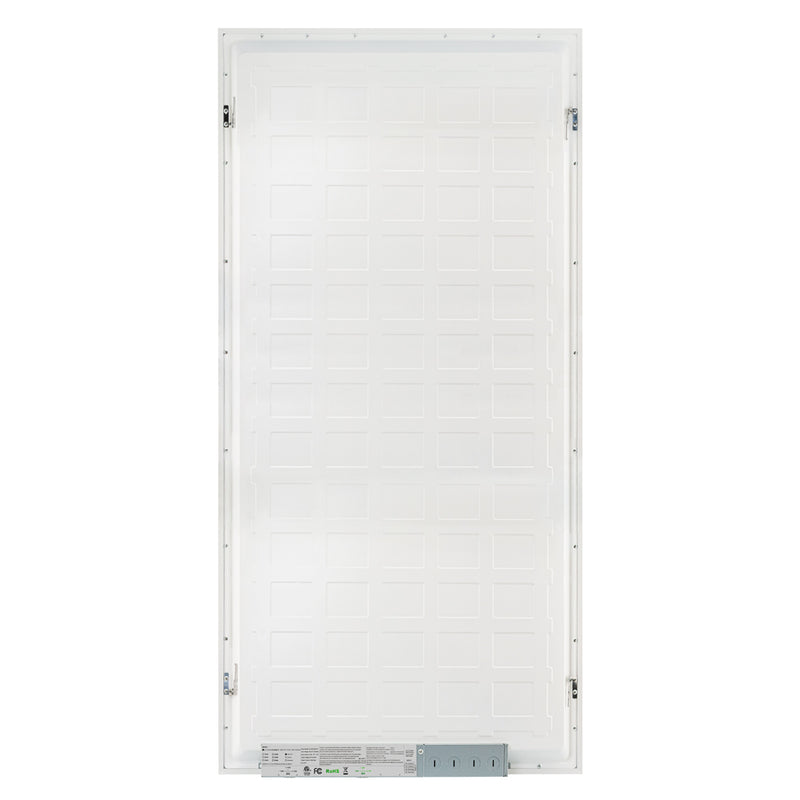

2ft x 4ft LED Panel 120V Dimmable LED Backlit Panel Light 0-10V dimming 3CCT

SKU: 666561418311

Inquiry

Description

Model AL-LT-xxWyyK1206
Voltage 100-277V AC
Input Current 0.55A
Output Voltage 80-140V
Output Current 0.36A Max.
Wattage 50W
Trim Color White

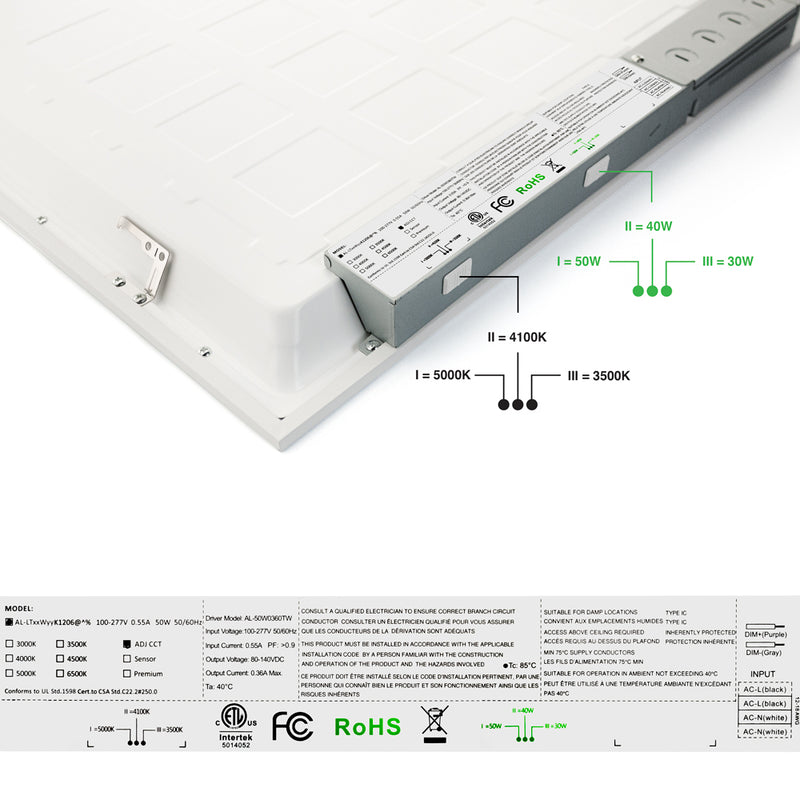

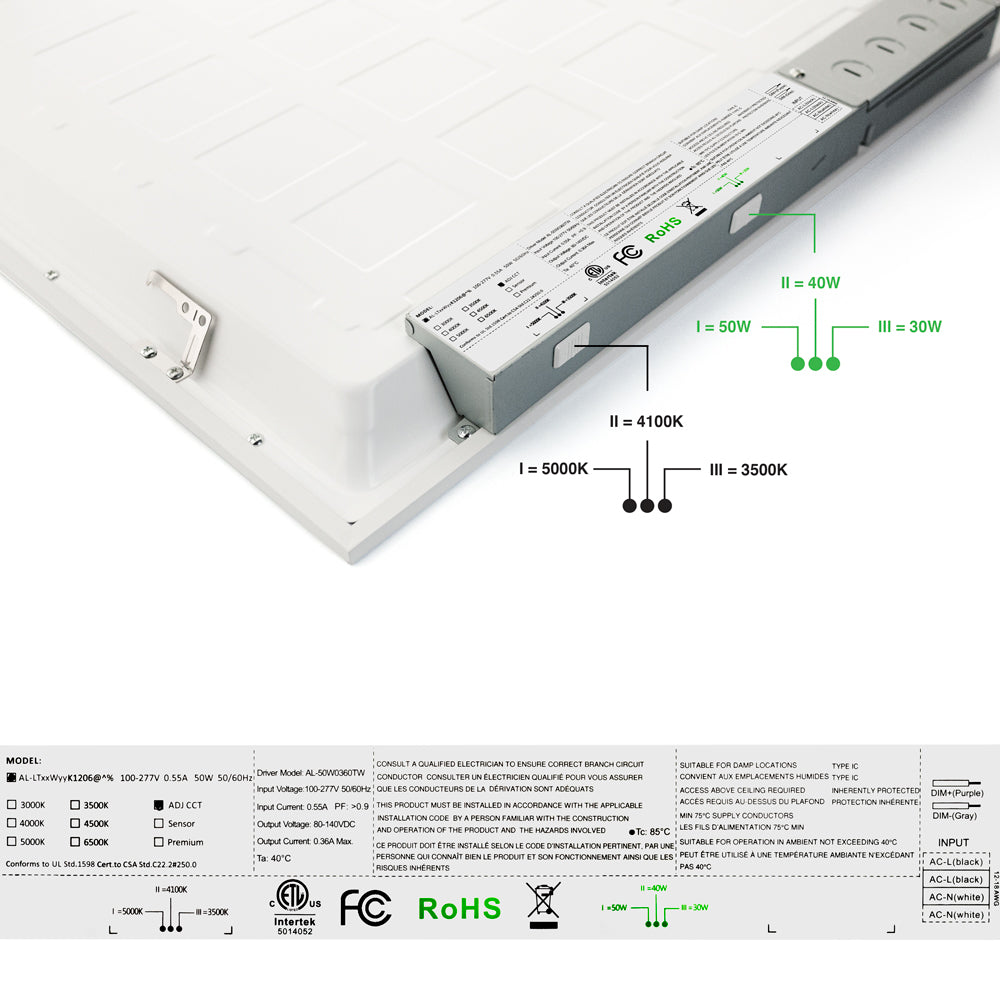

Driver Model AL-50W0360TW

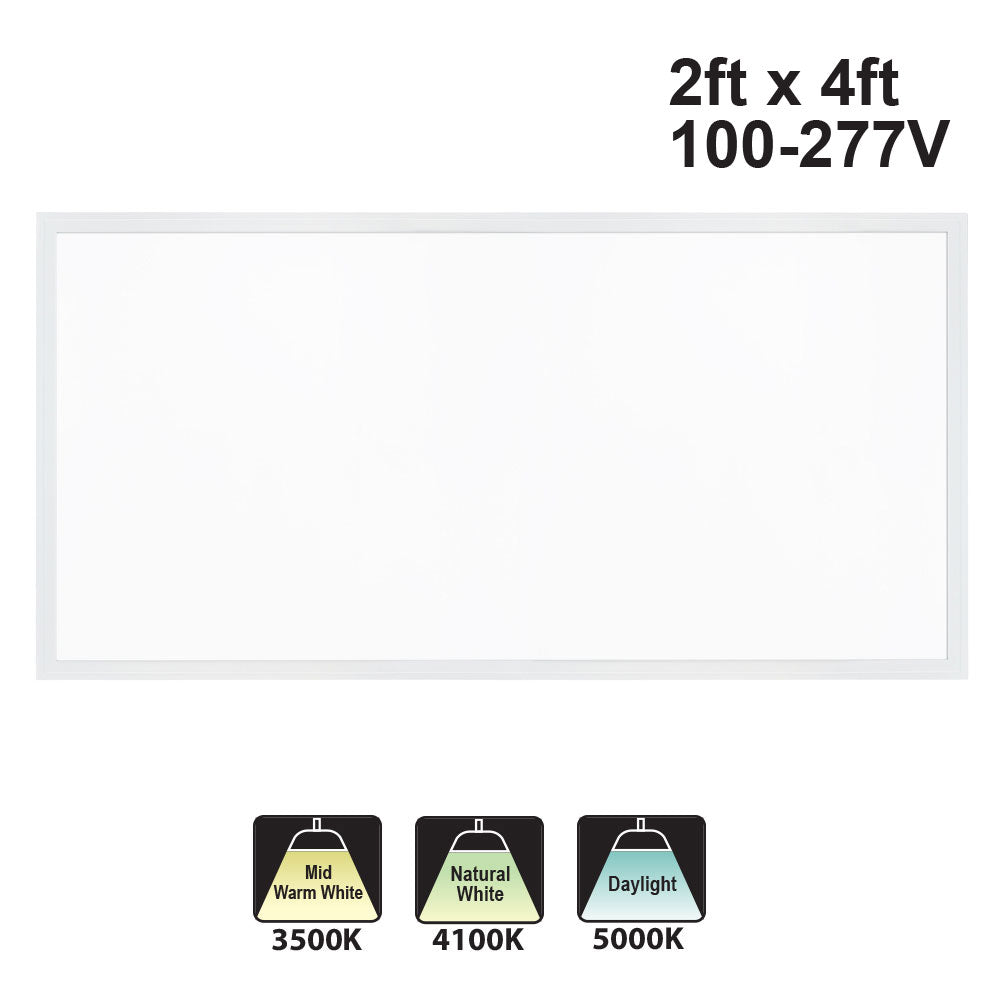

Color Temperature  Adjustable Color Temperature (3500K, 4100K, 5000K)
Dimmable Yes (0-10V Dimmable)
Brightness 5000 Lumens
Rendering Index CRI>80
IP Rating IP20 (Indoor Use only)
Installation Recessed Mount (on T-bar Ceiling)
Suspended Mount (using Aircraft Cable)(Sold Separately)

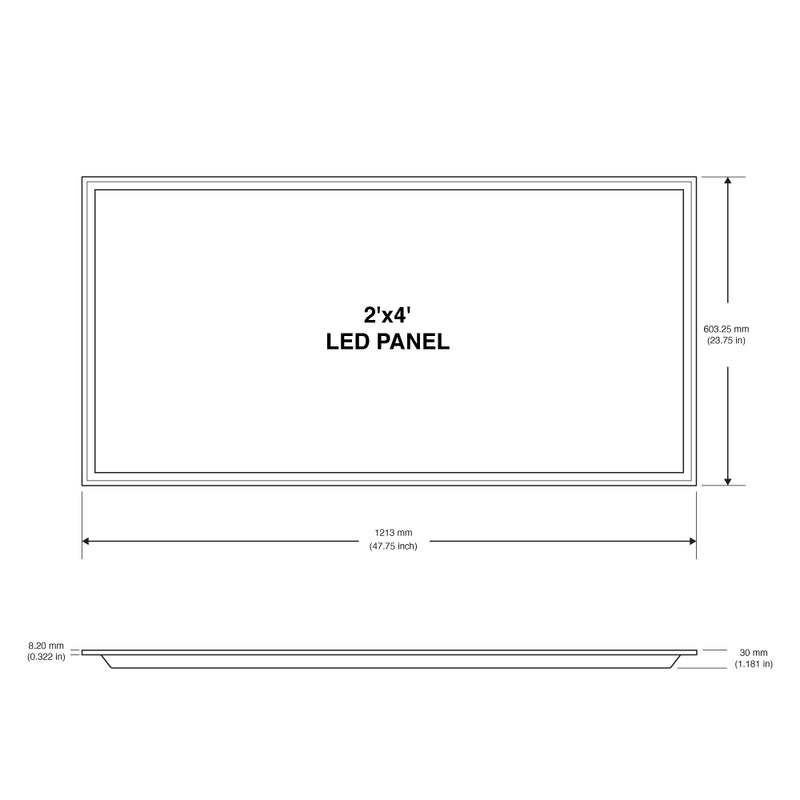

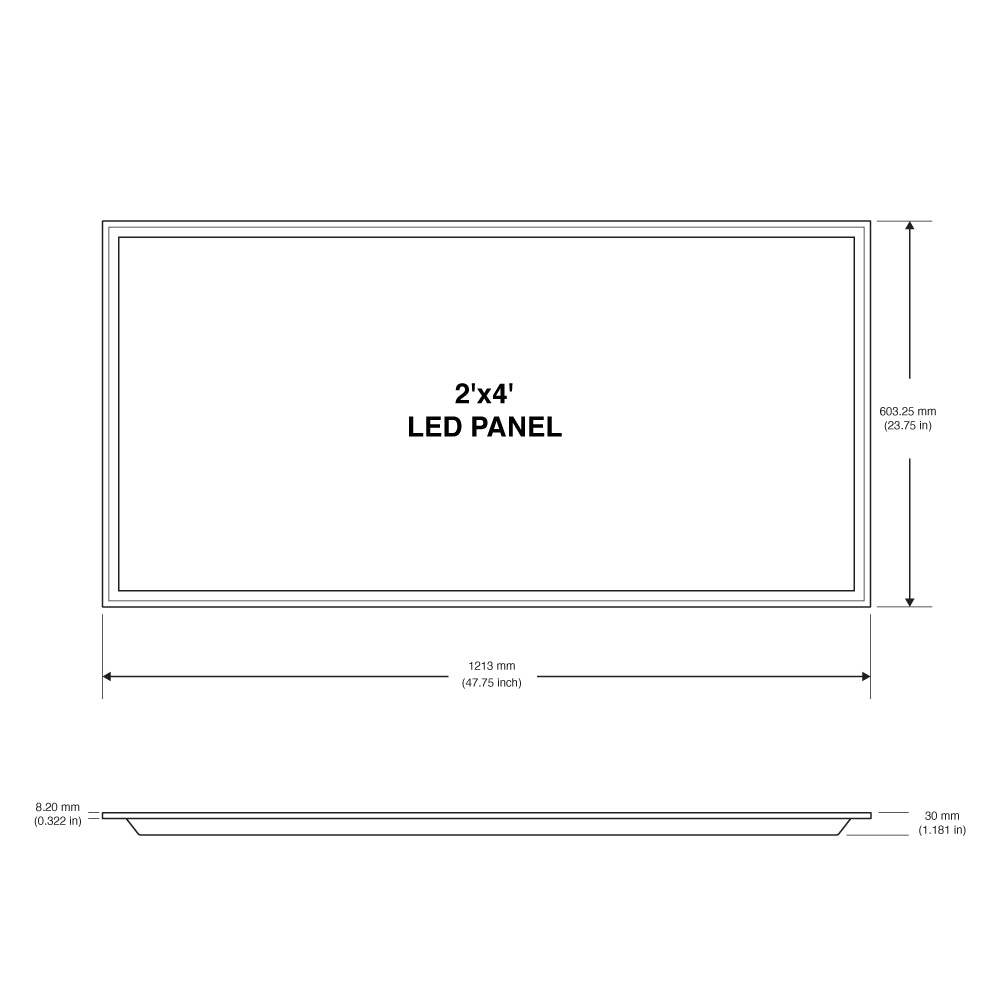

Dimensions Length- 47.75 inches (1213 mm)
Width 23.75 inches (603 mm)
Depth- 1 inch (30 mm)


Feature:

  • Fits perfectly in a 2 ft by 4 ft cut size T-bar ceiling.
  • Can also be mounted on a regular ceiling using Surface Mounting Brackets

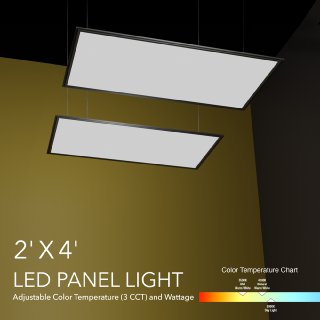

  • Can be suspended using Aircraft Cables.
  • Available in single color temperatures (3000k, 4000k, 5000k) in the same size.
  • We also carry adjustable changing color temperatures LED Panel light of the same size
  • Ultraslim and low profile panel with thickness less than a half-inch.
  • Has a high-quality reflector, that avoids glaring.
  • Is a good replacement for a fluorescent tube.
  • Can be dimmed using a 0-10v dimmer.
  • light is integrated at the sides within the fixture. provides even light distribution without flicker.
  • Widely applicable for the ceiling in both commercial and residential buildings
  • Comes along with the steps for easy installation using all the above 3 methods (flush-mounted on T-bars, surface mounted using brackets, or suspended using aircraft cables).
  • Popular applications of surface mount panels in the office and suspended installation in warehouses.
  • Has a lifespan of 50,000 hours.
  • Dissipates very less heat and is safe to touch.
  • Suitable for Dry and Damp Locations.
  • Is an eco-friendly product, free from UV or any hazardous materials with RoHS certification.
  • Can download the full specification sheet or can also contact us for more details
  • Contact us for assistance with any of our quality products if required.
  • Shipment available, depending upon the location.
  • Have 2 years of store warranty.
