Description
Model No | VBD-DR-DIM-60-12V |
Input Voltage | 120V AC, 60Hz |
Output Voltage | 12V DC |
Wattage | 60W |
Output Current | 5A |
Class Certification | Class 2 |
Switching | Single Pole / 3-Way |
IP Rated | IP20 |
Dimming | 100% - 0.3% Load Sensing Auto-trim |

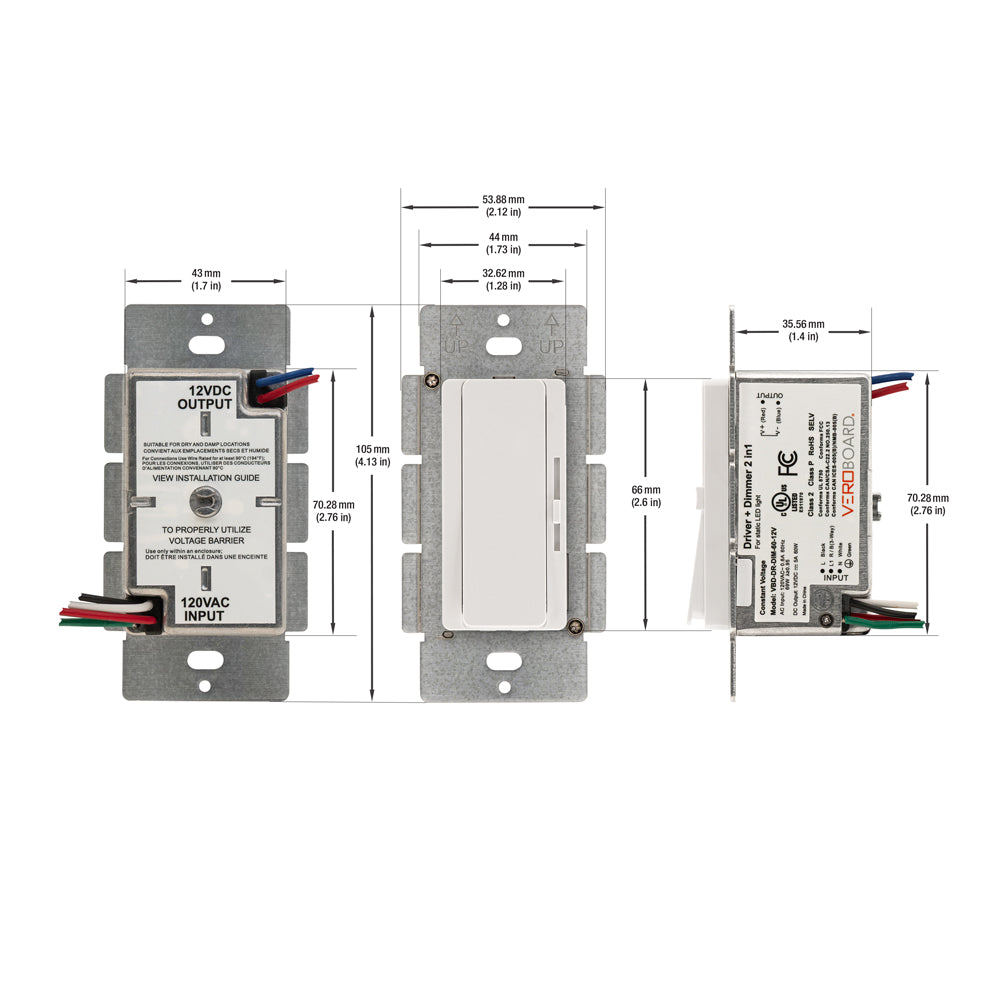

Dimensions | 105 x 53.8 x 35.56 mm (4.1 x 2.1 x 1.4 in) |
Certification | ![]() |

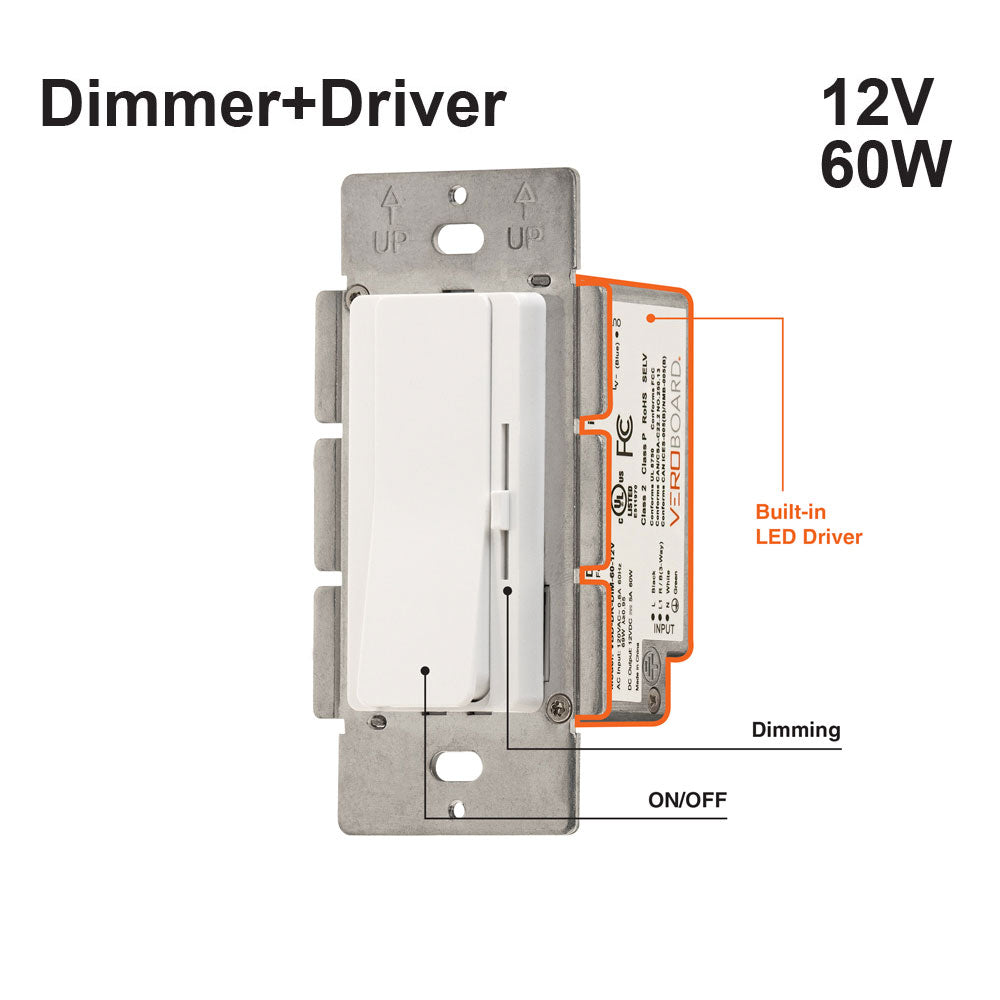

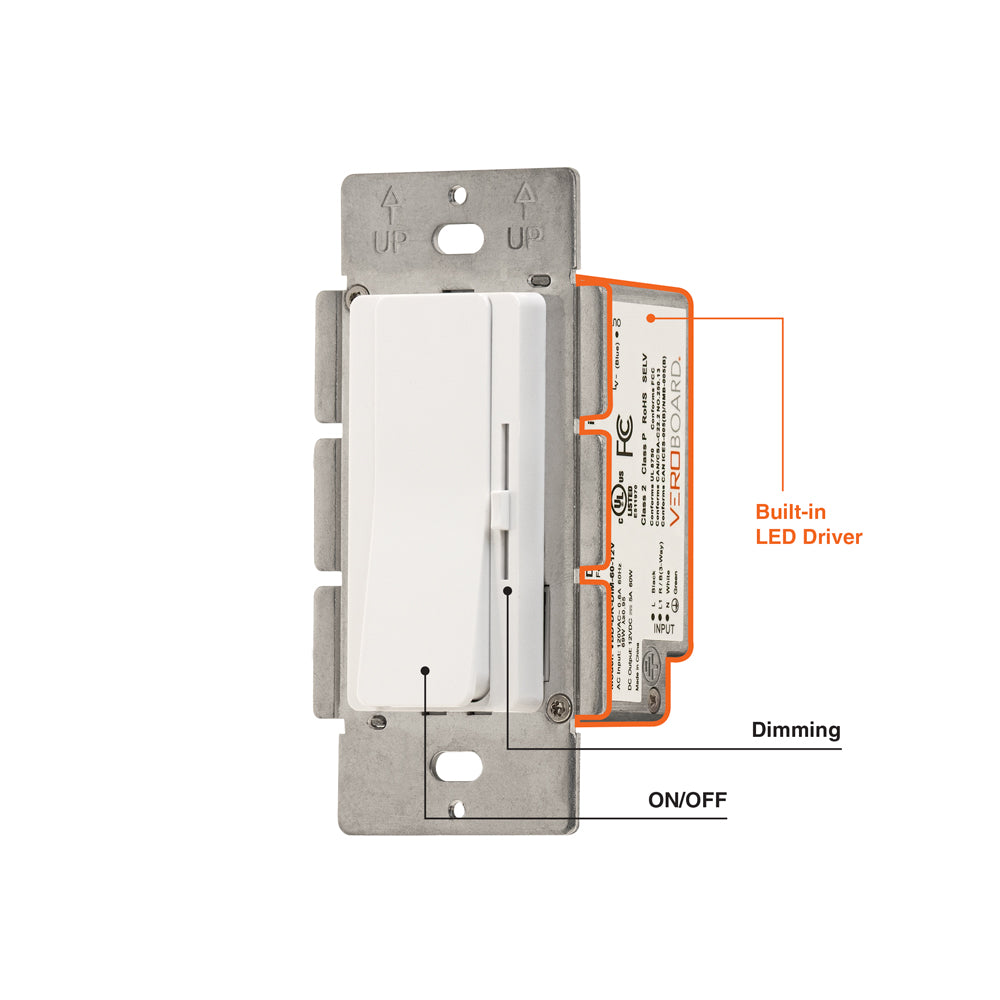

Feature:
- 2-in-1 Design: Combines constant voltage driver and dimmer into one compact unit, reducing installation time and components.
- Designed for 12V LED Systems: Provides up to 60W (5A) output with stable 12V DC from 120V AC input (60Hz).
- Smooth Dimming: Offers dimming from 100% down to 0.3%, compatible with single-pole and 3-way switches.
- Auto Load Adjustment: Load-sensing auto-trim feature ensures optimal output based on connected load.
- Indoor Rated and Certified: IP20 rated for dry locations; UL, FCC, and RoHS certified for safety and reliability.
- Ideal Applications: Perfect for LED strip lights, under-cabinet lighting, and other space-conscious low-voltage setups.
