Description
| Model | EDHW-2496AL |
| Input Voltage | 120 – 277V AC |
| Input Current | 1.03A |
| Frequency | 50/60Hz |
| Power Factor | 0.9 |

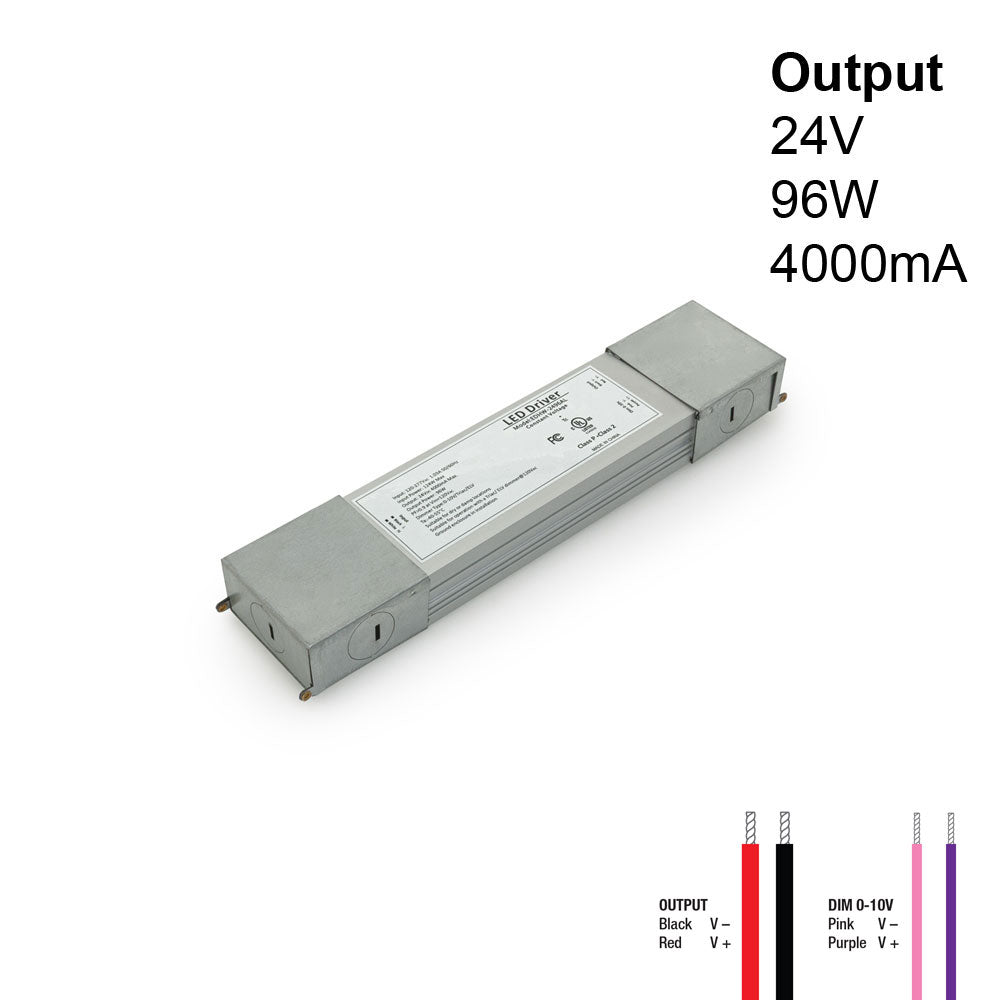

| Output Voltage | 24V DC |
| Output regulated Current | 4000mA |
| Output Power | 96W max |
| Dimmable: | Yes (0-10V/Triac/ELV Dimming) |
| Class Certification | Class P . Class 2 |
| IP Rating | IP20 (Dry or Damp Locations) |

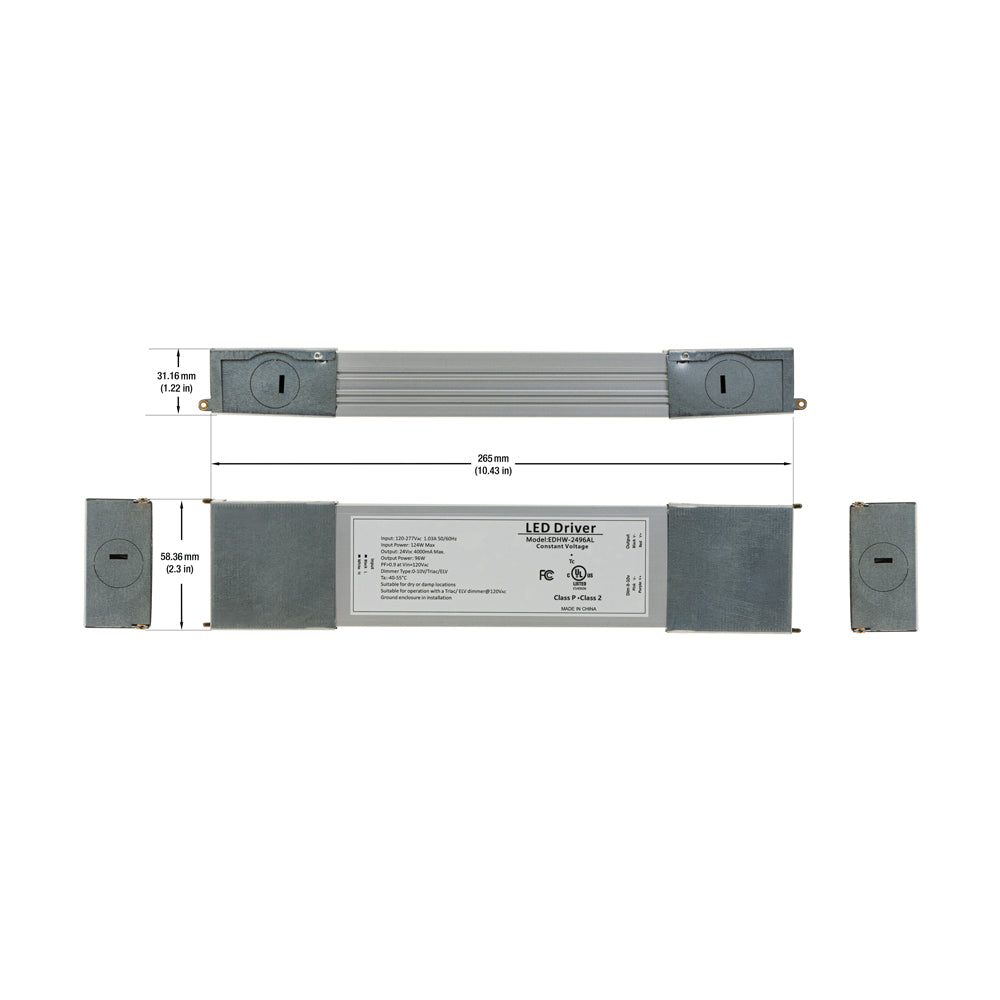

| Dimensions | 265 x 58.36 x 31.16mm (10.4 x 2.3 x 1.2 in) |
| Certifications |   |
Features:
- It operates with an input voltage range of 120-277V AC and an input current of 1.03A, with a frequency range of 50/60Hz.
- The LED driver has a power factor of 0.9, indicating high energy efficiency.
- Provides a regulated output voltage of 24V DC with a maximum output power of 96W and an output regulated current of 4000mA, suitable for powering high-power LED lights.
- Features 0-10V/Triac/ELV dimming capability for greater flexibility in controlling the brightness of LED lights.
- Designed for Dry or Damp Locations, providing resistance to moisture, dust.
- Certified with Class P and Class 2 certification, indicating compliance with safety standards for use in hazardous locations.
