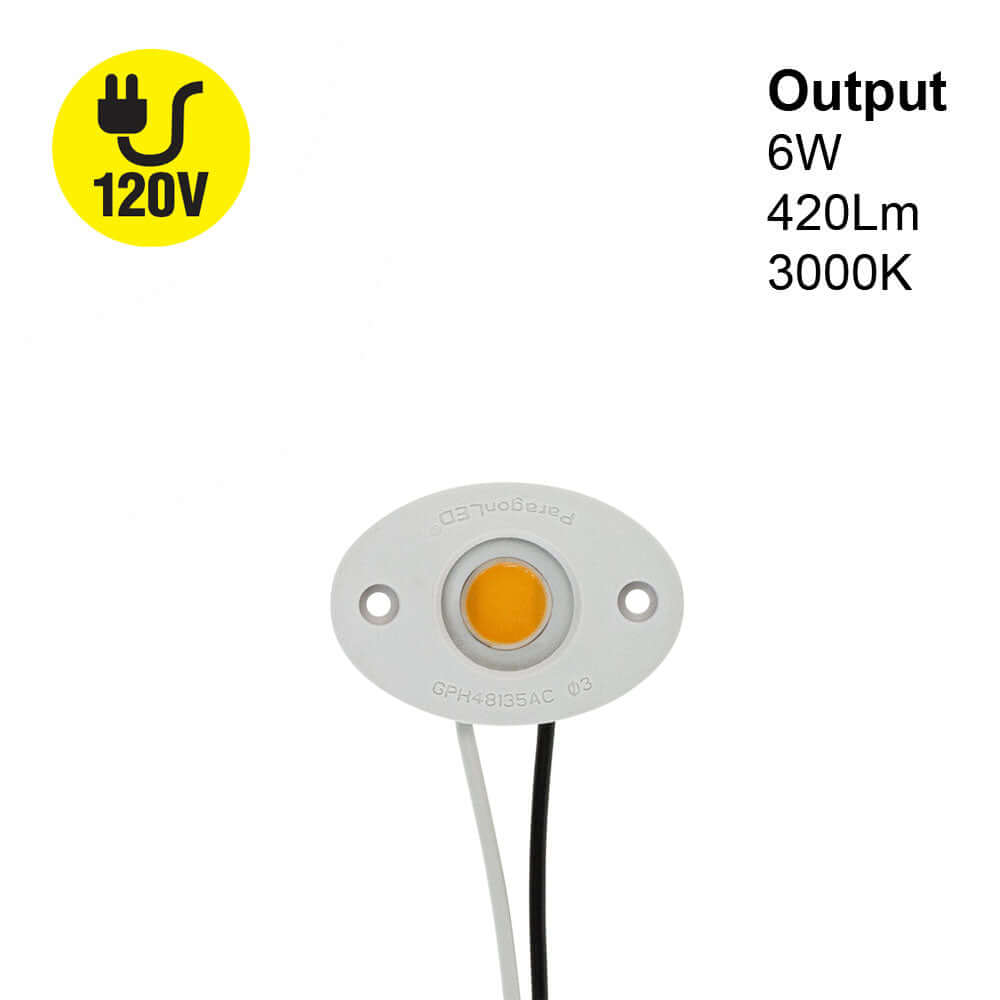

COB Paragon LED Module 120V 6W 420Lm CCT(2.7K, 3K, 4K), CDAC-20-30135-120V-30 with GPH48135AC LED Holder

Product Description

Product	Paragon LED Module

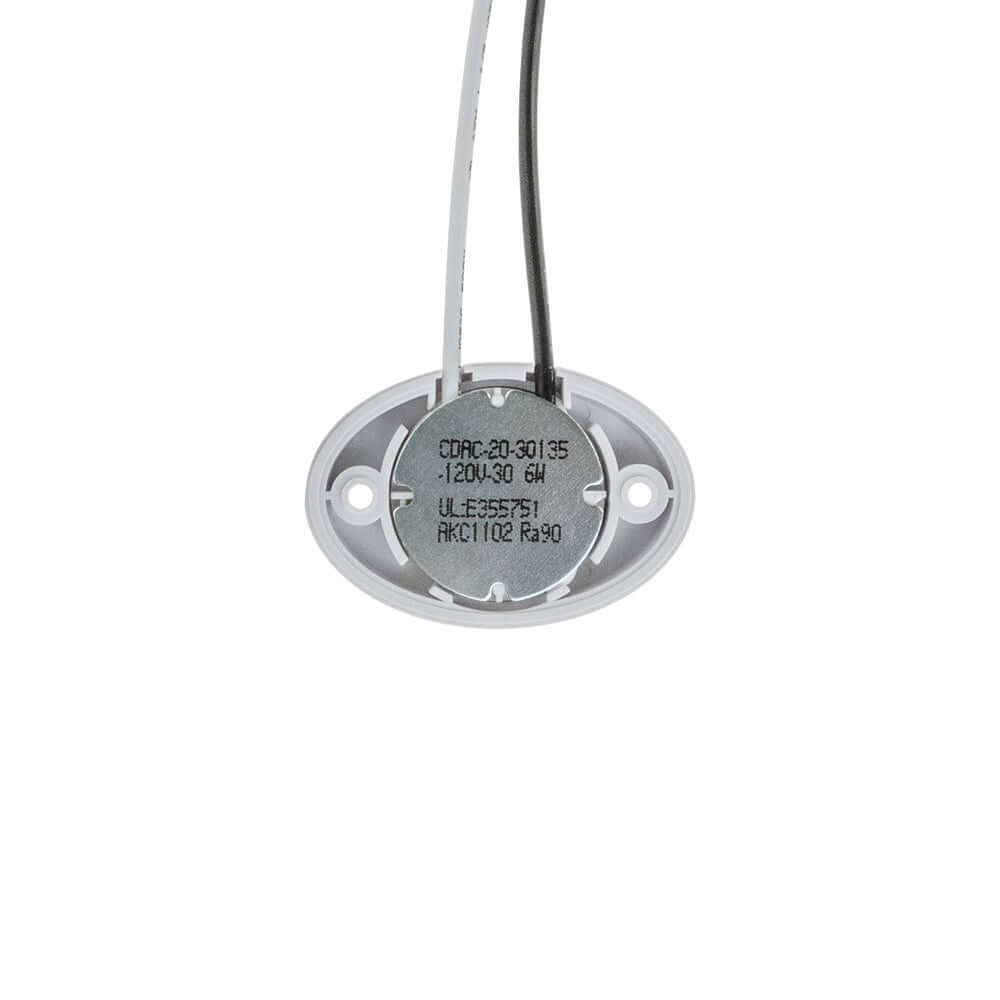

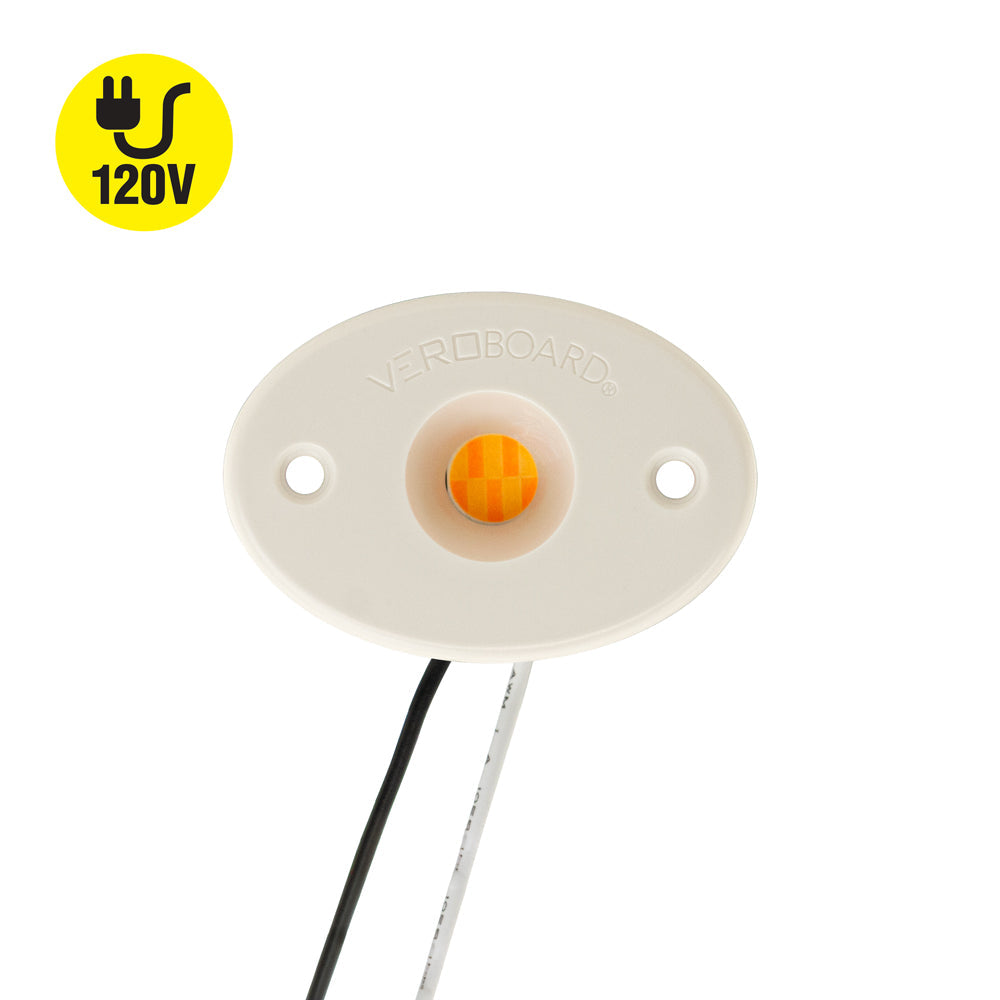

Model No	CDAC-20-30135-120V-30 (Paragon) VBDMDL-553839-06W-9XXK-120V (Veroboard)

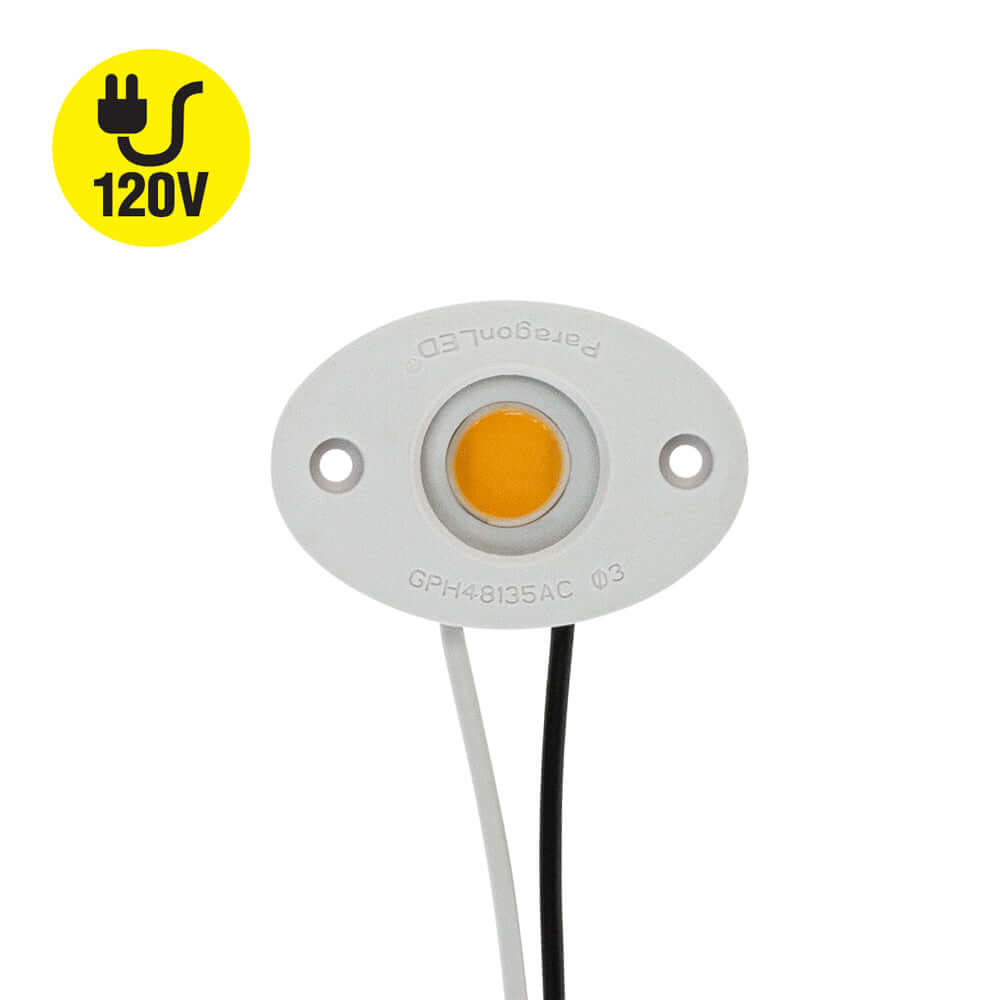

COB Holder Model No	GPH48135AC
LED Type	COB LED
No LED chips	20
Wattage	6W
Voltage	120V AC
Luminous Intensity	420 lumens

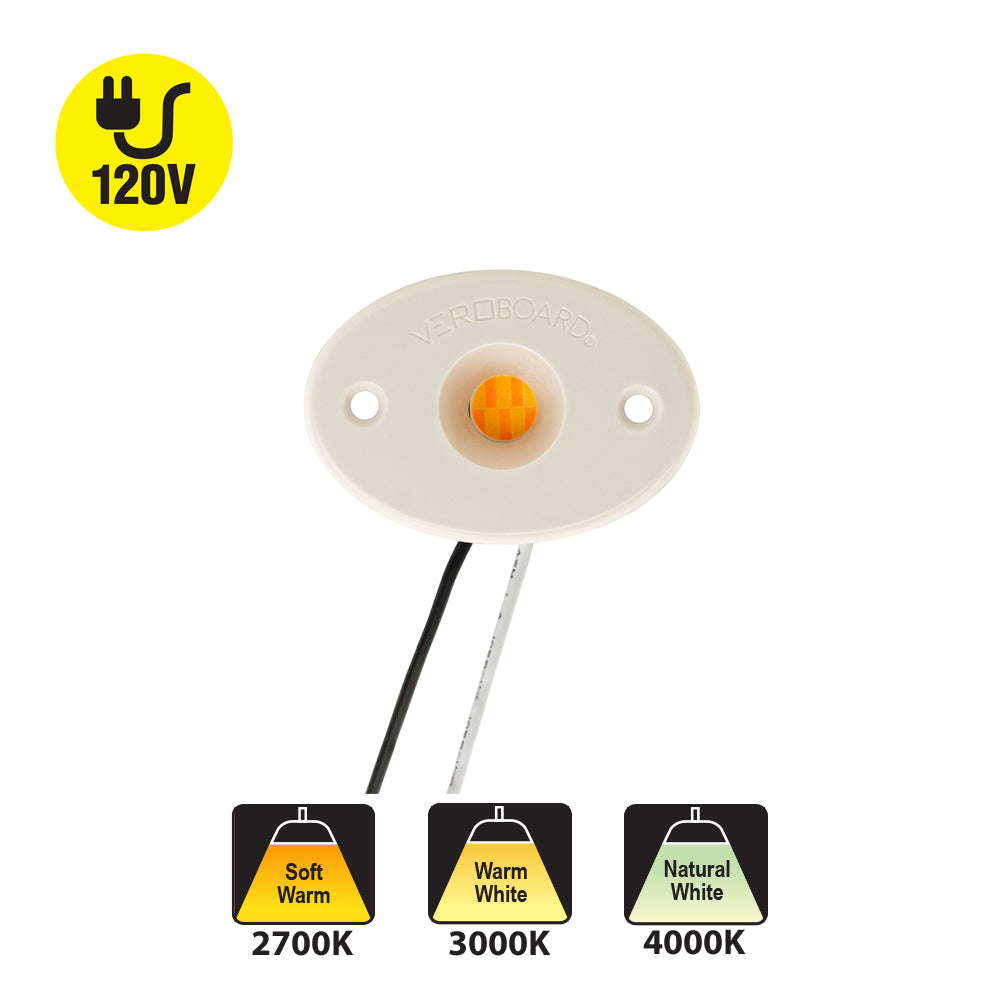

Color Temperature	(Paragon) 3000K (Warm White) (Veroboard) 2700K (Soft White) 3000K (Warm White) 4000K (Natural White)
Dimmable	Yes
Rendering Index	CRI>90
IP Rating	IP20 (Indoor rated)

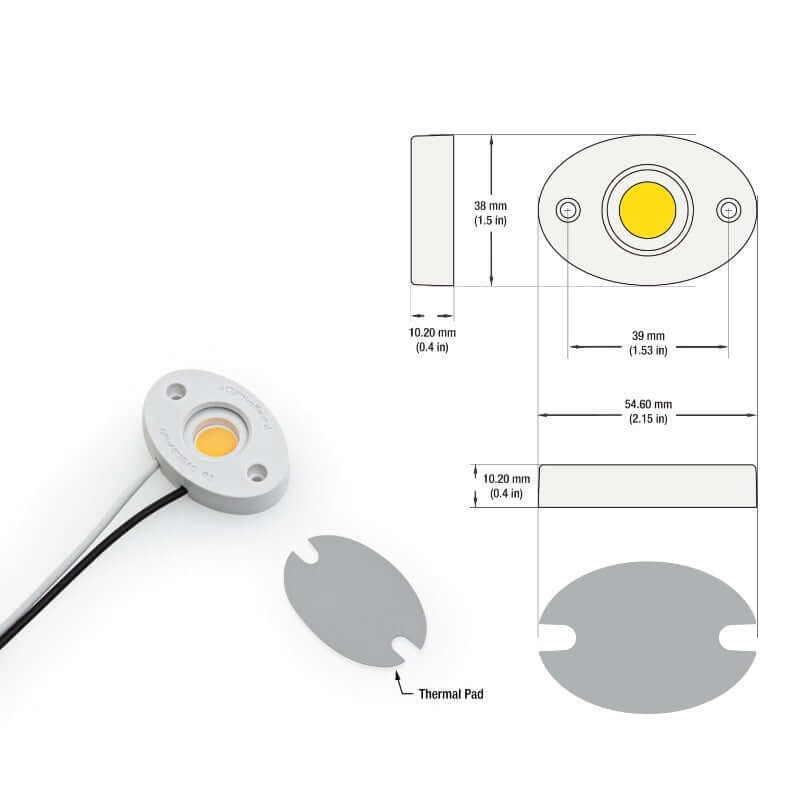

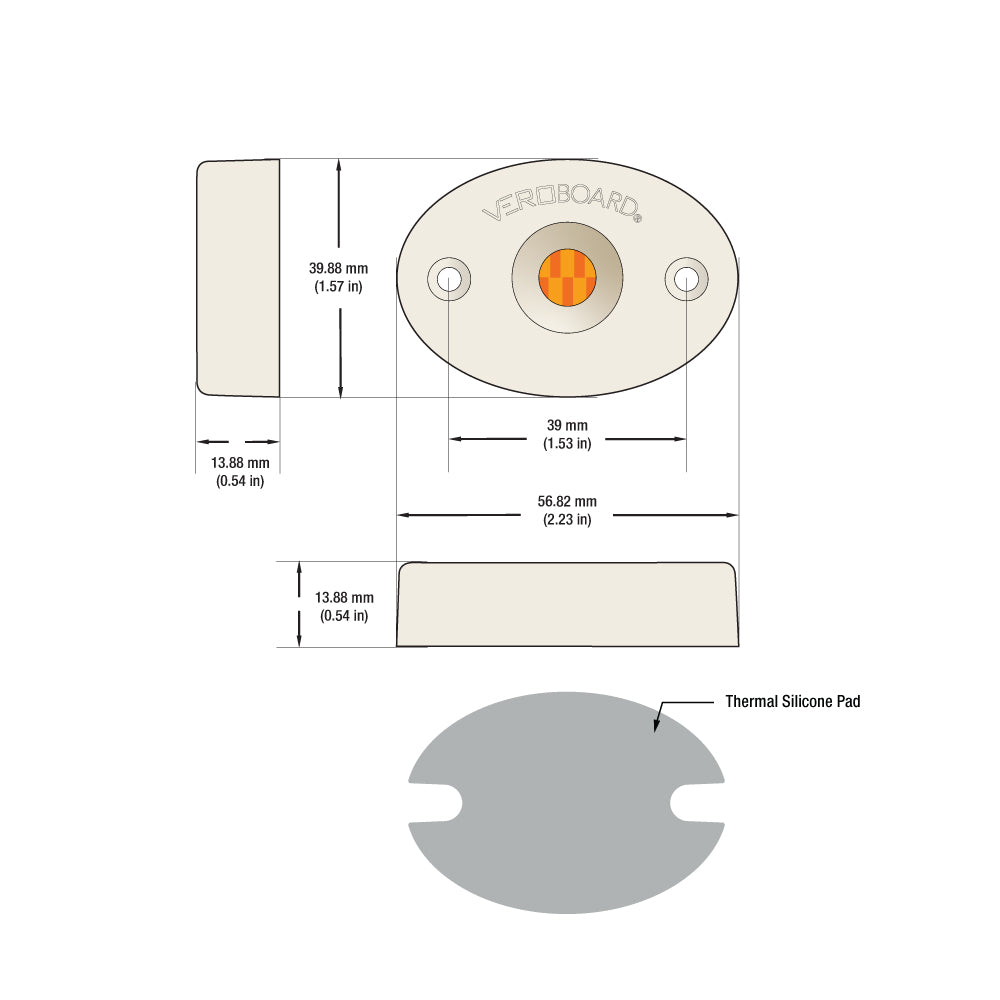

COB Holder Dimensions	(Paragon) ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in) (Veroboard) ∅56.8 x ∅39 x H13.88 mm (2.23 x 1.53 x 0.54 in)
COB Module Outer Diameter	∅27mm (1.06 in) (Paragon) ∅10mm (0.39in) (Veroboard)
Operating Temperature	-60 ~ +105℃
Storage Temperature	-60 ~ +105℃
Assembly process Temperature	<300℃
Solder joint point	<105℃
Dielectric Breakdown Voltage of Thermal Pad	>4KV

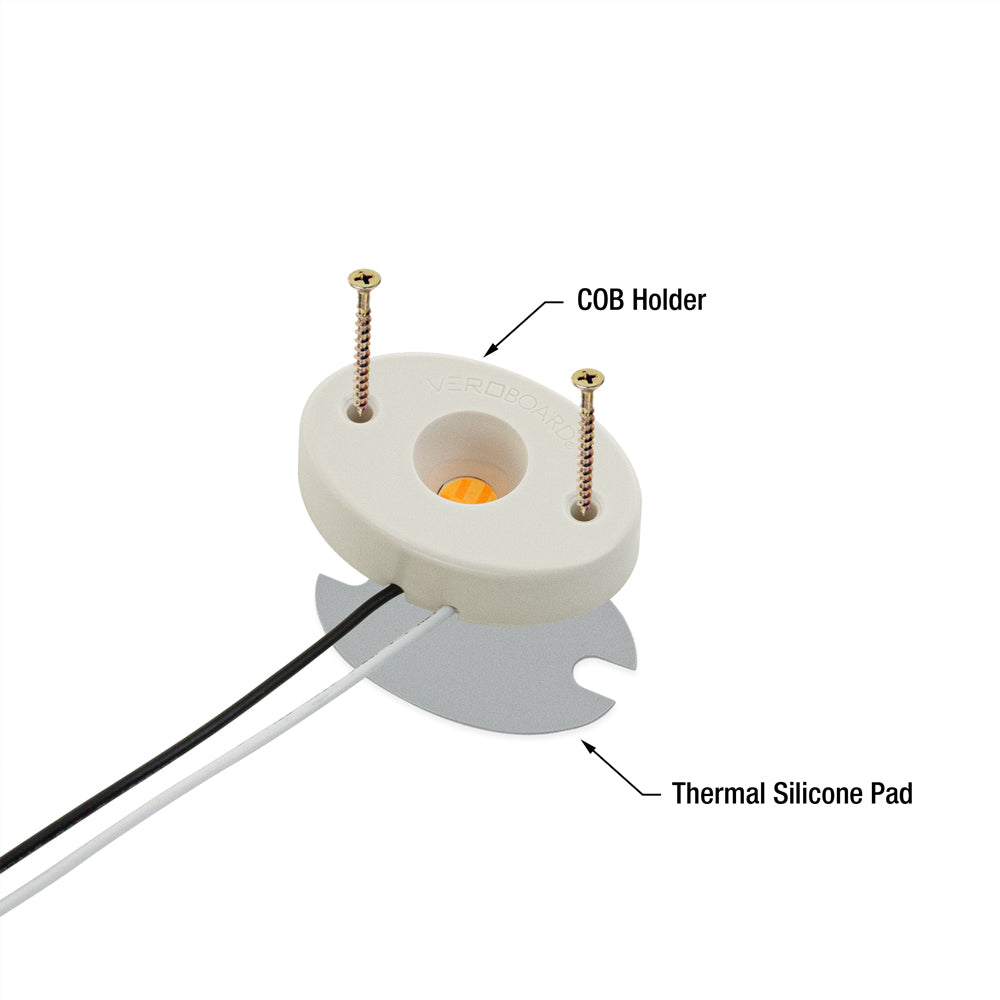

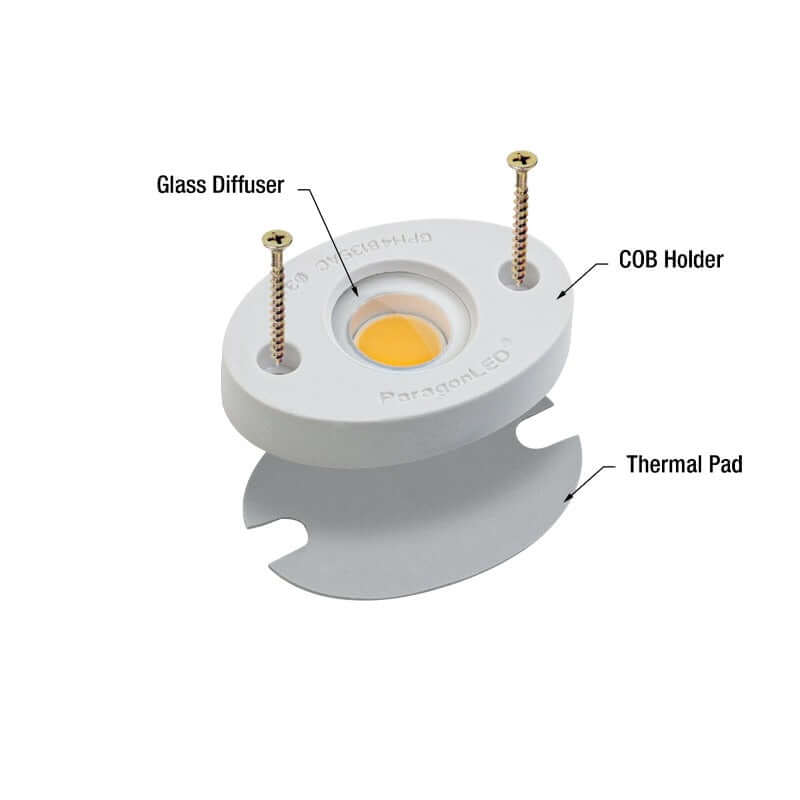

Included Content	COB Module, COB Holder with Thermal Pad
Weight	0.07 kg
Certifications (Paragon)
Certifications (Veroboard)

Features:

• High-quality COB LED module with 20 LED chips
• Designed to be used with GPH48135A LED Holder
• Operates on 120V AC with a power consumption of 6W
• Produces warm white light with color temperature of 3000K and CRI>90
• Dimmable and suitable for use in damp locations (IP20 rating)
• Requires aluminum heat sink to prevent overheating and luminous decay
• More energy-efficient and produces brighter and higher quality beam output than older LED technologies
• Suitable for use in almost every kind of luminaire
• Comes with COB Holder, Thermal Pad, and is UL certified
• Grounding light fixtures is essential for safe and efficient operation
• Silicone grease thermal pad provides heat sink and better heat dissipation
• Operates at temperatures ranging from -60 ~ +105℃, and solder joint point should be kept below 105℃
