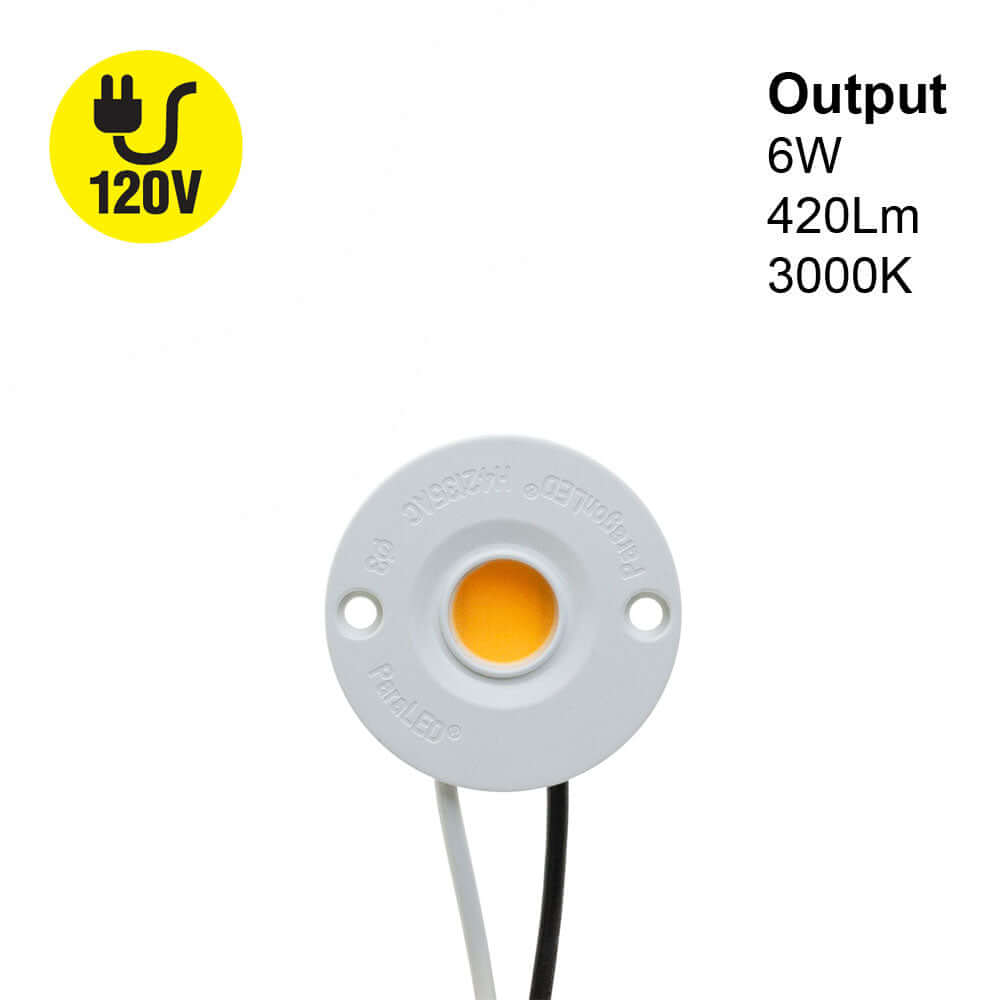

COB Paragon LED Module 120V 6W CCT(2.7K, 3K, 4K), CDAC-20-30135-120V-30

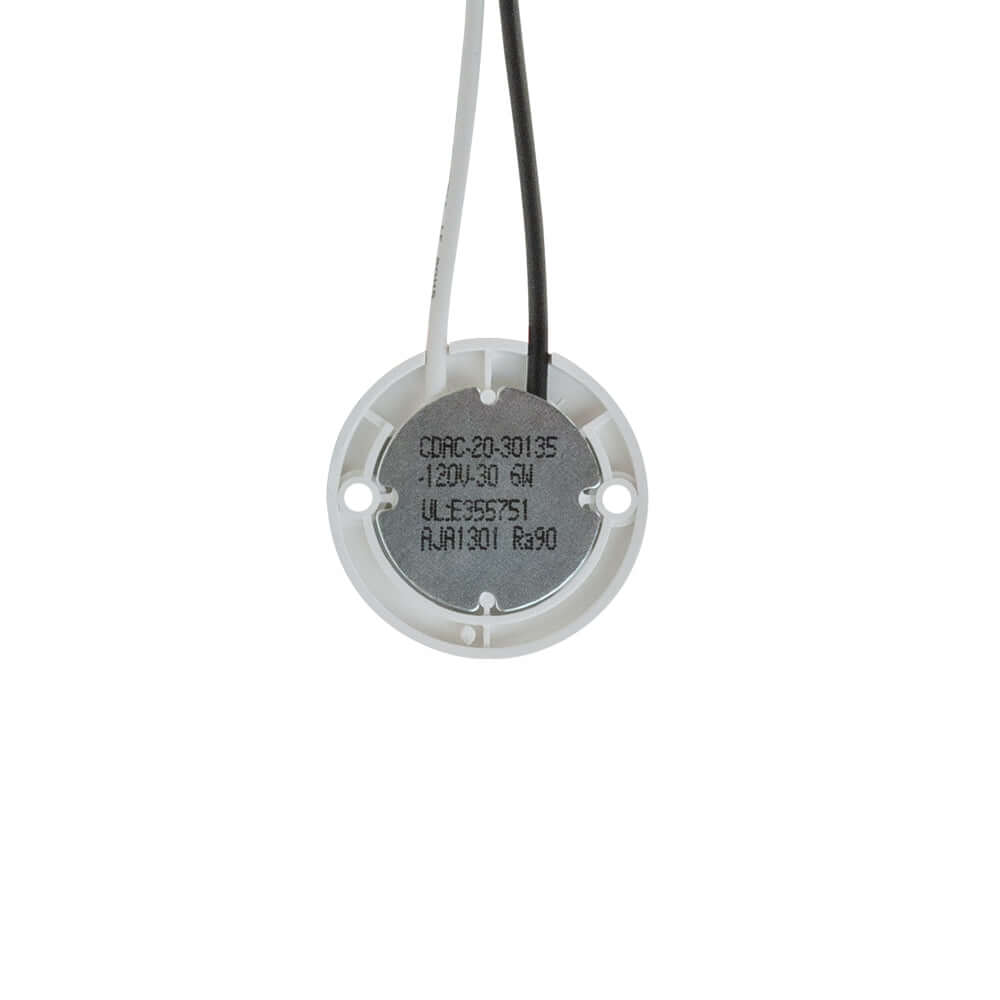

Model	CDAC-20-30135-120V-30 (Paragon) VBDMDL-4314-6W-9XXK-120V (Veroboard)

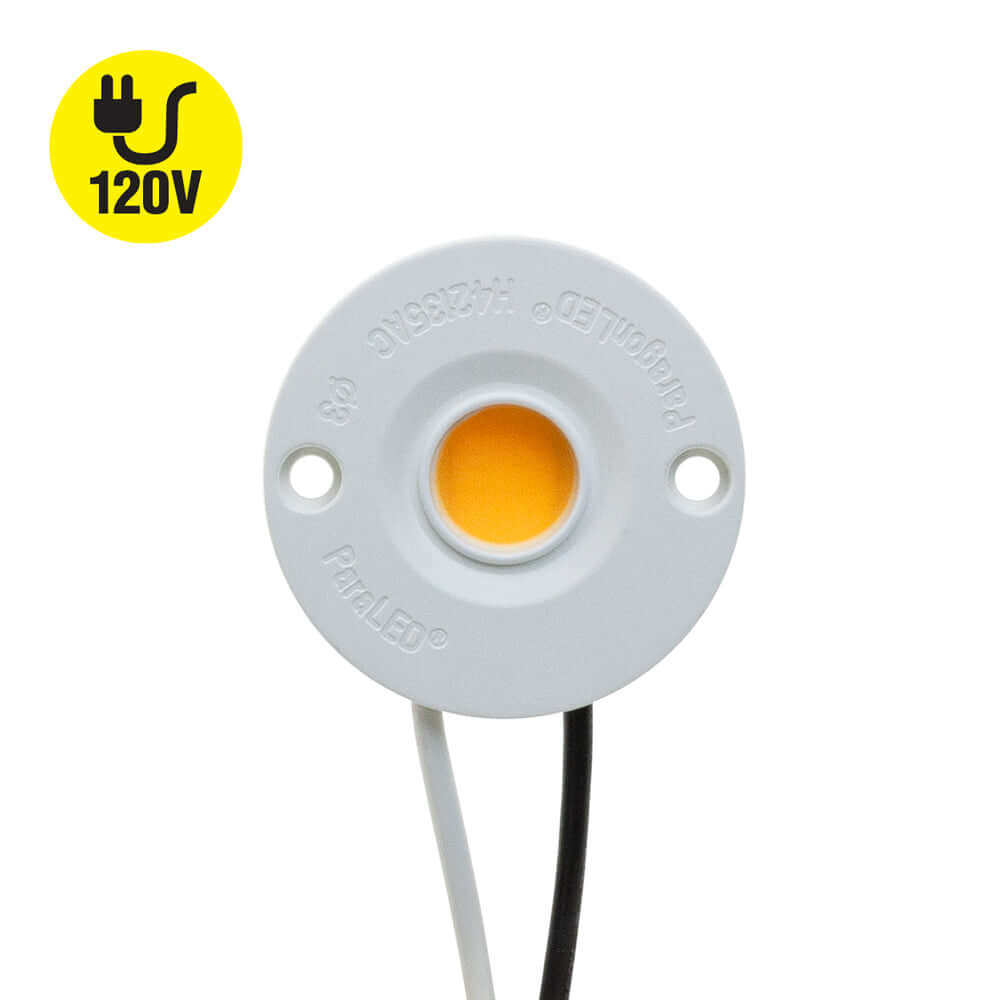

COB Holder Model No	H42135AC
LED Type	COB LED
No LED chips	20
Wattage:	6W
Voltage:	120V AC
Luminous Intensity	420 lumens

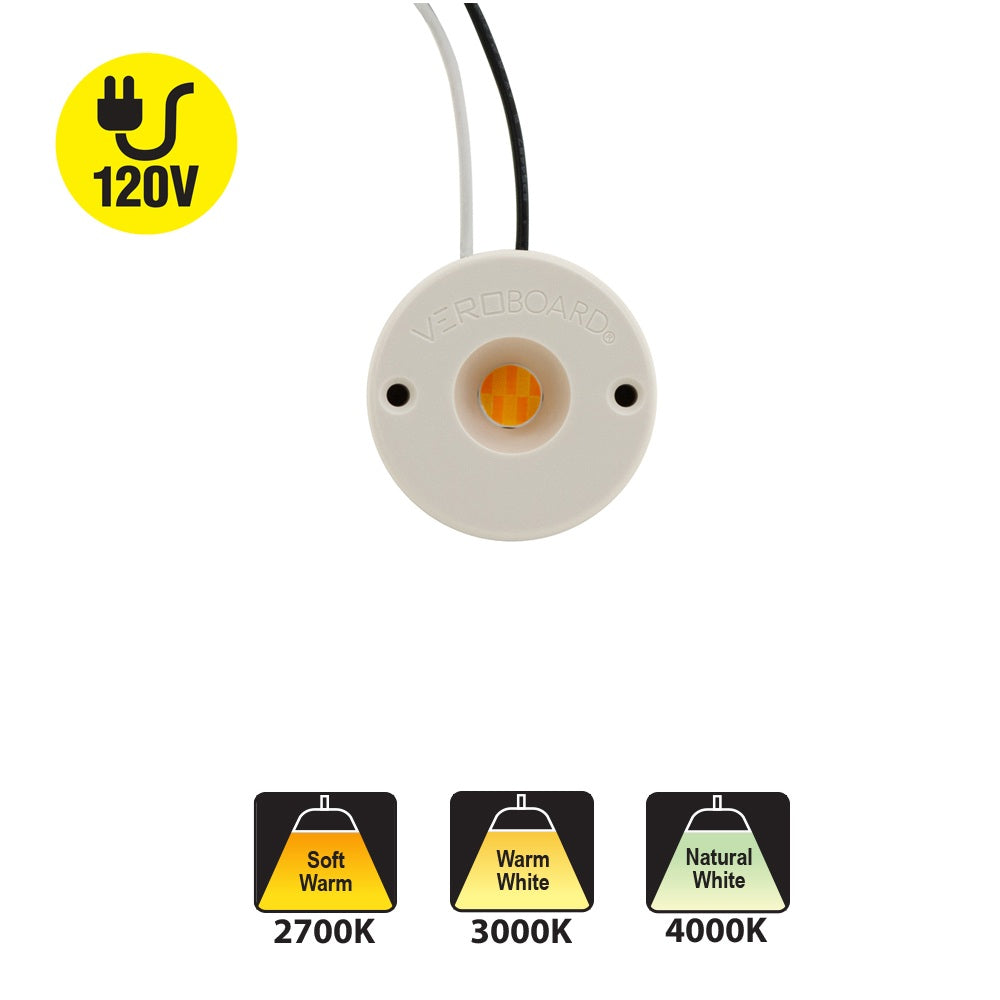

Color Temperature	(Paragon) 3000K (Warm White) (Veroboard) 2700K (Soft White) 3000K (Warm White) 4000K (Natural White)
Dimmable	Yes
Rendering Index	CRI>90
IP Rating	IP20 (Indoor rated)

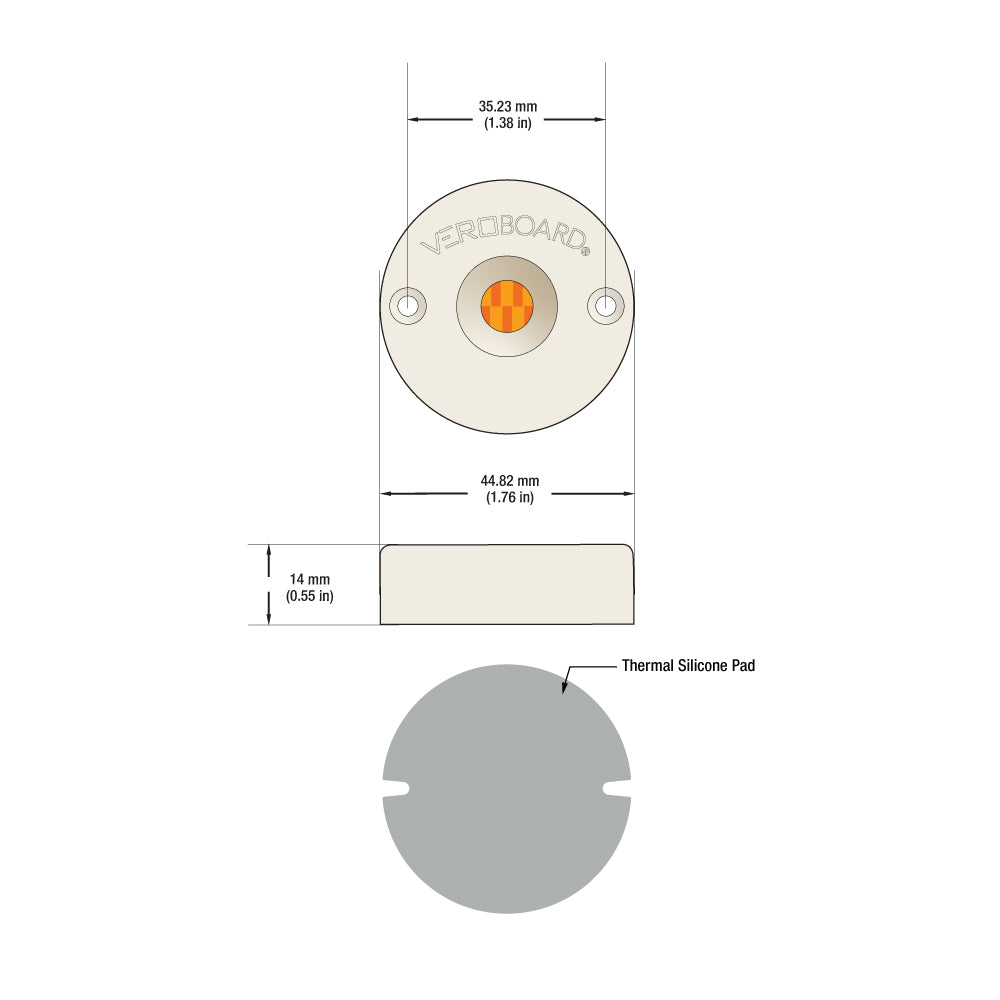

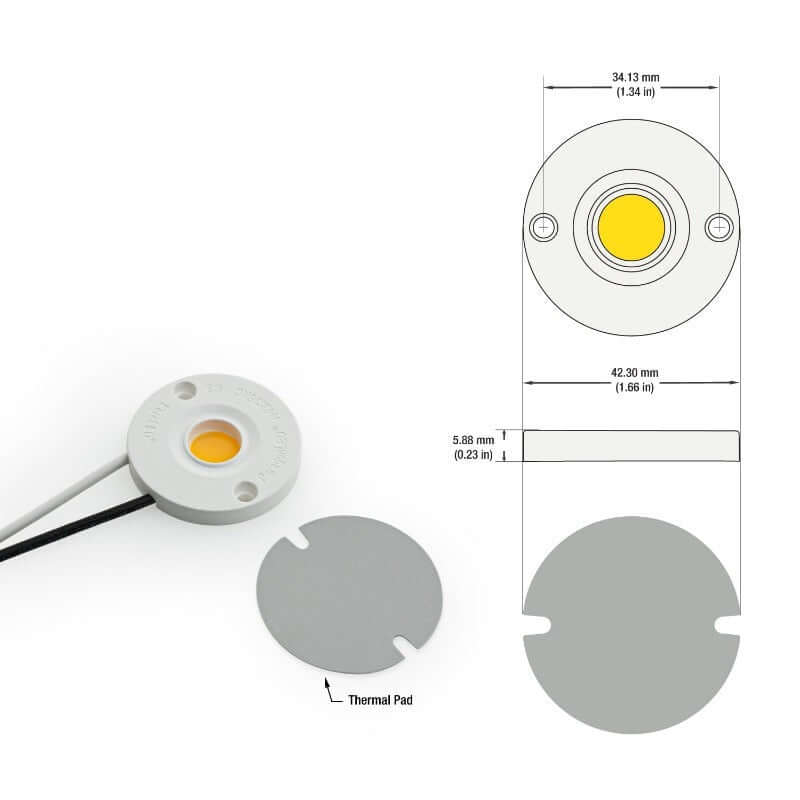

COB Holder Dimensions	(Paragon) ∅42.3 x H5.88mm (1.6 x 0.23 in) (Veroboard) ∅ 44.7 x 14mm (1.7 x 0.5in)
COB Module Outer Diameter	∅27 mm (1.06 in) (Paragon) ∅10mm (0.39in) (Veroboard)
Operating Temperature	-60 ~ +105℃
Storage Temperature	-60 ~ +105℃
Assembly process Temperature	<300℃
Solder joint point	<105℃
Dielectric Breakdown Voltage of Thermal Pad	>4KV

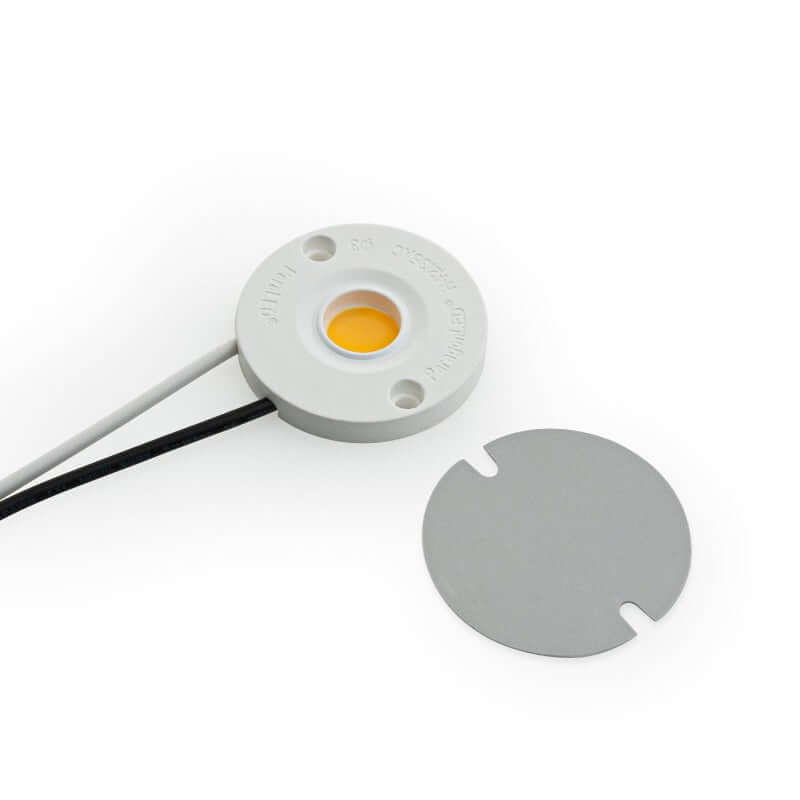

Included Content	COB Module, COB LED Holder, Thermal Pad
Weight	0.03 kg
Certifications (Paragon)
Certifications (Veroboard)

Features:

• High-quality LED lighting component designed for indoor use

• Operates on 120V AC power with a power consumption of 6 watts

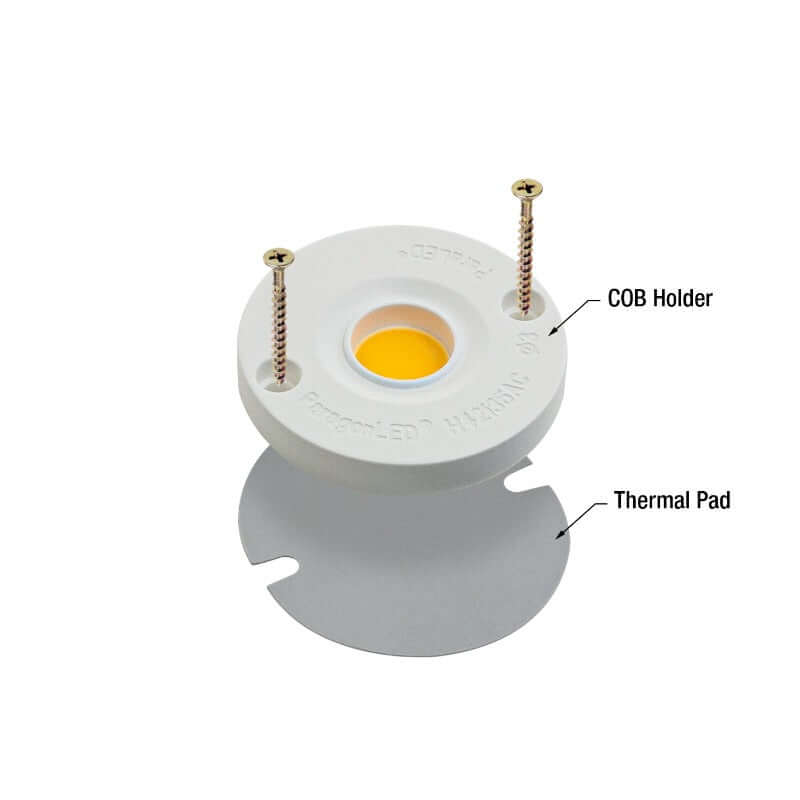

• Equipped with an H42135AC COB LED holder suitable for use with an aluminum heat sink

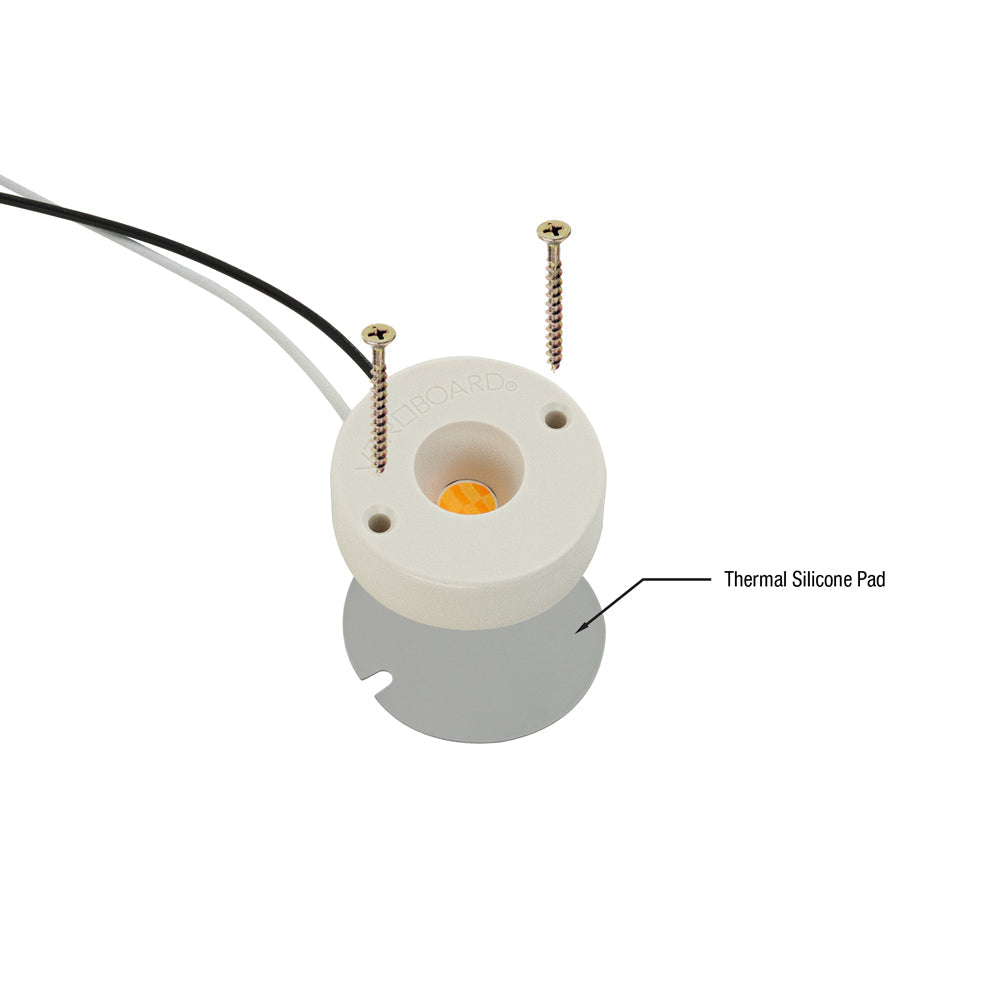

• Comes with a silicone grease thermal pad that can withstand temperatures up to 300℃ and has a dielectric breakdown voltage of over 4KV
• Dimmable and has an IP20 rating, making it suitable for indoor use in damp locations
