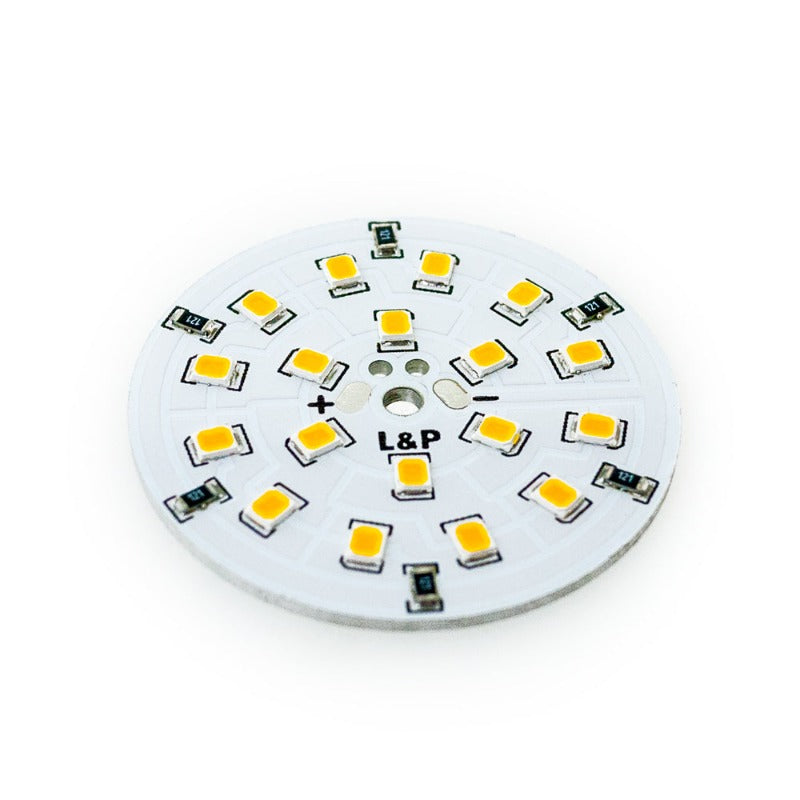

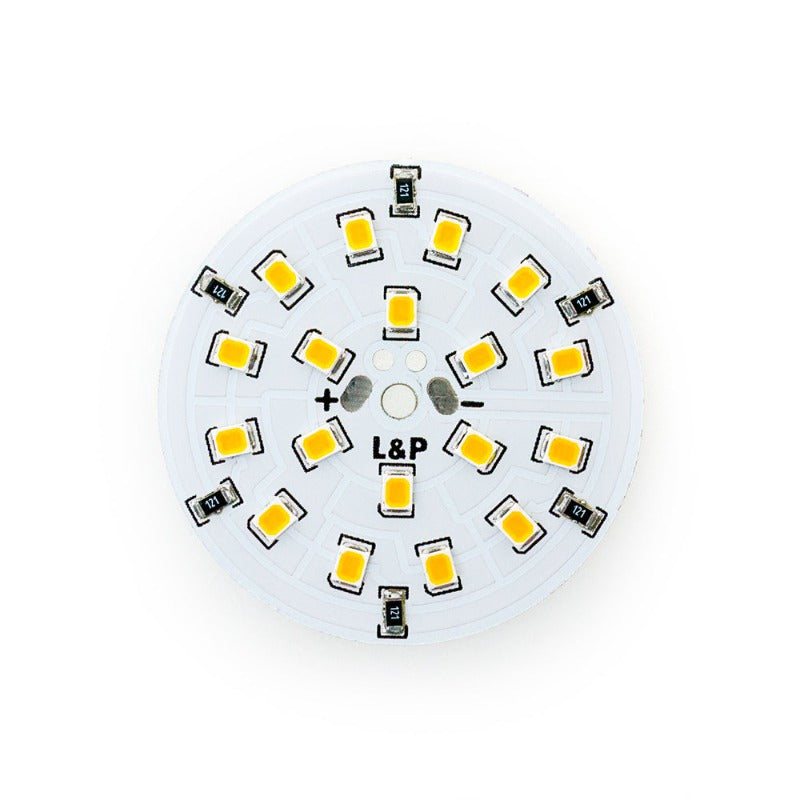

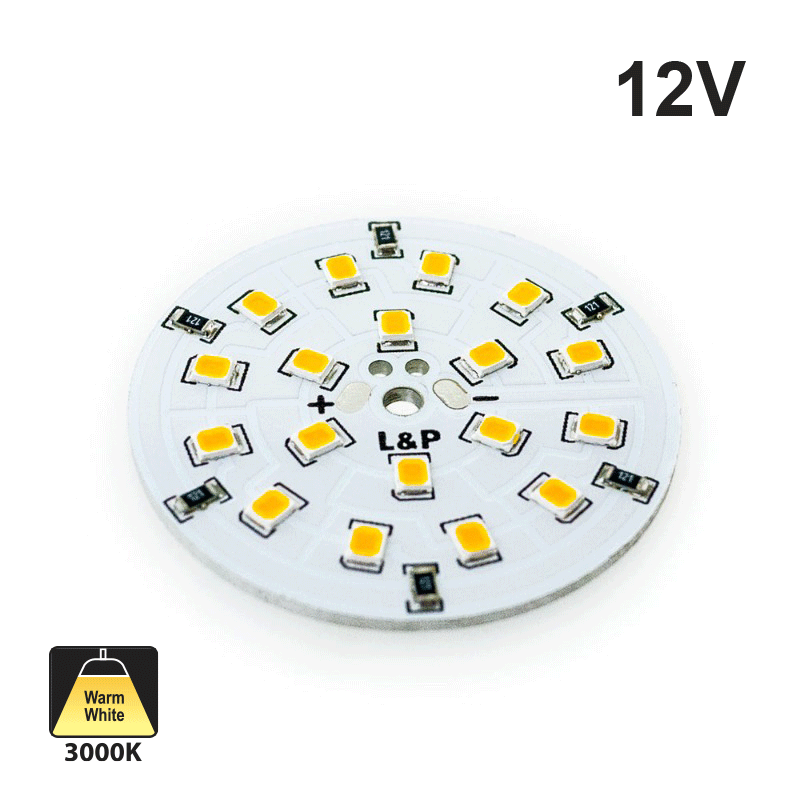

12V Flat Round PCB 18 SMD 3528 Constant Voltage LED Module 2W 2700-3000K(Warm White)

SKU: 666561411077

Inquiry

Description

Voltage 12V
Wattage 2W
Current 0.17A
Luminous Flux 144 lumens (8 lm/SMD)
LED Quantity 18 SMD
LED Type 3528
Dimmable Yes
Color Temperature 2700-3000K (Warm White)
Material Aluminum (Metallic base)

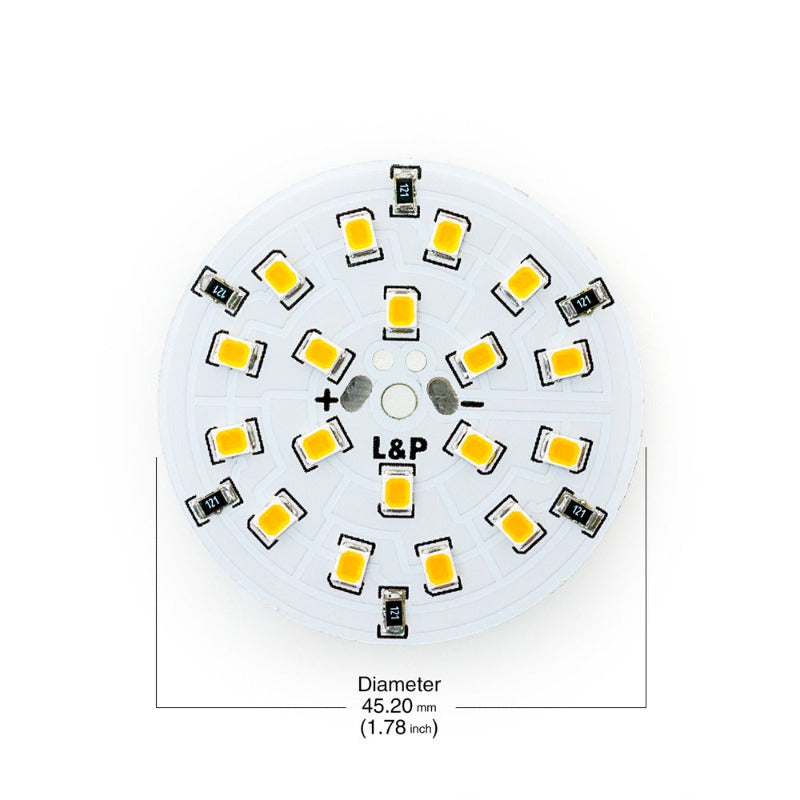

Dimensions Ø 45.20mm (1.8 in)
H 2.5mm (0.1in)










Feature:

  • Compact design with ø45.20 mm (1.8 inches) PCB size
  • Operates at 12V voltage, 2W wattage, and 0.17A current
  • 18 SMD 3528 LEDs with a total luminous flux of 144 lumens and 8 lumens per LED
  • Warm white color temperature of 2700-3000K for a cozy and inviting atmosphere
  • Dimmable for adjustable light output
  • Sturdy and durable aluminum metallic base material
  • Highly energy-efficient with low power consumption
  • Ideal for replacing damaged LED lights of the same voltage and wattage in any fixture
  • Suitable for a wide range of applications, from task lighting to accent lighting
  • Certified to meet safety and quality standards
  • Use Thermal Grease or Thermal Pad for installation.
