Description
Model | AD-35S12W-1224V-5CCTWH-REY-SQ |
Voltage | 12-24V AC/DC |
Wattage | 12 W |
Color Temperature: | 5CCT Selectable Color Temperature (2700K-3000K-3500K-4000K-5000K) |
Brightness | 800 Lumens |
Beam Angle | 40° |
Dimmable | No |
Rendering Index | CRI>90 |
LED Type | Integrated COB LED |
LED Driver | IC Rated |
IP Rating | IP20 (Damp Locations) |

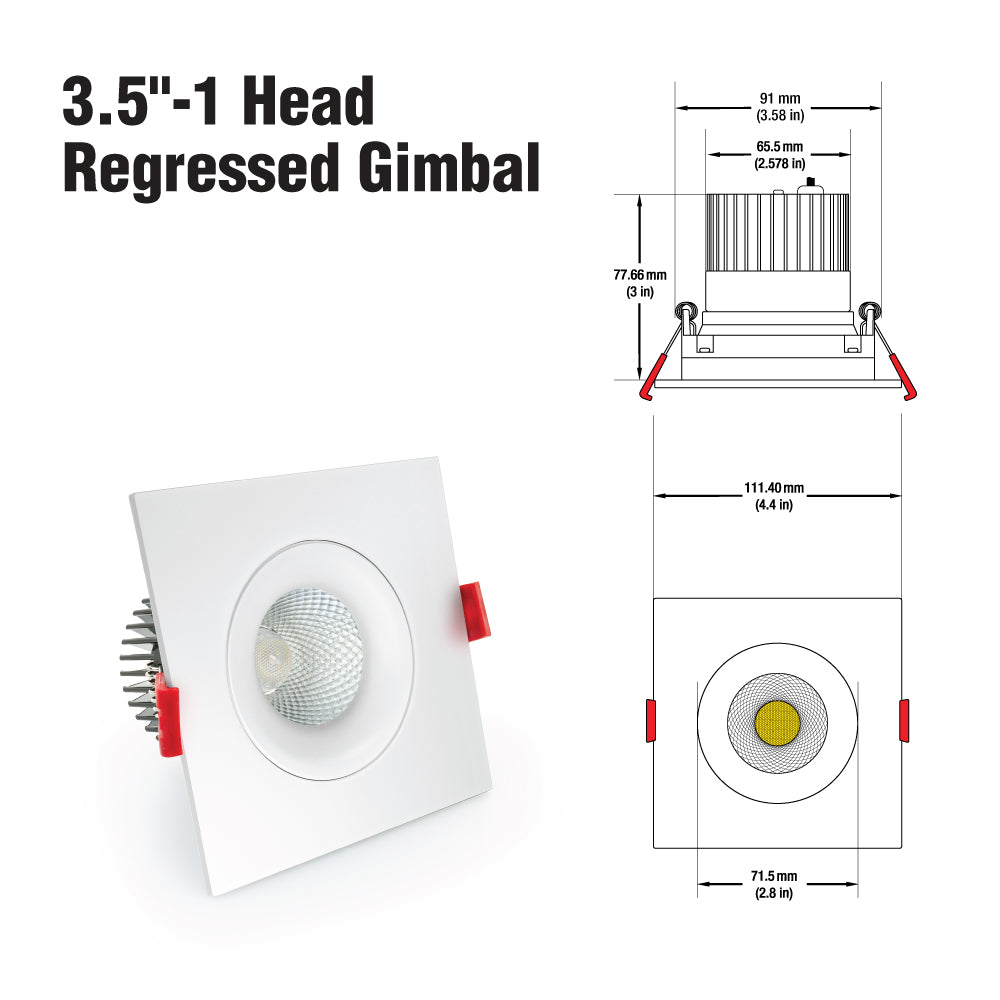

Outer Dimensions | 111.40mm x 111.40mm x 77.66mm (4.4in x 4.4in x 3in) |

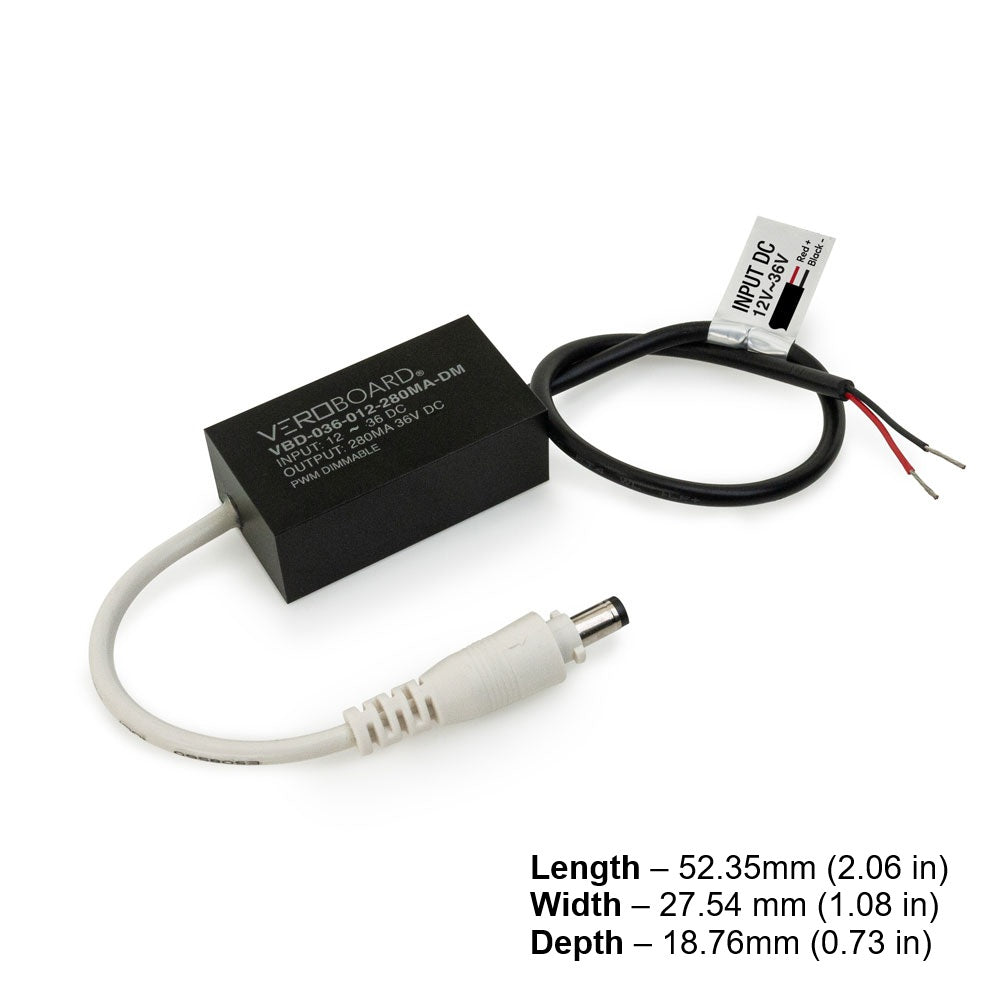

LED Driver | Included |
LED Driver Dimensions | 67.76mm x 25.4mm x 25.4mm (2.67in x 1in x 1in) |
Certification |
![]() ![]() |
Features:
- This downlight works in various indoor applications. It has universal ceiling applications with its adjusting angle feature
- Recessed lighting is suitable for both dry and damp environments with its regressed Protection rating of IP20.
- The temperature of the light can be adjusted to the desired application from the junction box DIP switch.

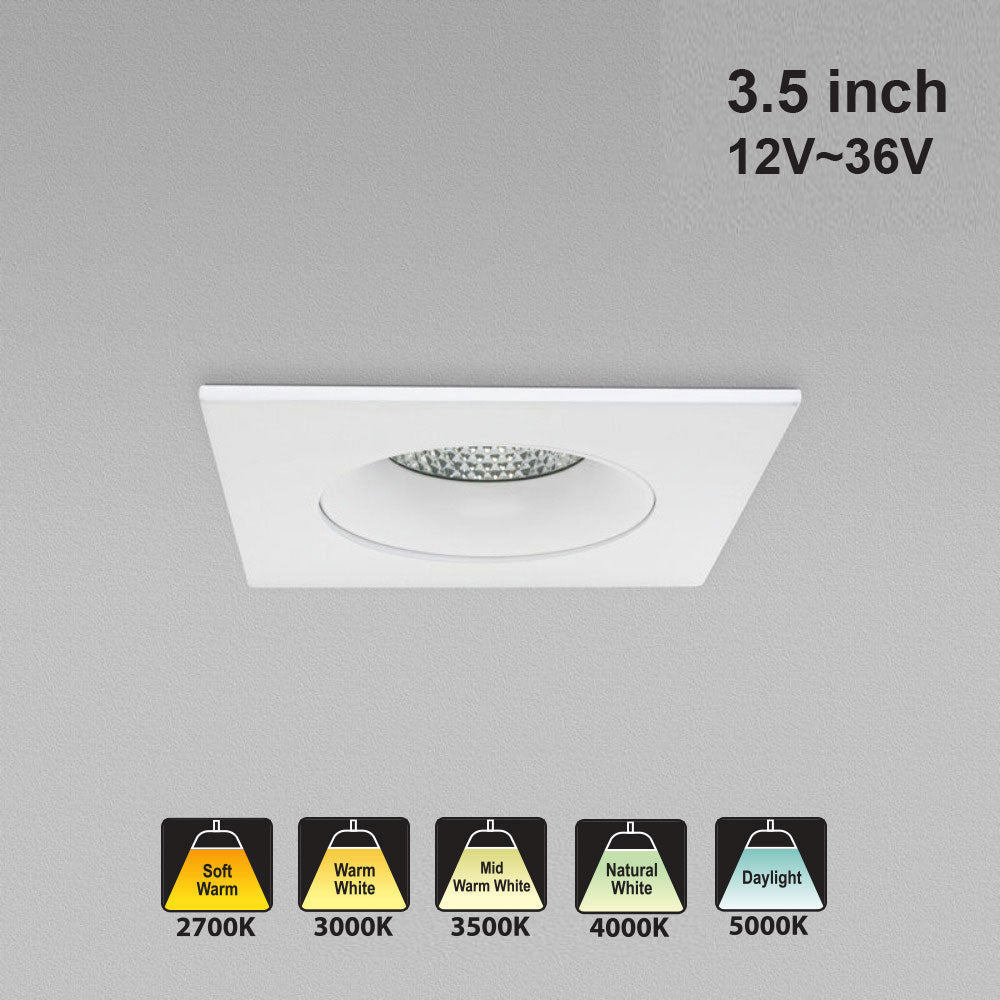

- Selectable color Temperature option 2700K-3000K-3500K-4000K-5000K from the junction box.
- Well suited for both residential and commercial indoor spaces.
