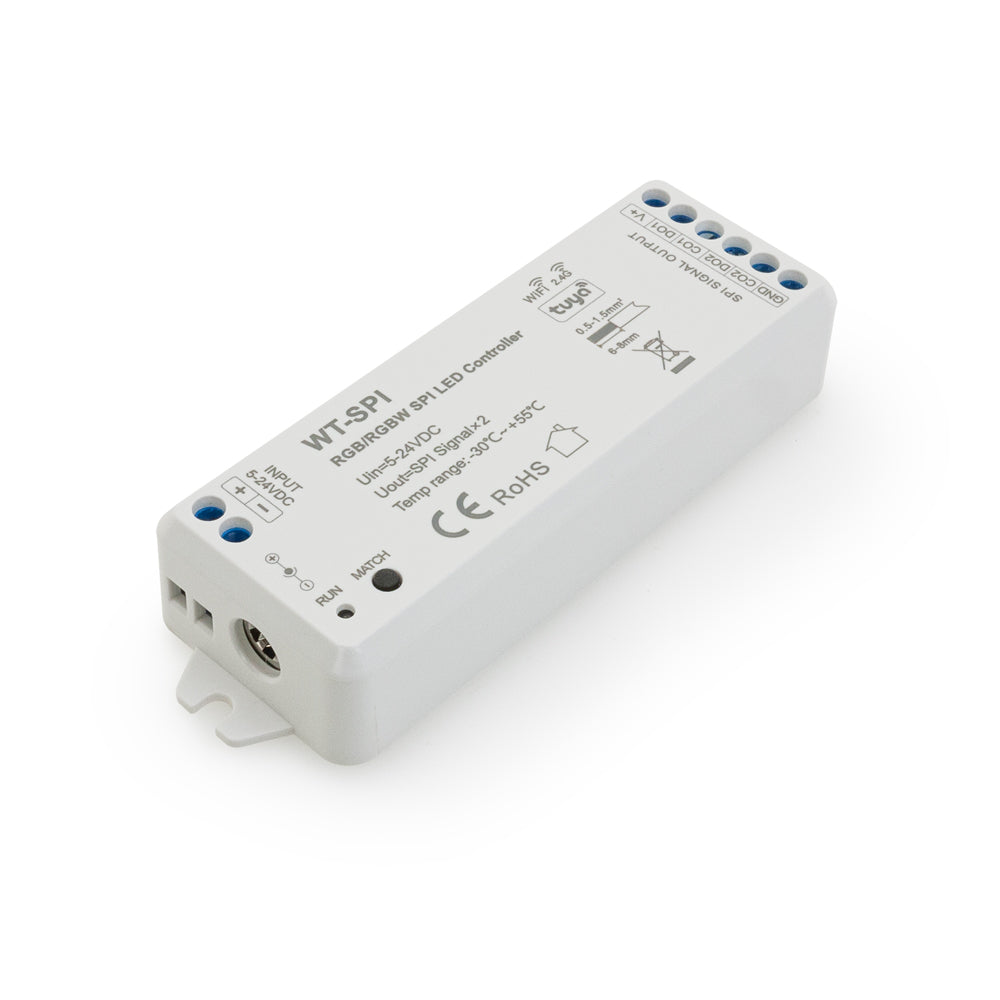

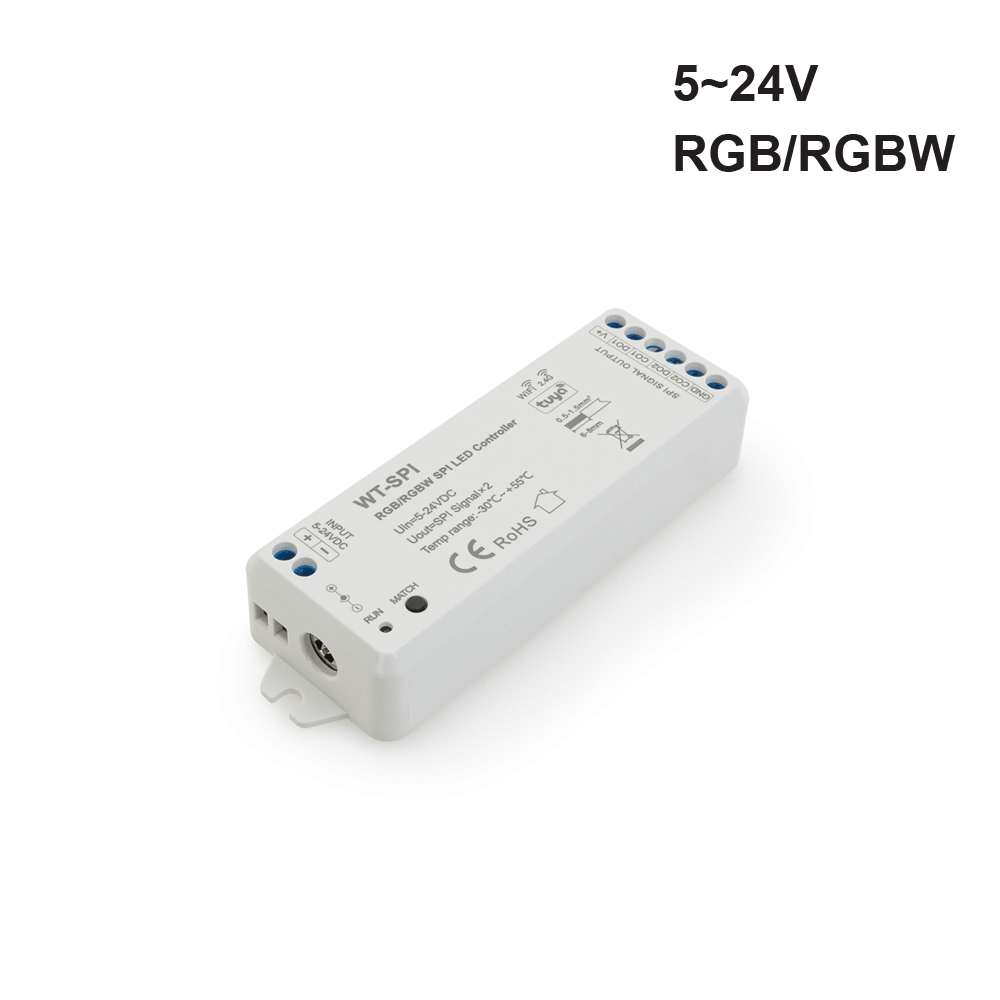

5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App)

SKU: 666561433369




Model WT-SPI
Input Voltage 5V~24V DC
Input Current 8A
Input Signal Tuya APP + RF 2.4GHz
Output Signal SPI(TTL) x 2
Scenario Mode 44 default and 10+ customizations
Pixel Dots Max. 1000
EMC Standard (EMC) ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
Operation Temperature Ta: -30°C ~ +55°C
Case Temperature (Max.) Tc: +65°C
Compatible remote controller R9 (RGB/RGBW Remote)
App Tuya
IP Rating IP20

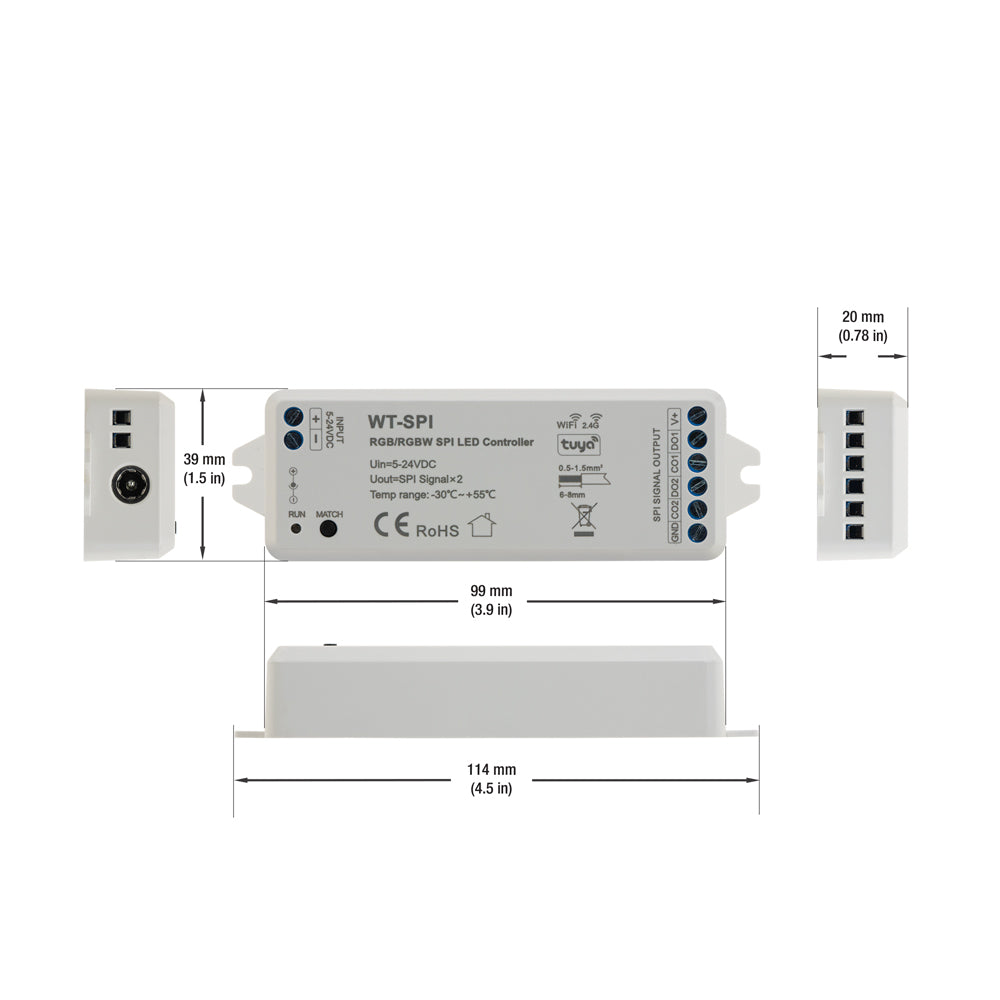

Dimensions 114 x 39 x 20mm (4.5 x 1.5 x 0.78in)



  • Wide Input Voltage Range: Operates with 5V to 24V DC, compatible with various LED strips.
  • Remote Control Convenience: Manage lighting with the Tuya mobile app and RF 2.4GHz signal input.
  • Precise Pixel Control: Accommodates up to 1000 pixel dots for intricate and accurate lighting effects.
  • Versatile Compatibility: Works with 45 different LED strip types, offering customization options.
  • Dynamic Scenarios: Access 44 default dynamic scenarios and create over 10 custom lighting effects.
  • Music Integration: Synchronize lighting with multiple local and app-based music rhythms.
