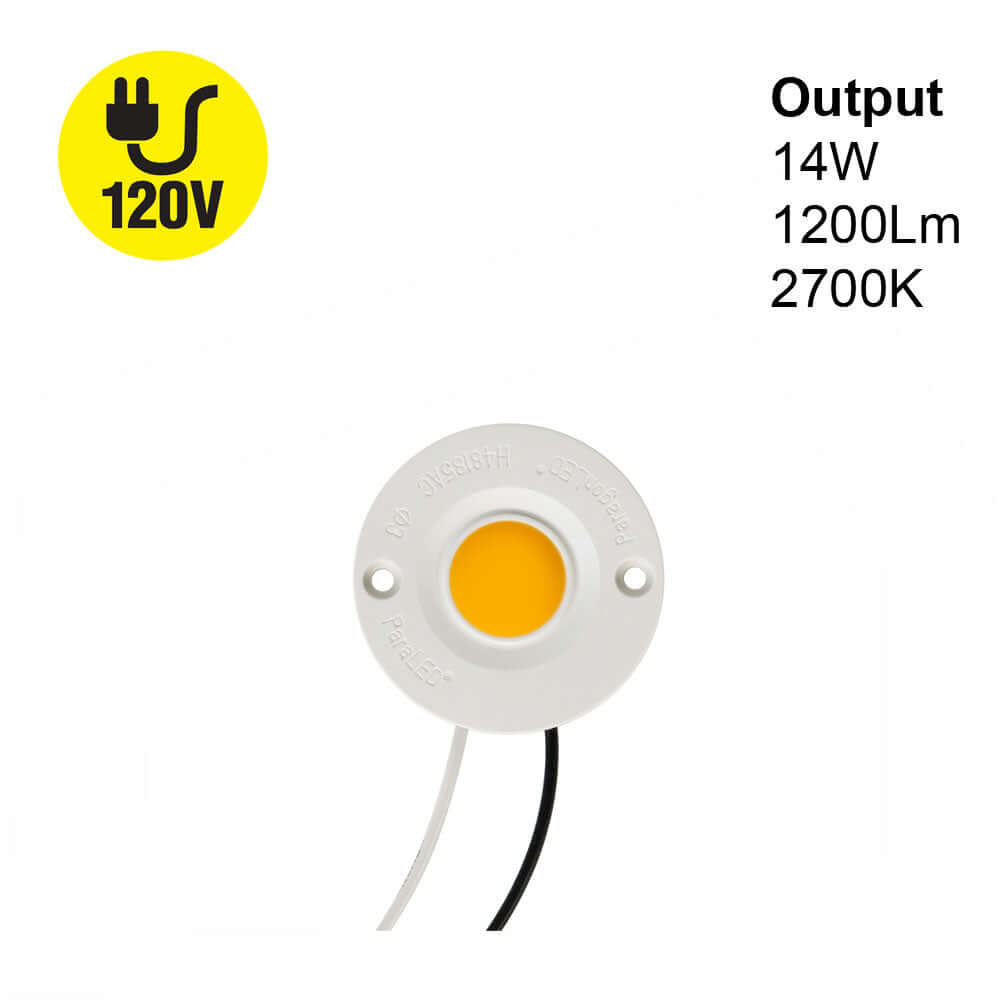

COB Paragon LED Module Light 120V 14W 1200Lm CCT(2.7K, 3K, 4K), CBAC-042-36185-120-2700 G17 with H48185AC LED Holder,

Product	Paragon LED Module

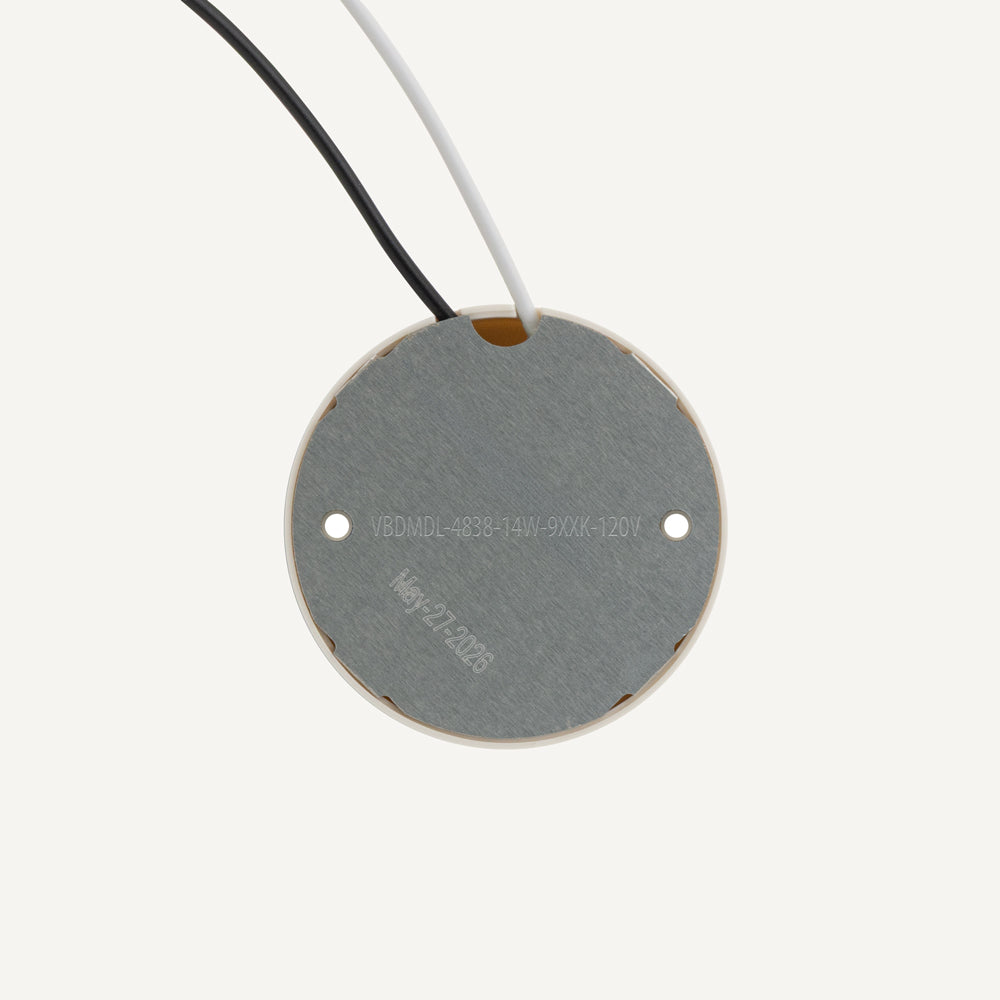

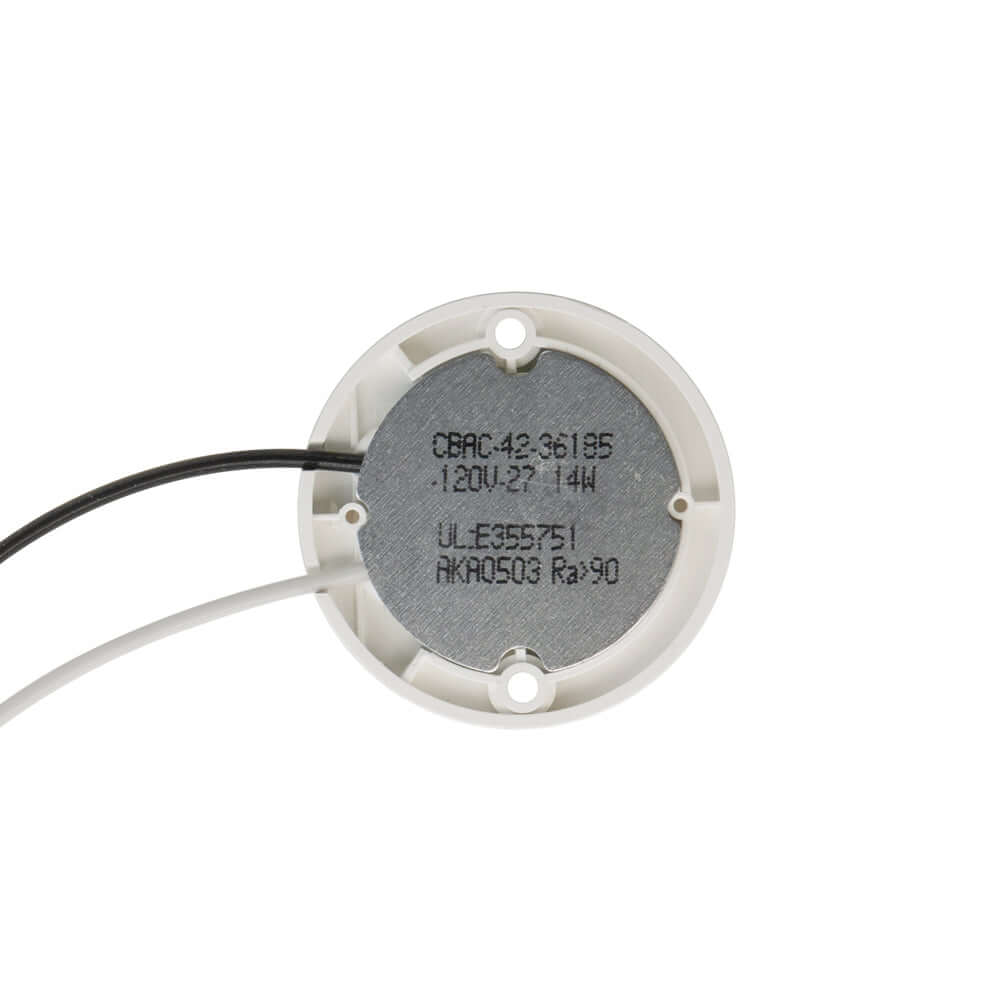

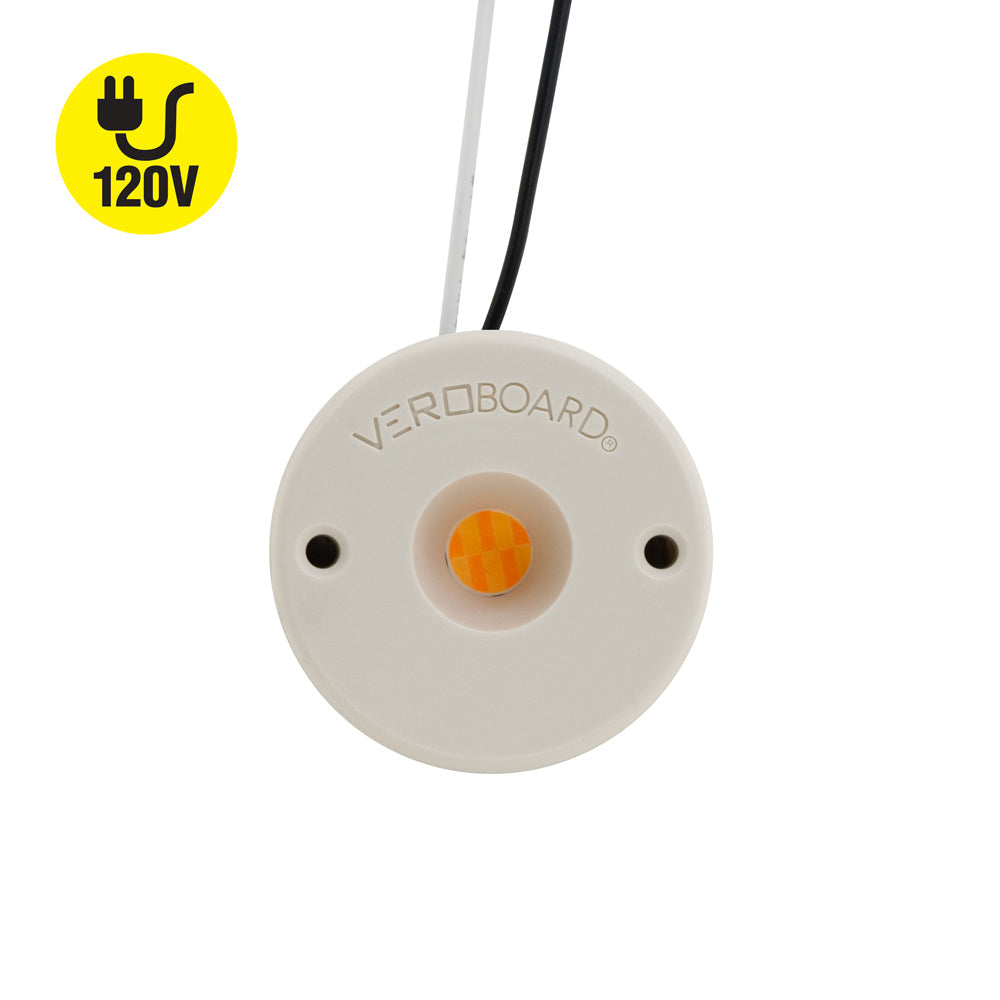

Model No	CBAC-42-36185-120V-27 (Paragon) VBDMDL-4838-14W-9XXK-120V (Veroboard)

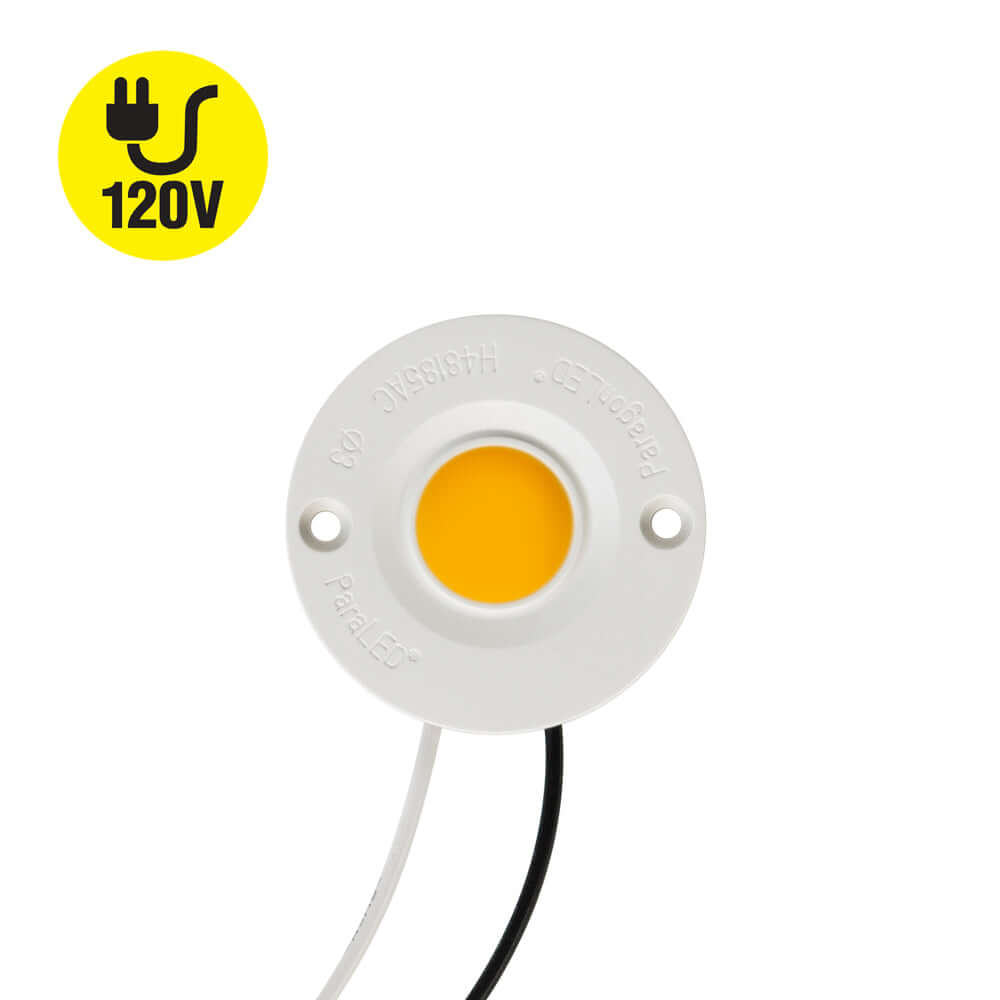

COB Holder Model No	H48185AC
LED Type	COB LED
No LED chips	42
Wattage	14W
Voltage	120V AC
Power Factor	PF>0.98
Luminous Intensity	1200 lumens

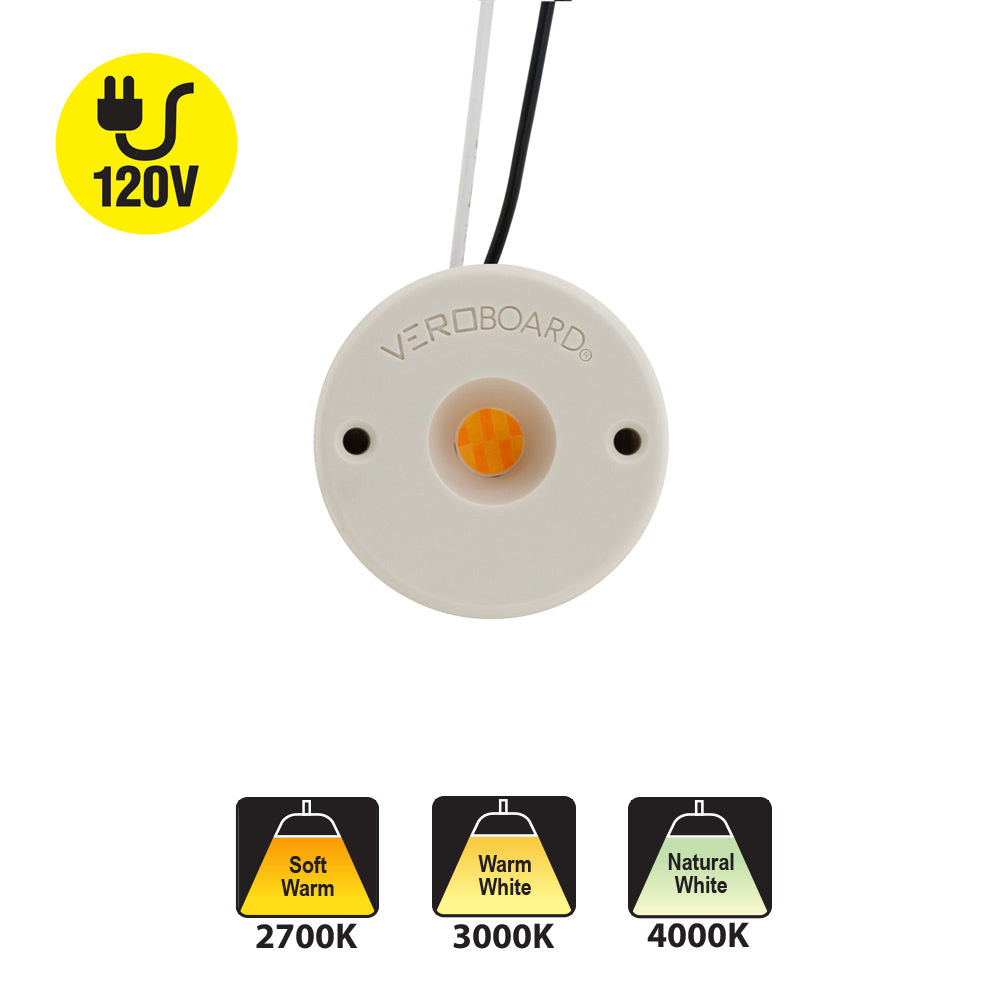

Color Temperature	(Paragon) 2700K (Soft White) (Veroboard) 2700K (Soft White) 3000K (Warm White) 4000K (Natural White)
Dimmable	Yes
Rendering Index	CRI>90 (Paragon) CRI>95 (Veroboard)
IP Rating	IP20 (Indoor rated)

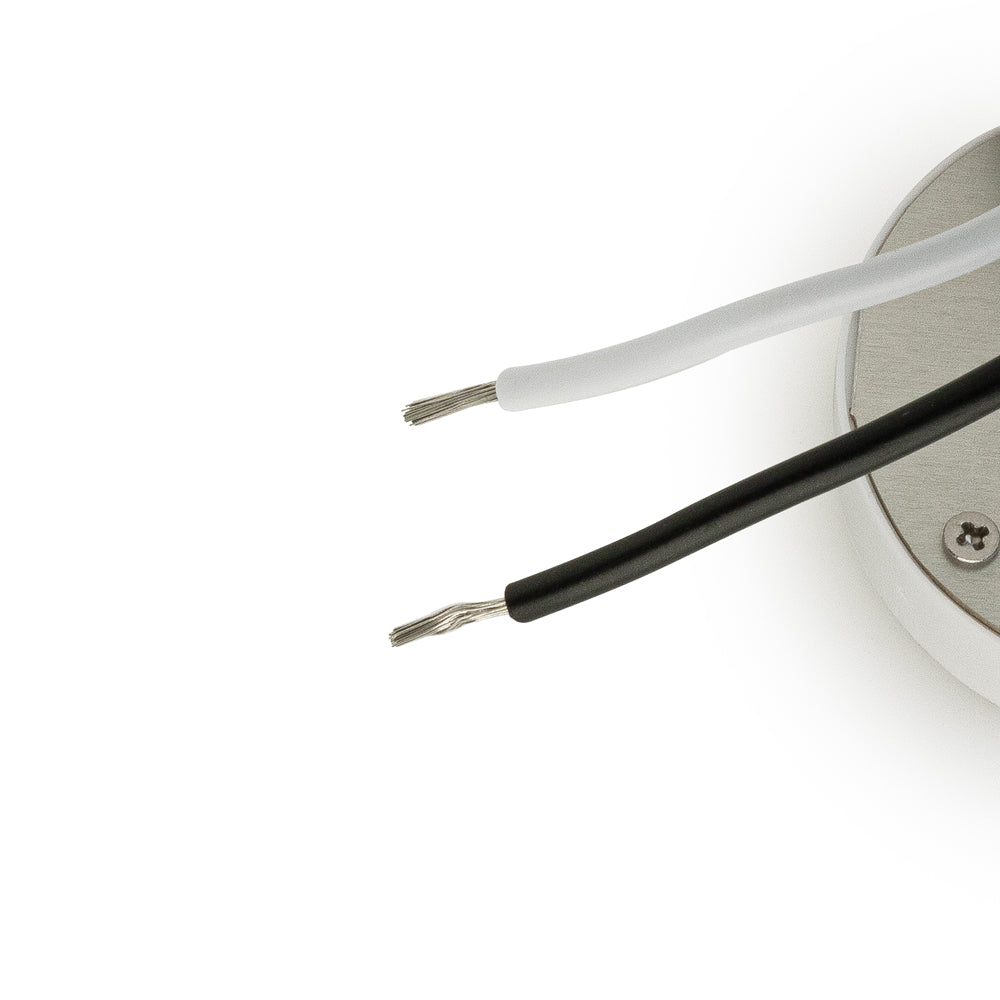

Wire Size	20mm (0.78in) 18 AWG

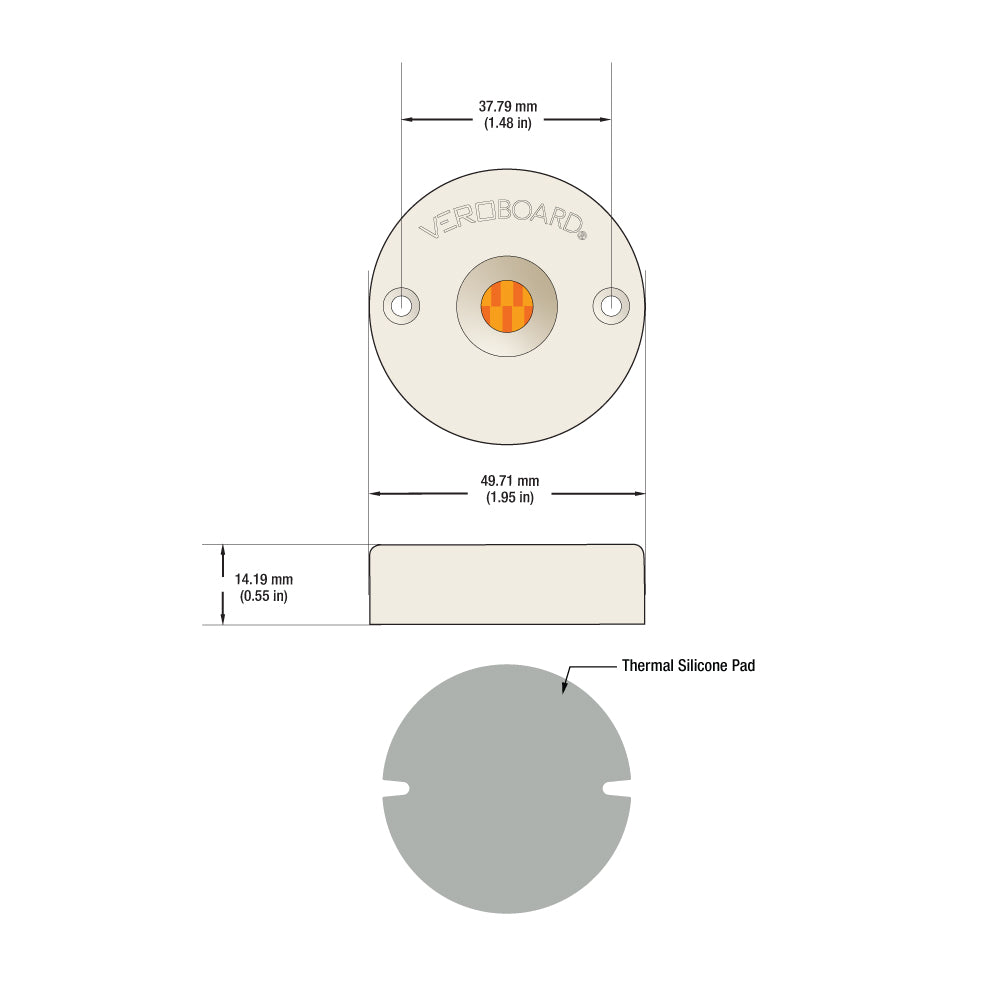

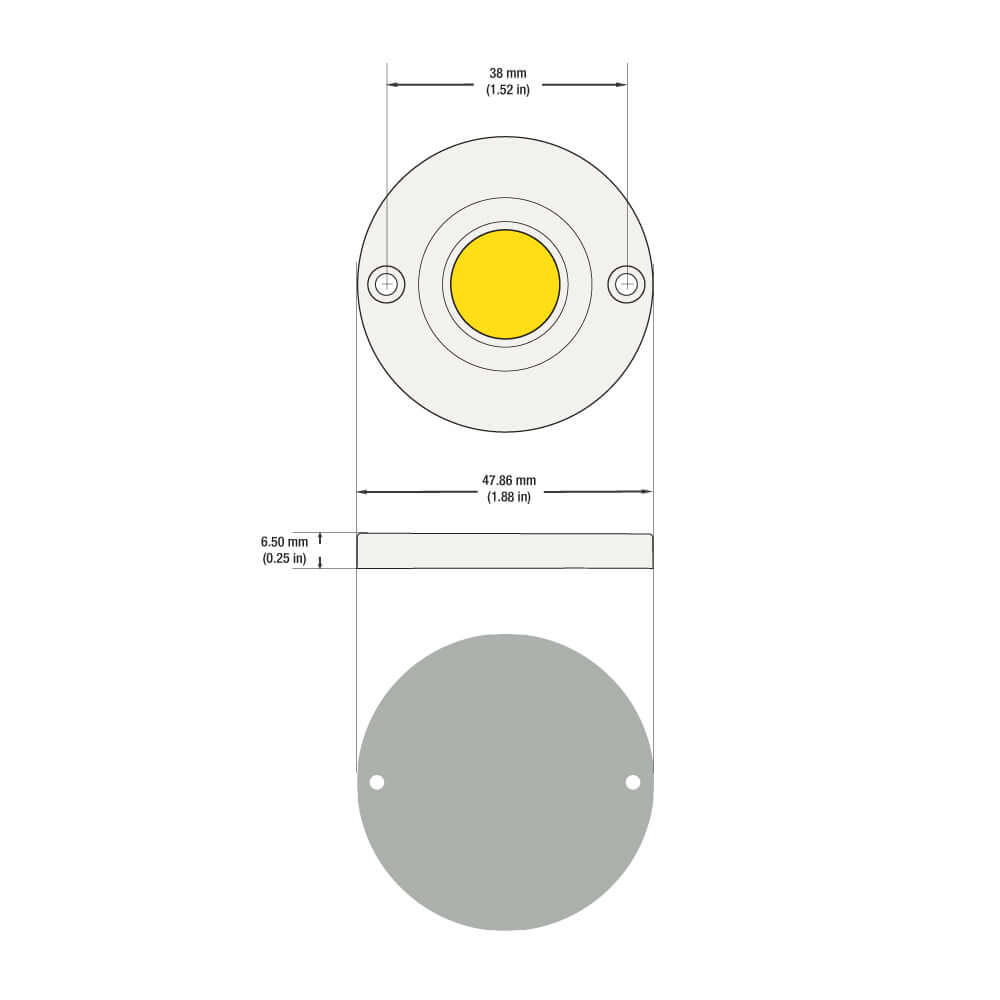

COB Holder Dimensions	(Paragon) ∅ 47.8 x 6.5mm (1.8 x 0.25in) (Veroboard) ∅ 49.7 x 14.2mm (1.95 x 0.55in)
COB Module Outer Diameter	∅ 20mm (0.78in) (Paragon) ∅10mm (0.39in) (Veroboard)
Operating Temperature	-40 ~ +105℃
Storage Temperature	-40 ~ +105℃
Assembly process Temperature	<300℃
Solder joint point	<105℃
Dielectric Breakdown Voltage of Thermal Pad	>4KV

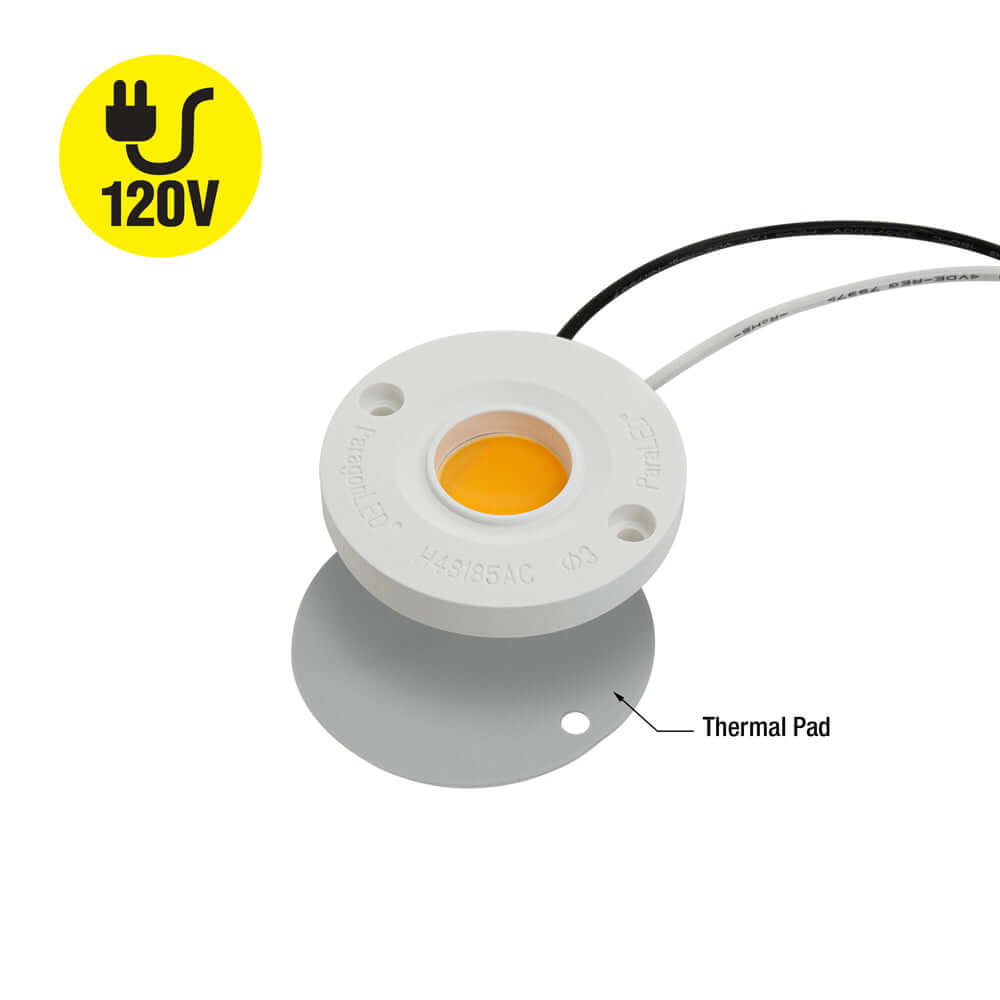

Included Content	COB Module, COB LED Holder, Thermal Pad
Weight	0.04 kg
Certifications

Features:

• Voltage of 120V AC and power factor greater than 0.98

• High rendering index of greater than 90 (CRI>90) and IP20 rating, suitable for use in damp locations
• Operating temperature range of -40 to +105℃
• Dielectric breakdown voltage of thermal pad greater than 4KV
• Package includes COB Module, COB LED Holder, and Thermal Pad
• Certified by UL
• Aluminum heat sink required during installation to prevent overheating and increase lifespan
• COB Paragon LED Module Light 120V 14W 1200Lm
• COB holder allows for mechanical securing, electrical connection, and attachment to heat sink
• Silicone grease thermal pad provides heat sink and improves heat dissipation
• Suitable for various luminaires but important to ground light fixtures while designing lamps.
