Description

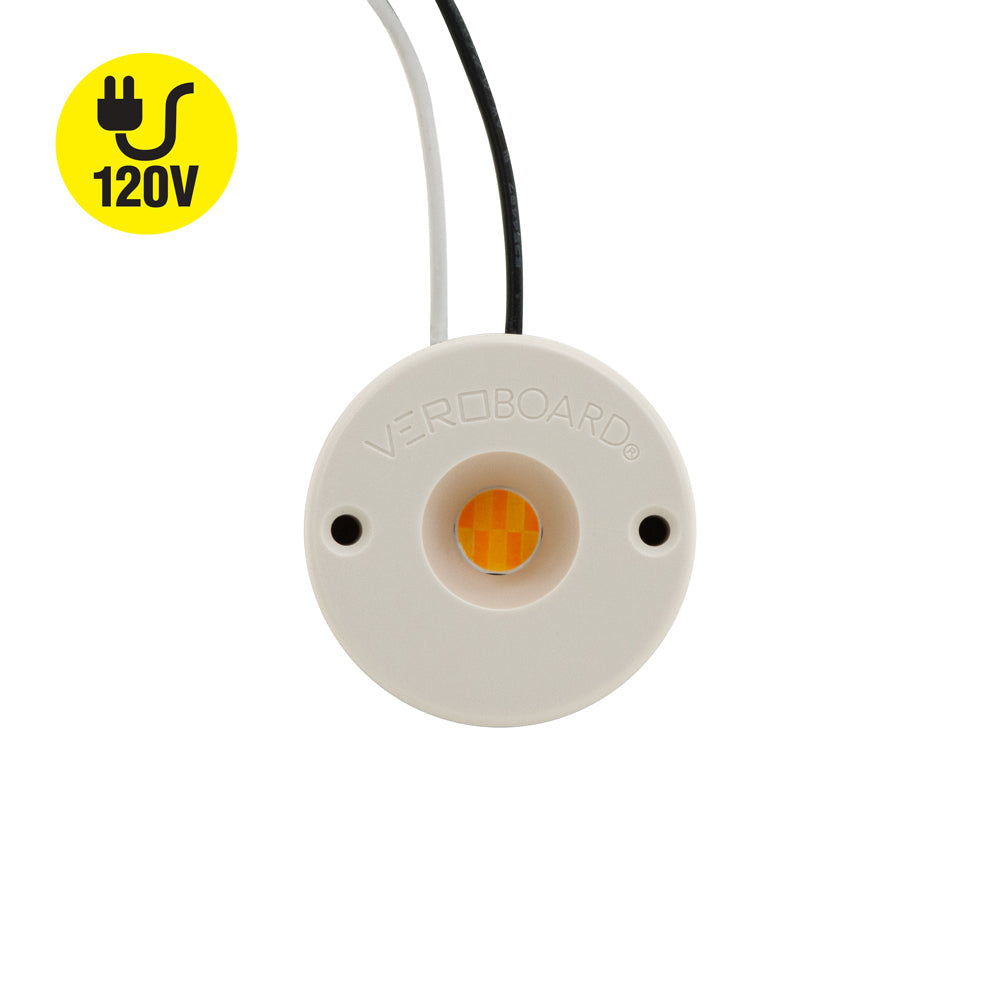

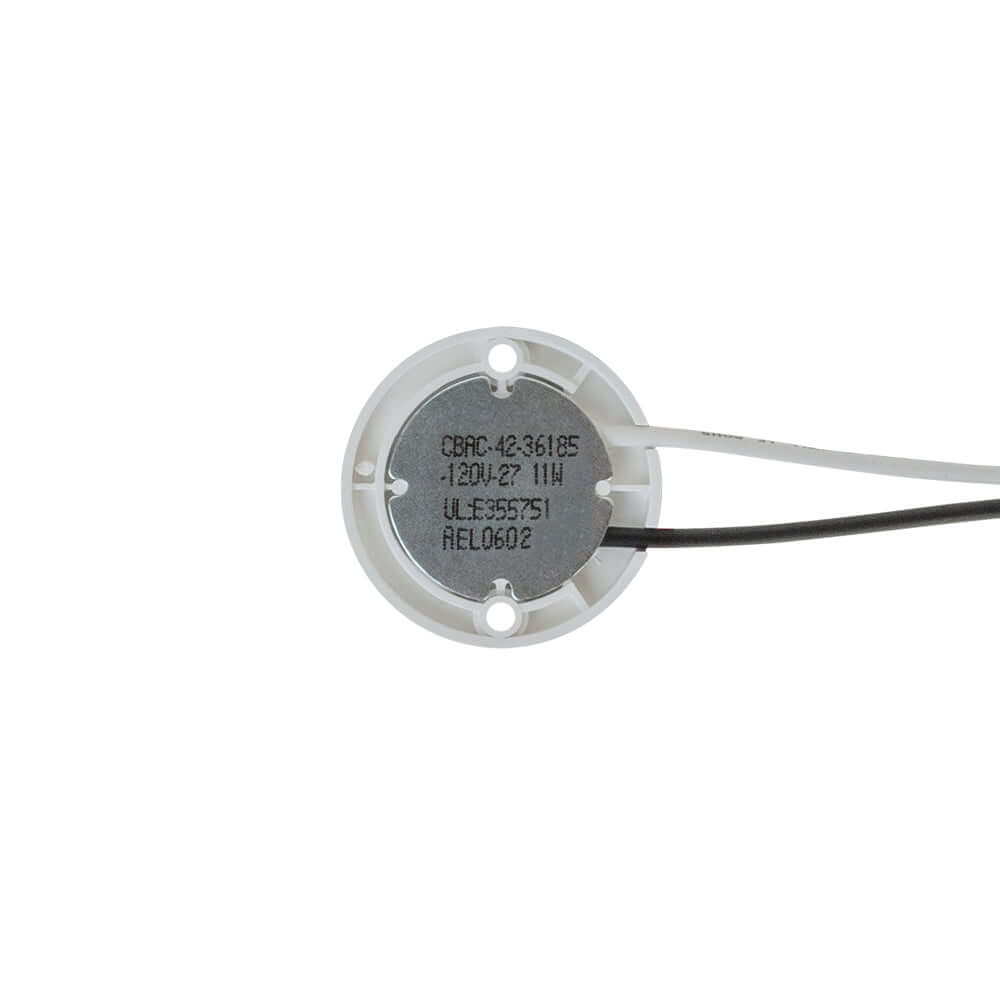

| Model No | CBAC-42-36185-120V-27 (Paragon) VBDMDL-4314-11W-9XXK-120V (Veroboard) |
| COB Holder Model No | H48185 |
|
LED Type |
COB LED |
| Wattage | 11W |
| Voltage | 120V AC |
| Power Factor | PF>0.98 |
| Color Temperature | (Paragon) 2700K (Soft White) (Veroboard) 2700K (Soft White) 3000K (Warm White) 4000K (Natural White) |
| Brightness | 880 Lumens |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |

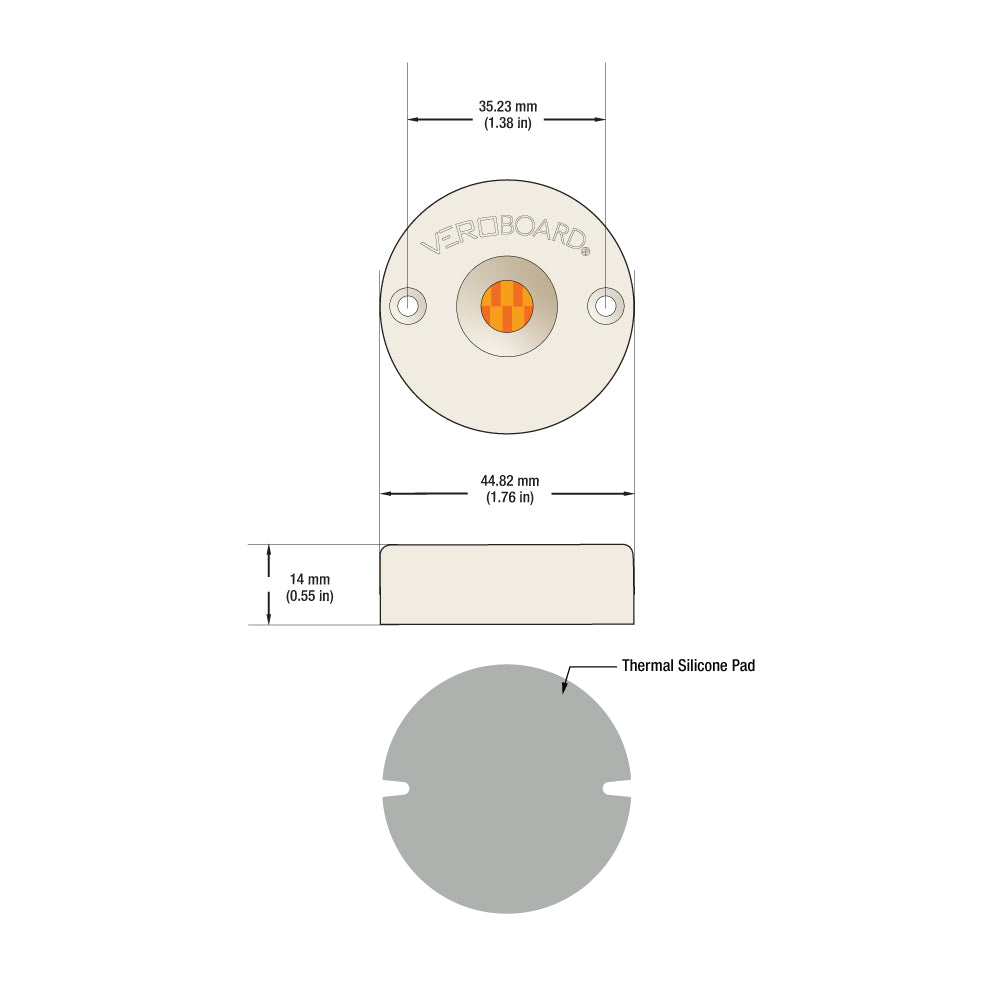

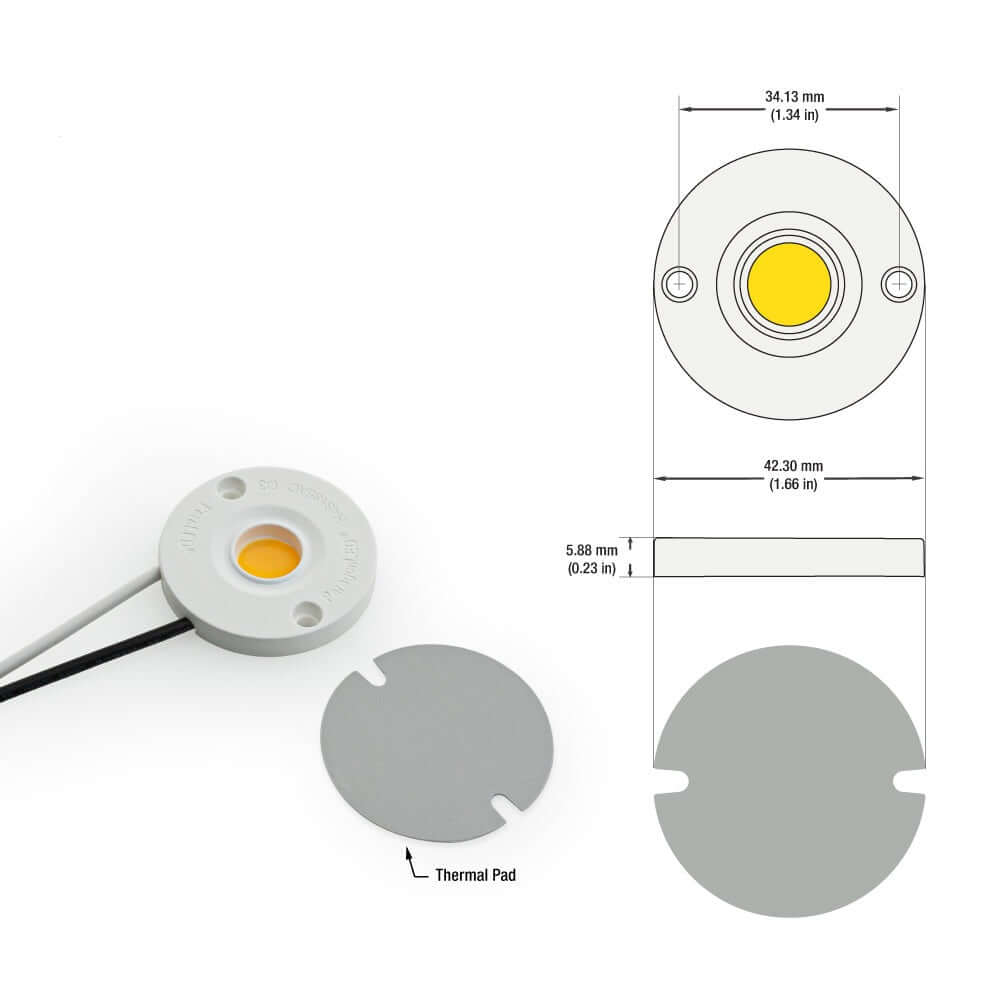

| COB Holder Dimensions |
(Paragon) (Veroboard) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |

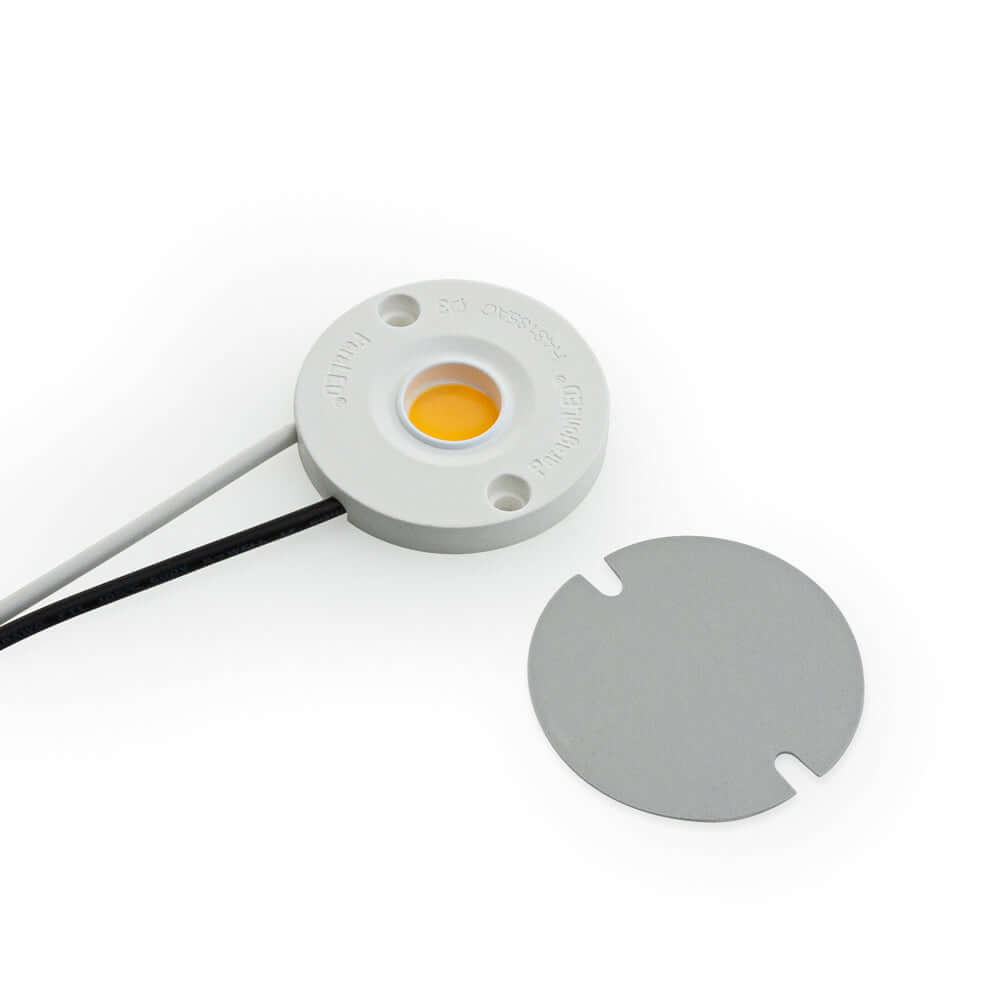

| Included Content | COB Module, COB Holder with Thermal Pad |
| Weight | 0.04 kg |
| Certifications (Paragon) |  |
| Certifications (Veroboard) |

|
Features:
- Color temperature of 2700K, producing a soft white light
- Dimmable module with a high color rendering index of over 90, ensuring accurate color display

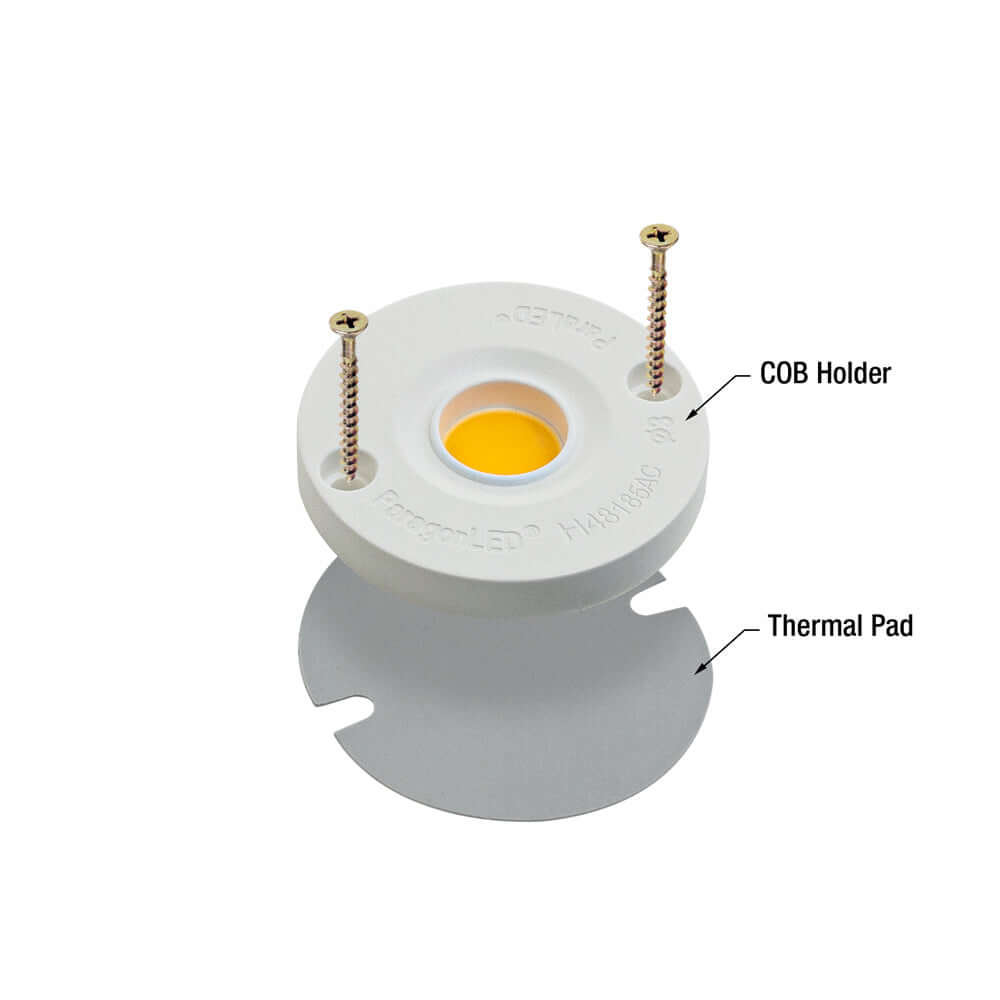

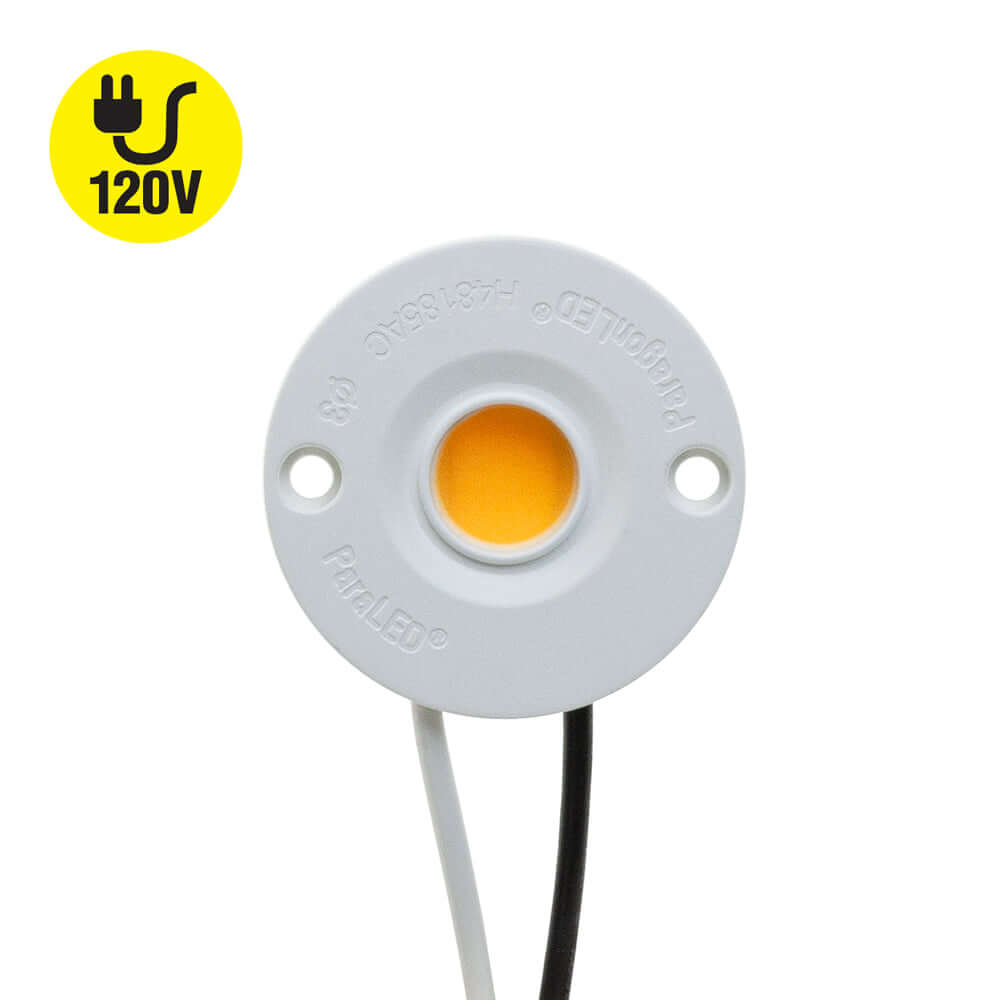

- Comes with a H48185 COB LED holder that allows for easy mechanical and electrical connections and secure attachment to a heat sink
- Recommended to use an aluminum heat sink and silicone grease thermal pad to prevent overheating and ensure longevity of the module
- Includes a polycarbonate diffuser that can be easily attached or detached to protect the module, reduce glare, and refract light in a wider beam

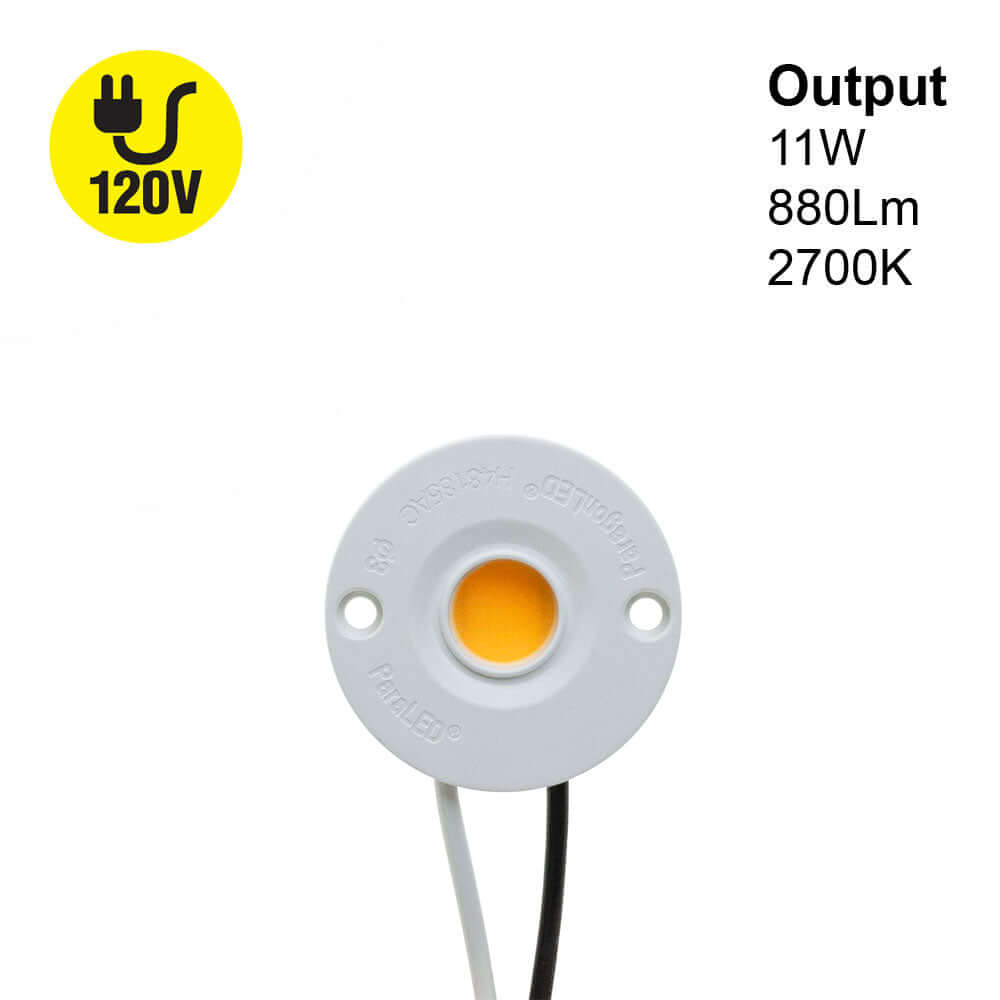

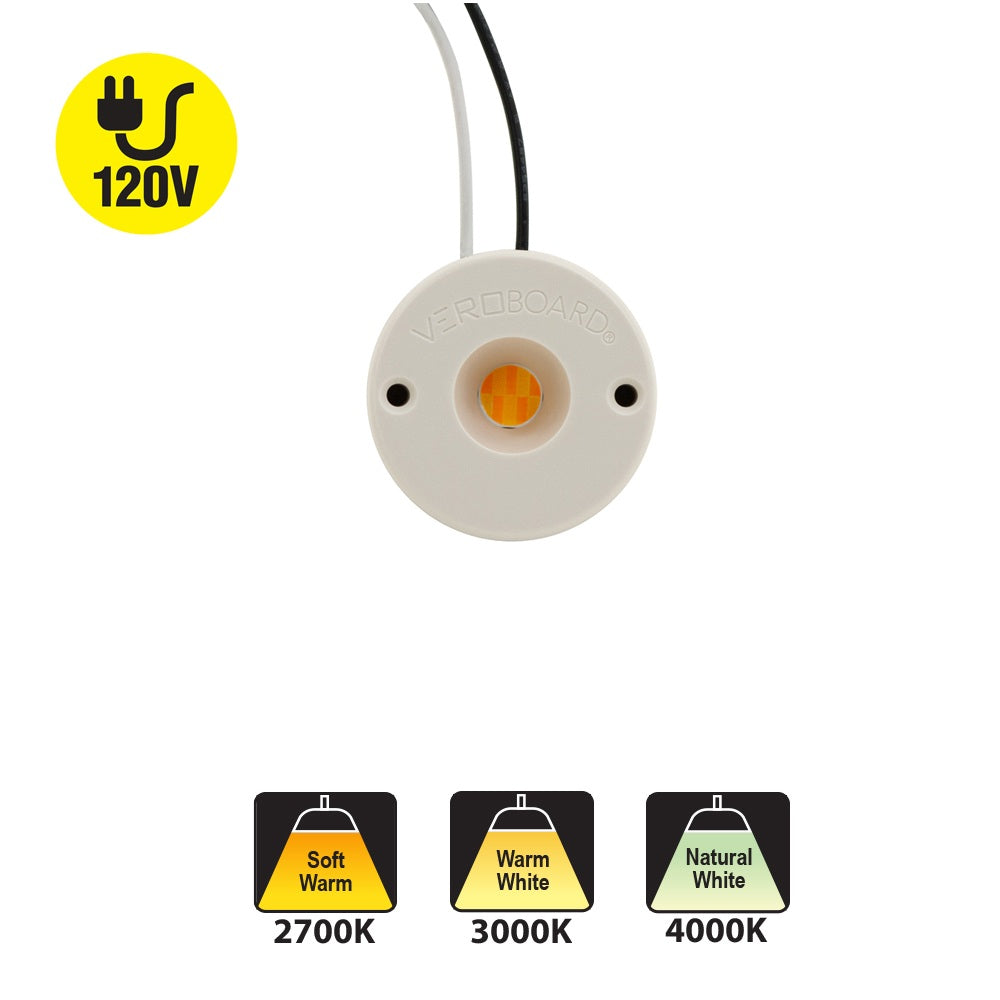

- COB LED Module Light 120V 11W 880Lm 2700K, 3000K, 4000K
