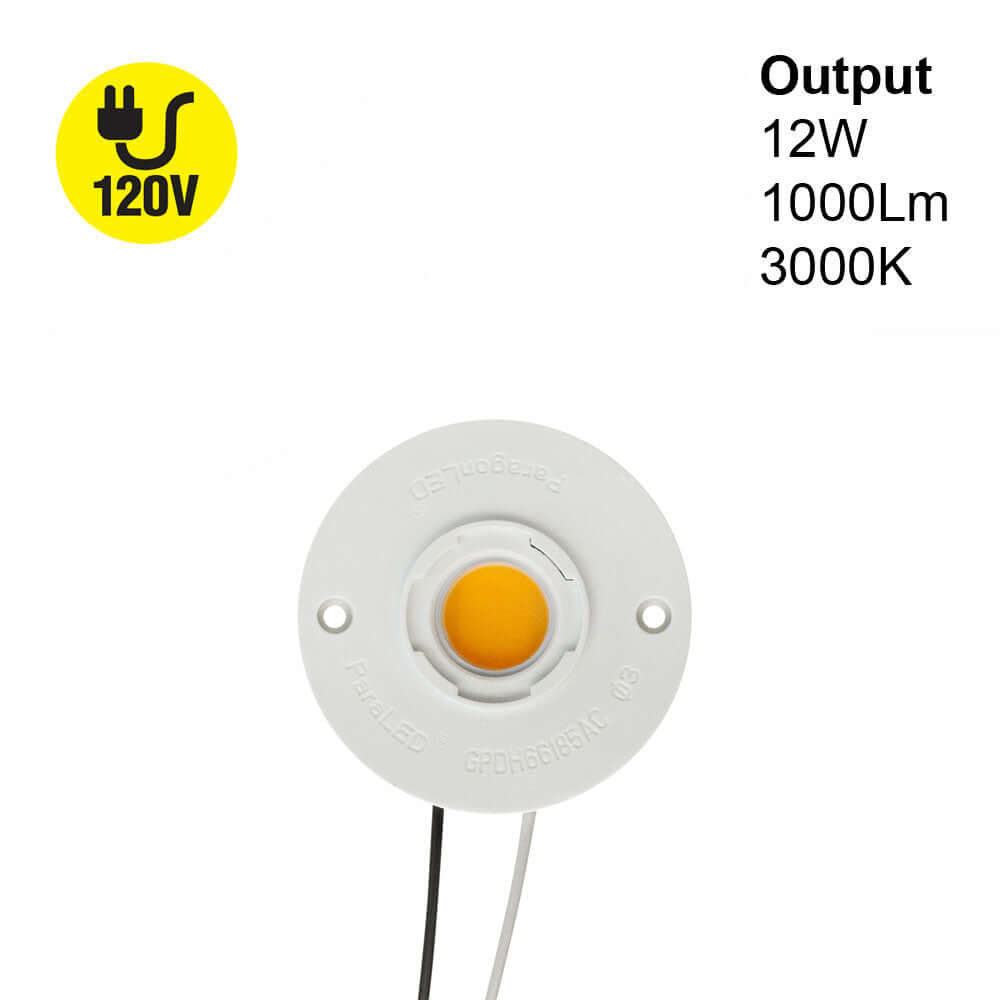

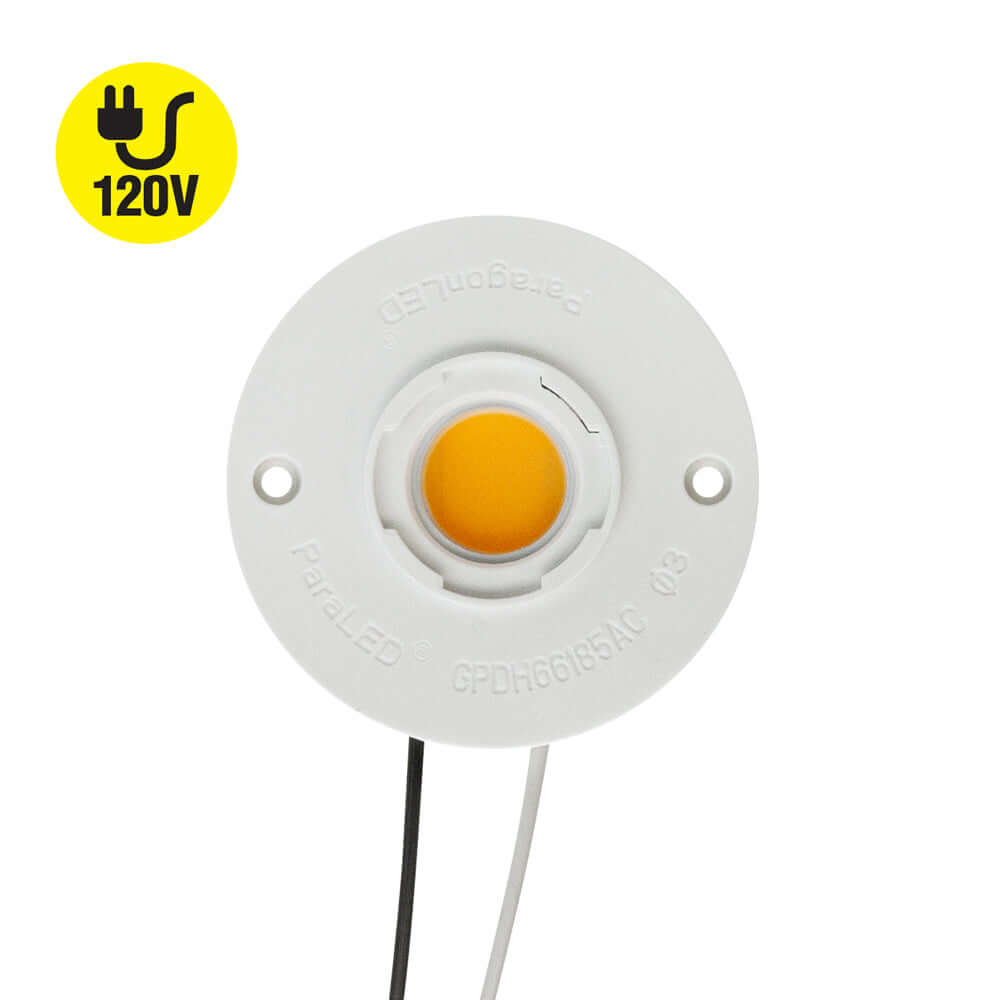

COB Paragon LED Module with GPDH66185AC LED Holder 120V 12W CCT(2.7K, 3K, 4K), CBHT-42-36185-120V-30

Product	Paragon LED Module

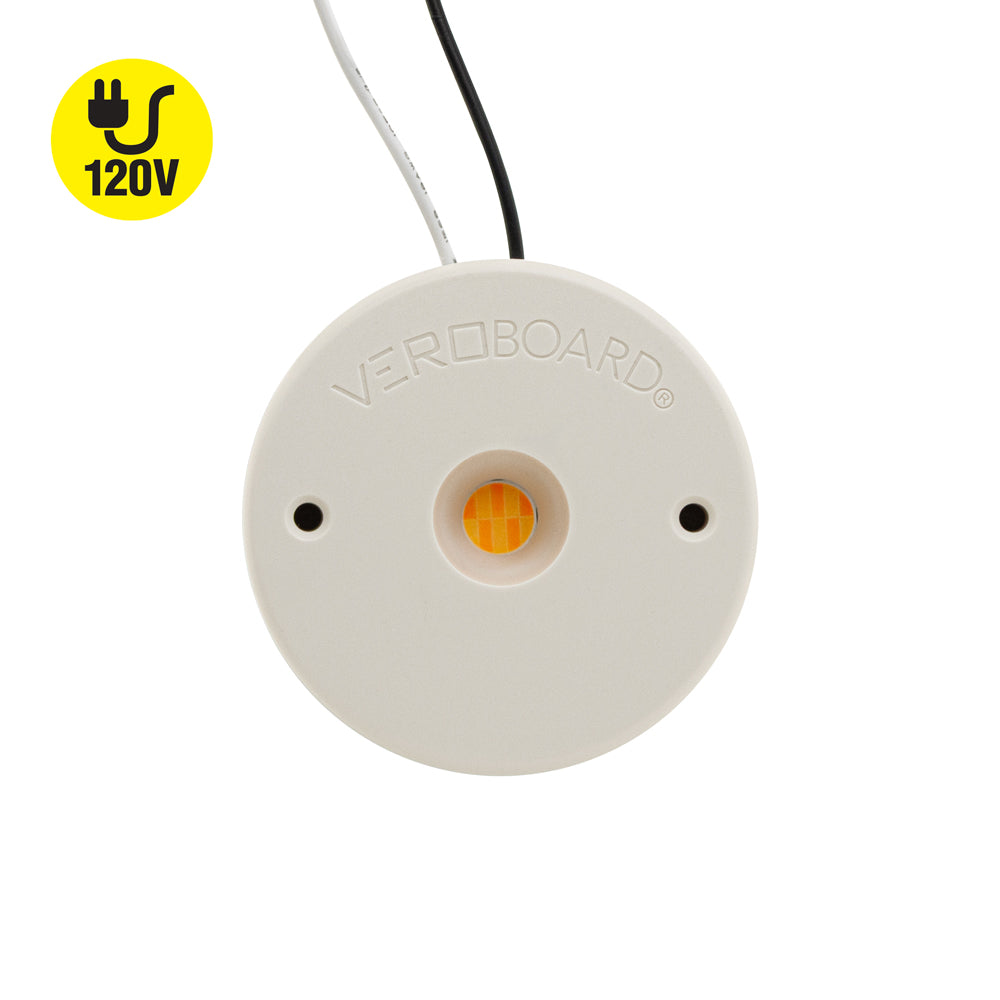

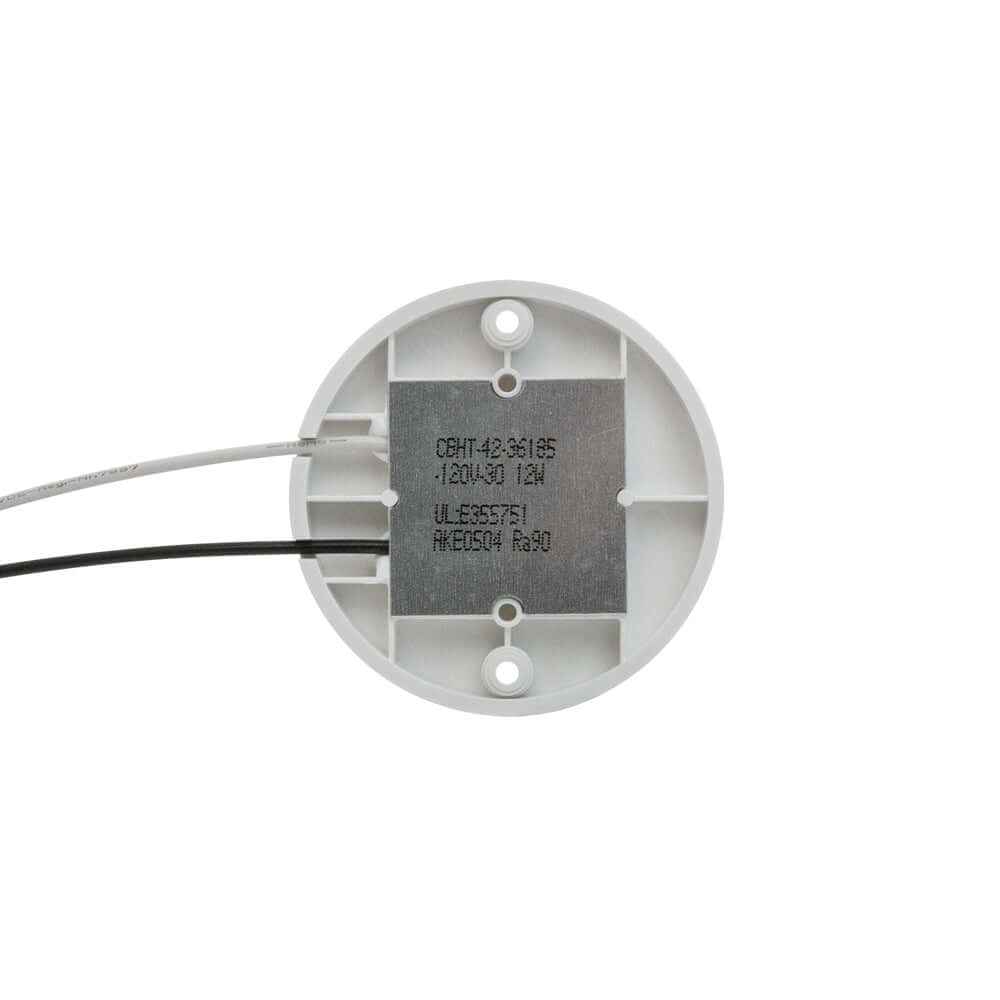

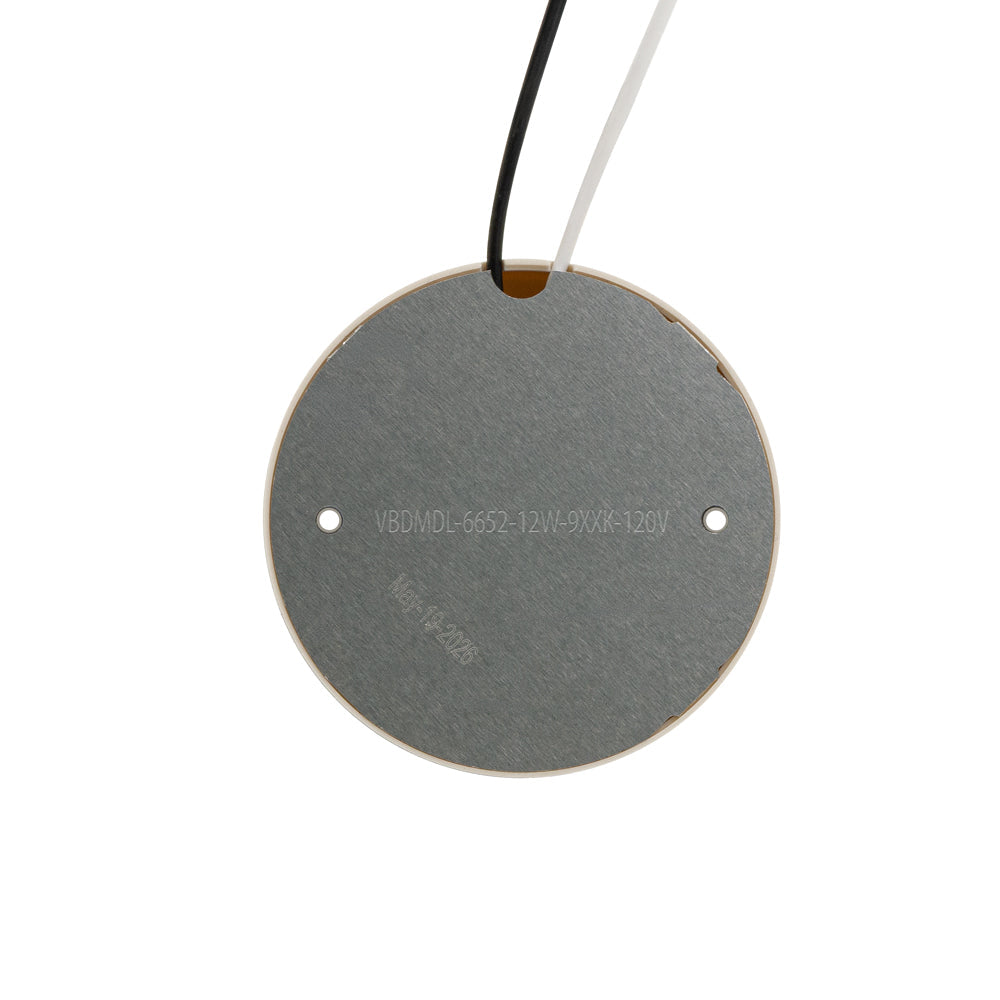

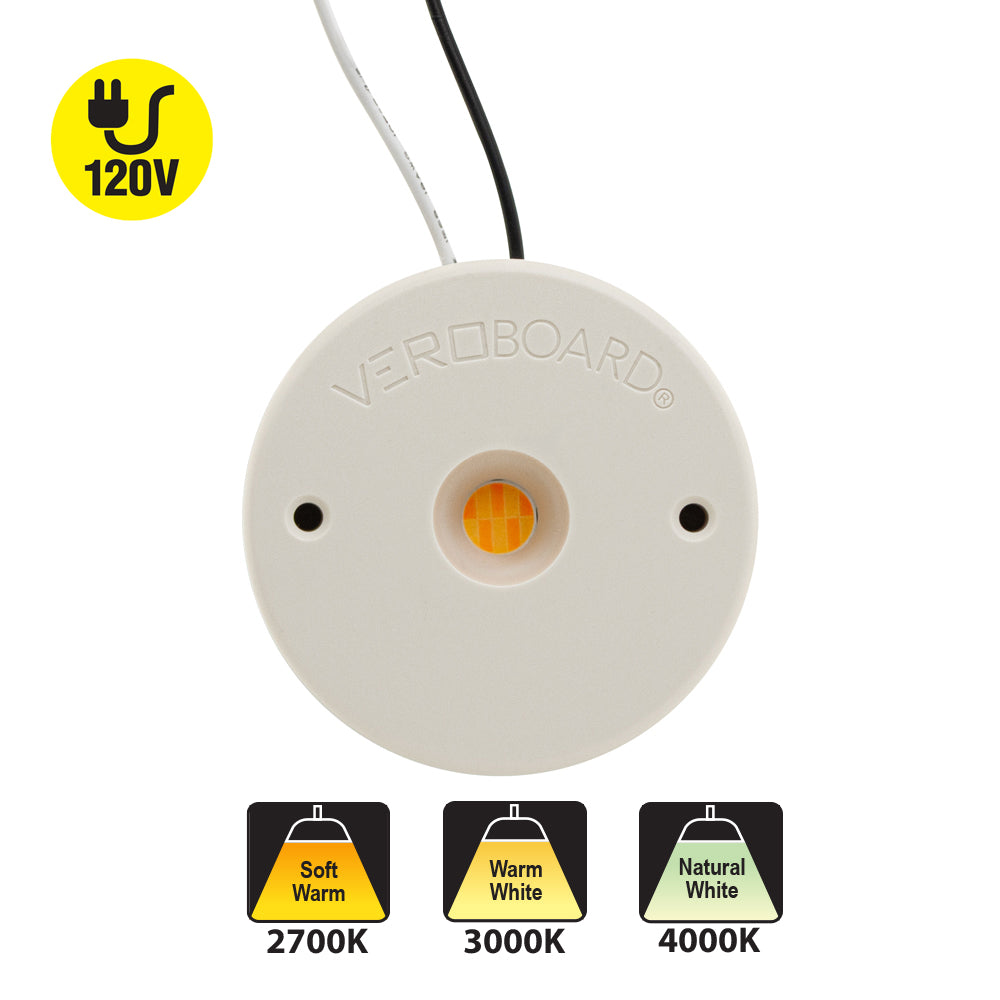

Model No	CBHT-42-36185-120V-30 (Paragon) VBDMDL-6652-12W-9XXK-120V (Veroboard)

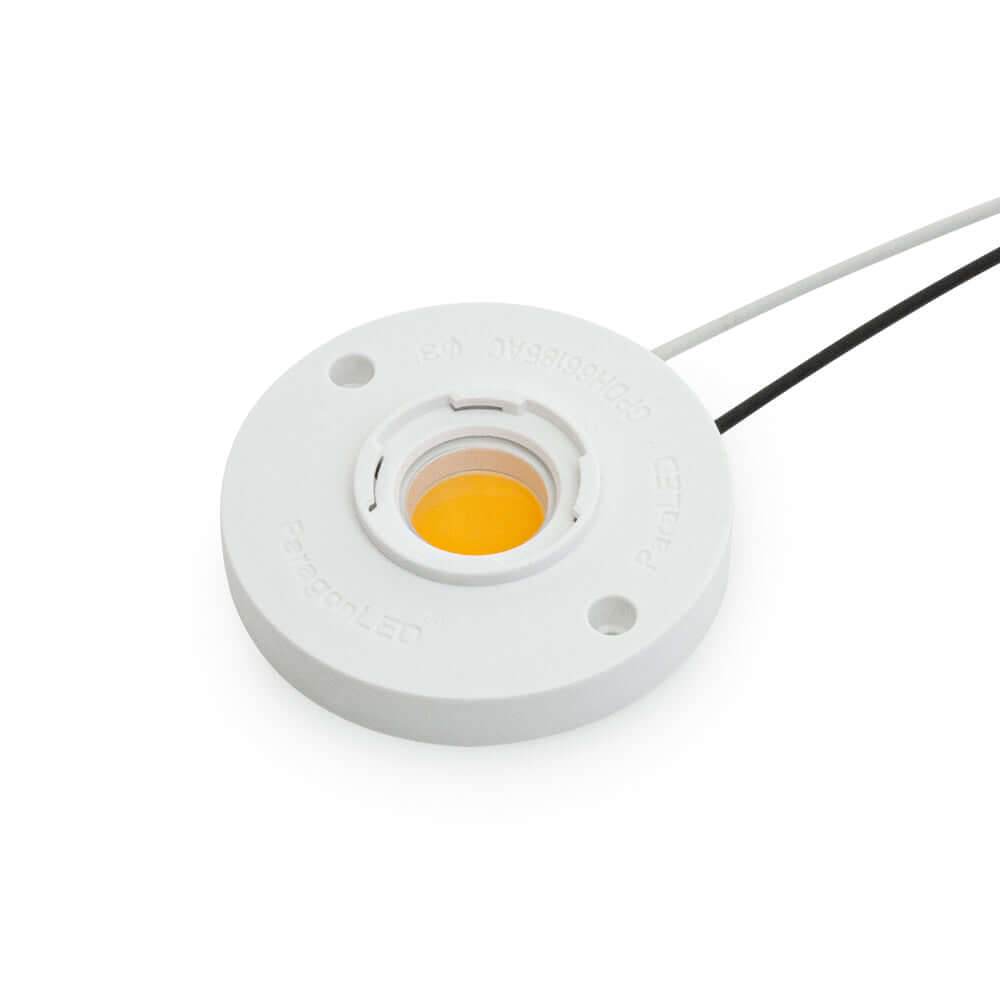

COB Holder Model No	GPDH66185AC
LED Type	COB LED
Wattage	12W
Voltage	120V AC
Power Factor	PF>0.98
Luminous Intensity	1000 lumens
Color Temperature	(Paragon) 3000K (Warm White) (Veroboard) 2700K (Soft White) 3000K (Warm White) 4000K (Natural White)
Dimmable	Yes
Rendering Index	CRI>90 (Paragon) CRI>95 (Veroboard)
IP Rating	IP20 (Indoor rated)

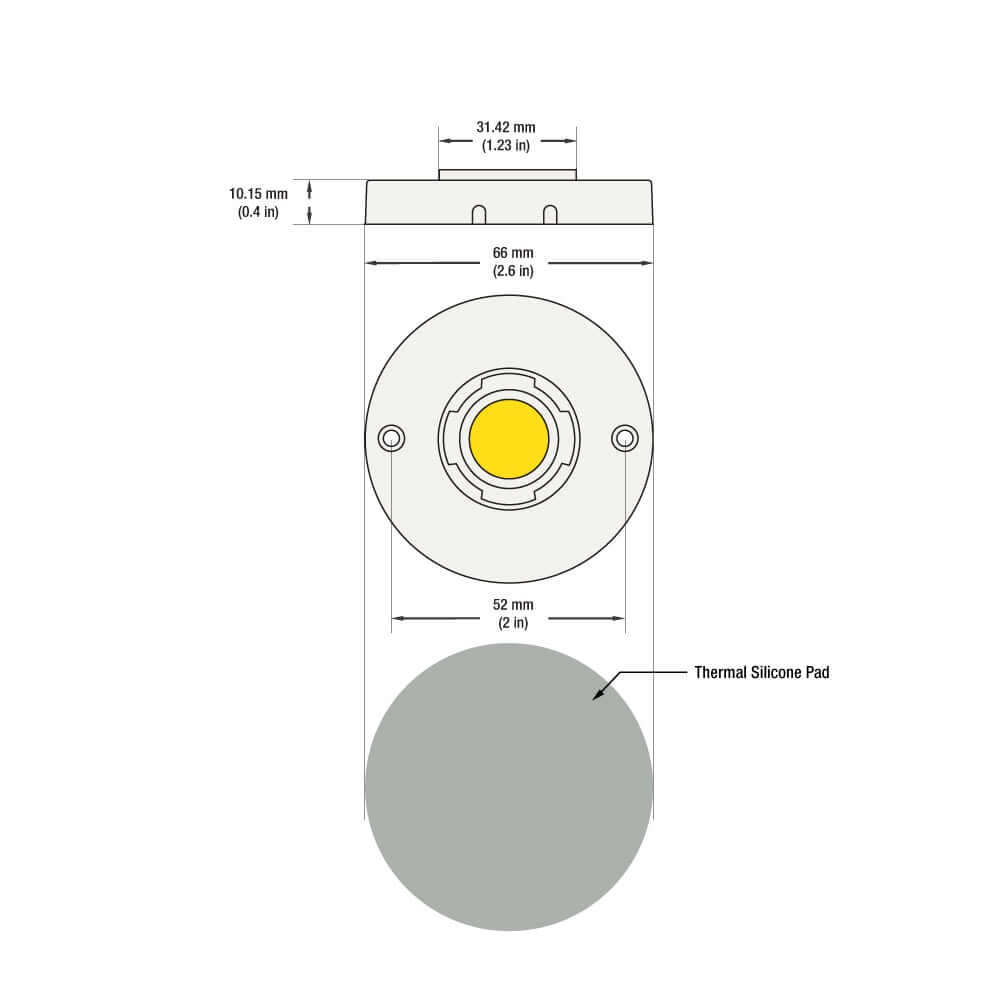

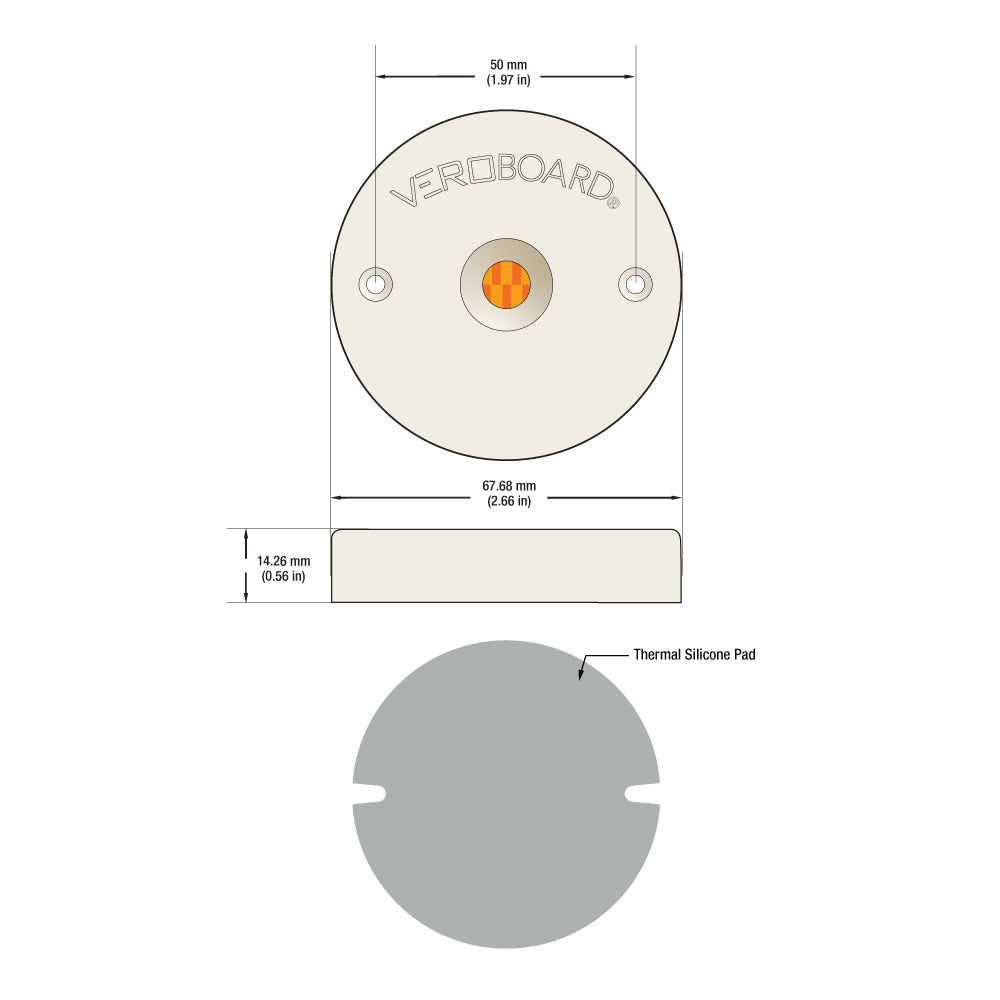

COB Holder Dimensions	(Paragon) ∅66mm (2.6 in) x H10.15mm (0.4 in) (Veroboard) ∅67.6mm (2.66 in) x H14.26mm (0.56 in)
COB Module Outer Diameter	∅31.4 mm (1.2 in) (Paragon) ∅10mm (0.39in) (Veroboard)
Operating Temperature	-40 ~ +105℃
Storage Temperature	-40 ~ +105℃
Assembly process Temperature	<300℃
Solder joint point	<105℃
Dielectric Breakdown Voltage of Thermal Pad	>4KV

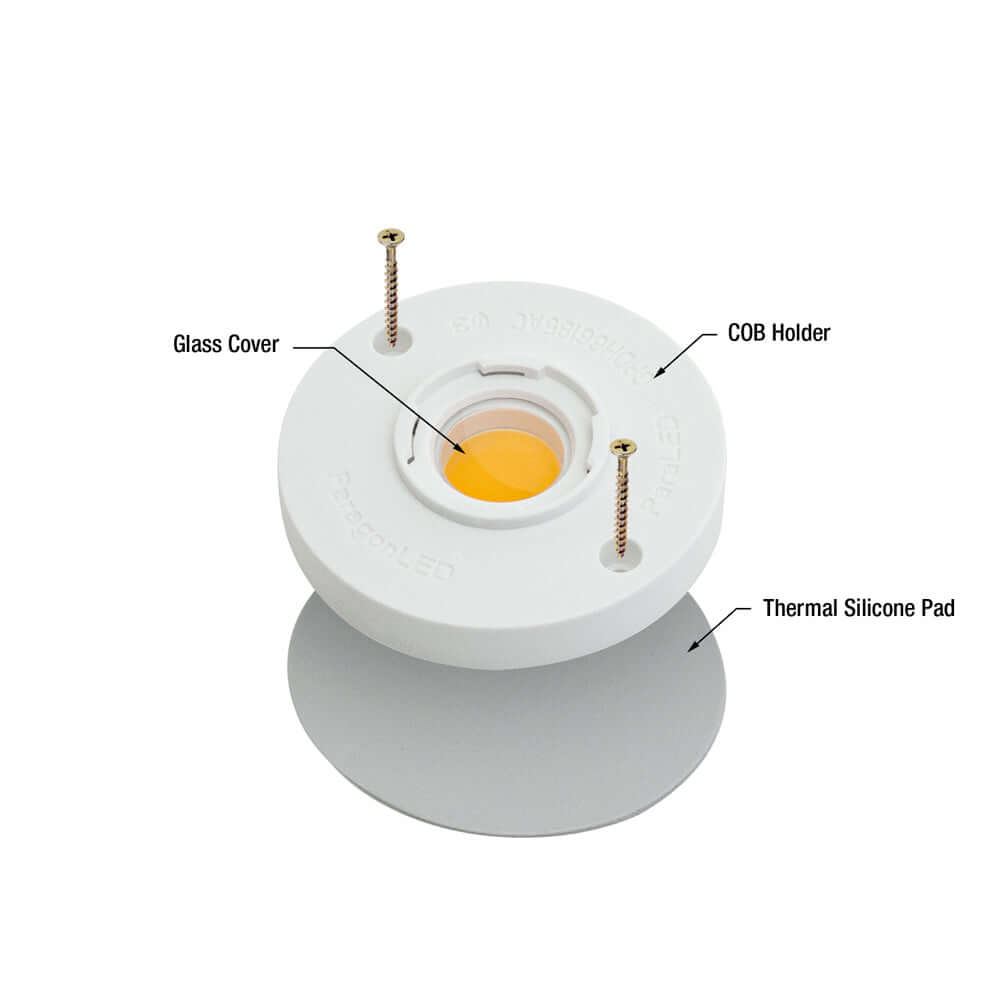

Included Content	COB Module, COB LED Holder, Thermal Pad
Weight	0.05 kg
Certifications

Features:

• Power consumption of 12W and voltage rating of 120V AC

• Dimmable with high color rendering index of over 90
• Comes with a GPDH66185AC COB LED holder for easy mechanical and electrical connections

• Aluminum heat sink recommended to prevent overheating and ensure longevity
• Silicone grease thermal pad included for additional heat dissipation
• UL certified and suitable for use in damp locations
• Operating temperature range of -40 ~ +105℃ and storage temperature range of -40 ~ +105℃
• Assembly process temperature should not exceed 300℃ and solder joint point temperature should not exceed 105℃
• Dielectric breakdown voltage of thermal pad is greater than 4KV
