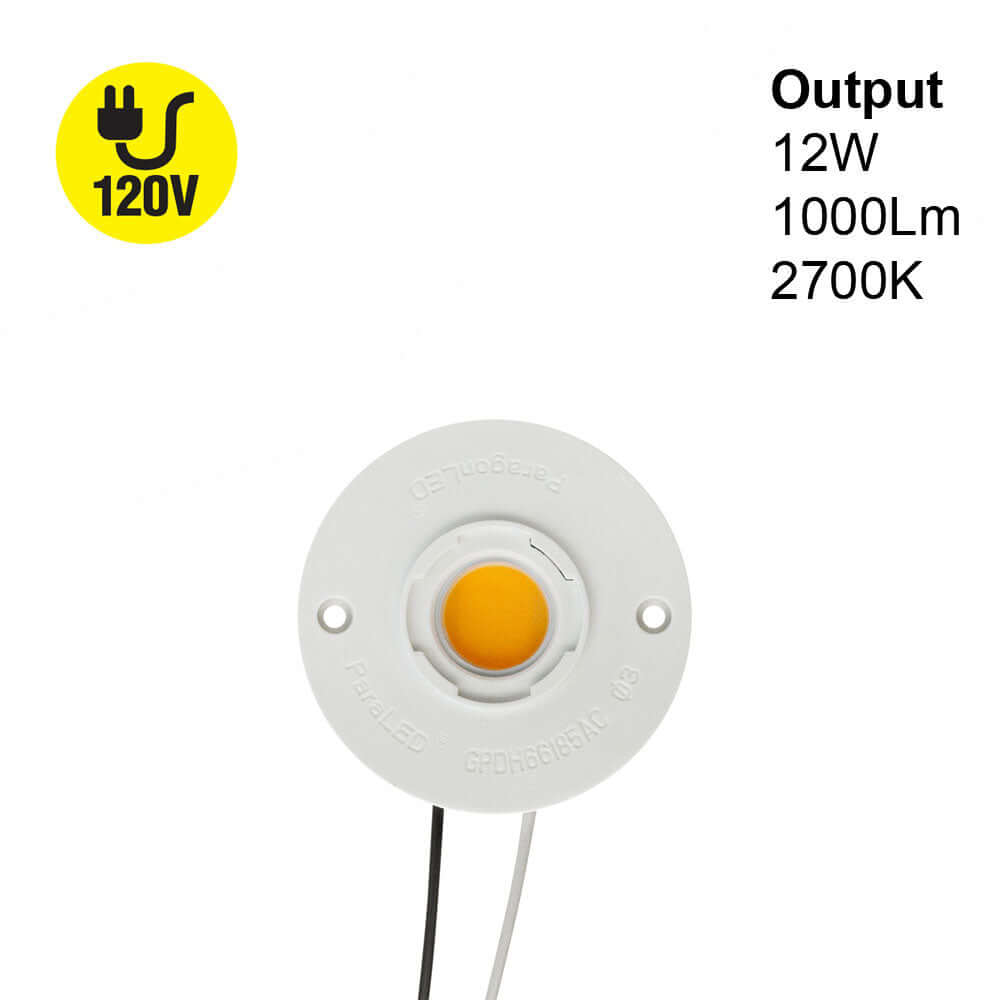

COB Paragon LED Module Light 120V 12W 1000Lm CCT(2.7K, 3K, 4K), CBHT-42-36185-120V-27 with GPDH66185AC LED Holder

Product	Paragon LED Module

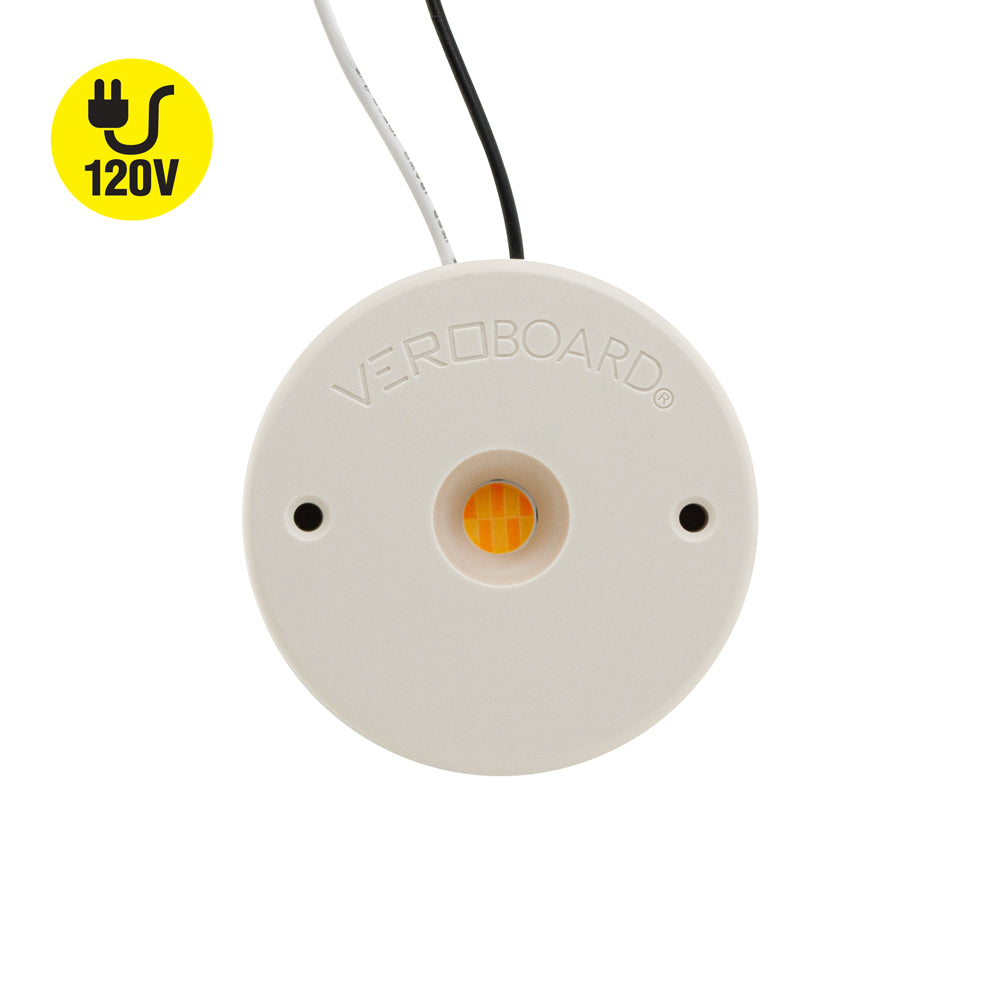

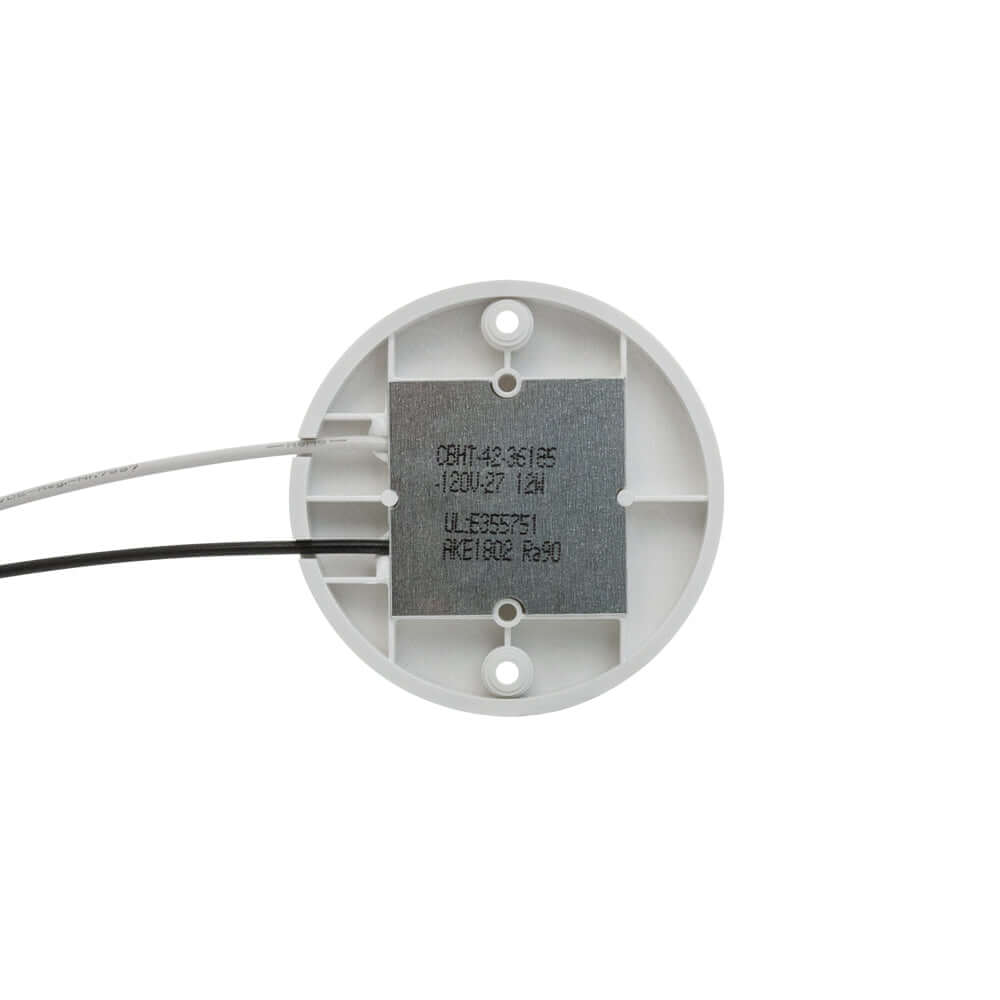

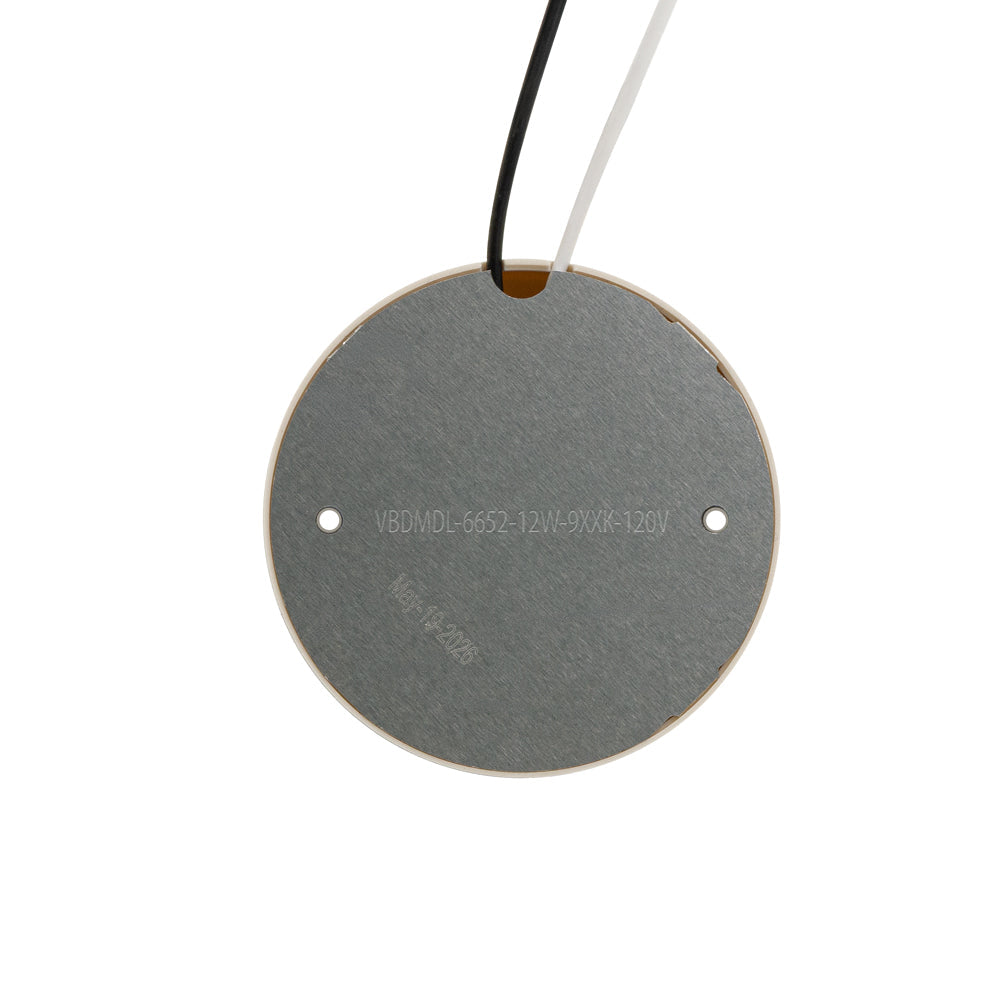

Model No	CBHT-42-36185-120V-27 (Paragon) VBDMDL-6652-12W-9XXK-120V (Veroboard)

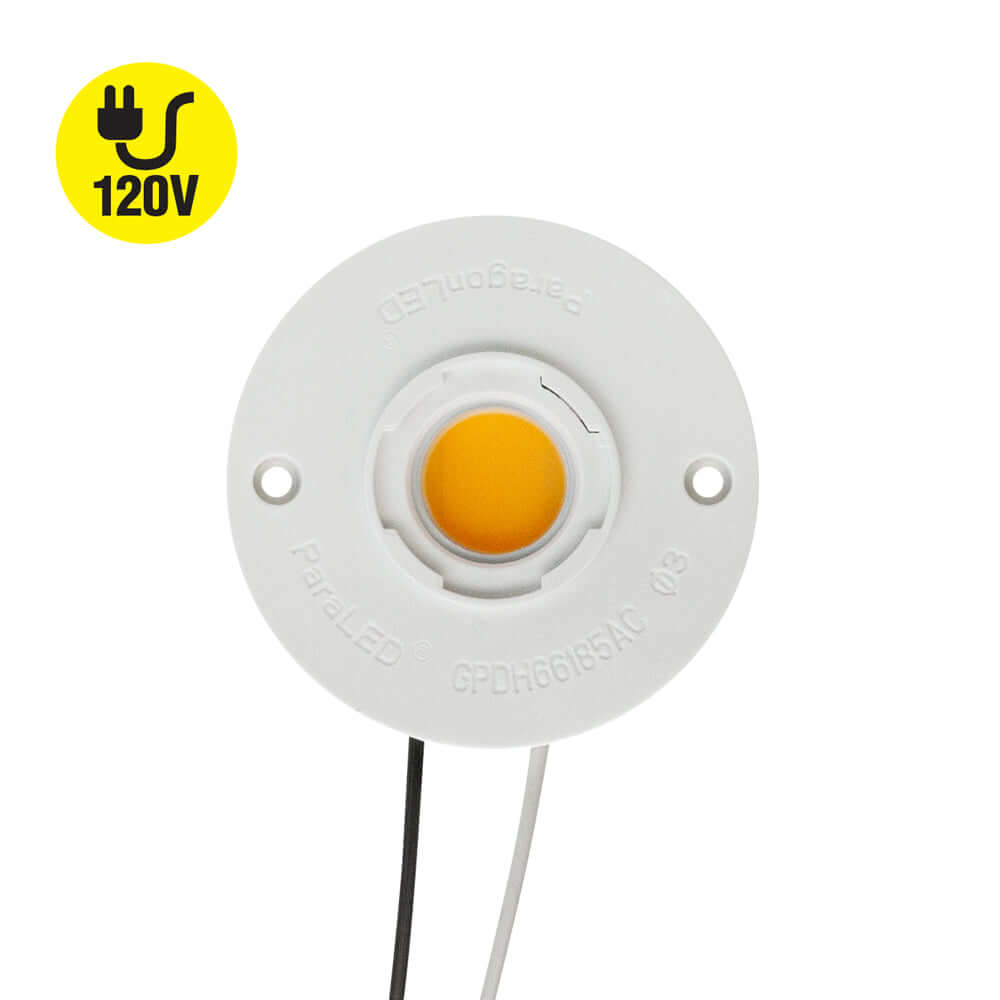

COB Holder Model No	GPDH66185AC
LED Type	COB LED
Wattage	12W
Voltage	120V AC
Power Factor	PF>0.98
Luminous Intensity	1000 lumens

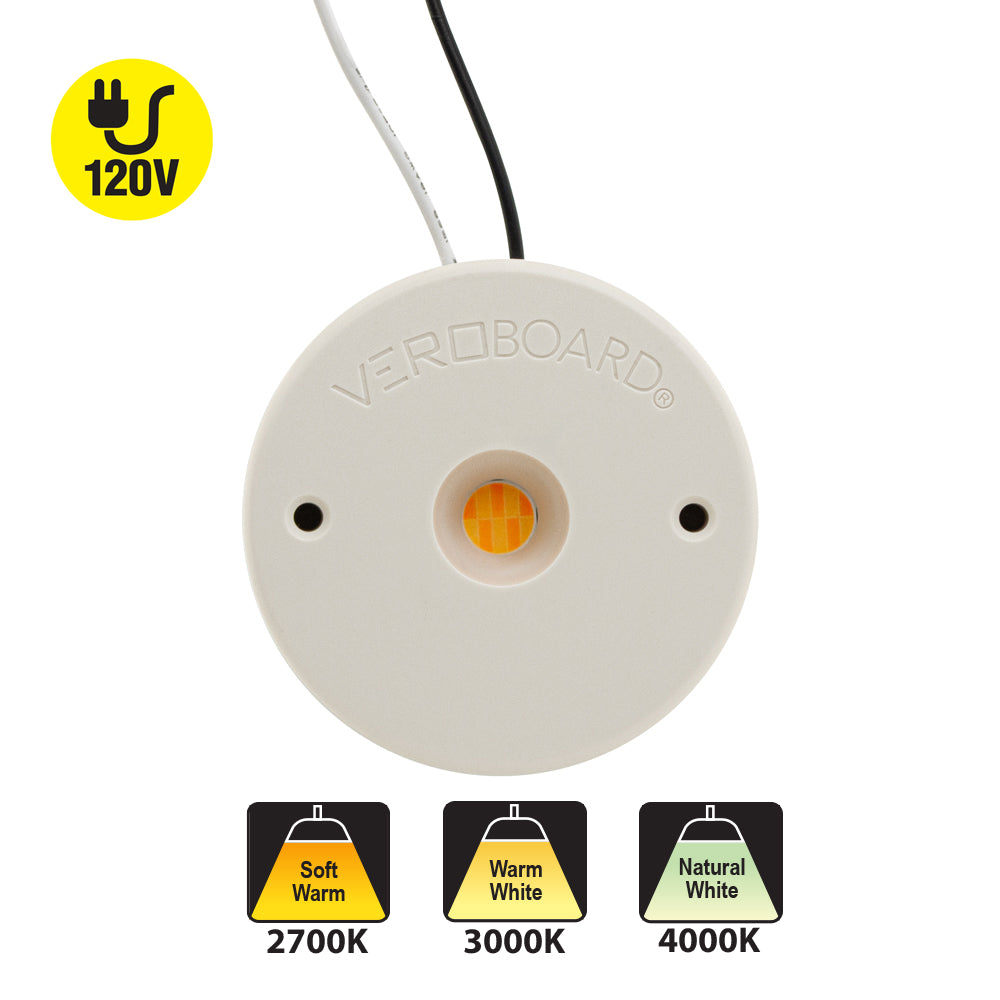

Color Temperature	(Paragon) 2700K (Soft White) (Veroboard) 2700K (Soft White) 3000K (Warm White) 4000K (Natural White)
Dimmable	Yes
Rendering Index	CRI>90
IP Rating	IP20 (Indoor rated)

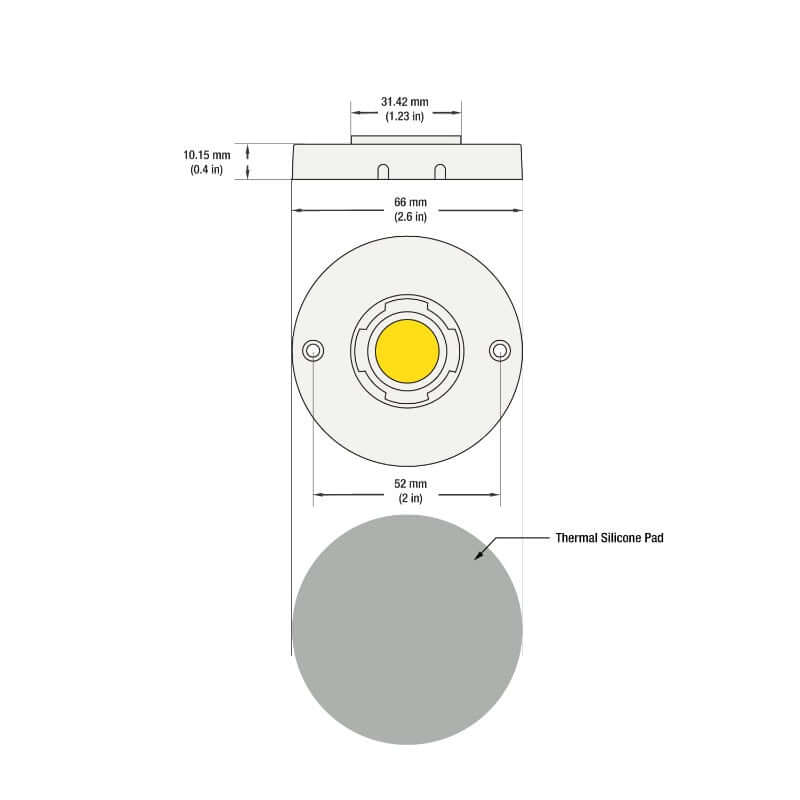

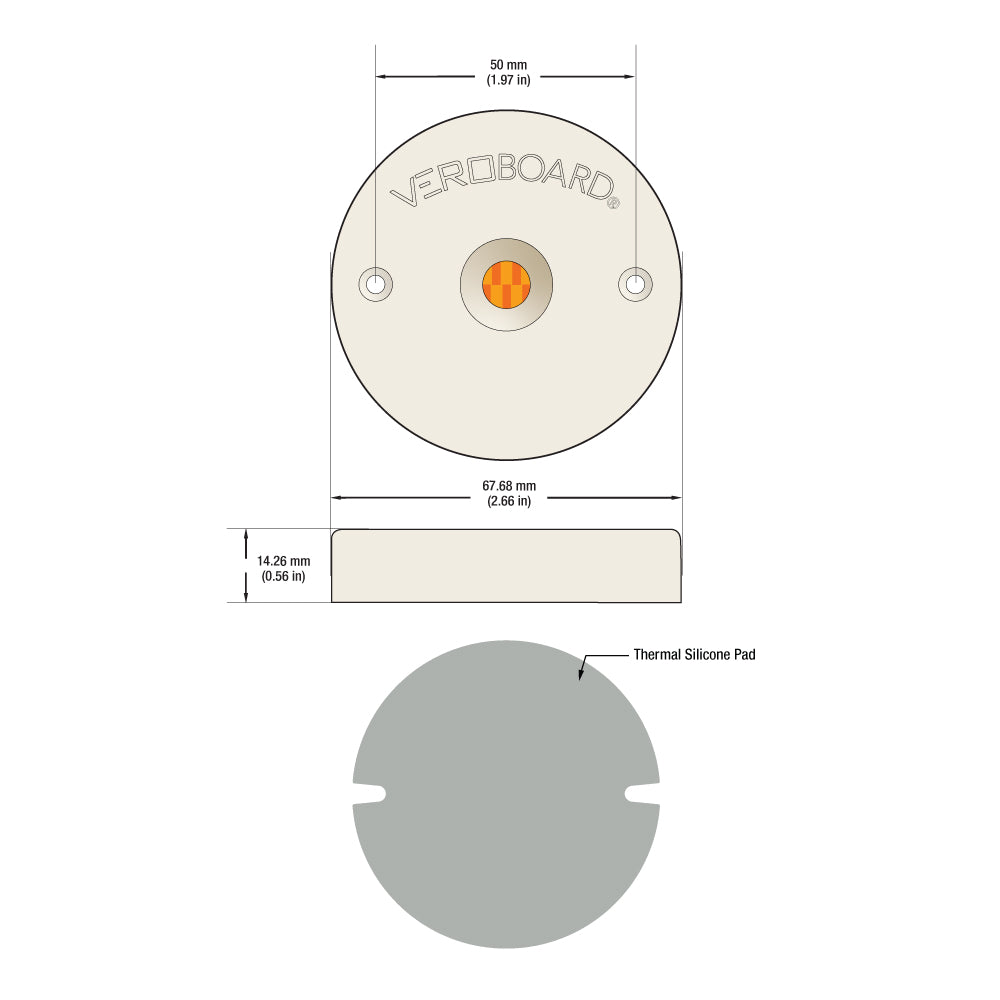

COB Holder Dimensions	(Paragon) ∅66mm (2.6 in) x H10.15mm (0.4 in) (Veroboard) ∅67.6mm (2.66 in) x H14.26mm (0.56 in)
COB Module Outer Diameter	∅31.4 mm (1.2 in) (Paragon) ∅10mm (0.39in) (Veroboard)
Operating Temperature	-40 ~ +105℃
Storage Temperature	-40 ~ +105℃
Assembly process Temperature	<300℃
Solder joint point	<105℃
Dielectric Breakdown Voltage of Thermal Pad	>4KV

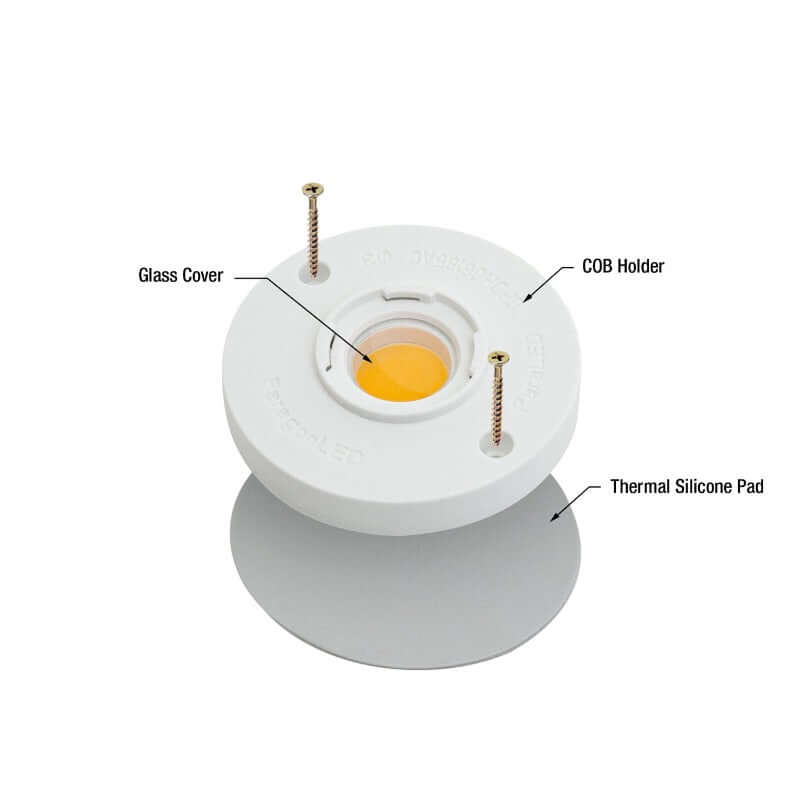

Included Content	COB Module, COB LED Holder, Thermal Pad
Weight	0.05 kg
Certifications

Features:

• COB LED module designed for indoor use with 12W power consumption and 120V AC voltage rating

• Recommended to use an aluminum heat sink and silicone grease thermal pad to prevent overheating and ensure longevity
• UL certified and suitable for use in damp locations
• Grounding of light fixtures is important for safe operation

• COB Paragon LED Module Light 120V 12W 1000Lm
