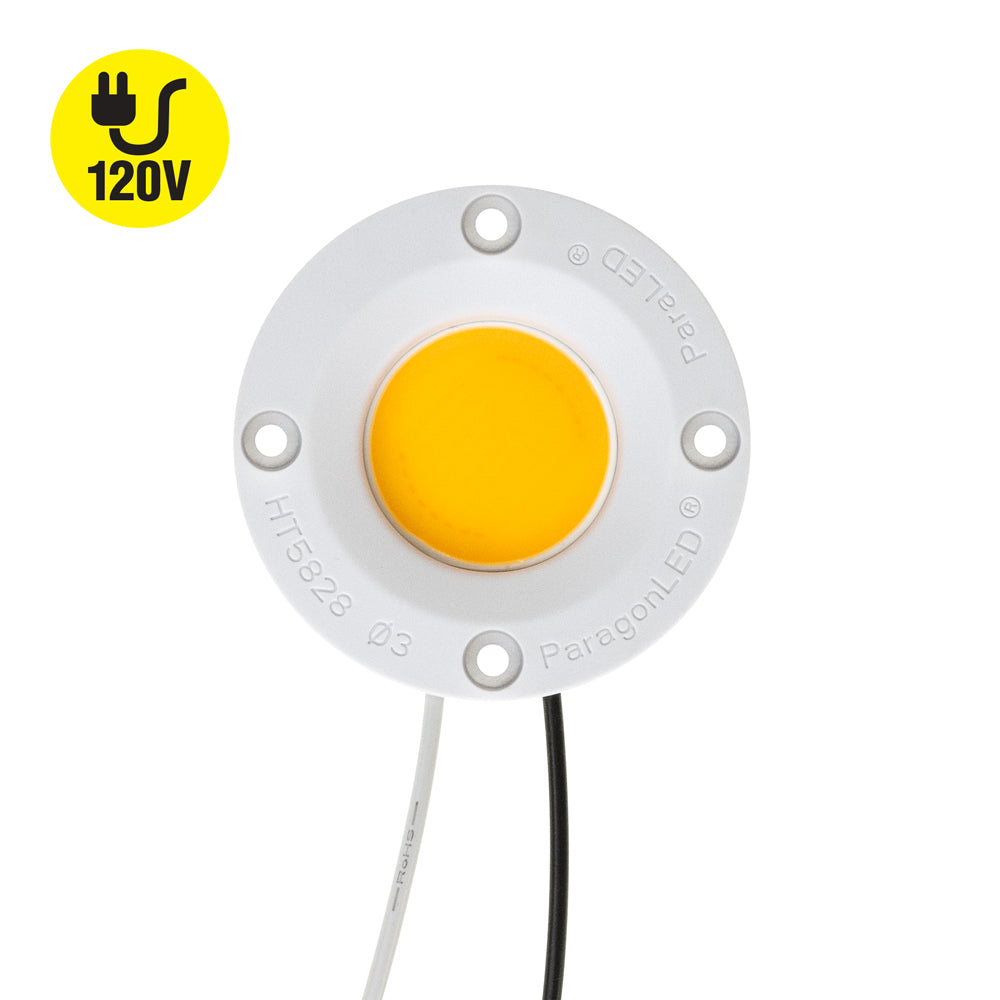

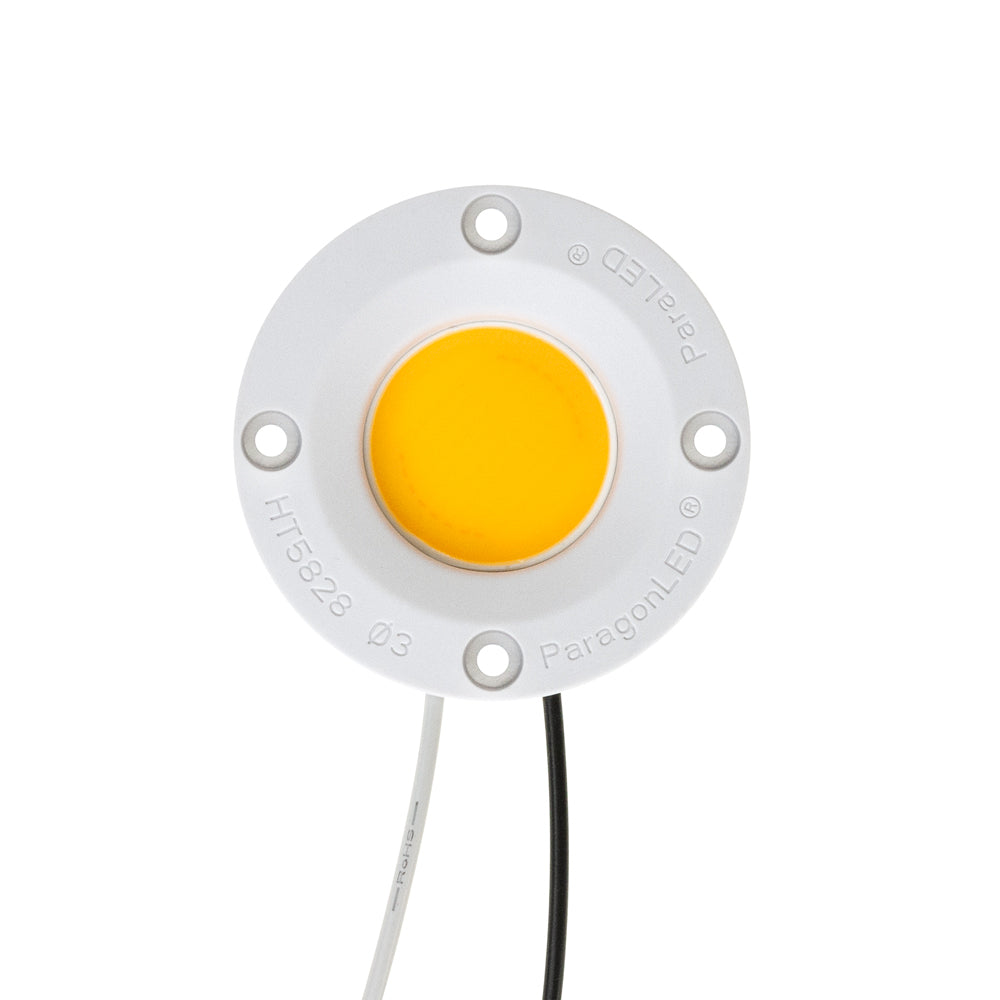

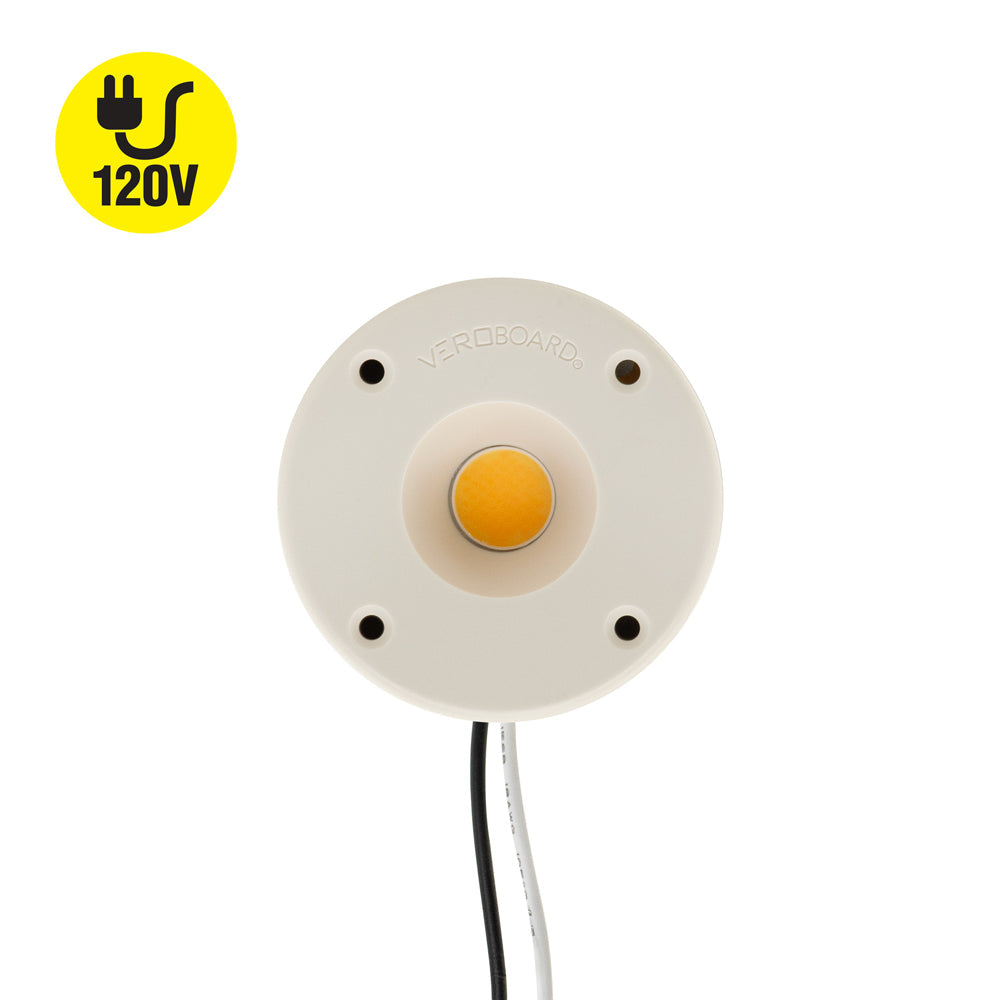

COB Paragon LED Module with HT5828 LED Holder, 120V 10W CCT(2.7K, 3K, 4K), CDAC-80-5028-120-27

Product	Paragon LED Module

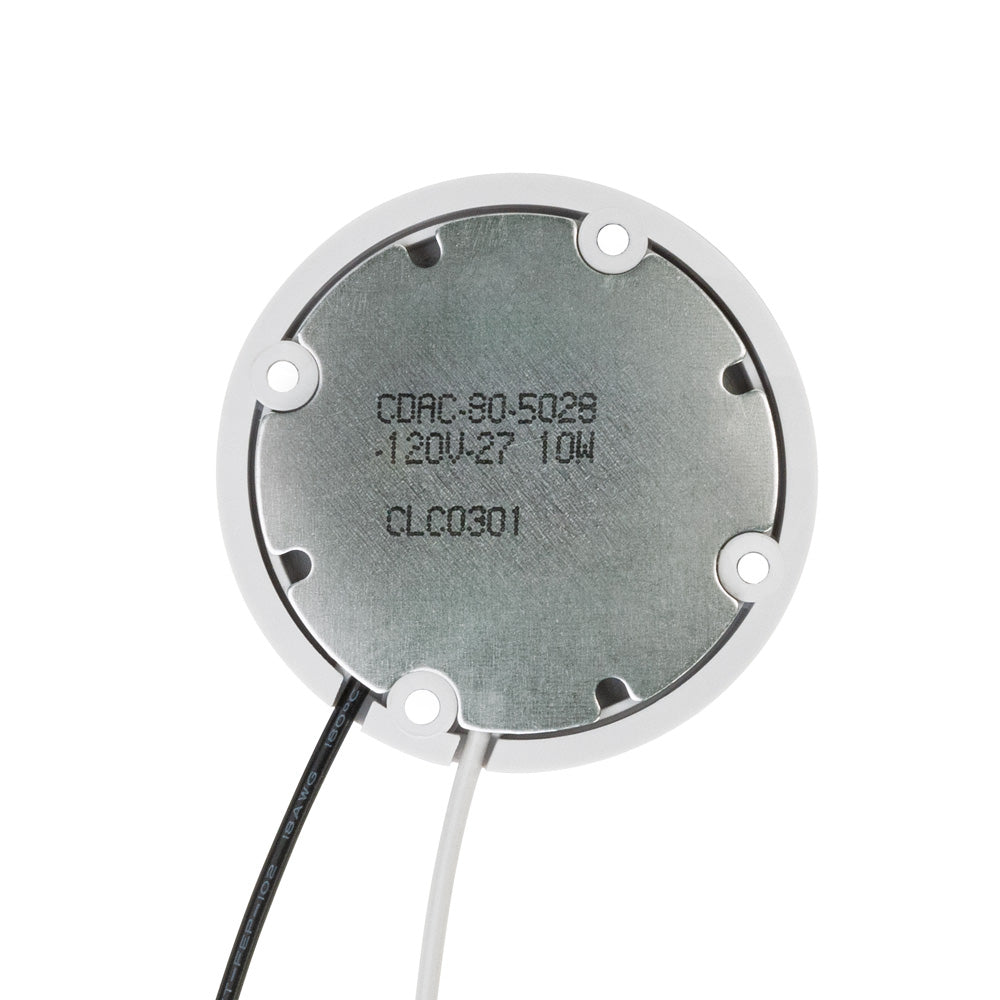

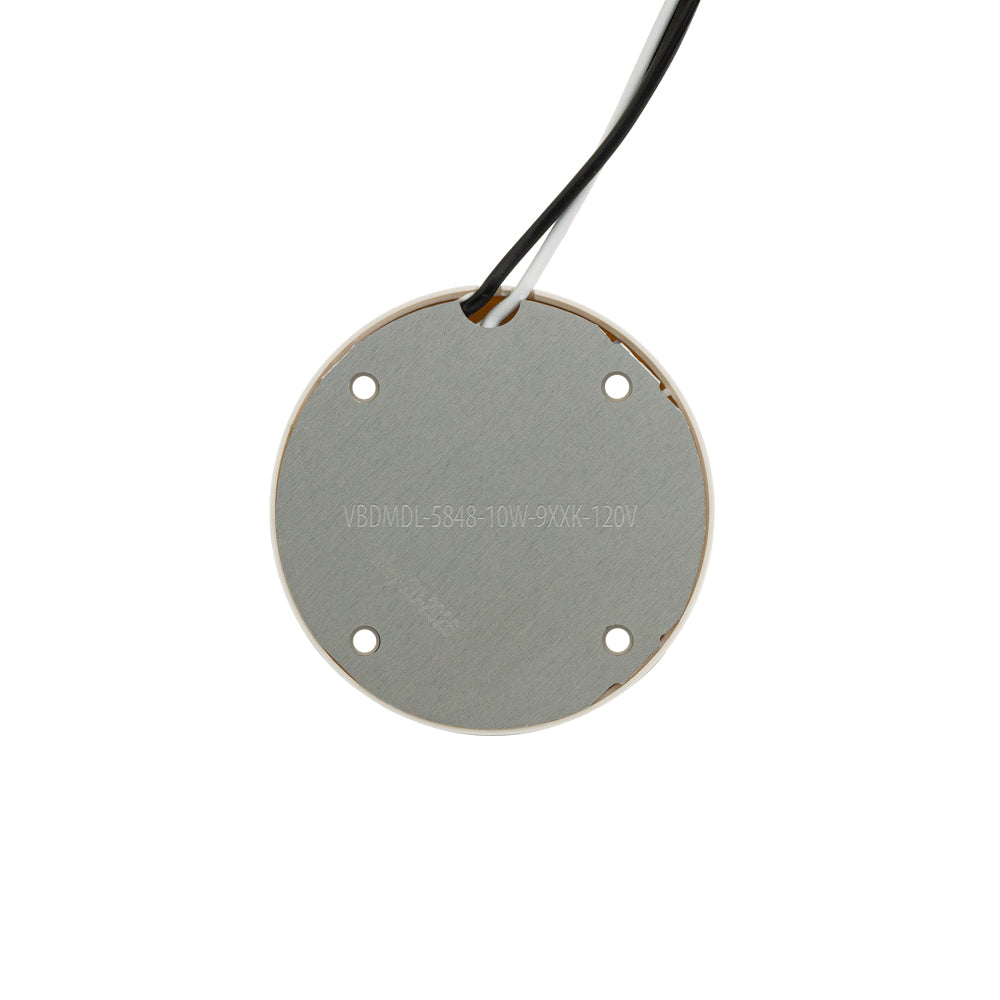

Model No	CDAC-80-5028-120-27 (Paragon) VBDMDL-5848-10W-9XXK-120V (Veroboard)
COB Holder Model No	HT5828
LED Type	COB LED
No LED chips	80

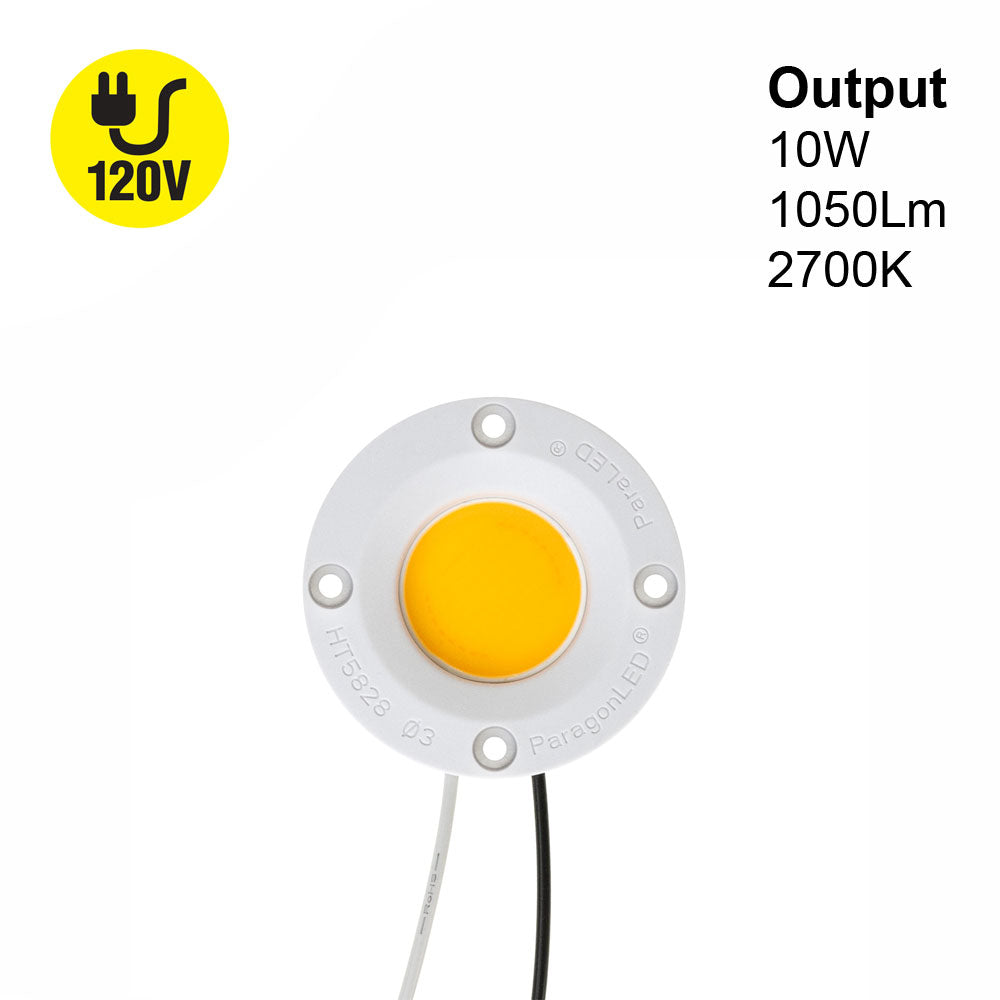

Wattage	10W
Voltage	120V AC
Power Factor	PF>0.85
Luminous Intensity	1050 Lumens

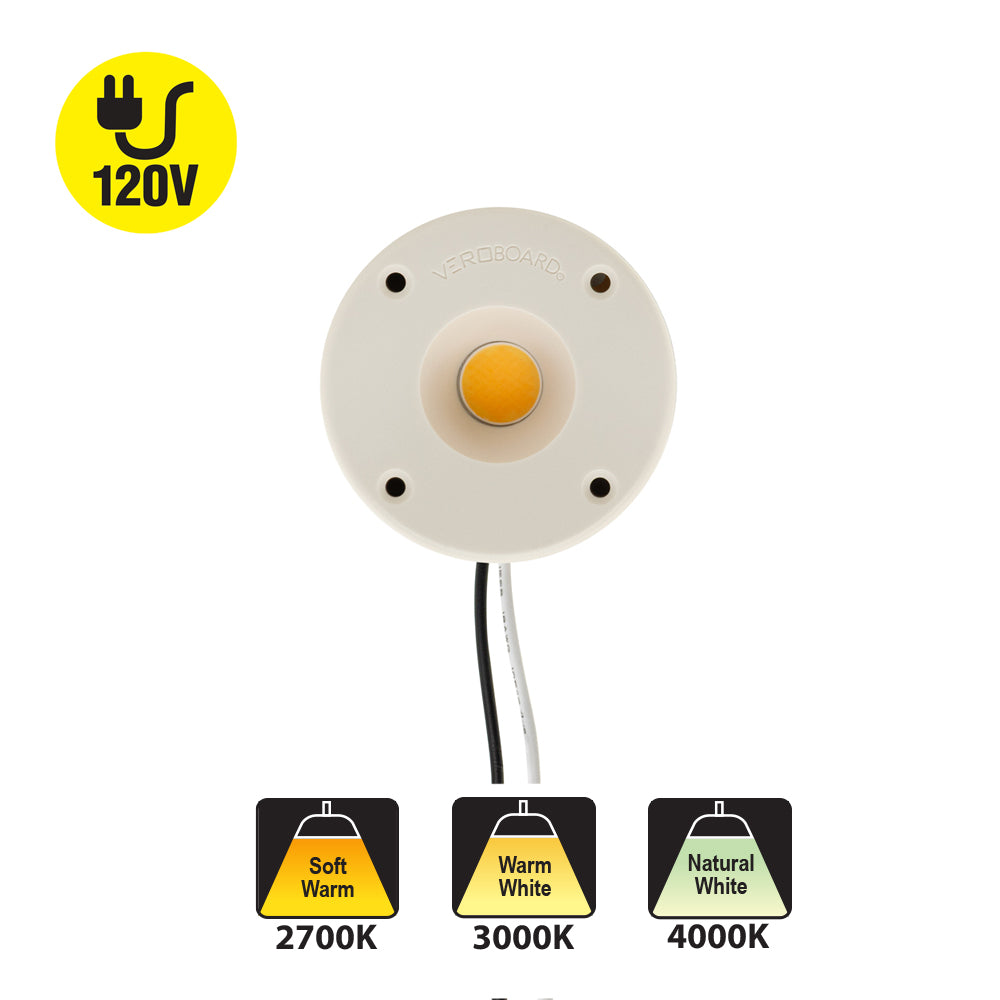

Color Temperature	(Paragon) 2700K (Soft White) (Veroboard) 2700K (Soft White) 3000K (Warm White) 4000K (Natural White)
Dimmable	Yes
Rendering Index	CRI>80
IP Rating	IP20 (Indoor rated)

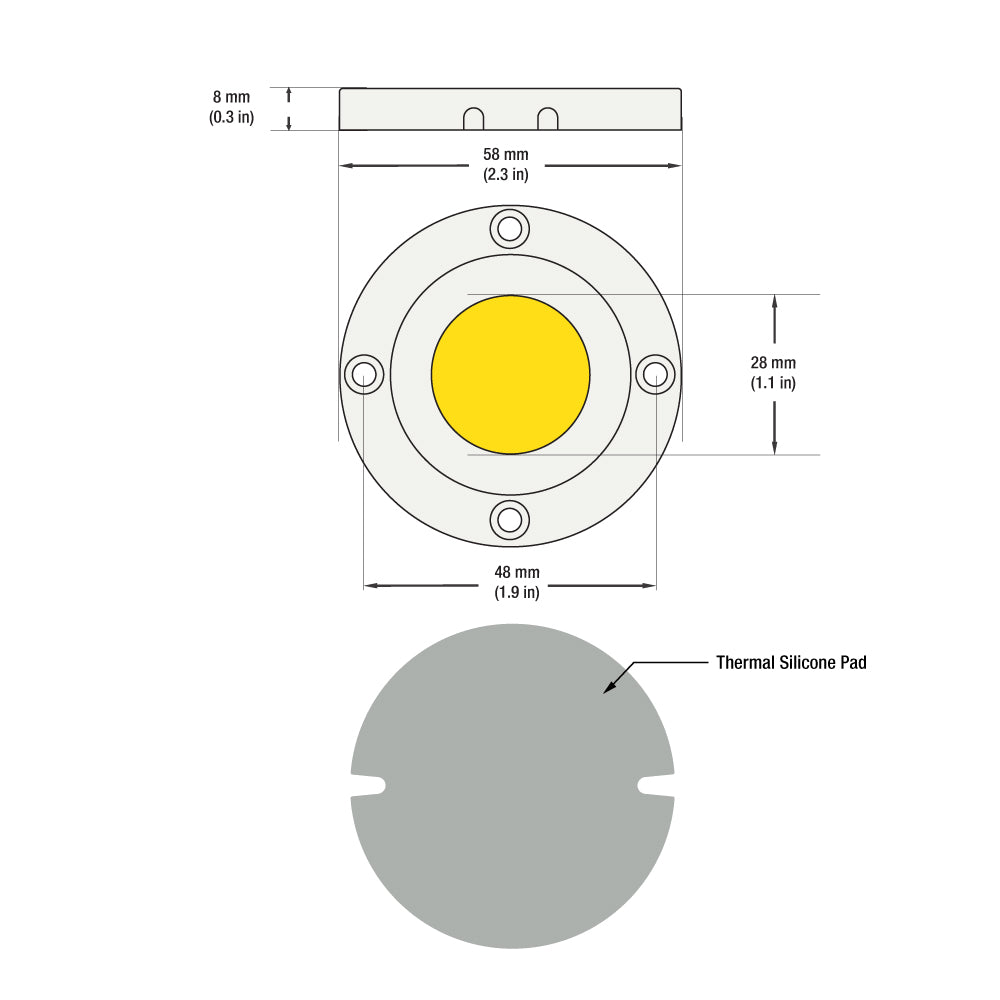

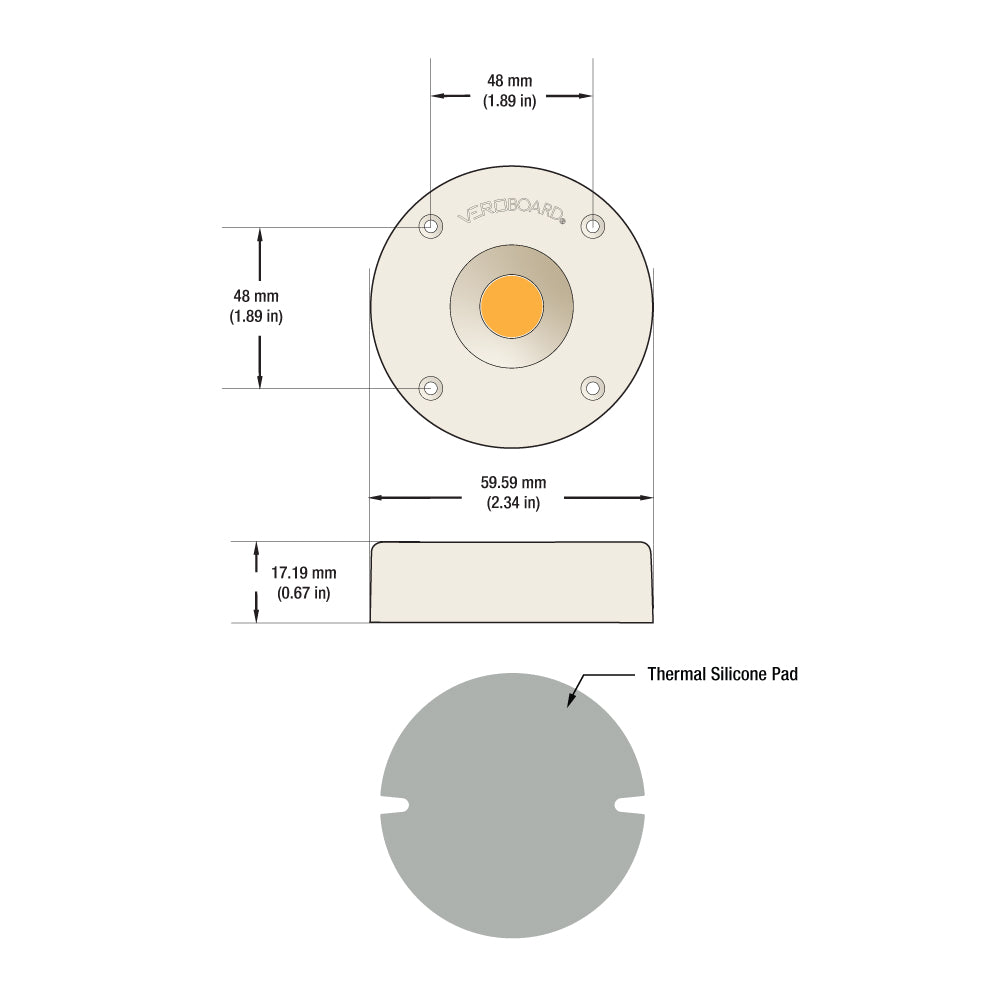

COB Holder Dimensions	(Paragon) ∅58mm (2.3in) x H8mm (0.3 in) (Veroboard) ∅59.5mm (2.3in) x H17.3mm (0.68 in)
COB Module Outer Diameter	∅28mm (1.1 in) (Paragon) ∅10mm (0.39in) (Veroboard)
Operating Temperature	-40 ~ +105℃
Storage Temperature	-40 ~ +105℃
Included Content	COB Module, COB LED Holder, Thermal Pad
Weight	0.04 kg
Certifications

Features:

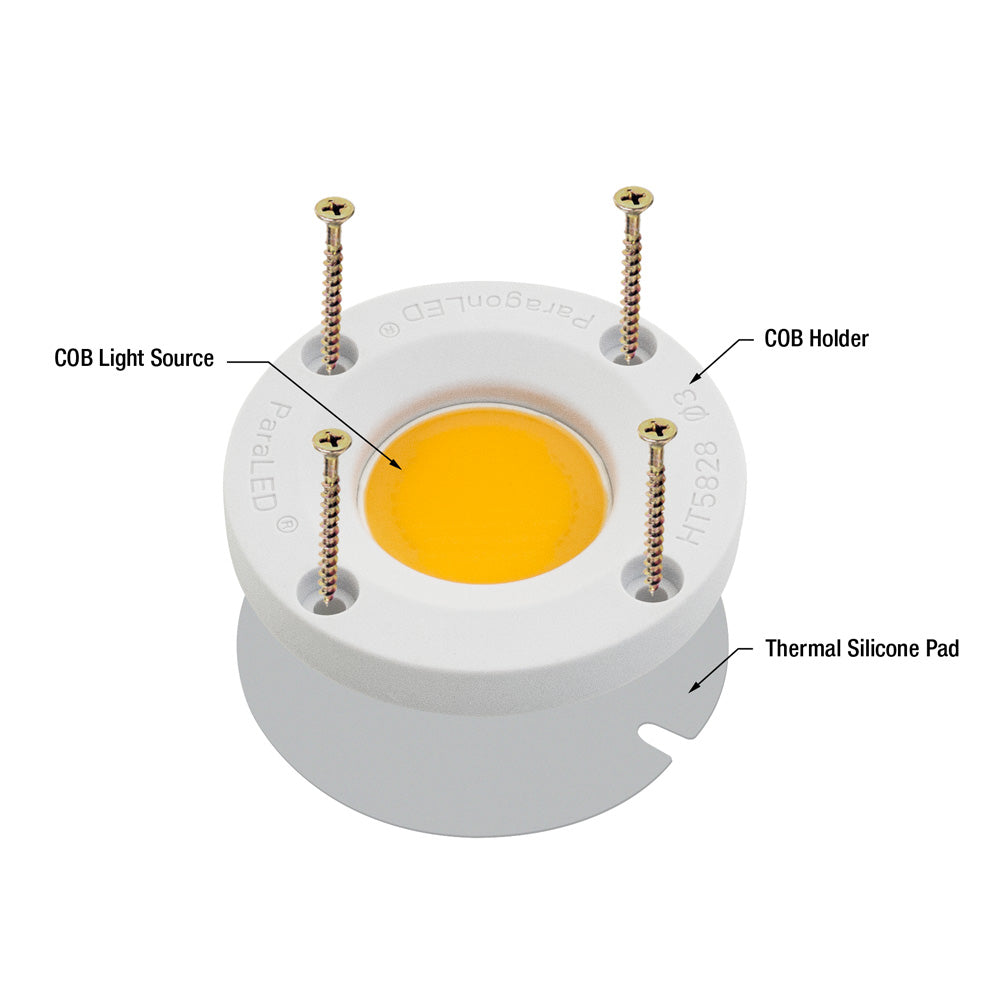

• It comes with an HT5828 COB holder model that allows the module to be secured and electrically connected to a heat sink

• It has a high color rendering index (CRI) of over 80, ensuring accurate color representation
• The product is dimmable, making it suitable for use in various lighting applications
• It has an IP20 rating, which means it is rated for indoor use only, and operates within a temperature range of -40 to +105℃
• The product comes with a polycarbonate diffuser that can be easily attached or detached, reducing glare and refracting light in a wider beam

• It requires an aluminum heat sink and silicone grease thermal pad (included) for better heat dissipation, increasing the product's lifespan
• The product is certified by UL and suitable for use in damp locations
• When designing lamps, it is important to ground light fixtures to ensure safety
• COB LEDs are generally used in almost every type of luminaire due to their high performance and efficiency.
