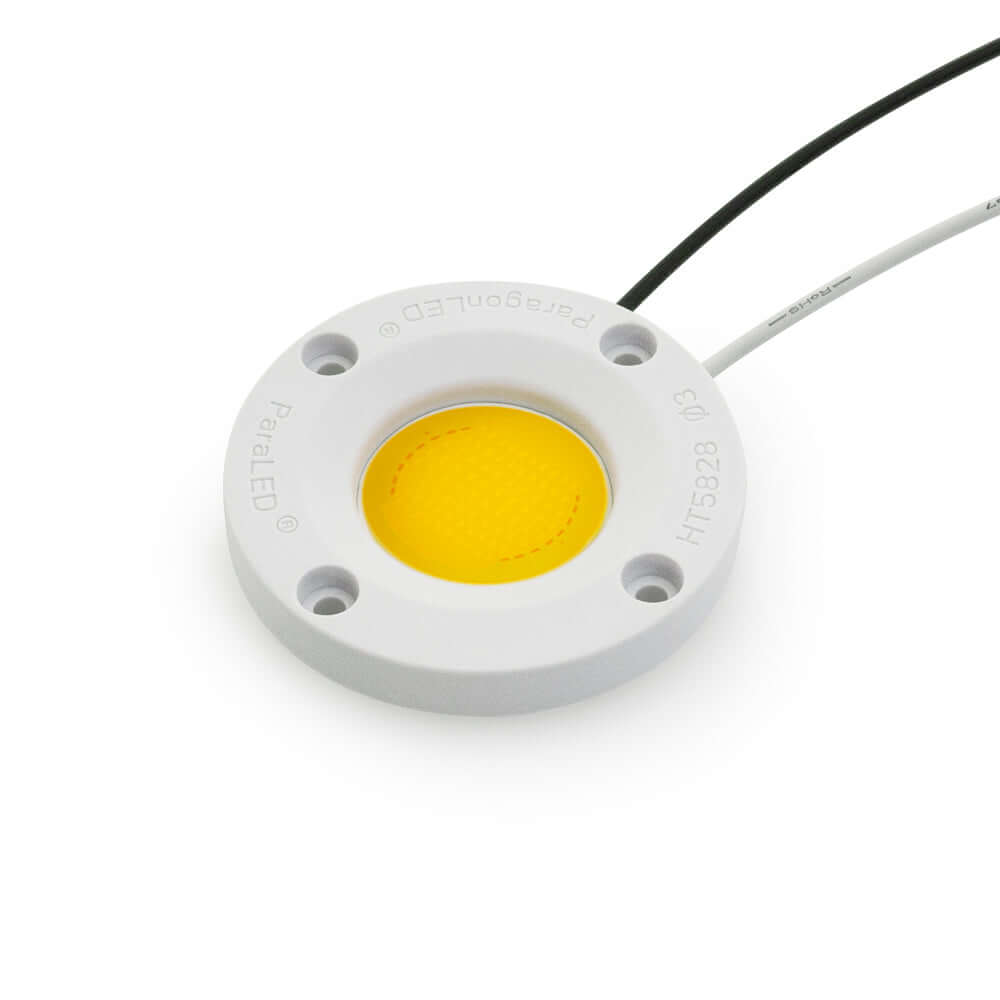

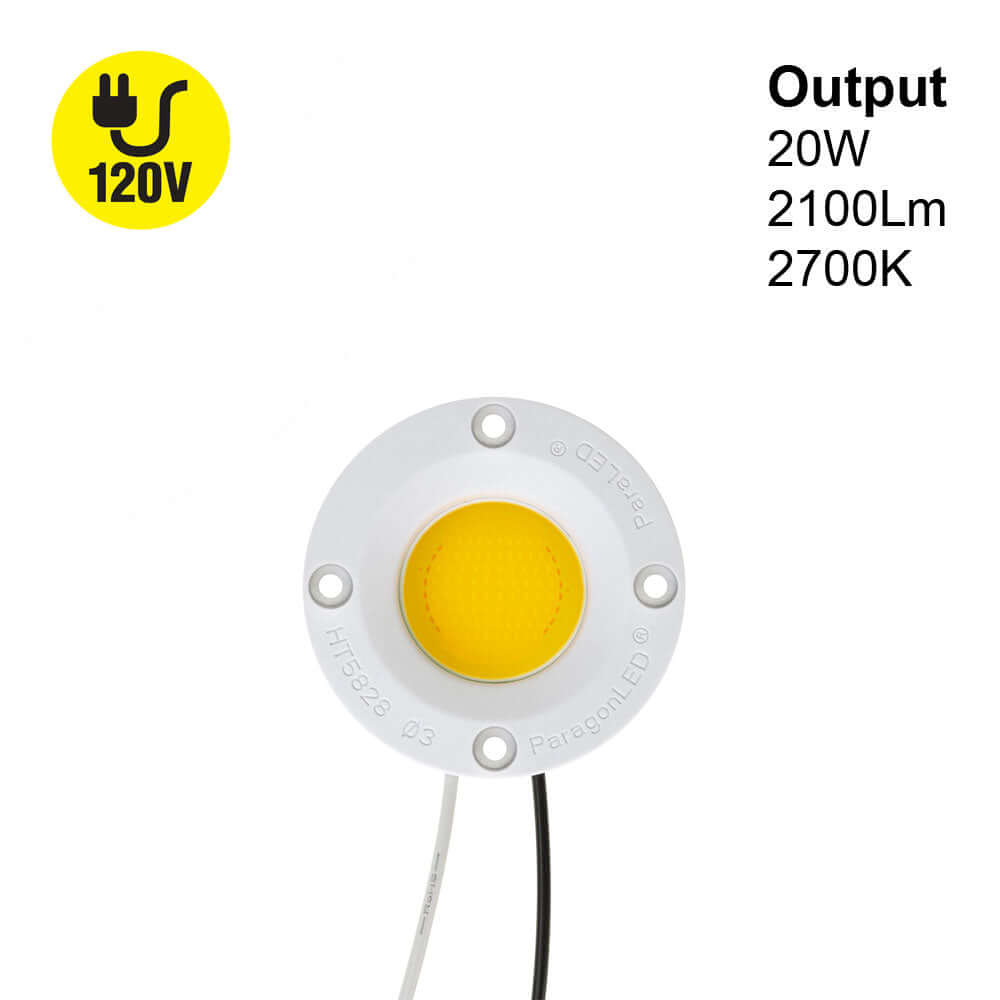

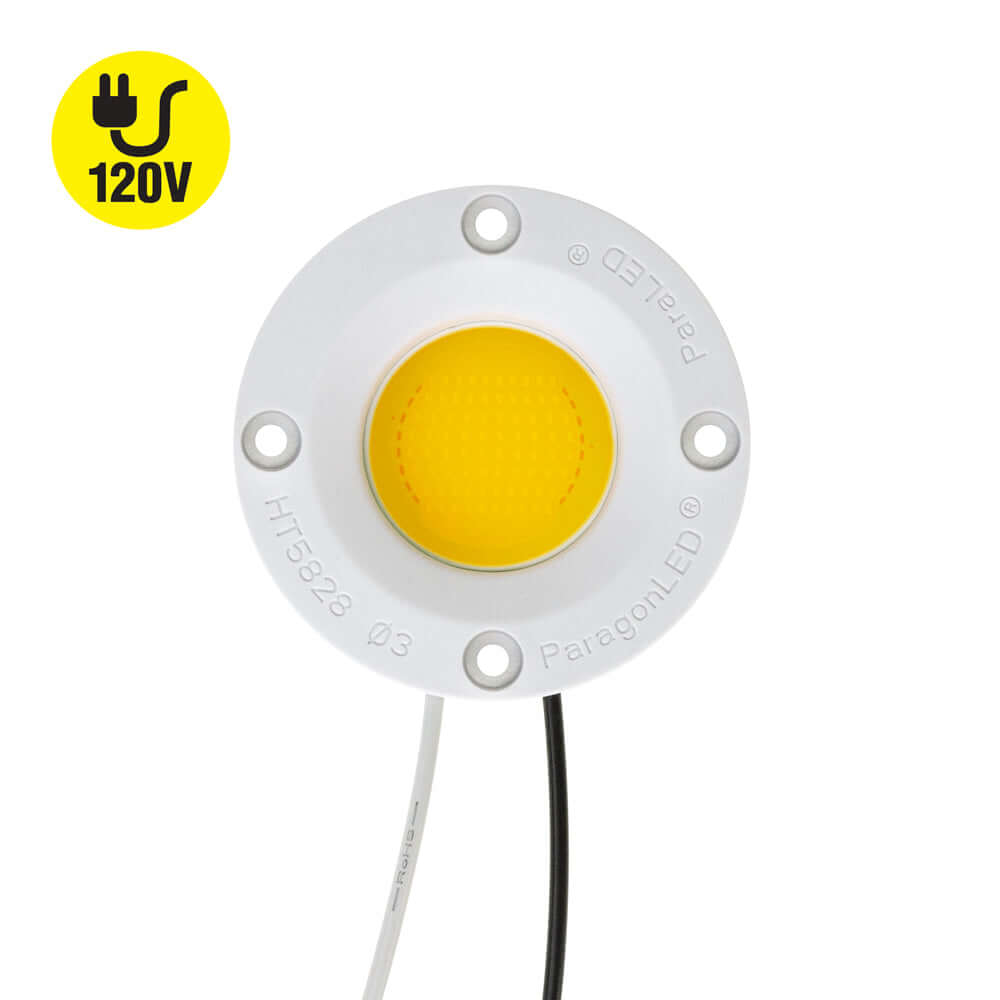

COB Paragon LED Module Light 120V 20W 2100Lm CCT(2.7K, 3K, 4K), CDAC-80-5028-120V-27 with HT5828 LED Holder

Product	Paragon LED Module

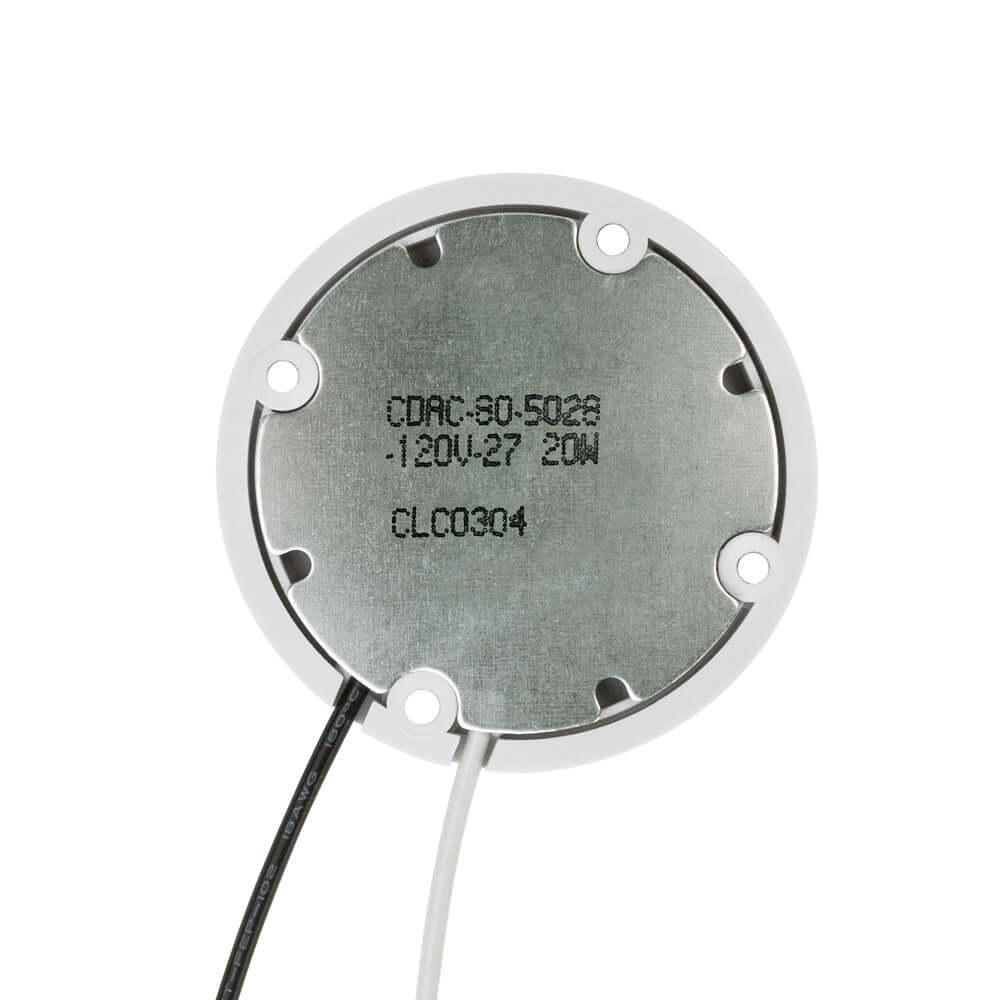

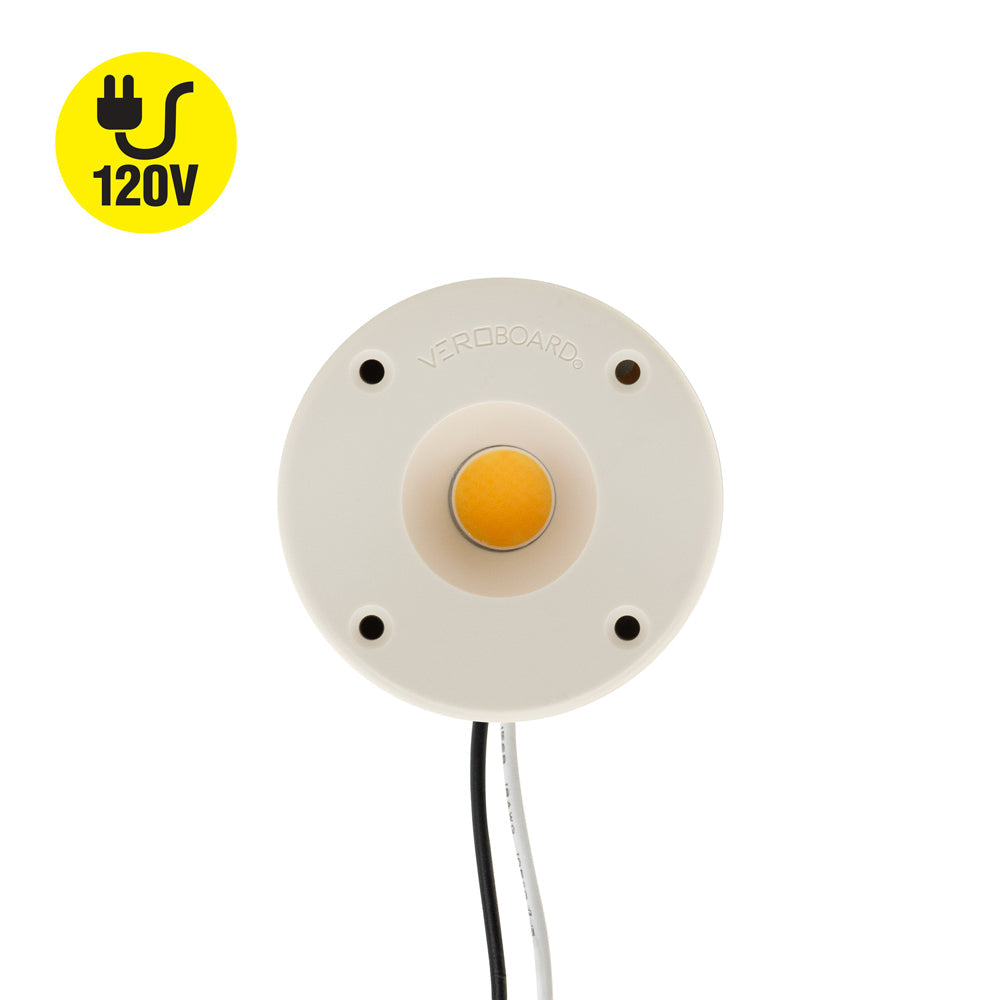

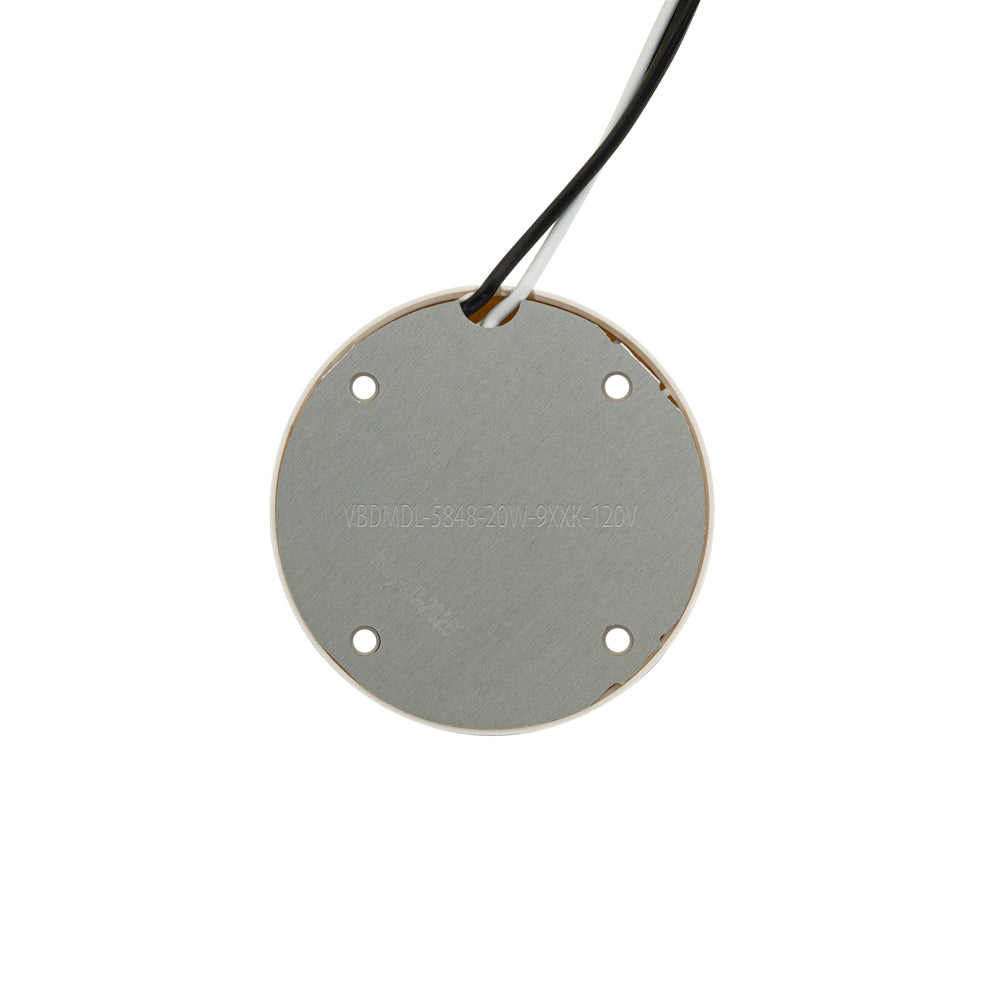

Model No	CDAC-80-5028-120V-27 (Paragon) VBDMDL-5848-20W-9XXK-120V (Veroboard)
COB Holder Model No	HT5828
LED Type	COB LED
No LED chips	80
Wattage	20W
Voltage	120V AC
Power Factor	PF>0.85
Luminous Intensity	2100 lumens

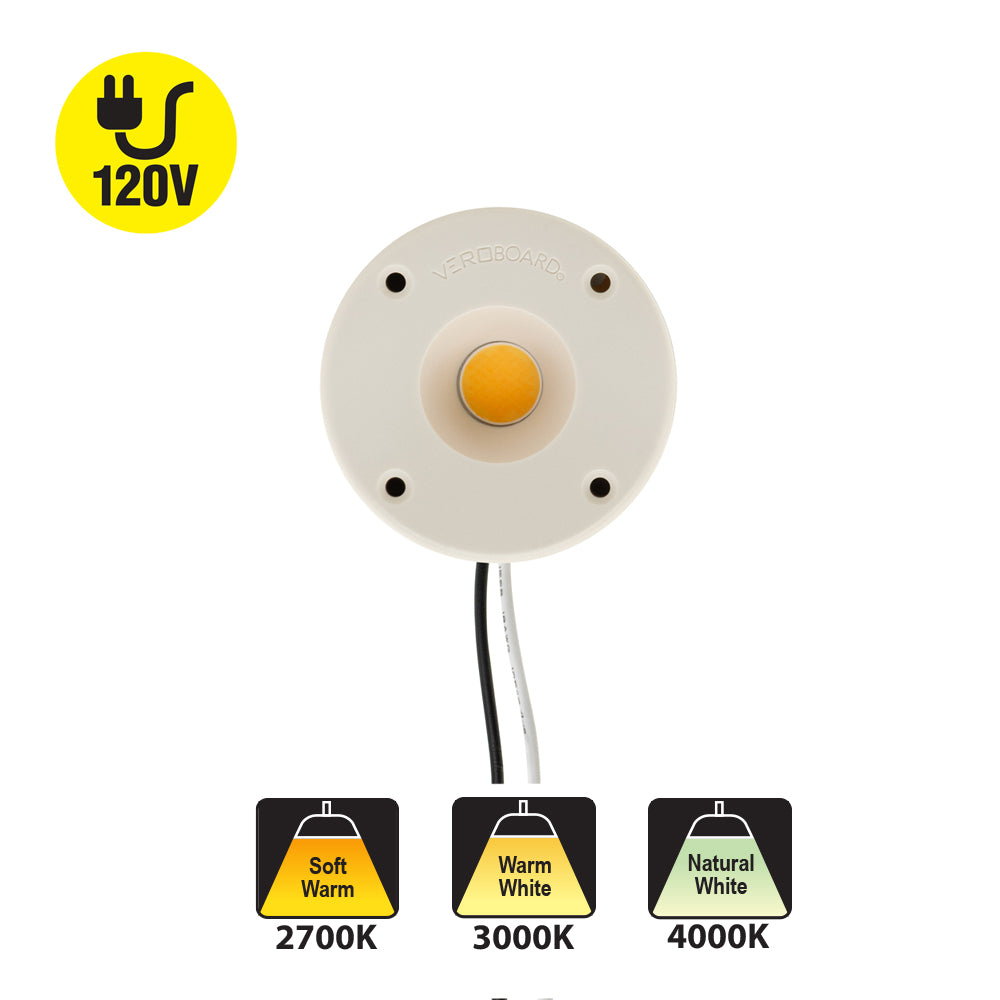

Color Temperature	(Paragon) 2700K (Soft White) (Veroboard) 2700K (Soft White) 3000K (Warm White) 4000K (Natural White)
Dimmable	Yes
Rendering Index	CRI>80 (Paragon) CRI>95 (Veroboard)
IP Rating	IP20 (Indoor rated)

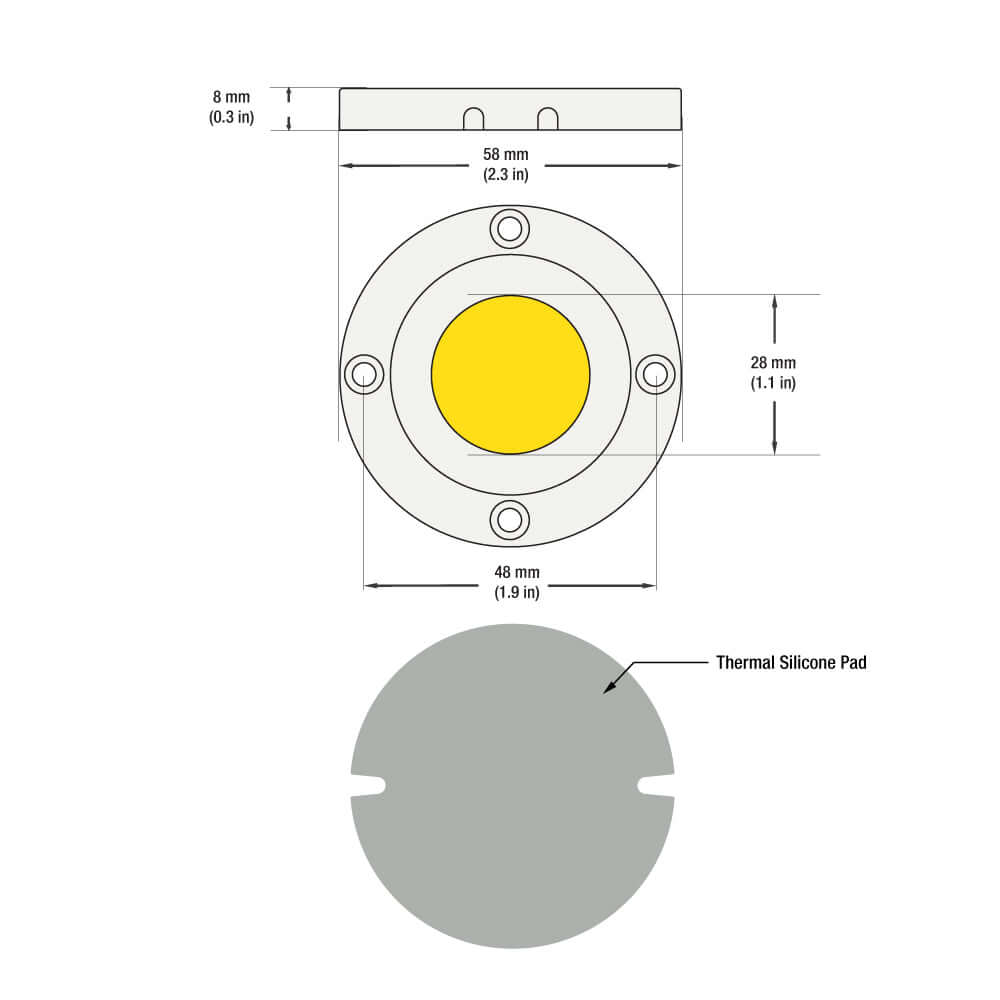

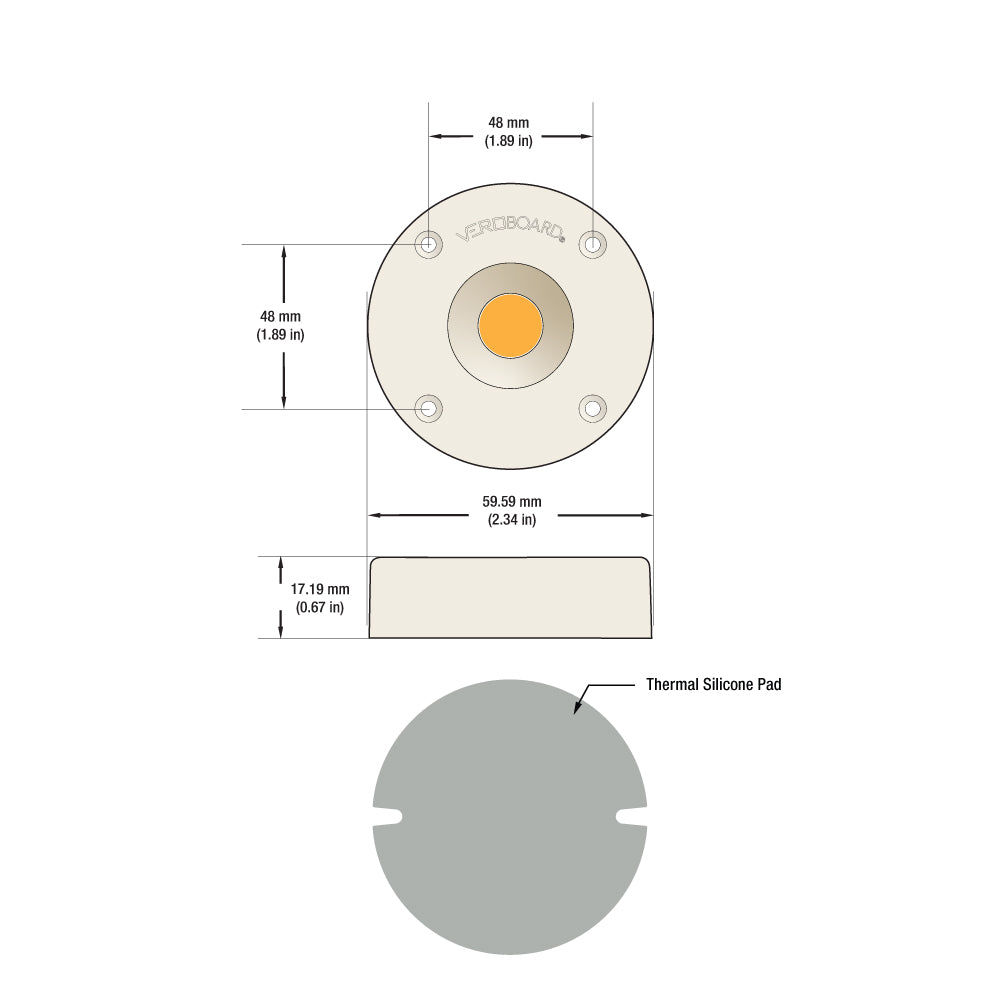

COB Holder Dimensions	(Paragon) ∅58mm (2.3in) x H8mm (0.3 in) (Veroboard) ∅59.5mm (2.3in) x H17.3mm (0.68 in)
COB Module Outer Diameter	∅28mm (1.1 in) (Paragon) ∅10mm (0.39in) (Veroboard)
Operating Temperature	-40 ~ +105℃
Storage Temperature	-40 ~ +105℃
Included Content	COB Module, COB LED Holder, Thermal Pad
Weight	0.04 kg
Certifications

Features:

• It has a COB LED with 80 LED chips and a wattage of 20W
• It operates at 120V AC and has a power factor of PF>0.85

• It is dimmable and has a rendering index of CRI>80

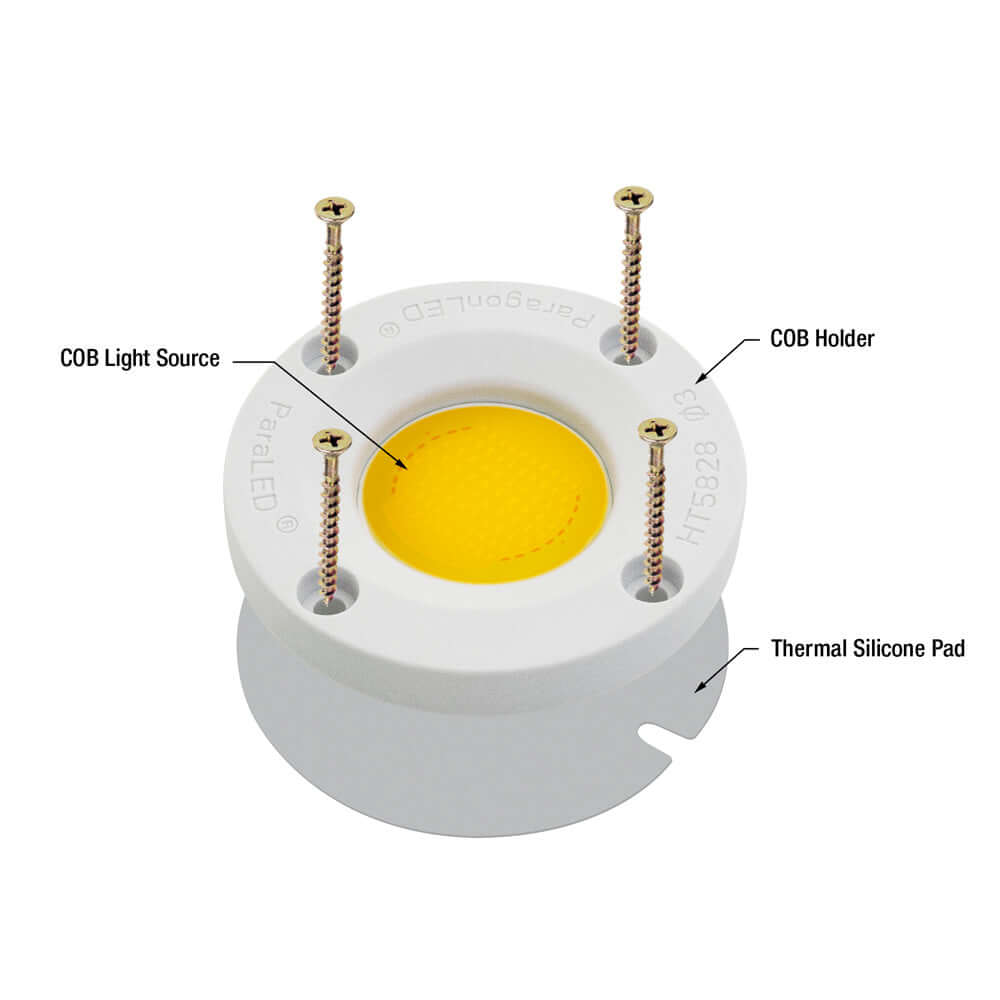

• The module comes with a HT5828 COB holder, allowing it to be mechanically secured, electrically connected, and pressed to a heat sink

• The module comes with a polycarbonate diffuser that can be easily attached or detached, reducing glare and refracting light in a wider beam
• COB LEDs are brighter, consume less power, and have higher quality beam output compared to older LED technologies
• The module includes a silicone grease thermal pad, providing a heat sink and improving heat dissipation to increase the life span of the module
• COB Paragon LED Module Light 120V 20W 2100Lm
