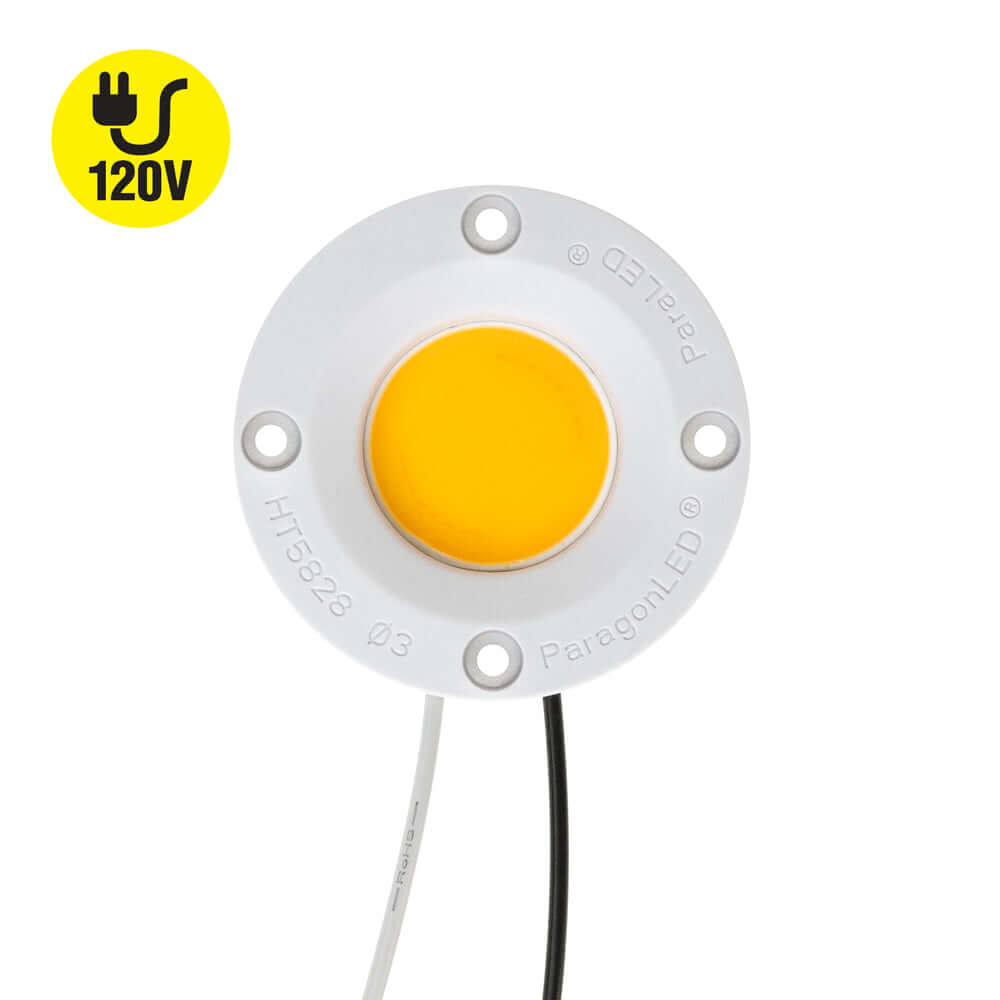

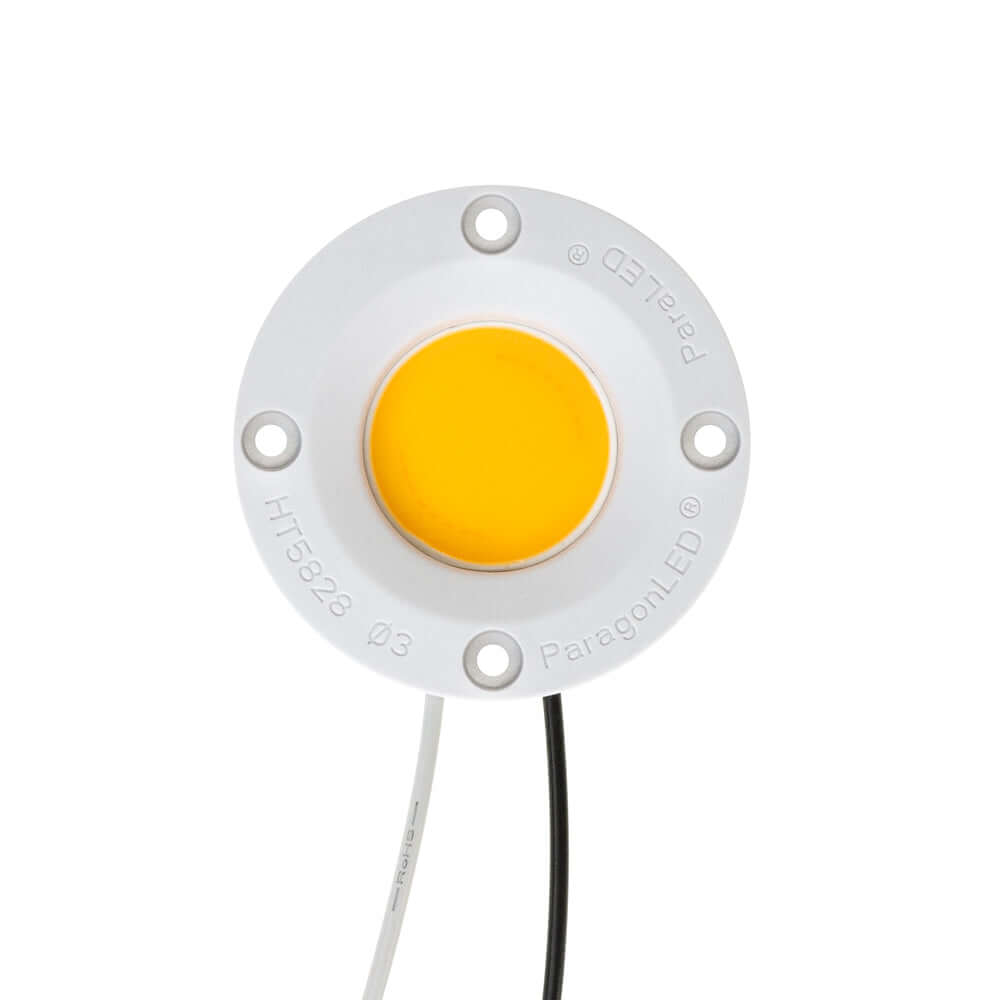

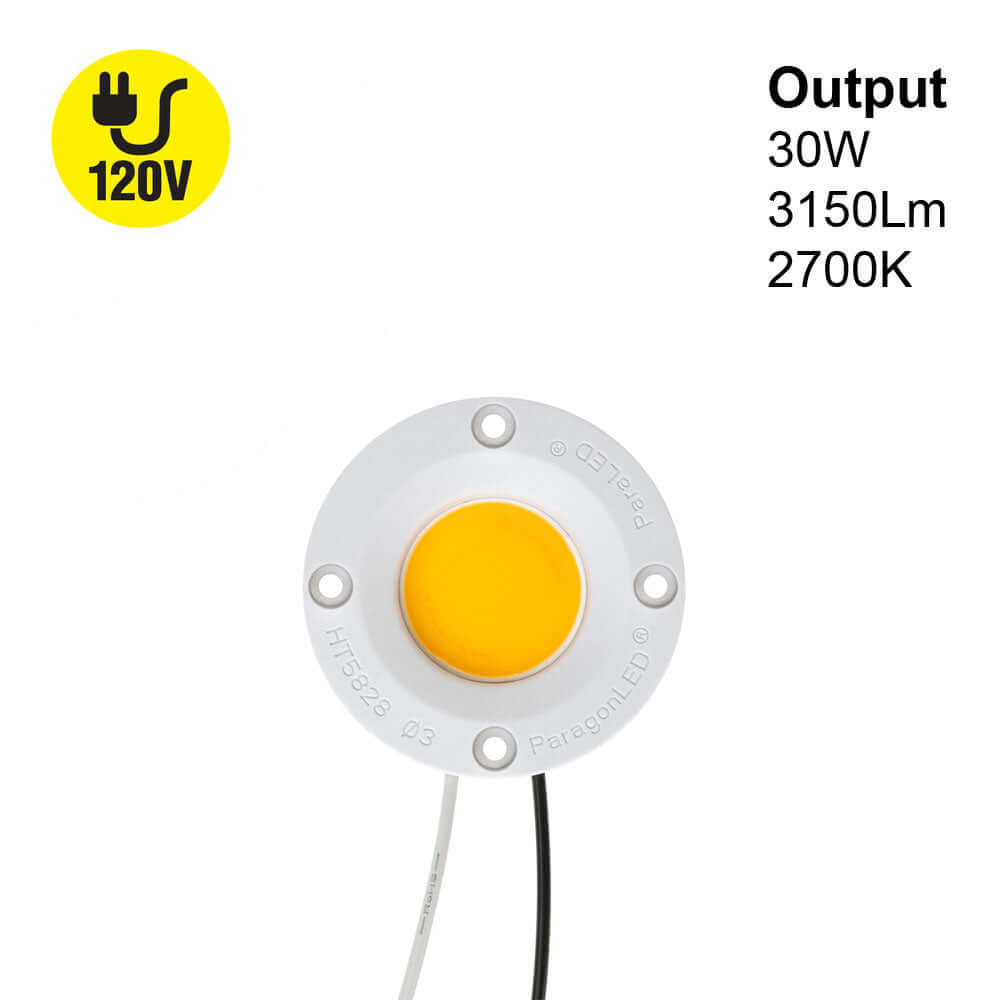

COB Paragon LED Module Light 120V 30W 3150Lm CCT(2.7K, 3K, 4K), CDAC-80-5028-120V-27 with HT5828 LED Holder

Product	Paragon LED Module

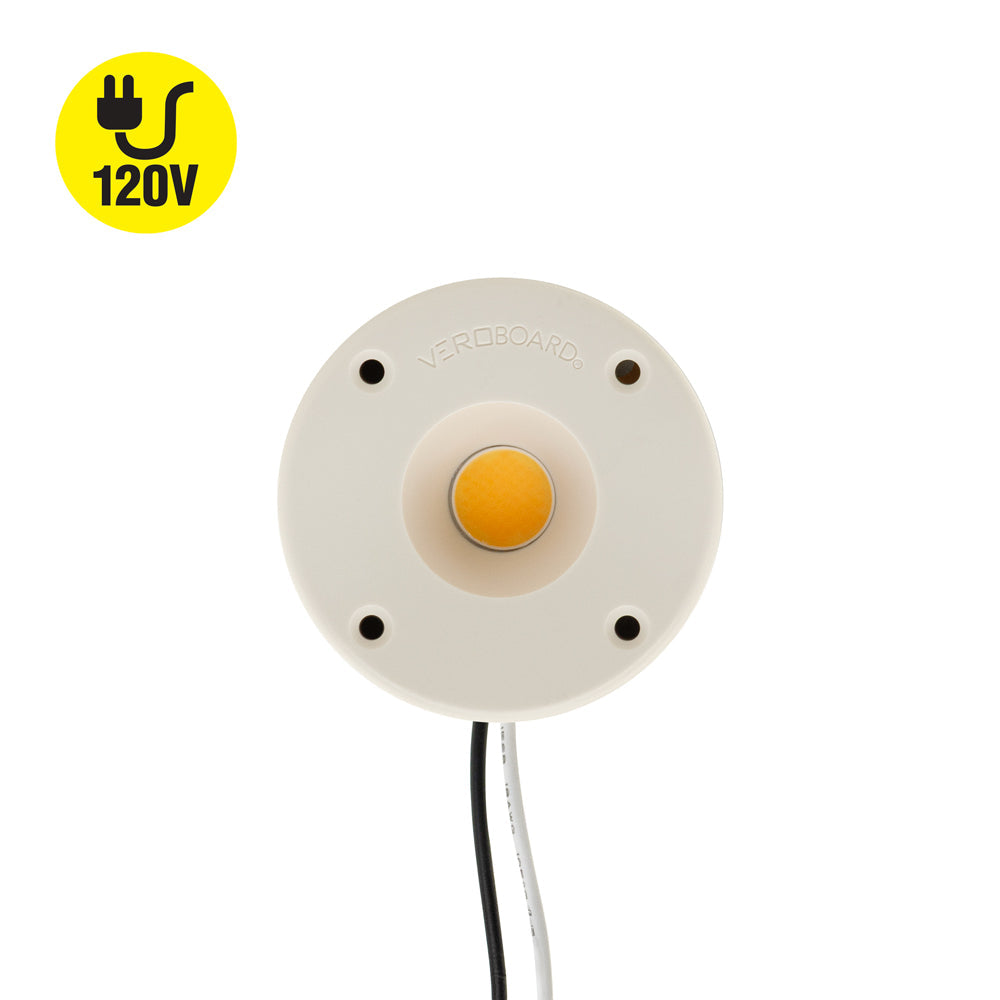

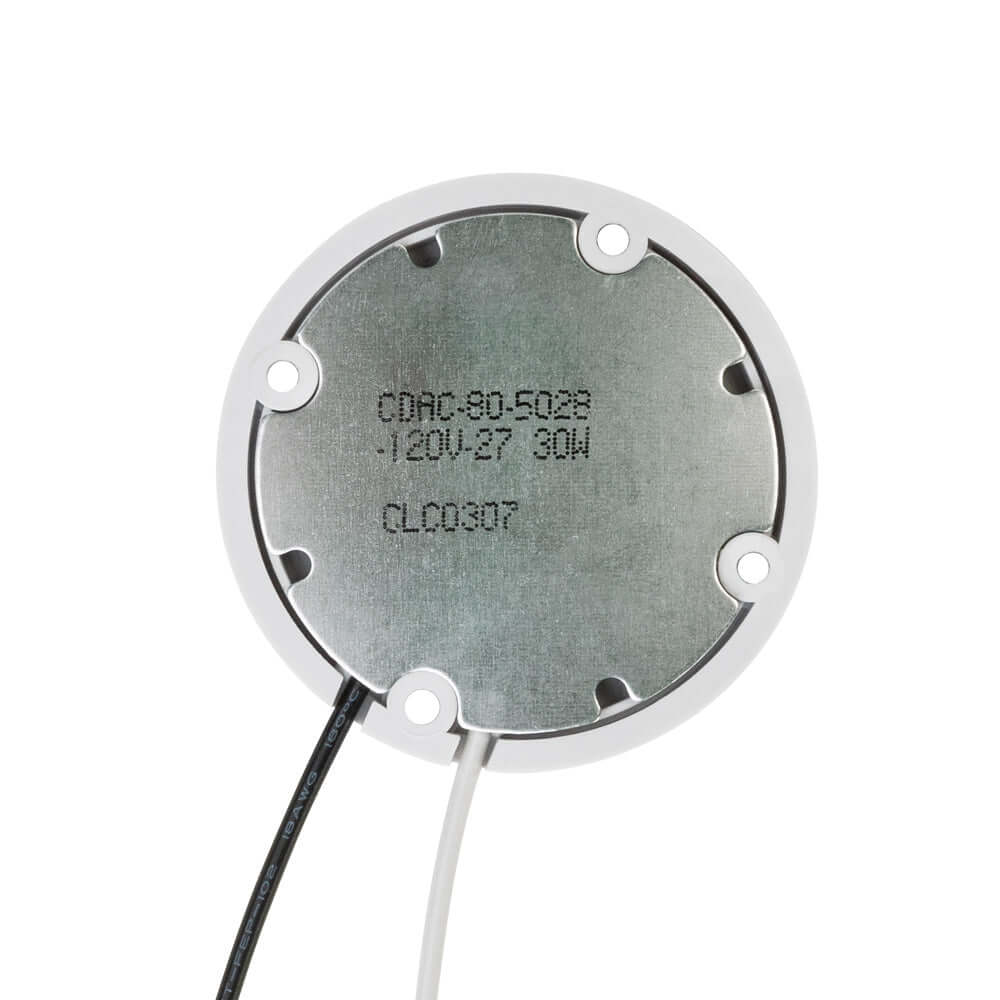

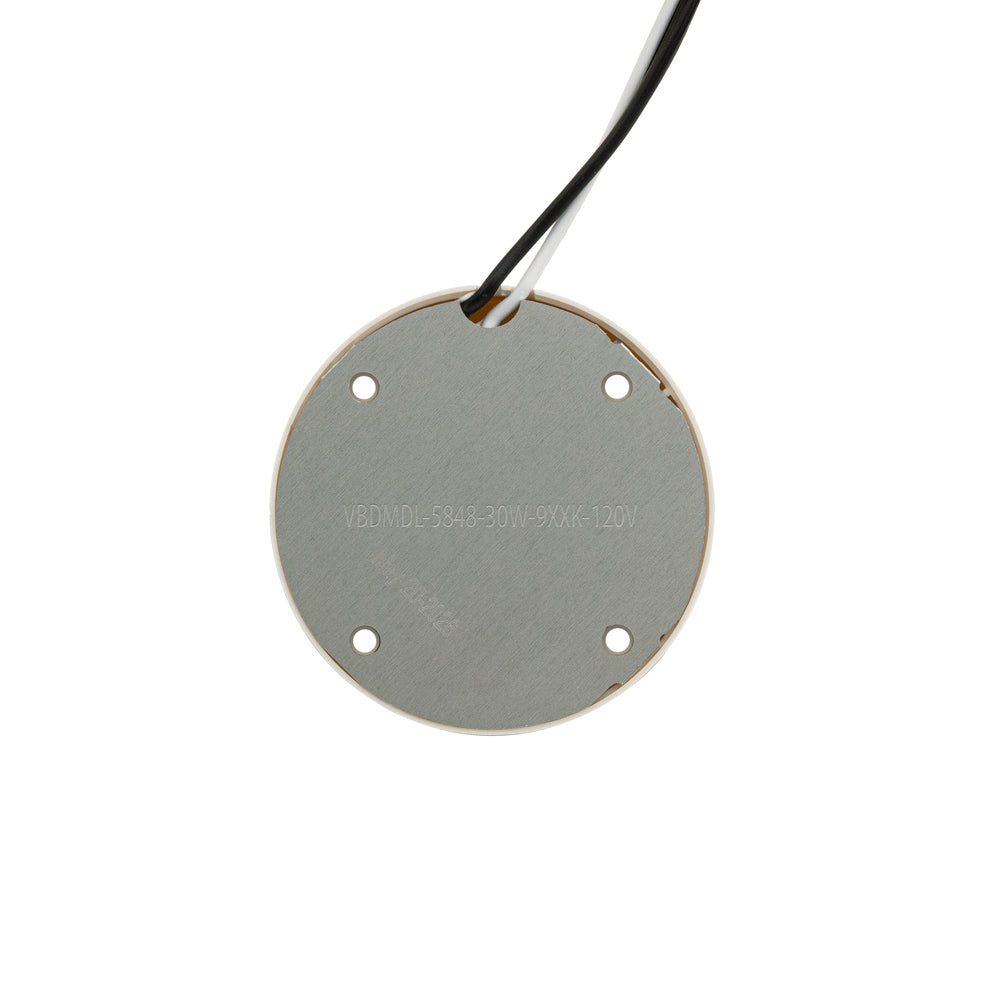

Model No	CDAC-80-5028-120V-27 (Paragon) VBDMDL-5848-30W-9XXK-120V (Veroboard)
COB Holder Model No	HT5828
LED Type	COB LED
No LED chips	80
Wattage	30W
Voltage	120V AC
Power Factor	PF>0.85
Luminous Intensity	3150 Lumens

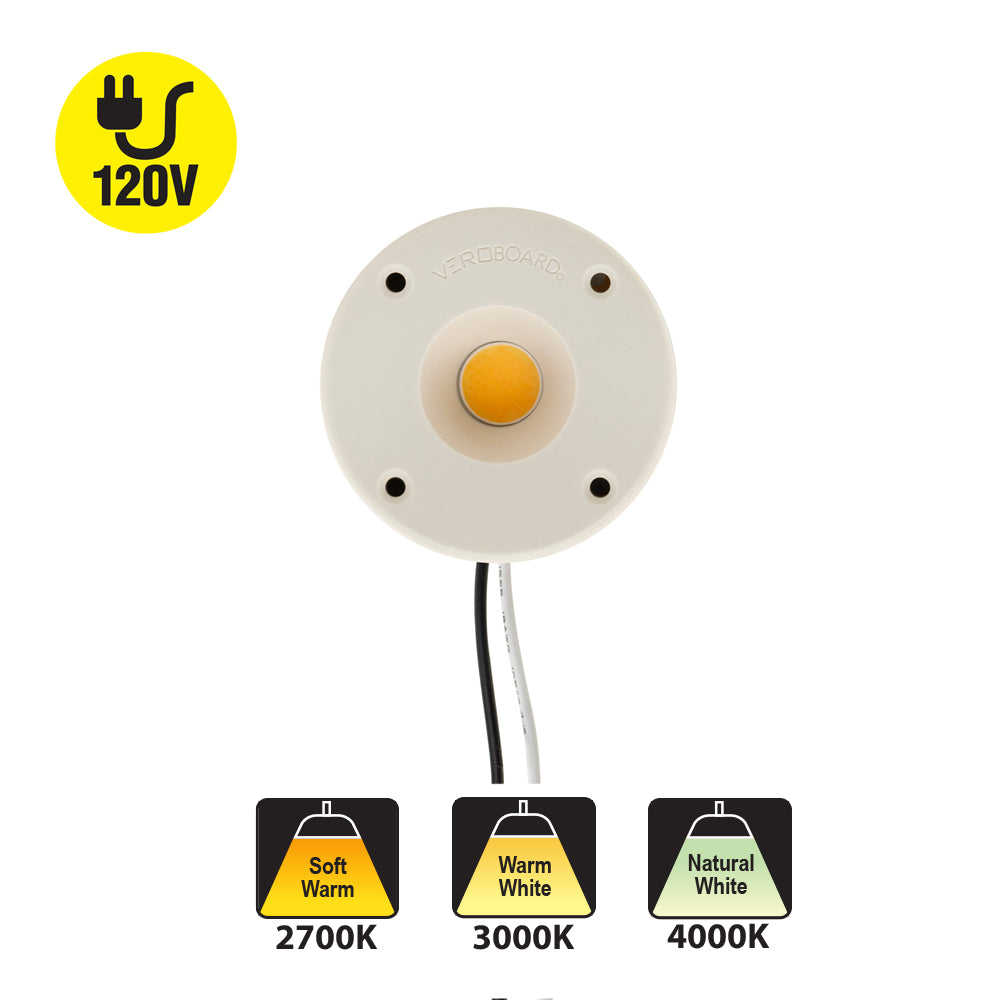

Color Temperature	(Paragon) 2700K (Soft White) (Veroboard) 2700K (Soft White) 3000K (Warm White) 4000K (Natural White)
Dimmable	Yes
Rendering Index	CRI>80 (Paragon) CRI>95 (Veroboard)
IP Rating	IP20 (Indoor rated)

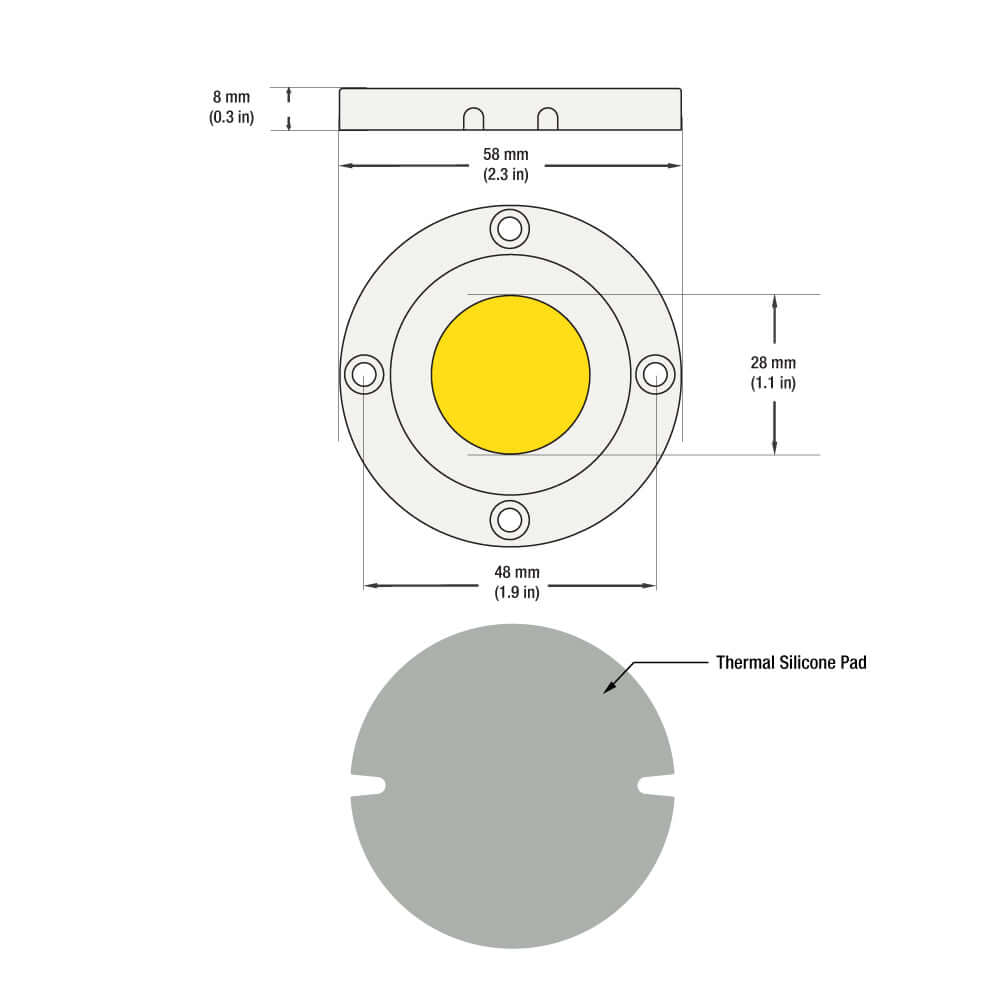

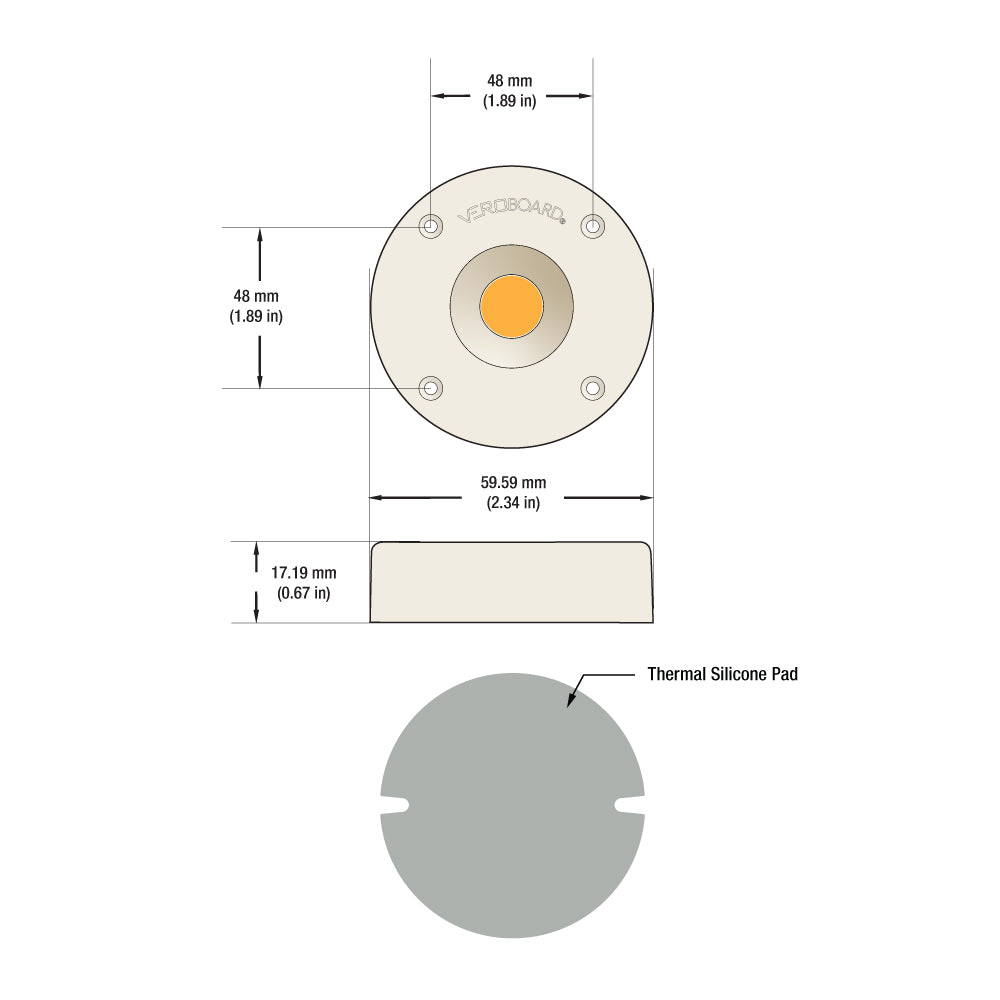

COB Holder Dimensions	(Paragon) ∅58mm (2.3in) x H8mm (0.3 in) (Veroboard) ∅59.5mm (2.3in) x H17.3mm (0.68 in)
COB Module Outer Diameter	∅28mm (1.1 in) (Paragon) ∅10mm (0.39in) (Veroboard)
Operating Temperature	-40 ~ +105℃
Storage Temperature	-40 ~ +105℃
Included Content	COB Module, COB LED  Holder, Thermal Pad
Weight	0.04 kg
Certifications

Features:

• High-quality LED module suitable for indoor use
• Contains 80 COB LED chips with a wattage of 30W and voltage rating of 120V AC
• Power factor greater than 0.85 and luminous intensity of 3150 lumens

• Dimmable, allowing for adjustable brightness
• Comes with COB LED Holder model HT5828 and thermal pad for better heat dissipation
• Includes polycarbonate diffuser to protect the module and reduce glare
• IP20 rating, suitable for indoor use only
• Operating temperature range of -40 ~ +105℃ and storage temperature range of -40 ~ +105℃
• Certified by UL, ensuring high-quality standards
• Requires aluminum heat sink to prevent overheating and serious luminous decay

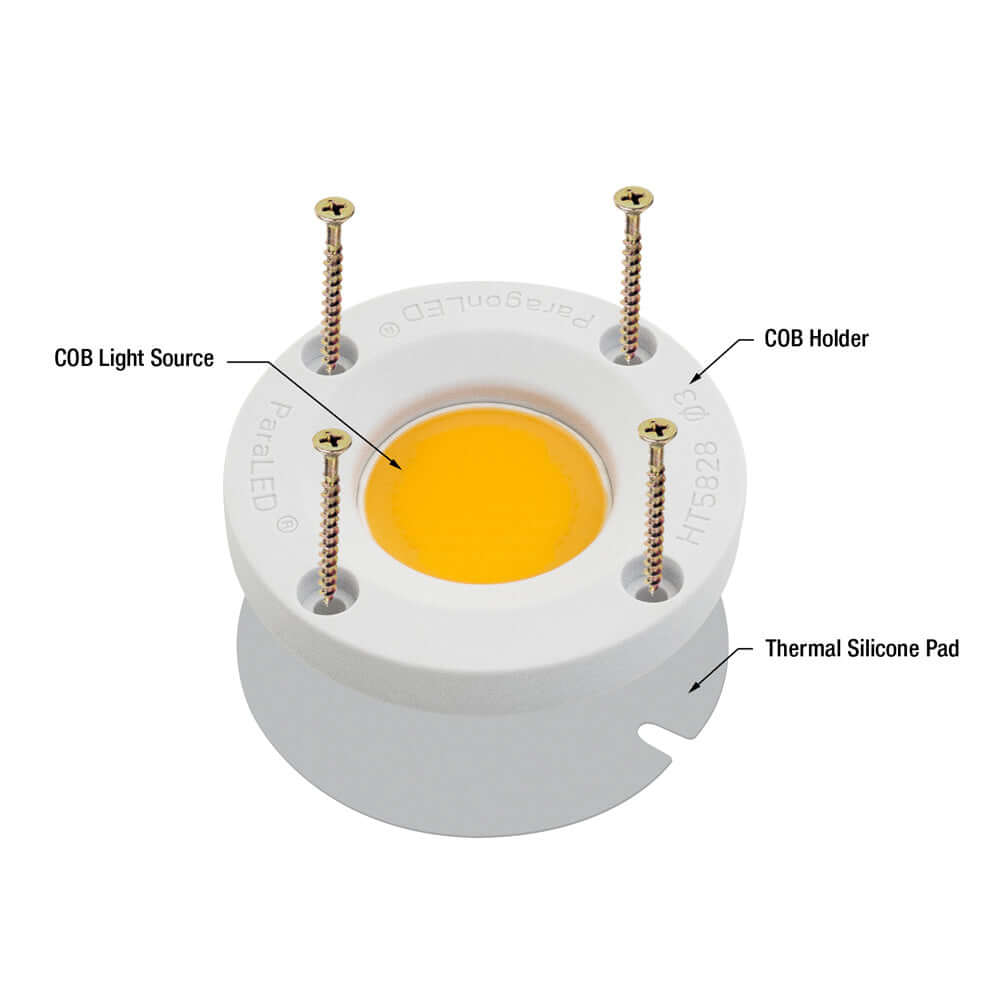

• COB holder allows for mechanical securing, electrical connection, and pressing to a heat sink
