COB Paragon LED Module with HT5828 LED Holder, 120V 10W CCT(2.7K, 3K, 4K), CDAC-80-5028-120V-30

Product	Paragon LED Module

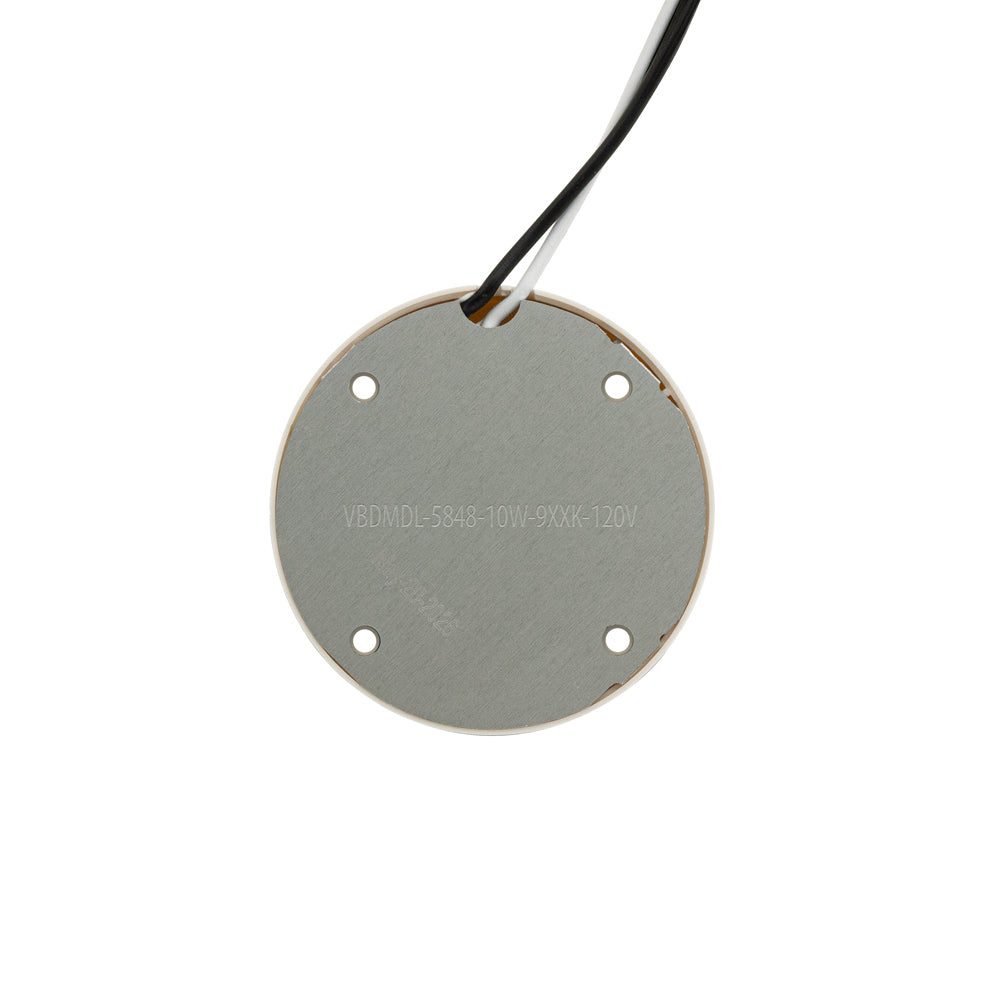

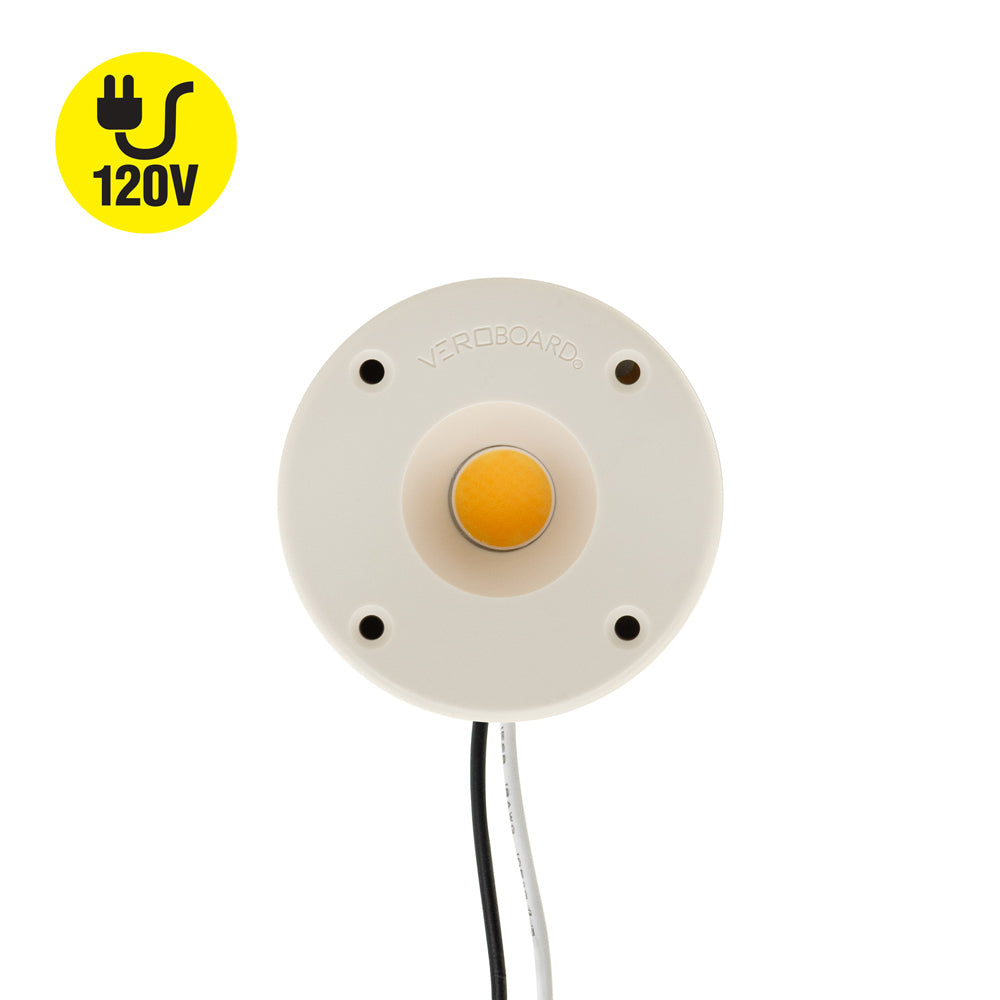

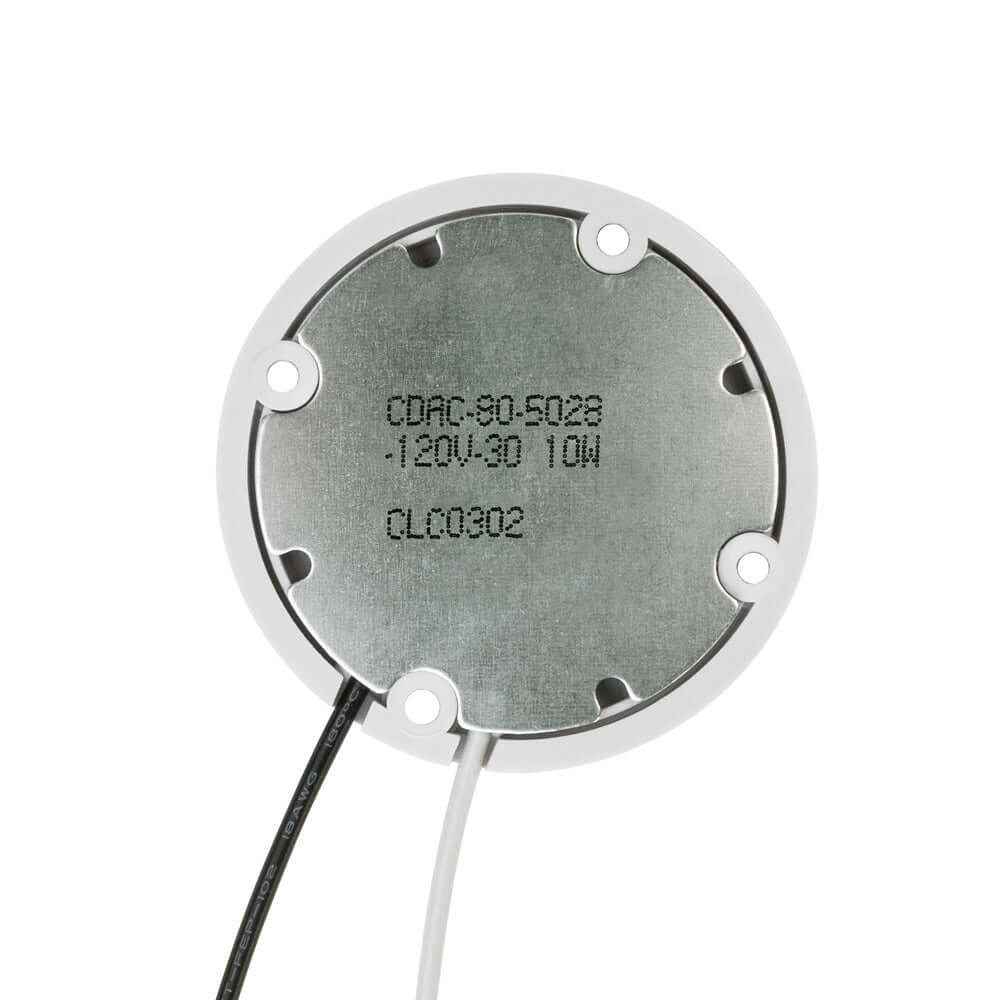

Model No	CDAC-80-5028-120V-30 (Paragon) VBDMDL-5848-10W-9XXK-120V (Veroboard)

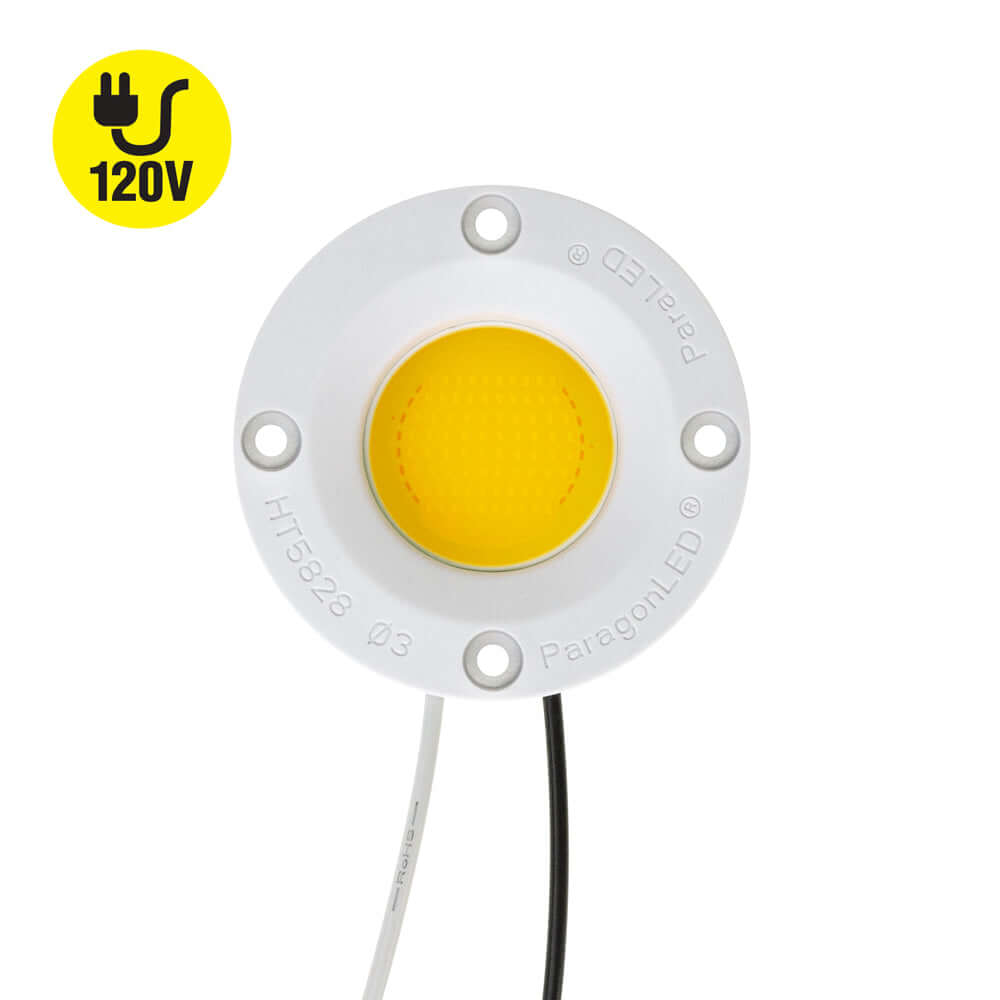

COB Holder Model No	HT5828
LED Type	COB LED
No LED chips	80
Wattage	10W
Voltage	120V AC
Power Factor	PF>0.85

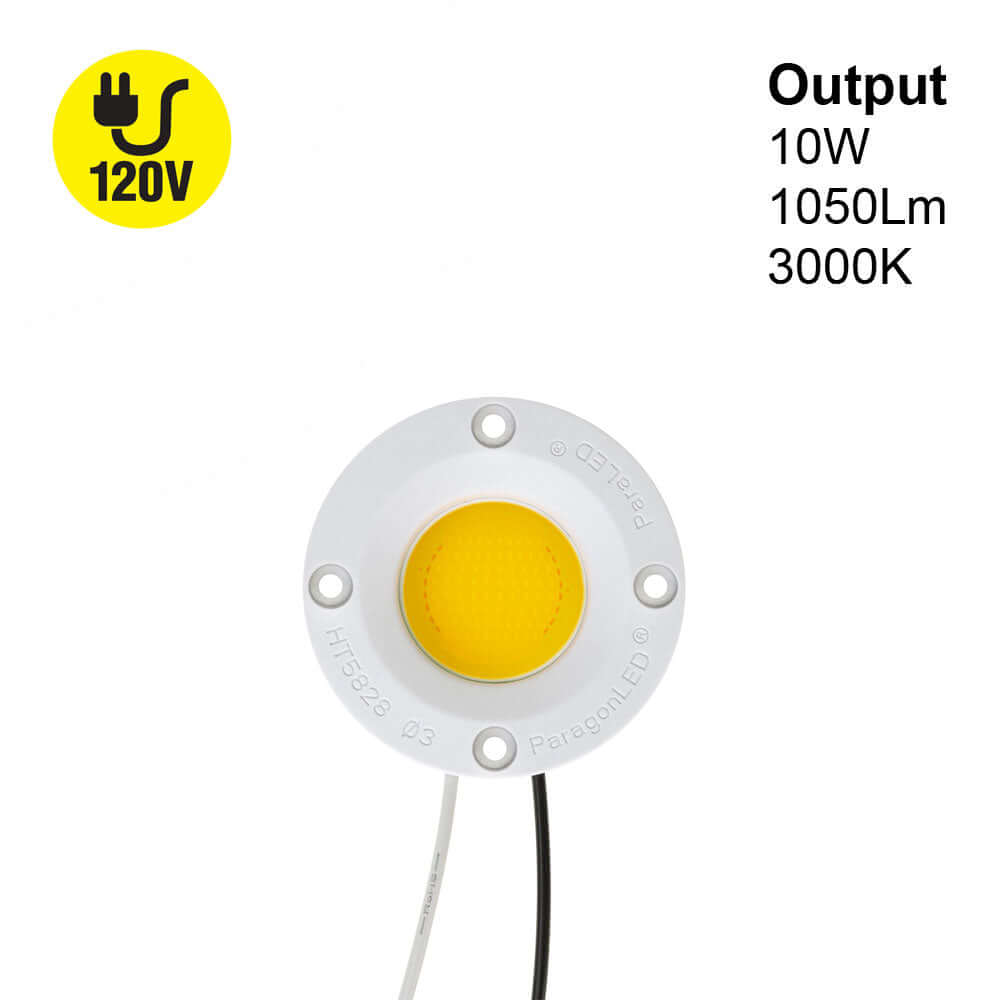

Luminous Intensity	1050 lumens

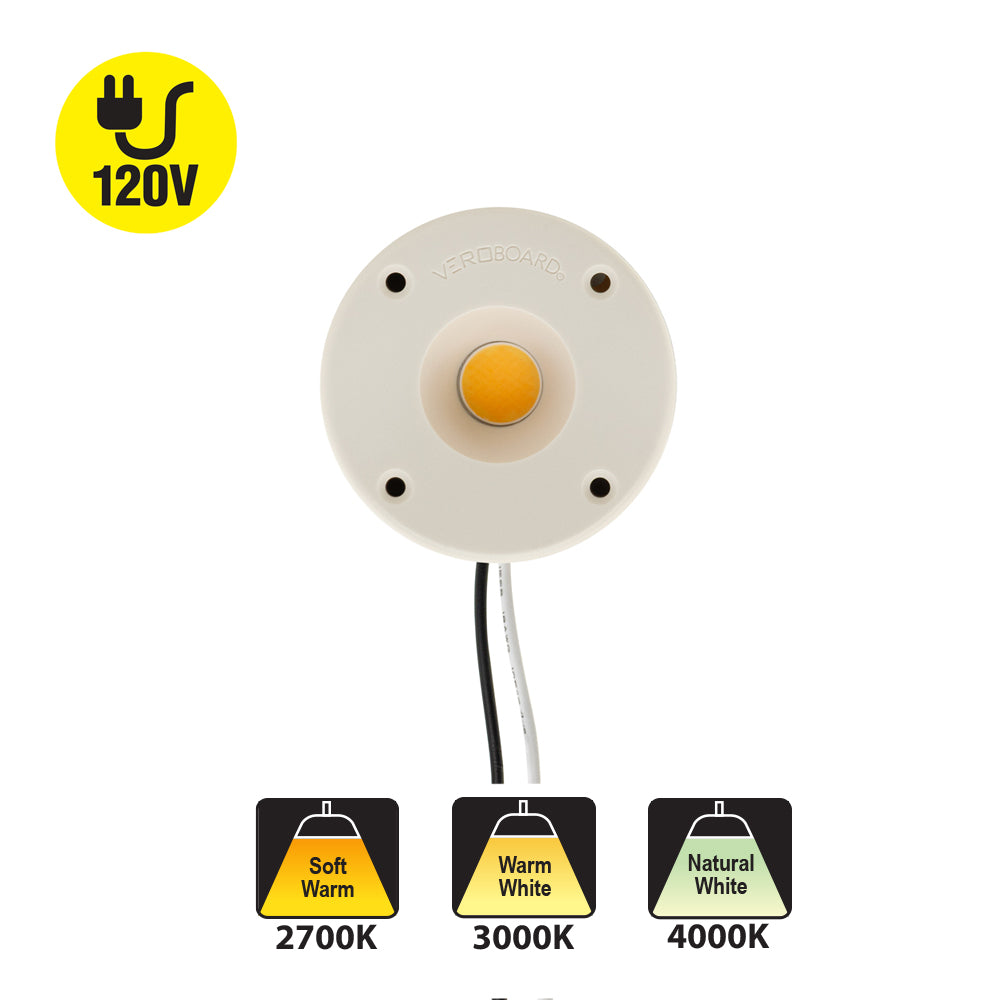

Color Temperature	(Paragon) 3000K (Warm White) (Veroboard) 2700K (Soft White) 3000K (Warm White) 4000K (Natural White)
Dimmable	Yes
Rendering Index	CRI>80
IP Rating	IP20 (Indoor rated)

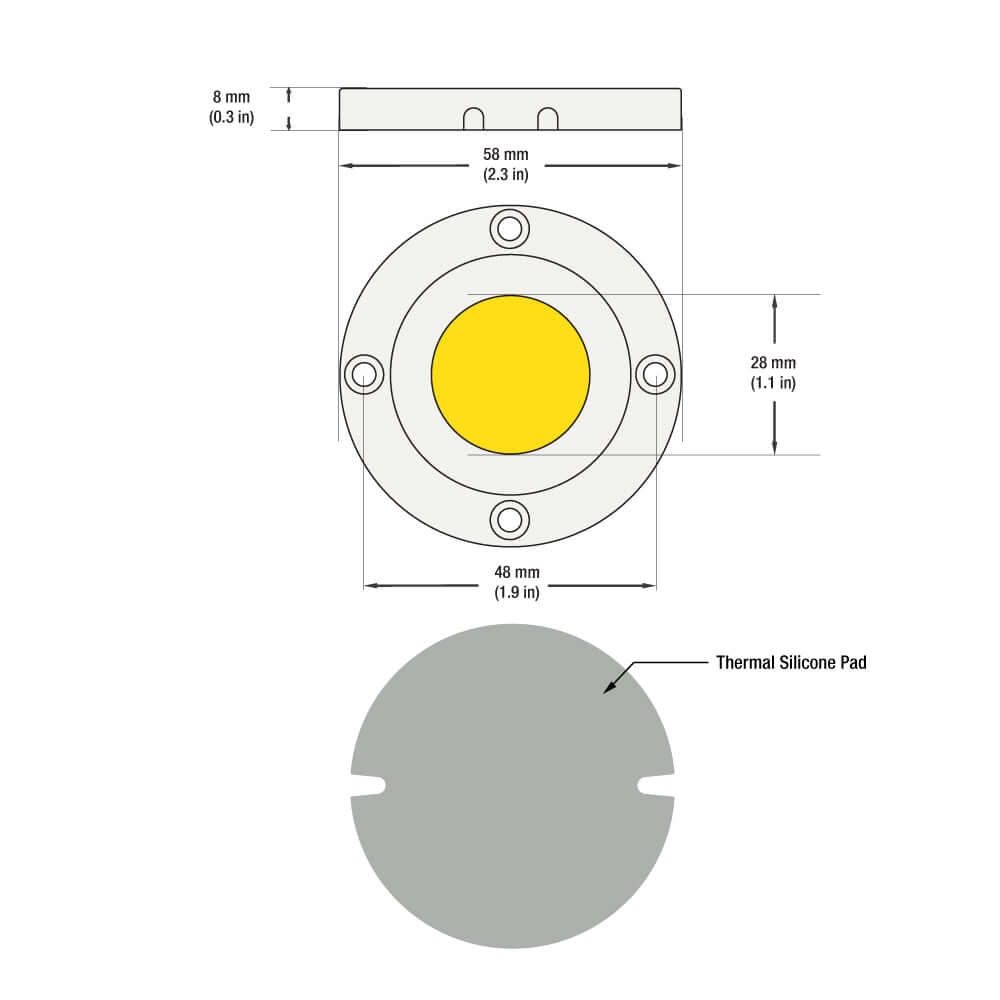

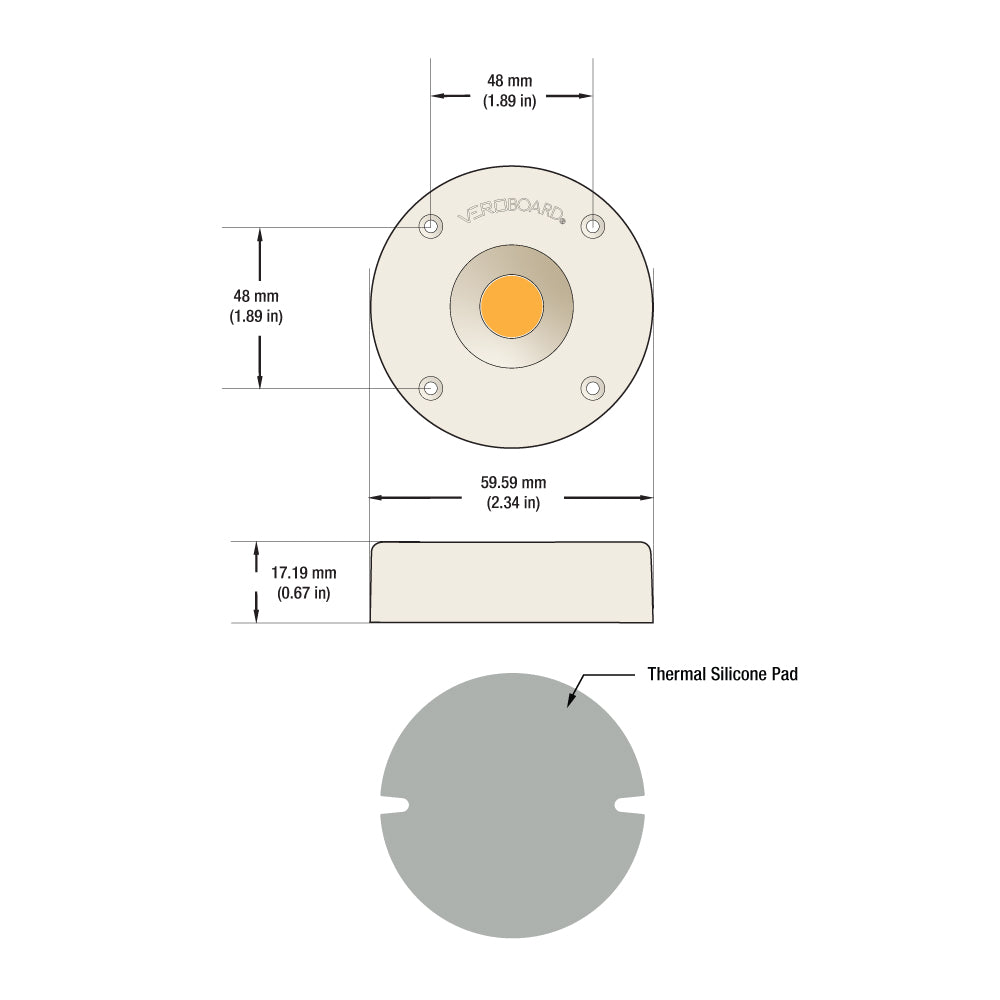

COB Holder Dimensions	(Paragon) ∅58mm (2.3in) x H8mm (0.3 in) (Veroboard) ∅59.5mm (2.3in) x H17.3mm (0.68 in)
COB Module Outer Diameter	∅28mm (1.1 in) (Paragon) ∅10mm (0.39in) (Veroboard)
Operating Temperature	-40 ~ +105℃
Storage Temperature	-40 ~ +105℃
Included Content	COB Module, COB LED Holder, Thermal Pad
Weight	0.04 kg
Certifications

Features:

• COB LED technology for high brightness and energy efficiency
• Designed for indoor lighting applications
• Comes with COB LED holder (HT5828), thermal pad, and COB module

• High color rendering index (CRI>80)
• Dimmable with power factor of PF>0.85
• Recommended to use aluminum heat sink for optimal performance and to prevent overheating
• Wide operating temperature range (-40 ~ +105℃)

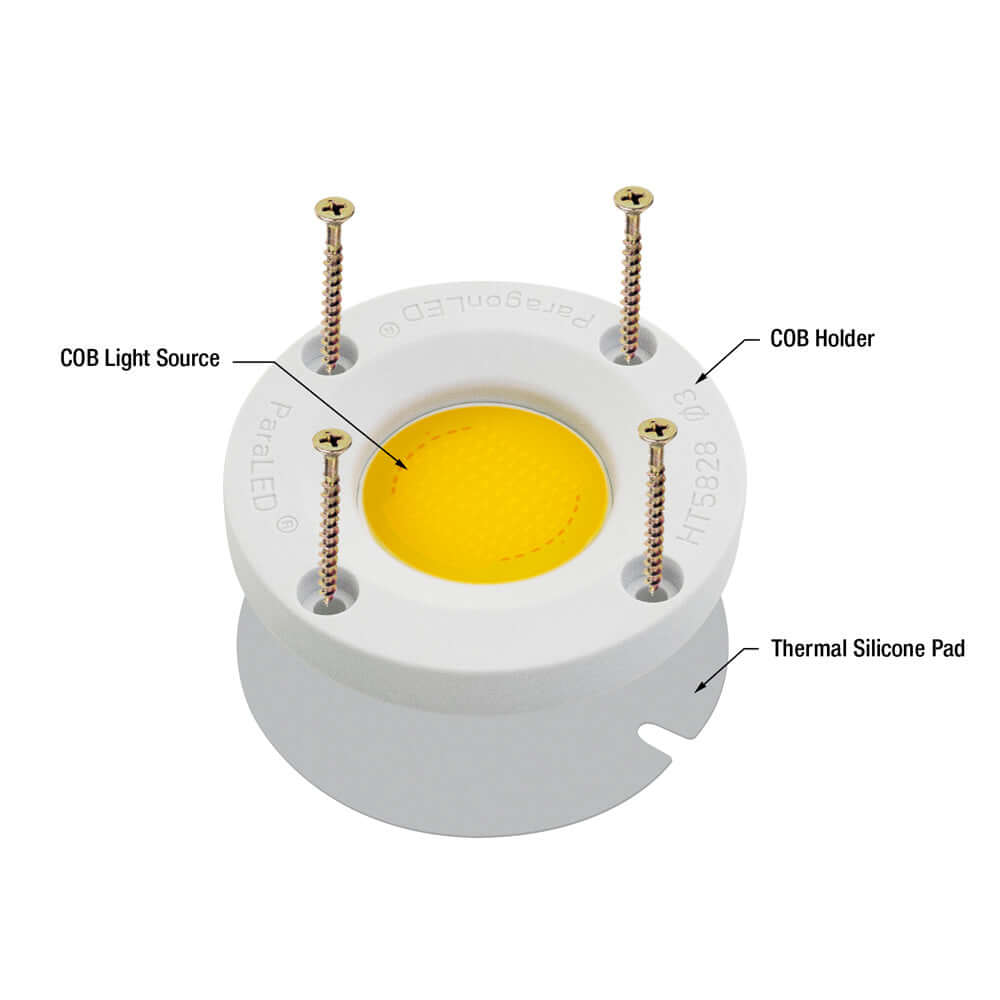

• Mechanically secured and electrically connected using COB holder
• Comes with easily attachable/detachable polycarbonate diffuser
• Suitable for damp locations with IP20 rating (Indoor rated)
