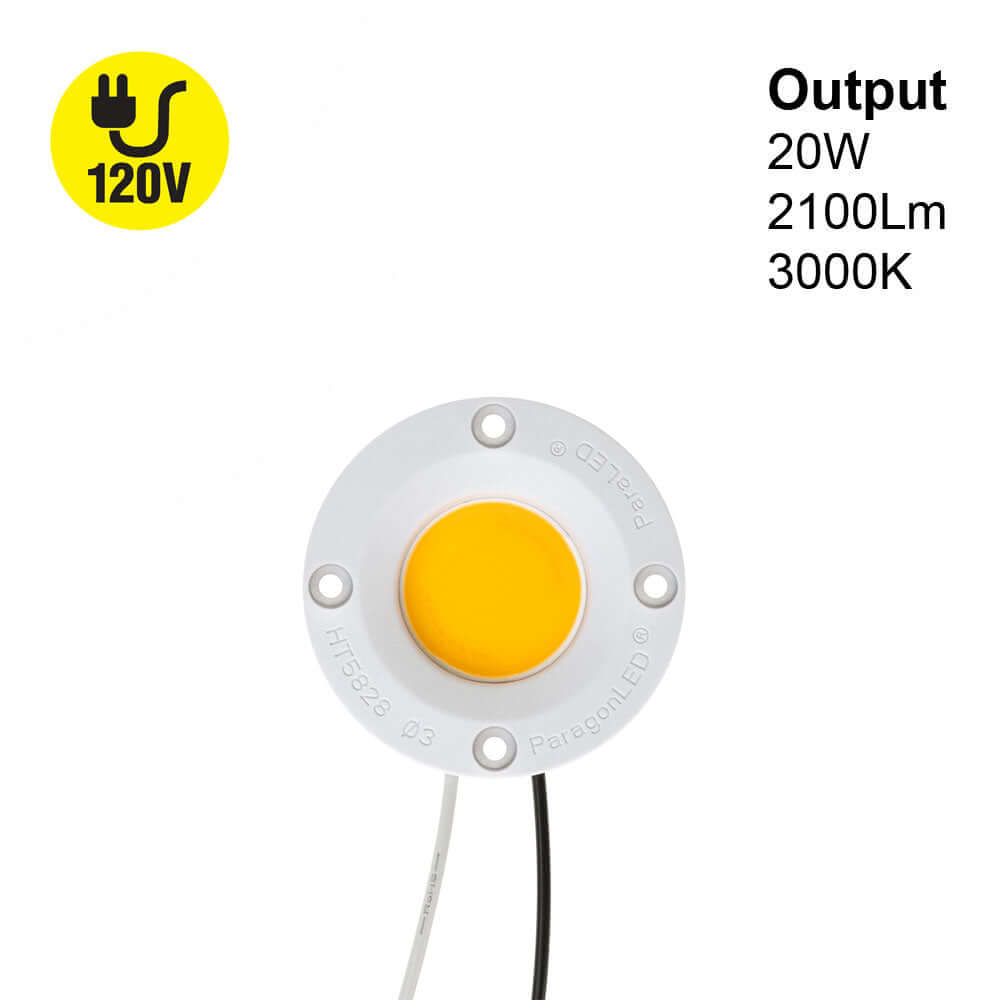

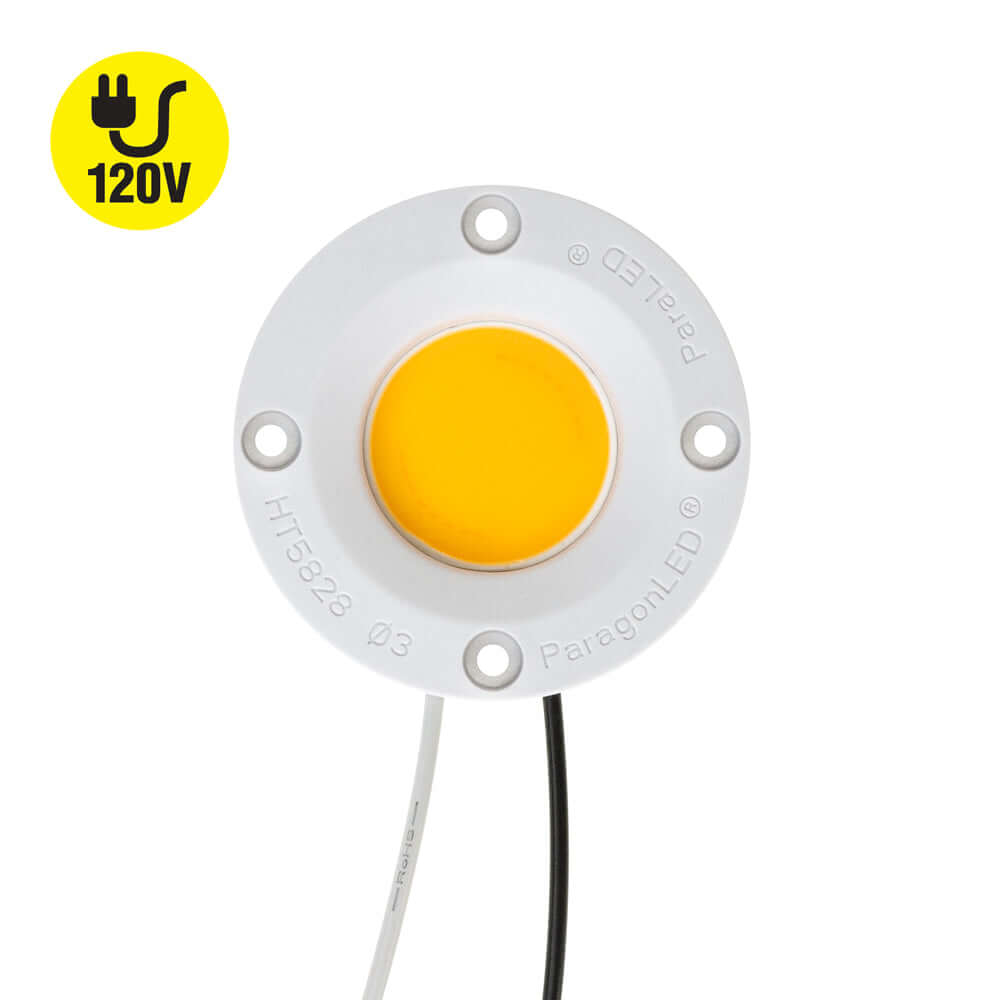

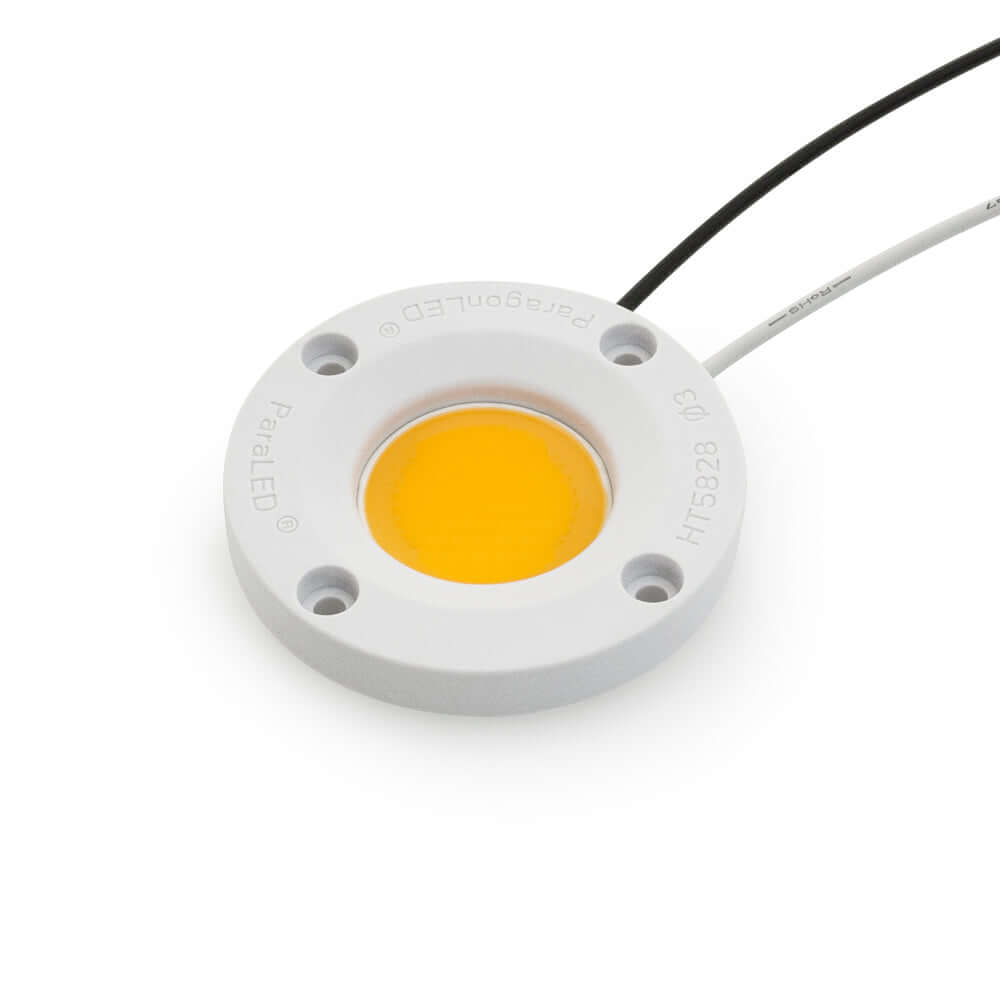

COB Paragon LED Module with HT5828 LED Holder 120V 20W CCT(2.7K, 3K, 4K), CDAC-80-5028-120V-30

Product	Paragon LED Module

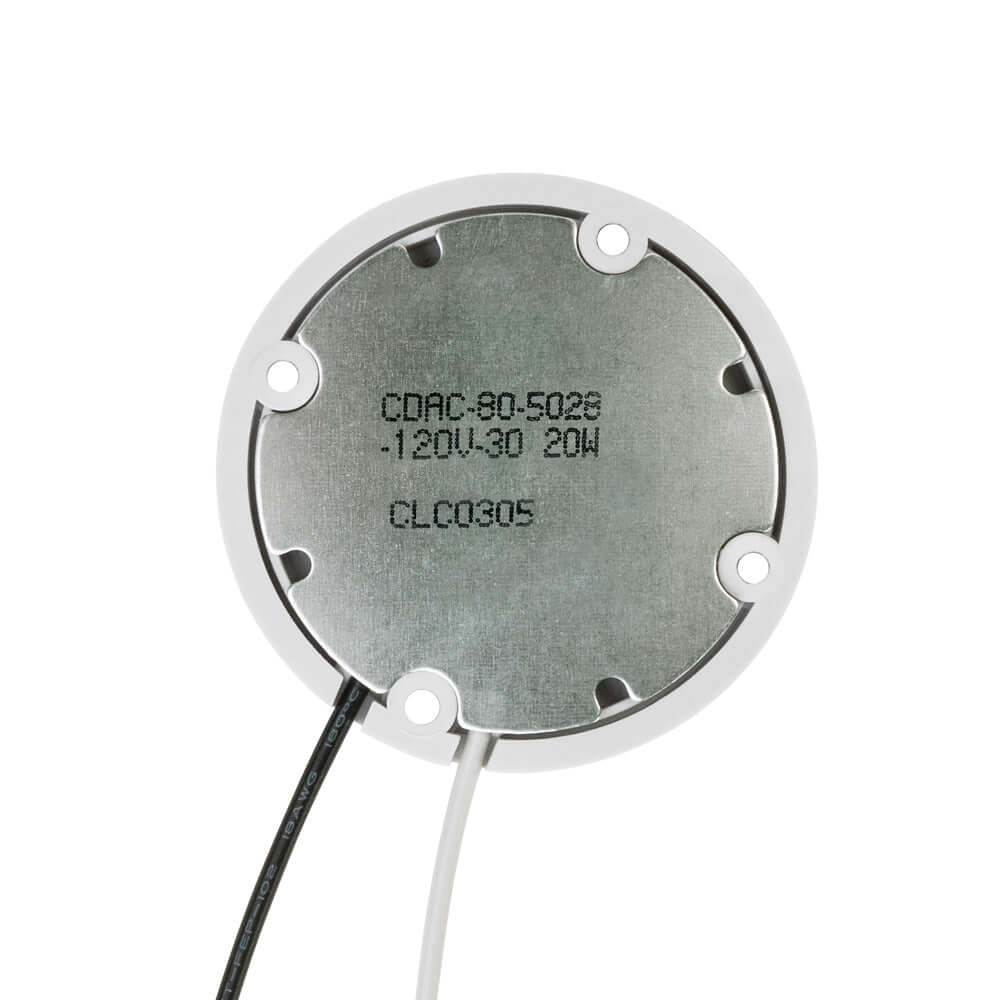

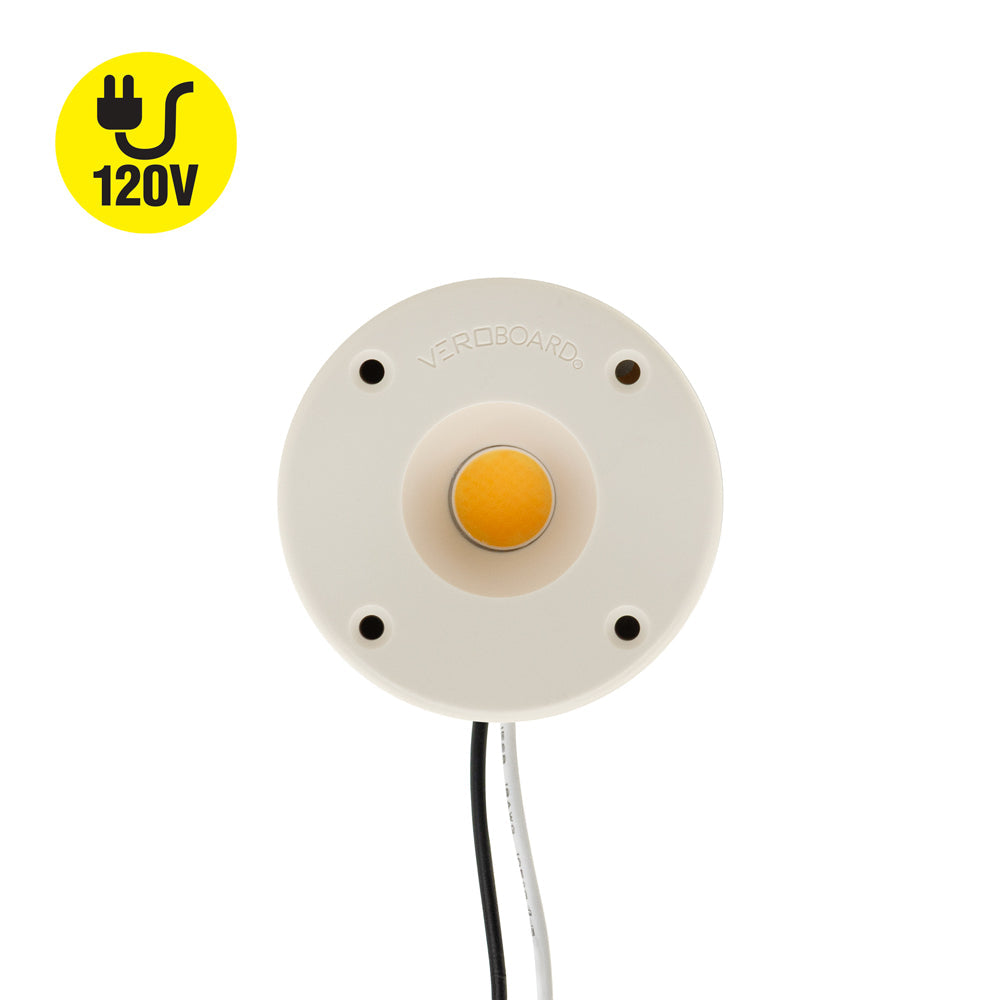

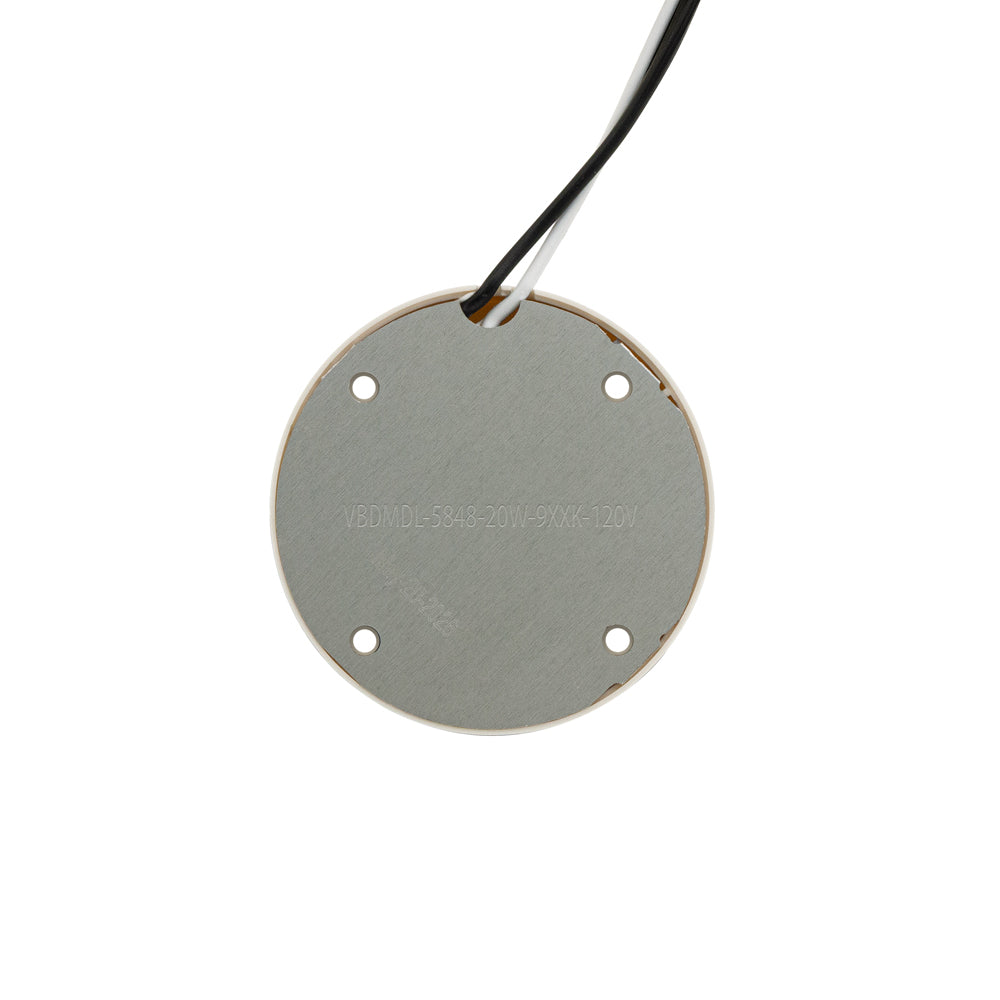

Model No	CDAC-80-5028-120V-30 (Paragon) VBDMDL-5848-20W-9XXK-120V (Veroboard)
COB Holder Model No	HT5828
LED Type	COB LED
No LED chips	80
Wattage	20W
Voltage	120V AC
Power Factor	PF>0.85
Luminous Intensity	2100 lumens

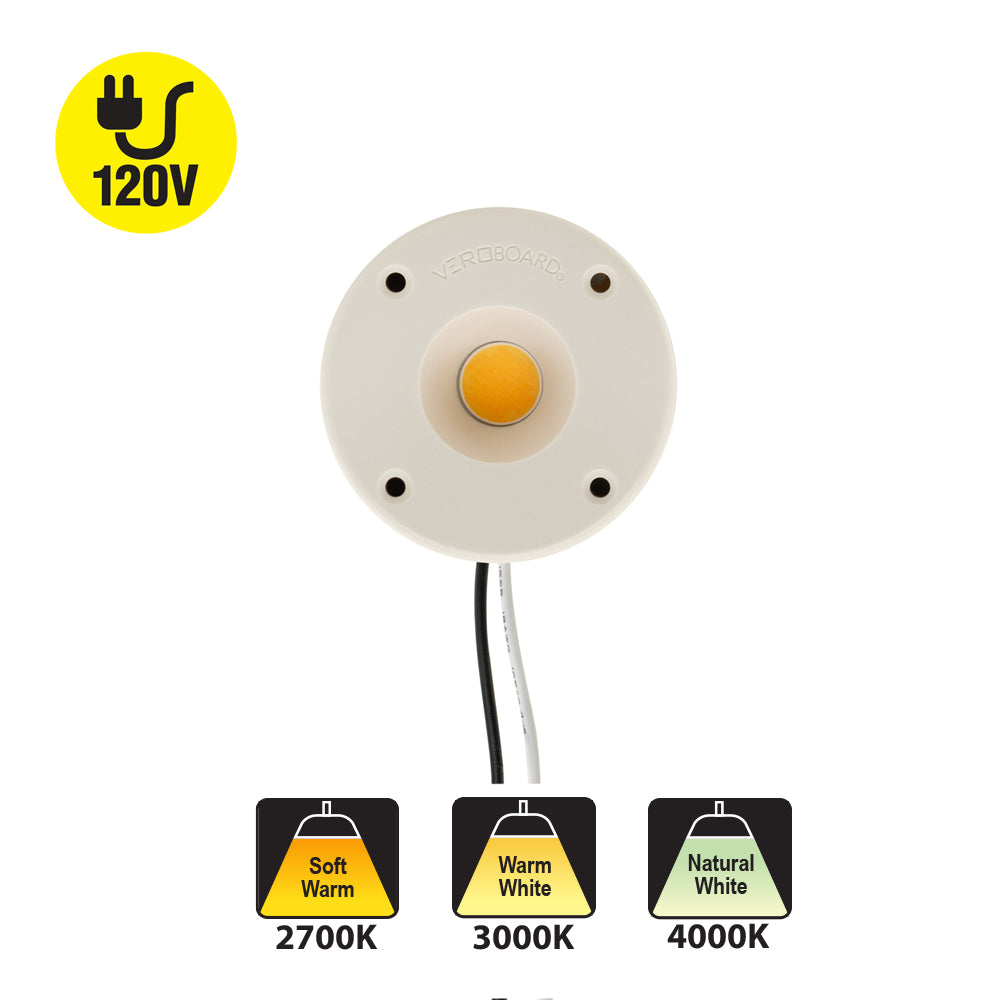

Color Temperature	(Paragon) 3000K (Warm White) (Veroboard) 2700K (Soft White) 3000K (Warm White) 4000K (Natural White)
Dimmable	Yes
Rendering Index	CRI>80 (Paragon) CRI>95 (Veroboard)
IP Rating	IP20 (Indoor rated)

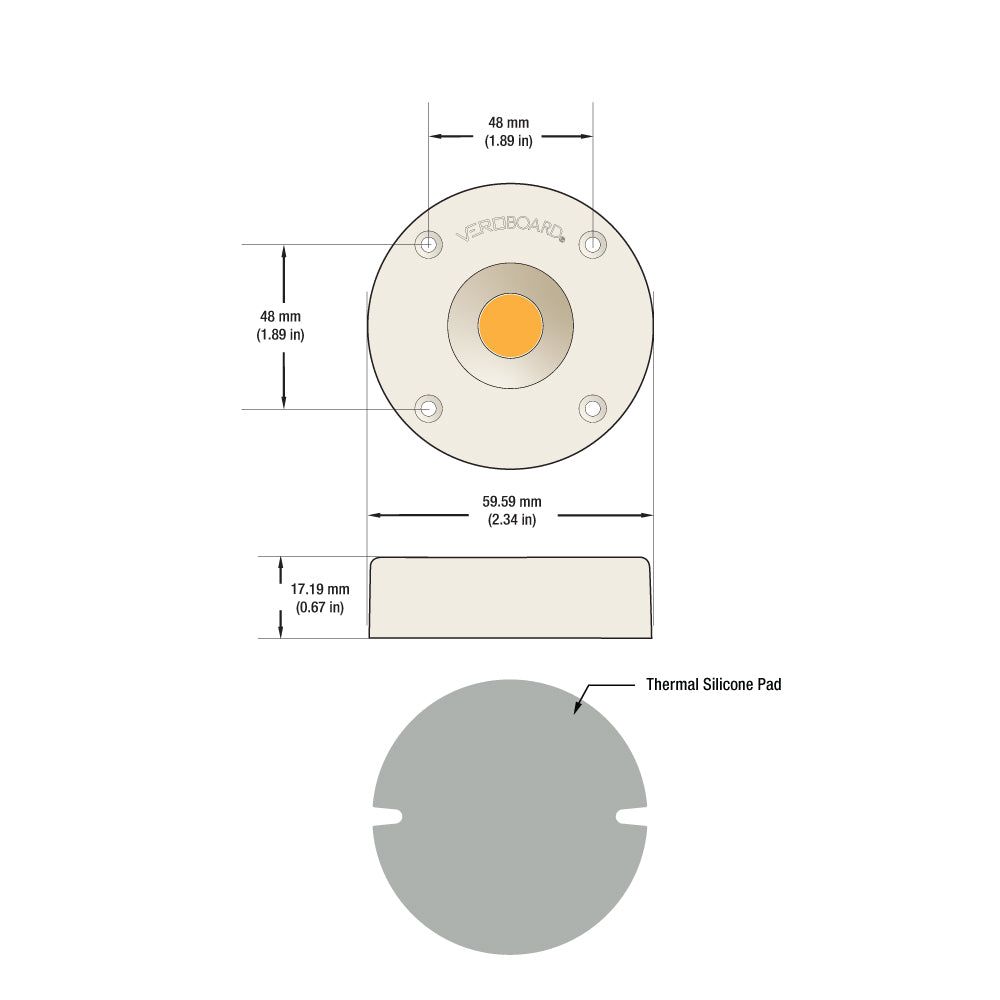

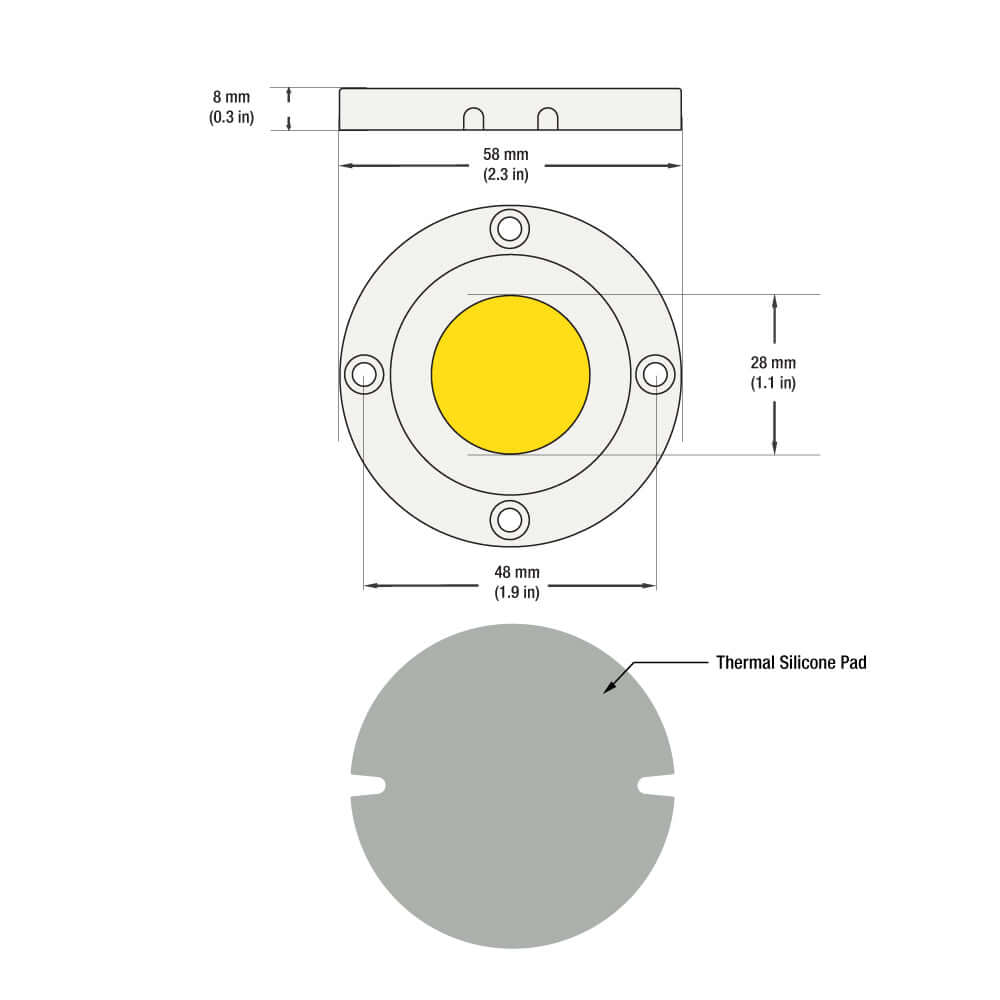

COB Holder Dimensions	(Paragon) ∅58mm (2.3in) x H8mm (0.3 in) (Veroboard) ∅59.5mm (2.3in) x H17.3mm (0.68 in)
COB Module Outer Diameter	∅28mm (1.1 in) (Paragon) ∅10mm (0.39in) (Veroboard)
Operating Temperature	-40 ~ +105℃
Storage Temperature	-40 ~ +105℃

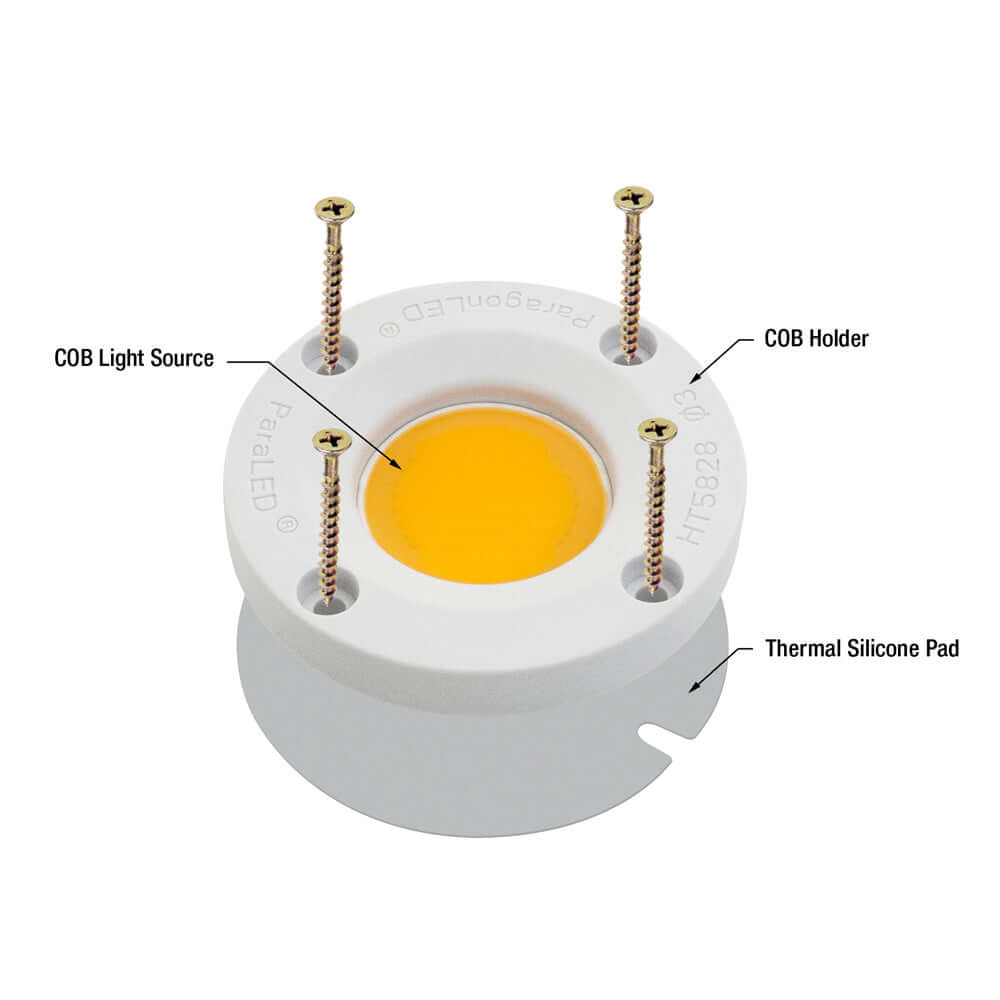

Included Content	COB Module, COB LED Holder, Thermal Pad
Weight	0.04 kg
Certifications

Features:

• The module has 80 LED chips and a wattage of 20W, with a voltage rating of 120V AC and a power factor of PF>0.85

• The module is dimmable and has a color rendering index of CRI>80
• The COB module is suitable for indoor use only, with an IP rating of IP20
• It can operate in a wide temperature range of -40 ~ +105℃, and it is recommended to ground the light fixtures when designing lamps
• The module comes with a polycarbonate diffuser that can be attached or detached easily to reduce glare while refracting light in a wider beam

• The module requires an aluminum heat sink to prevent overheating, and a silicone grease thermal pad is provided to dissipate heat efficiently
• The product is UL certified and consumes low power, making it highly energy-efficient
• COB LEDs used in this module are brighter, consume less power, and produce a higher quality beam output compared to older LED technologies
• COB LEDs are generally used in almost every kind of luminaire.
