COB Paragon LED Module with HT5828 LED Holder 120V 30W CCT(2.7K, 3K, 4K), CDAC-80-5028-120V-30

Product	Paragon LED Module

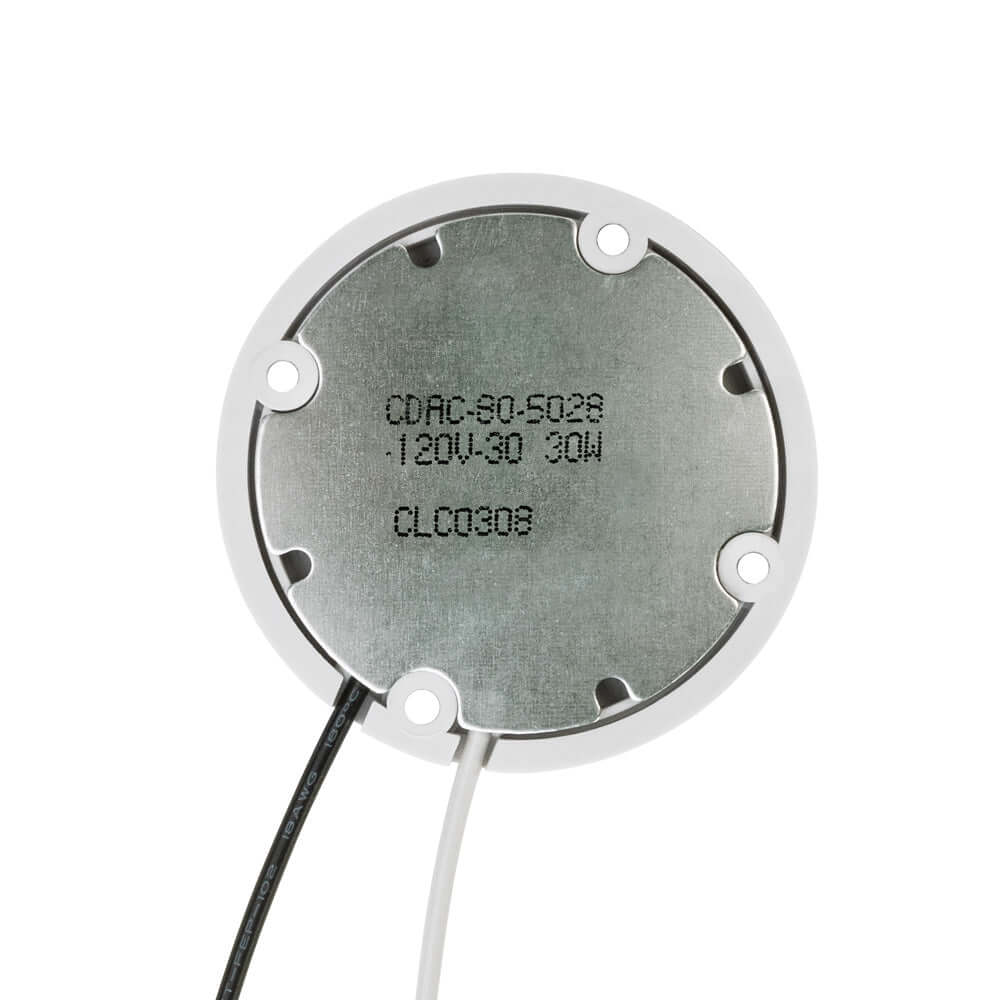

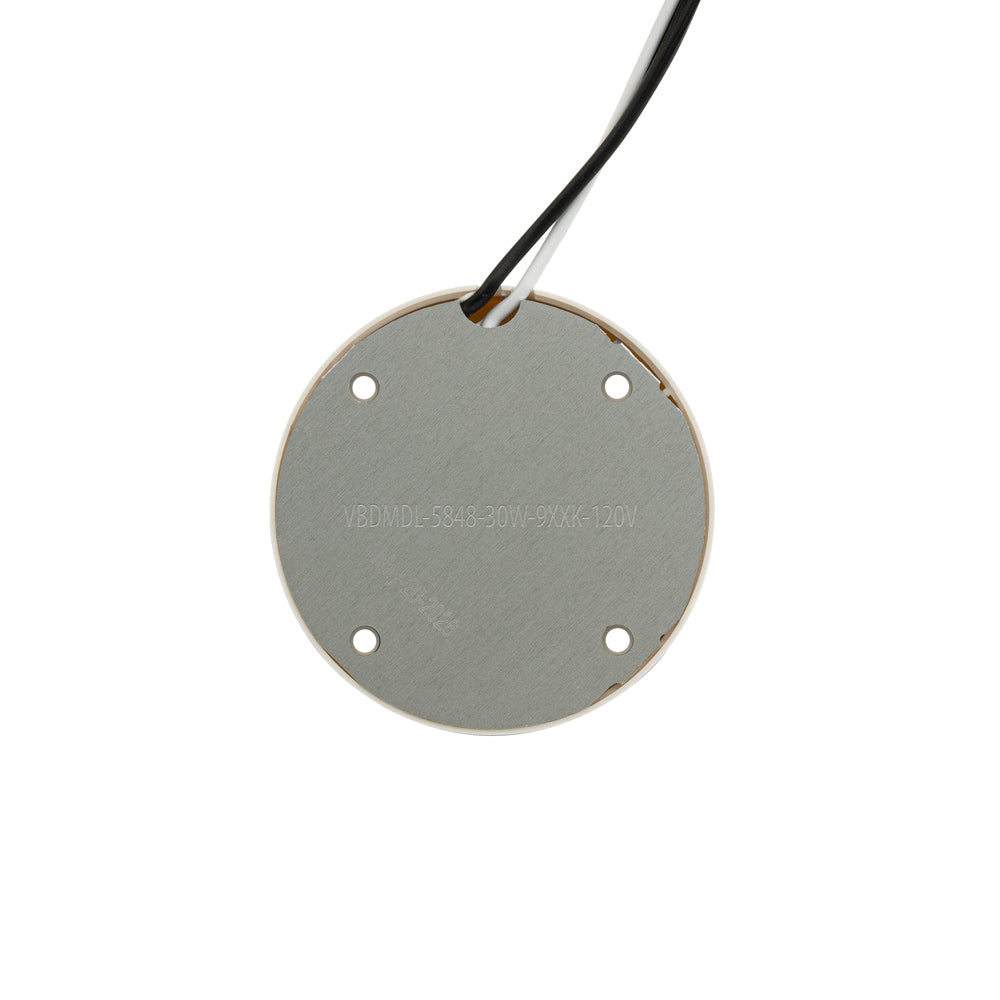

Model No	CDAC-80-5028-120V-30 (Paragon) VBDMDL-5848-30W-9XXK-120V (Veroboard)

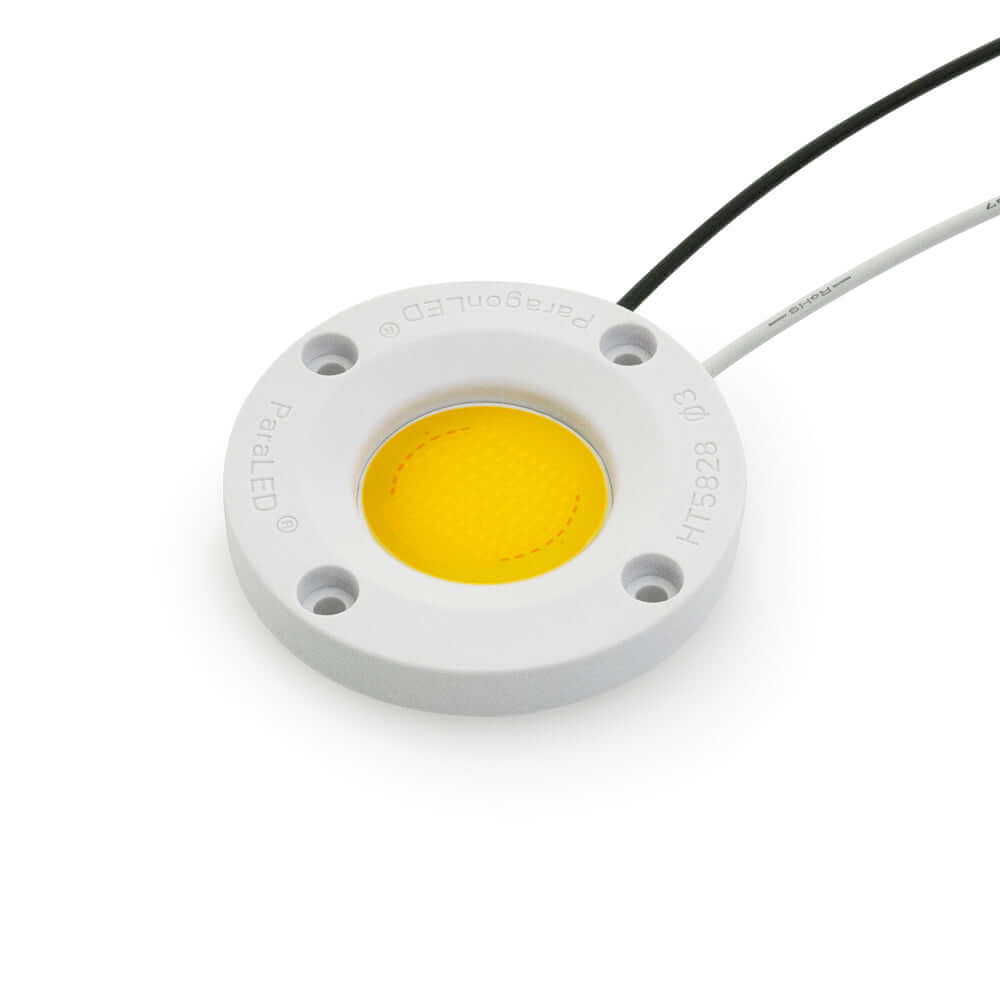

COB Holder Model No	HT5828
LED Type	COB LED
No LED chips	80
Wattage	30W
Voltage	120V AC
Power Factor	PF>0.85

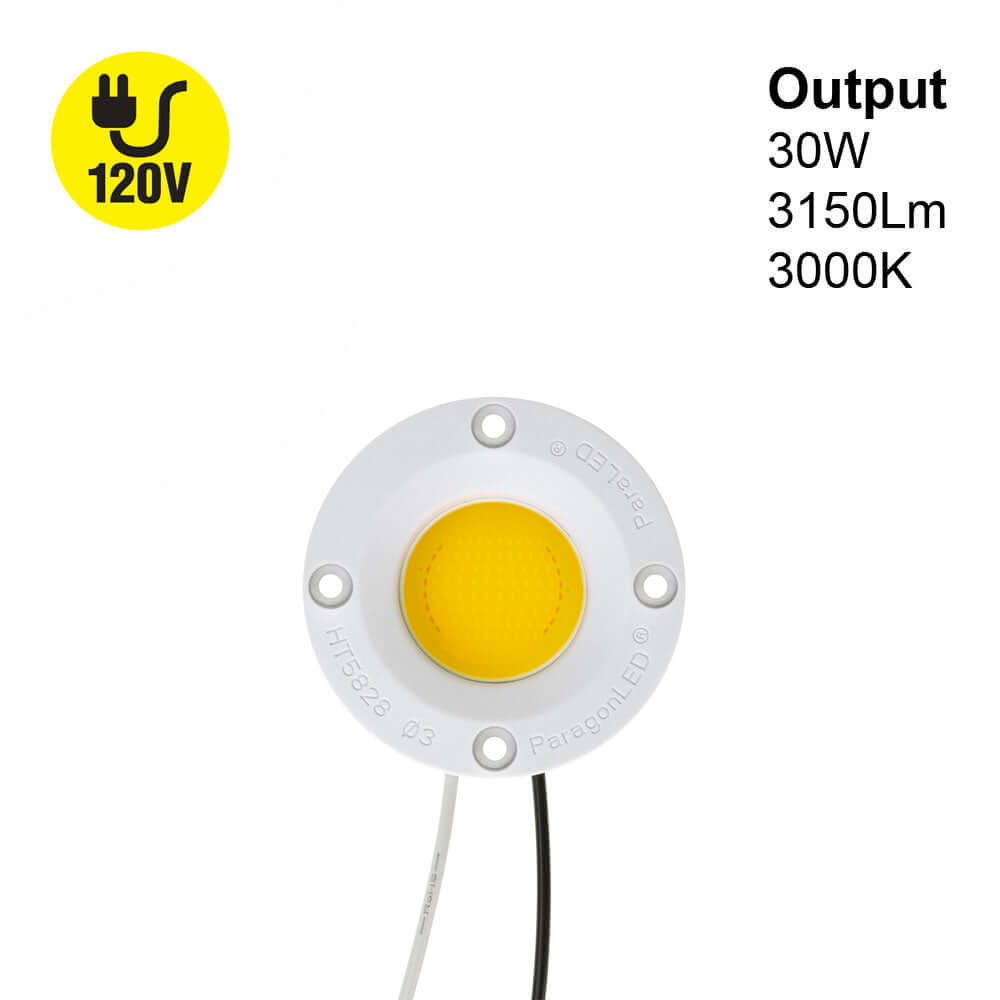

Luminous Intensity	3150 Lumens

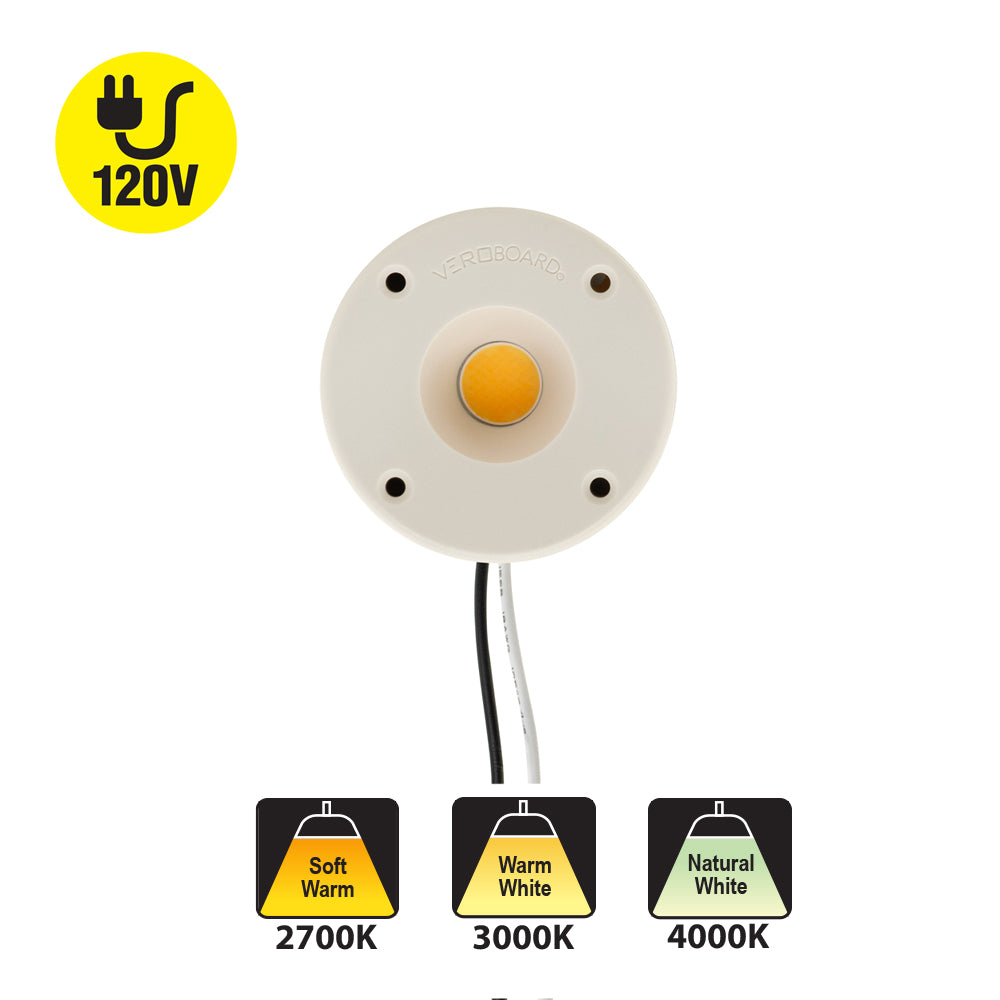

Color Temperature	(Paragon) 3000K (Warm White) (Veroboard) 2700K (Soft White) 3000K (Warm White) 4000K (Natural White)
Dimmable	Yes
Rendering Index	CRI>80 (Paragon) CRI>95 (Veroboard)
IP Rating	IP20 (Indoor rated)

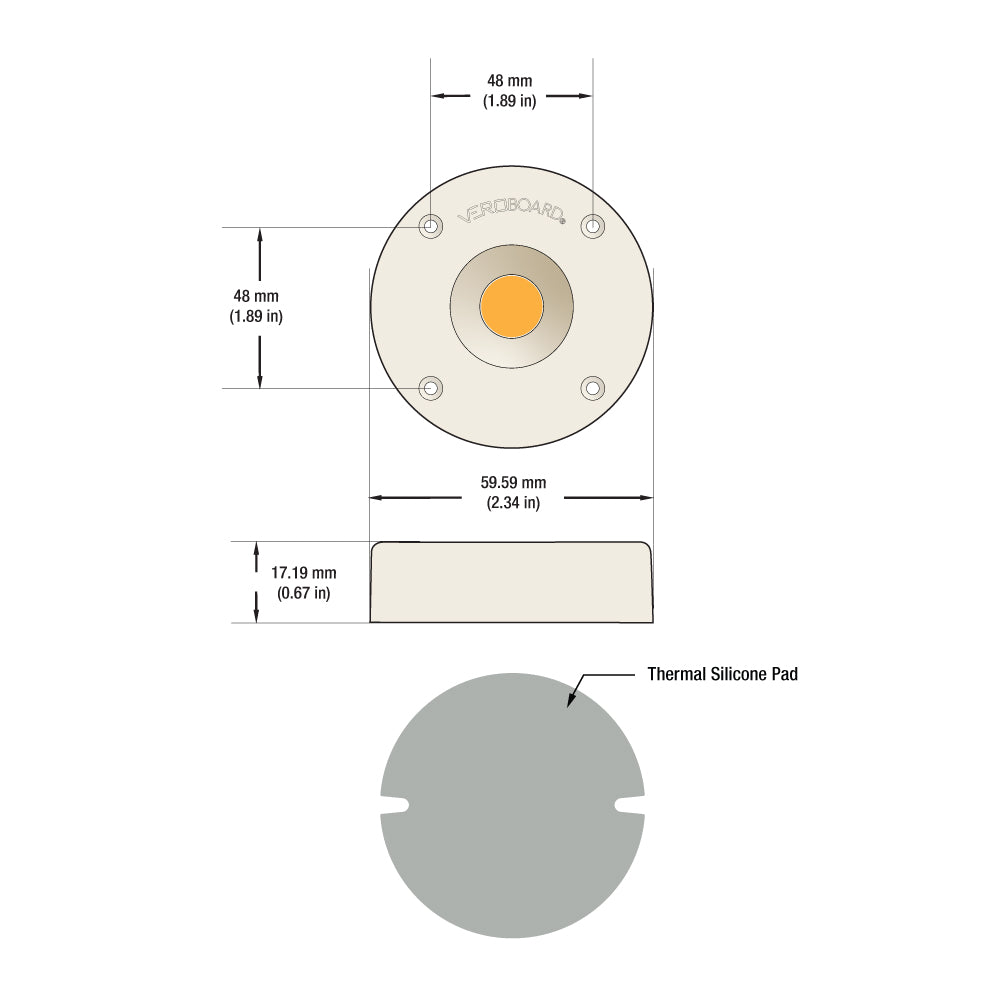

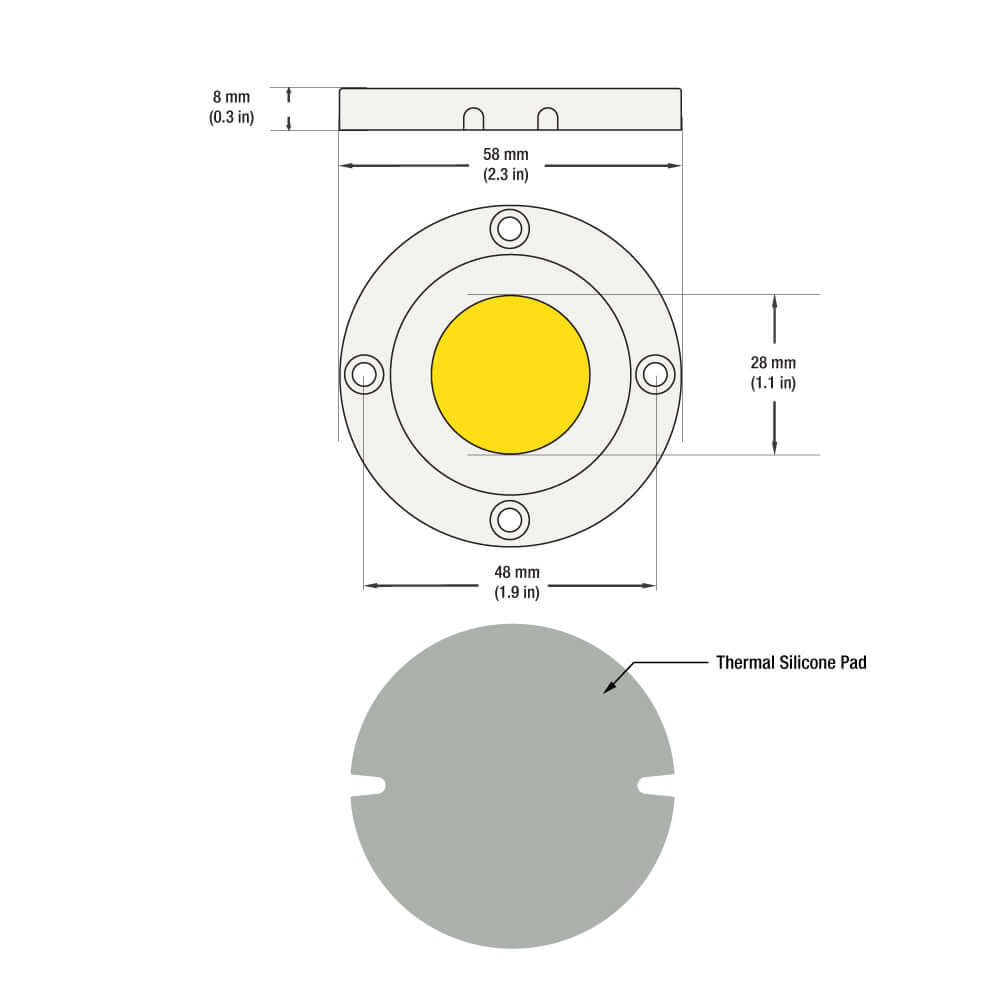

COB Holder Dimensions	(Paragon) ∅58mm (2.3in) x H8mm (0.3 in) (Veroboard) ∅59.5mm (2.3in) x H17.3mm (0.68 in)
COB Module Outer Diameter	∅28mm (1.1 in) (Paragon) ∅10mm (0.39in) (Veroboard)
Operating Temperature	-40 ~ +105℃
Storage Temperature	-40 ~ +105℃

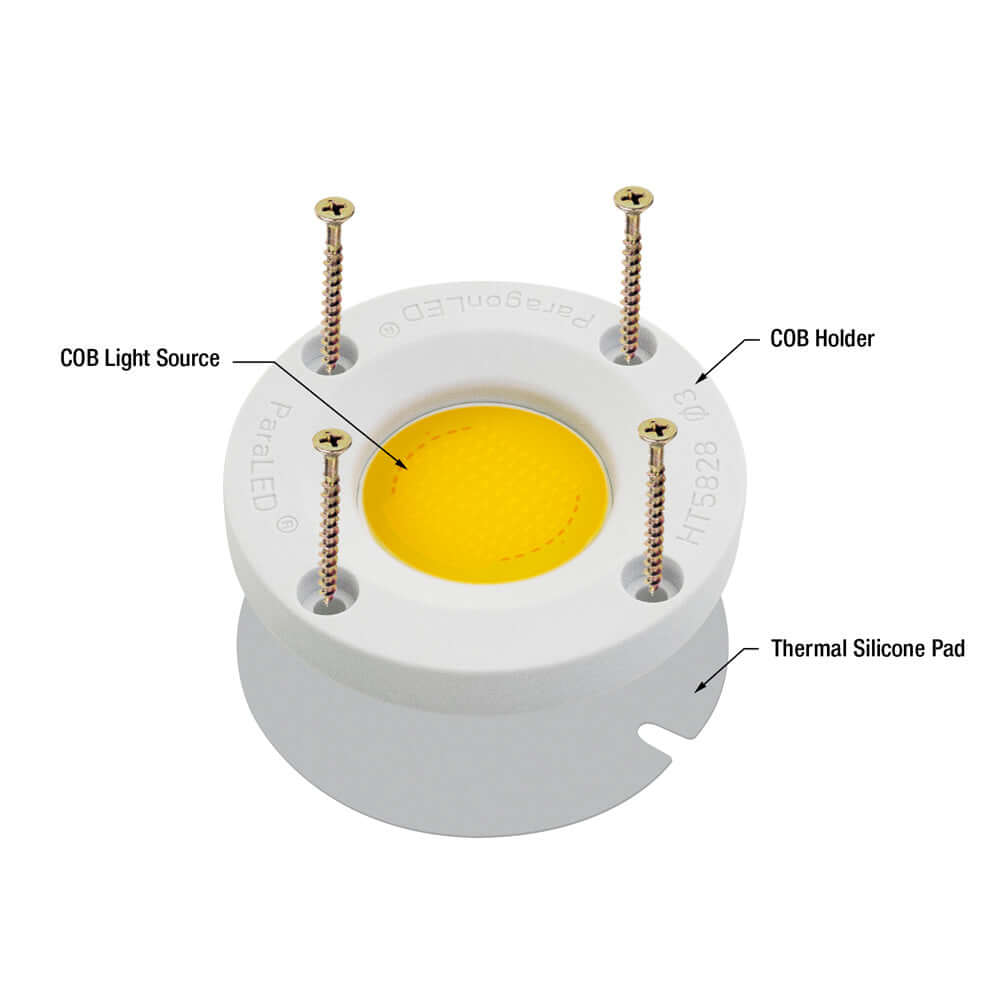

Included Content	COB Module, COB LED Holder, Thermal Pad
Weight	0.04 kg
Certifications

Features:

• High-performance lighting solution with 80-chip COB LED and 30W wattage at 120V AC
• Comes with HT5828 COB holder model for securing and electrically connecting to a heat sink

• High color rendering index (CRI) of over 80 for accurate color representation
• Dimmable for use in a variety of lighting applications

• Polycarbonate diffuser included for reducing glare and refracting light in a wider beam
• Energy-efficient, low power-consuming, and high-quality beam output compared to older LED technologies

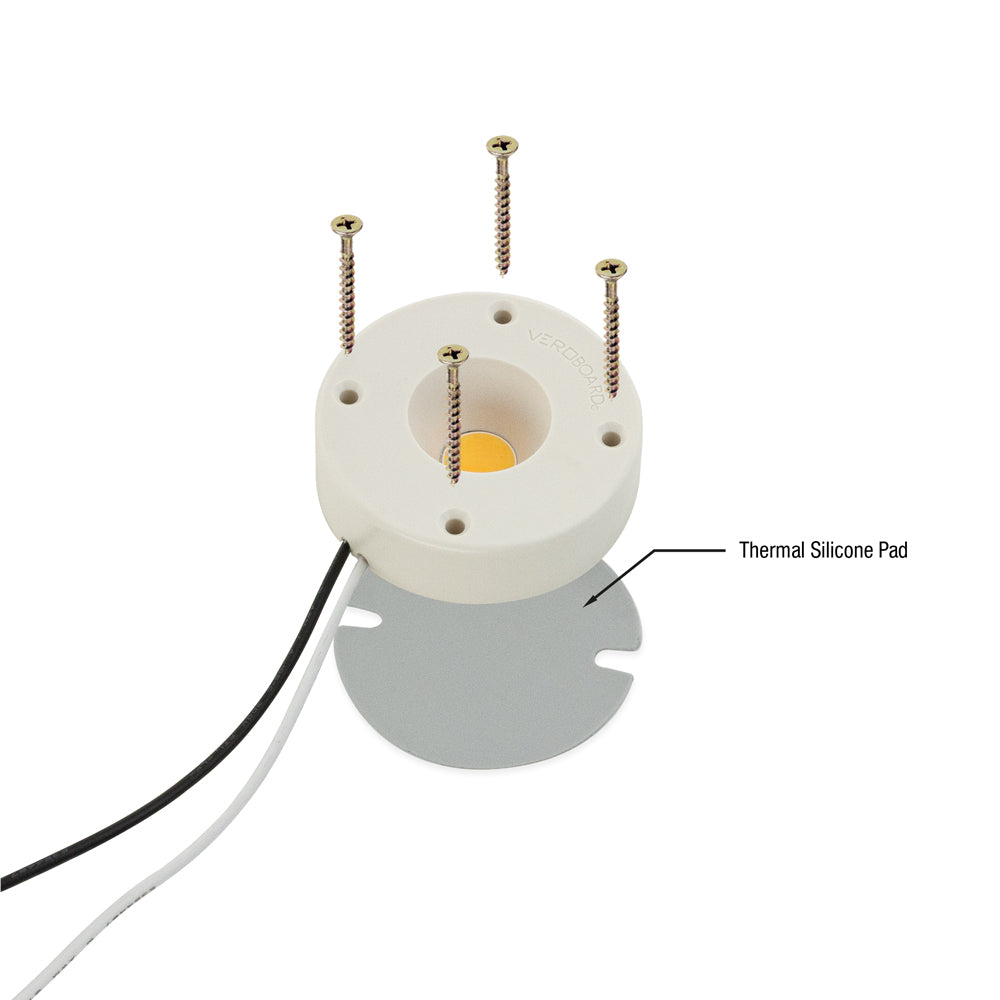

• Requires aluminum heat sink and includes silicone grease thermal pad for better heat dissipation and longer lifespan
• UL certified and suitable for use in damp locations
• COB LEDs are generally used in almost every type of luminaire due to their high performance and efficiency.
