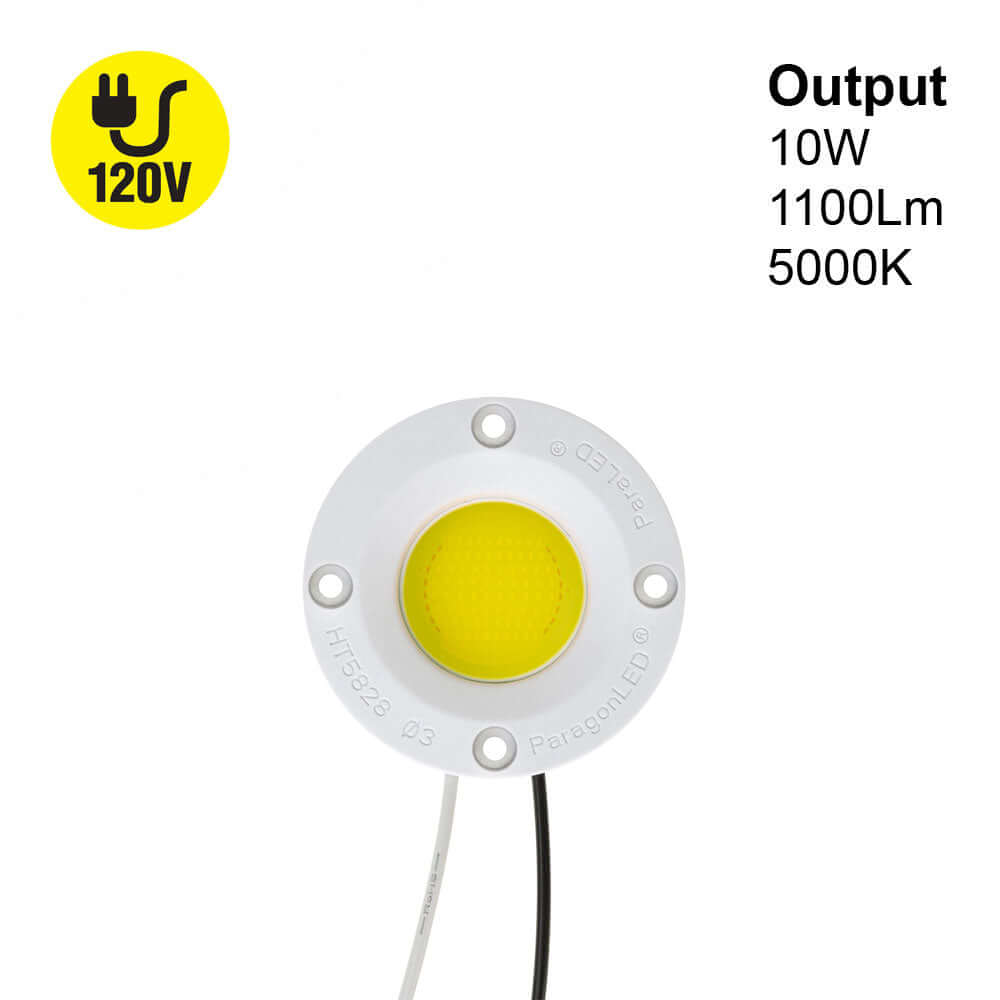

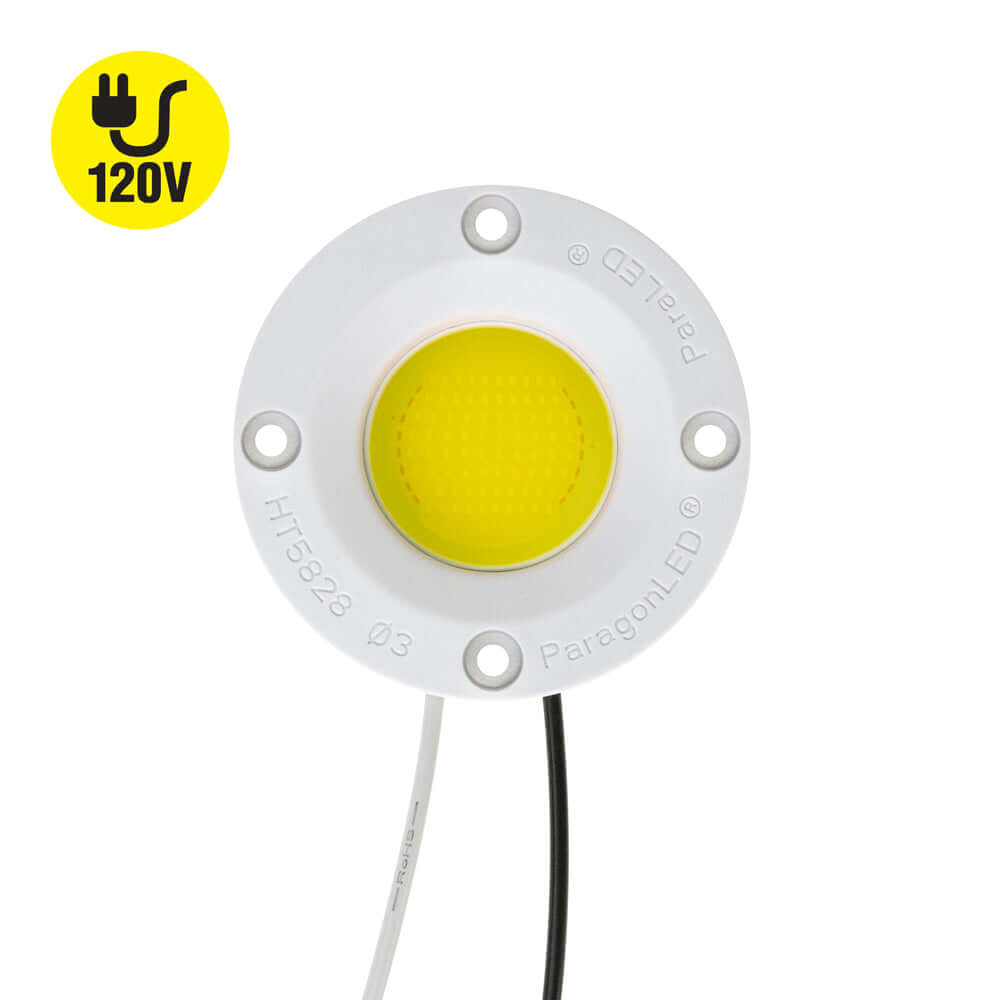

COB Paragon LED Module Light 120V 10W 1100Lm CCT(2.7K, 3K, 4K, 5K), CDAC-80-5028-120V-50 with HT5828 LED Holder

Product	Paragon LED Module

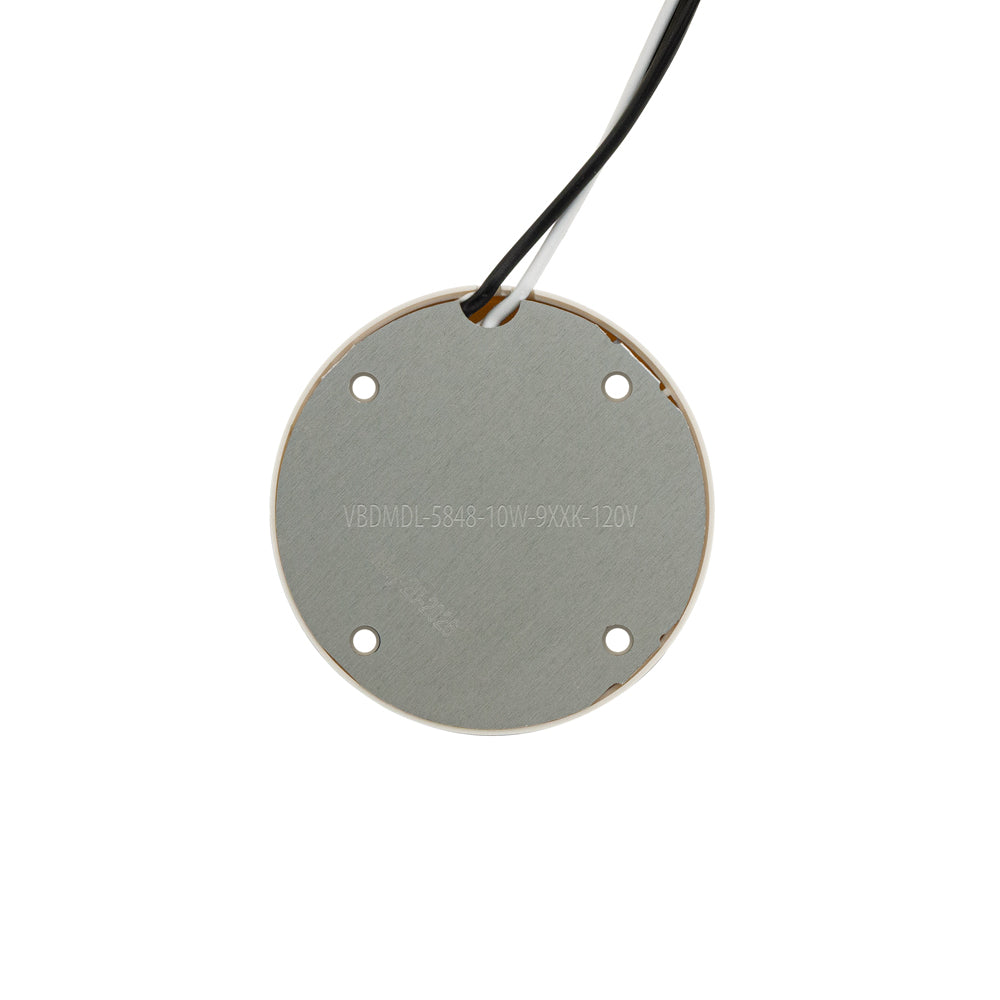

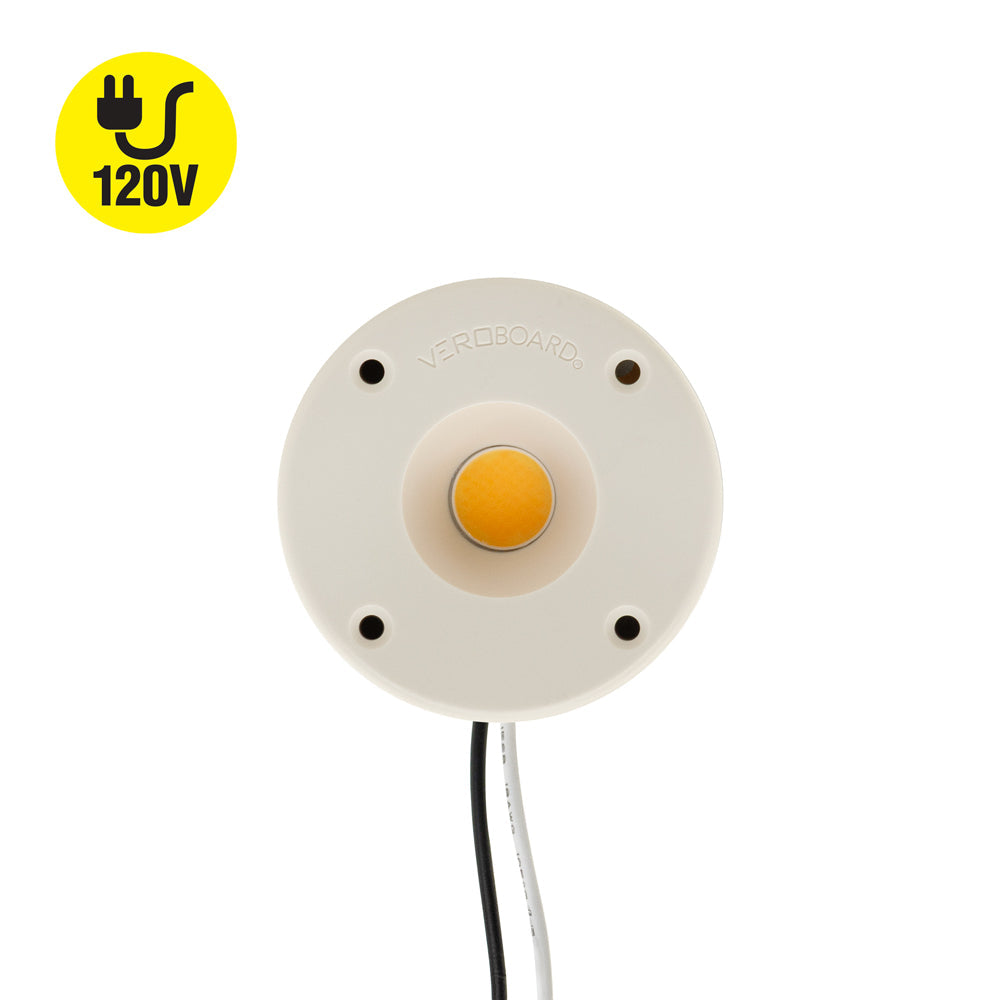

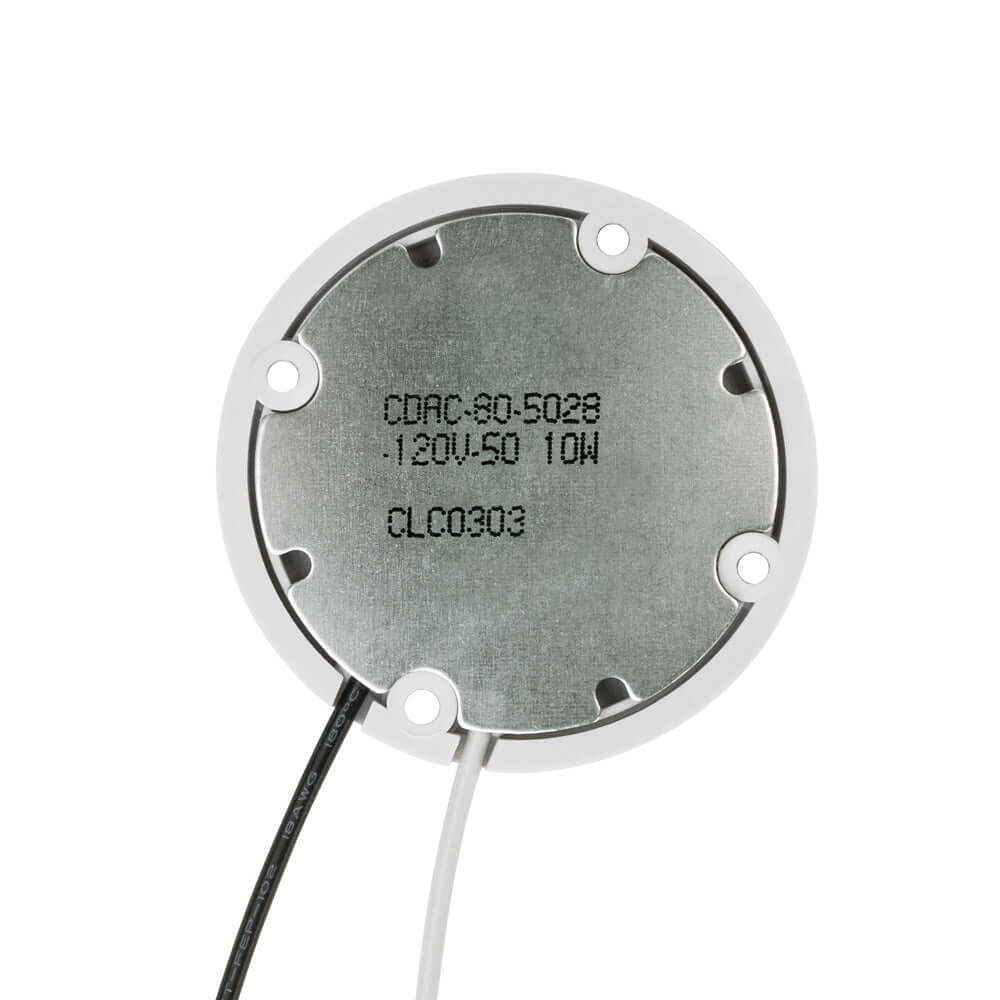

Model No	CDAC-80-5028-120V-50 (Paragon) VBDMDL-5848-10W-9XXK-120V (Veroboard)
COB Holder Model No	HT5828
LED Type	COB LED
No LED chips	80
Wattage	10W
Voltage	120V AC
Power Factor	PF>0.85
Luminous Intensity	1100 lumens

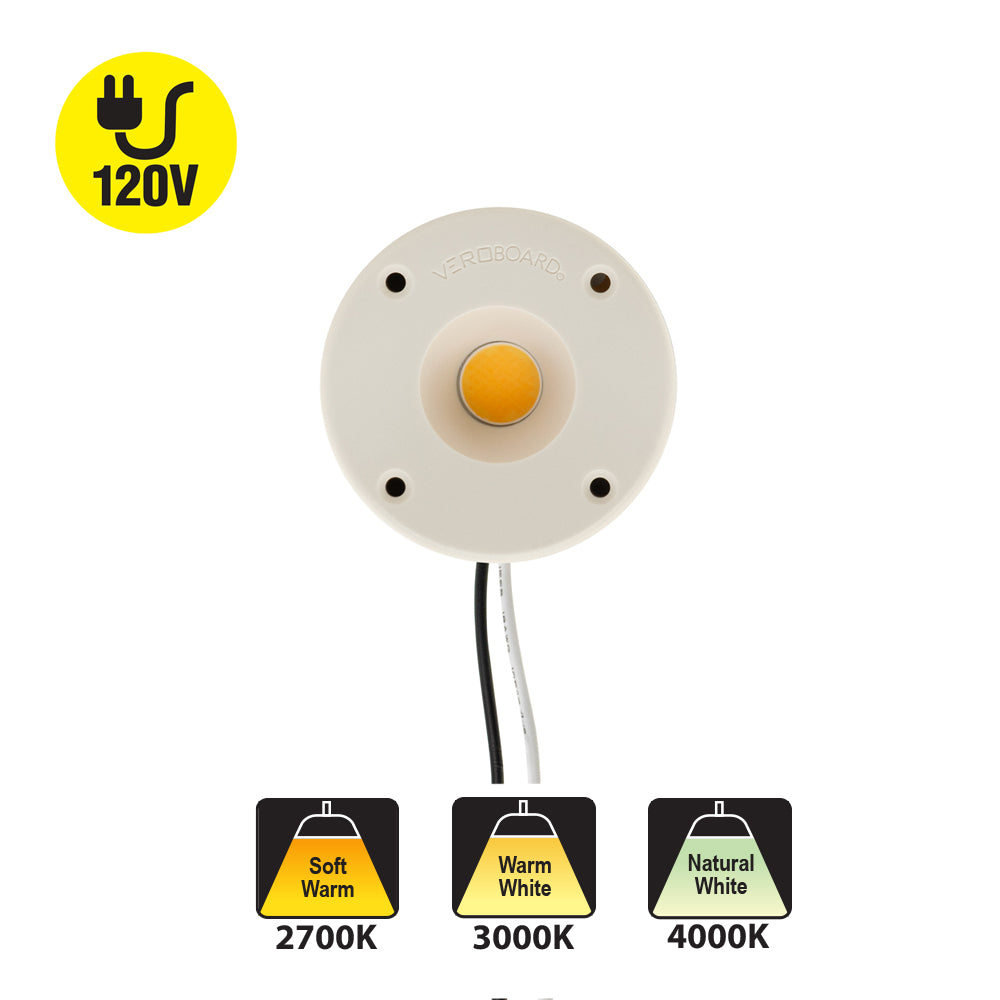

Color Temperature	(Paragon) 5000K (Daylight) (Veroboard) 2700K (Soft White) 3000K (Warm White) 4000K (Natural White)
Dimmable	Yes
Rendering Index	CRI>80 (Paragon) CRI>95 (Veroboard)
IP Rating	IP20 (Indoor rated)

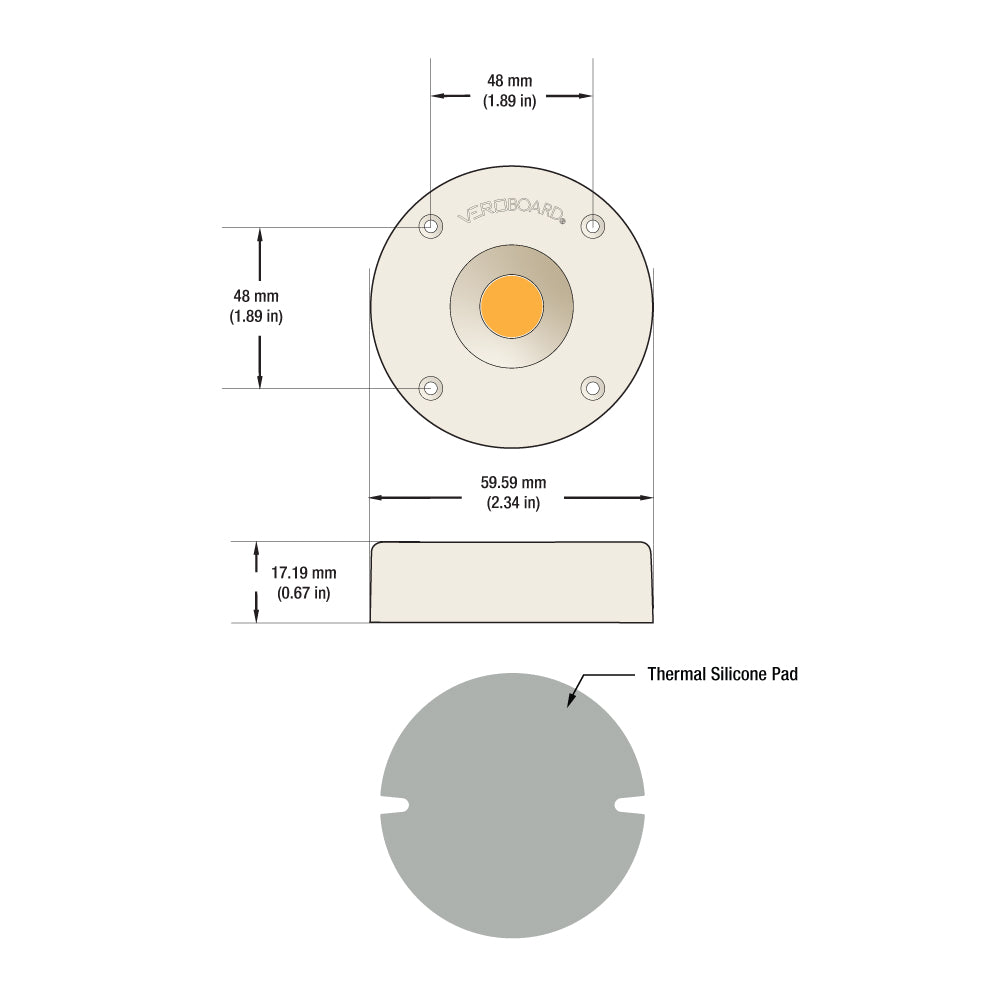

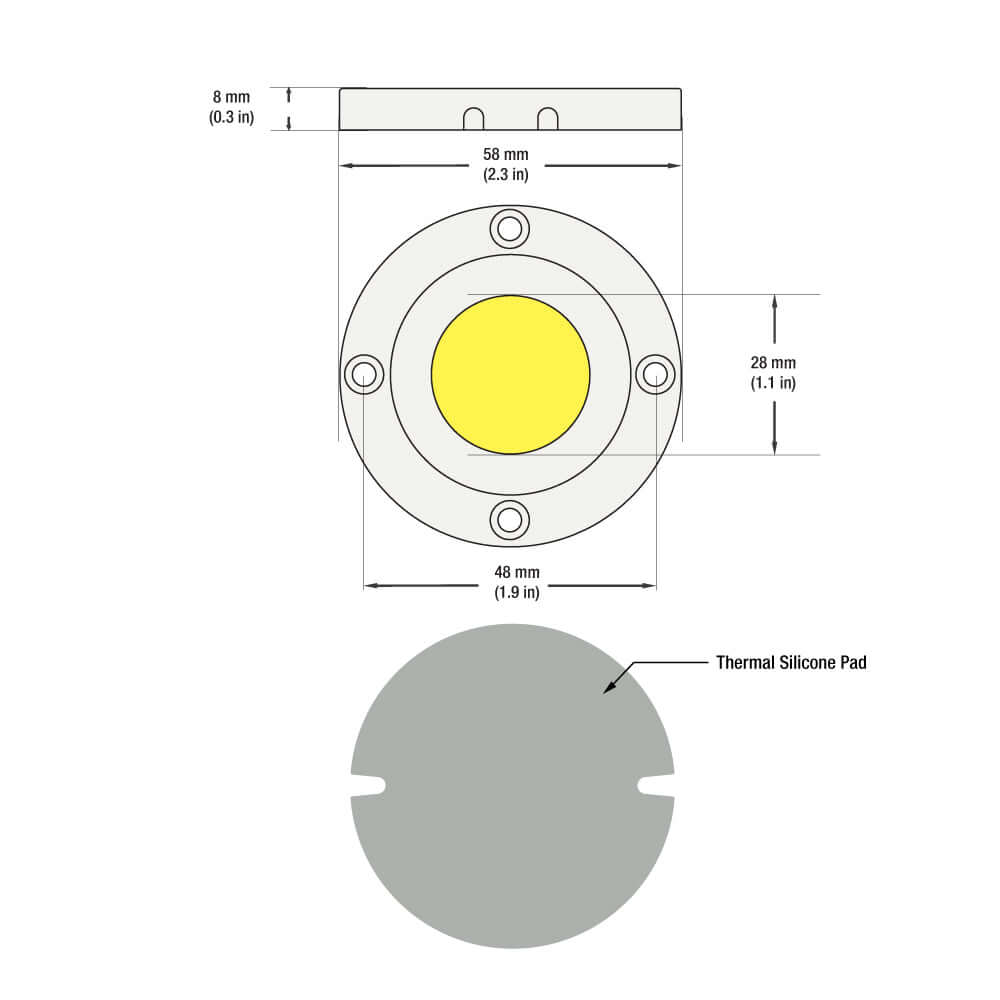

COB Holder Dimensions	(Paragon) ∅58mm (2.3in) x H8mm (0.3 in) (Veroboard) ∅59.5mm (2.3in) x H17.3mm (0.68 in)
COB Module Outer Diameter	∅28mm (1.1 in) (Paragon) ∅10mm (0.39in) (Veroboard)
Operating Temperature	-40 ~ +105℃
Storage Temperature	-40 ~ +105℃

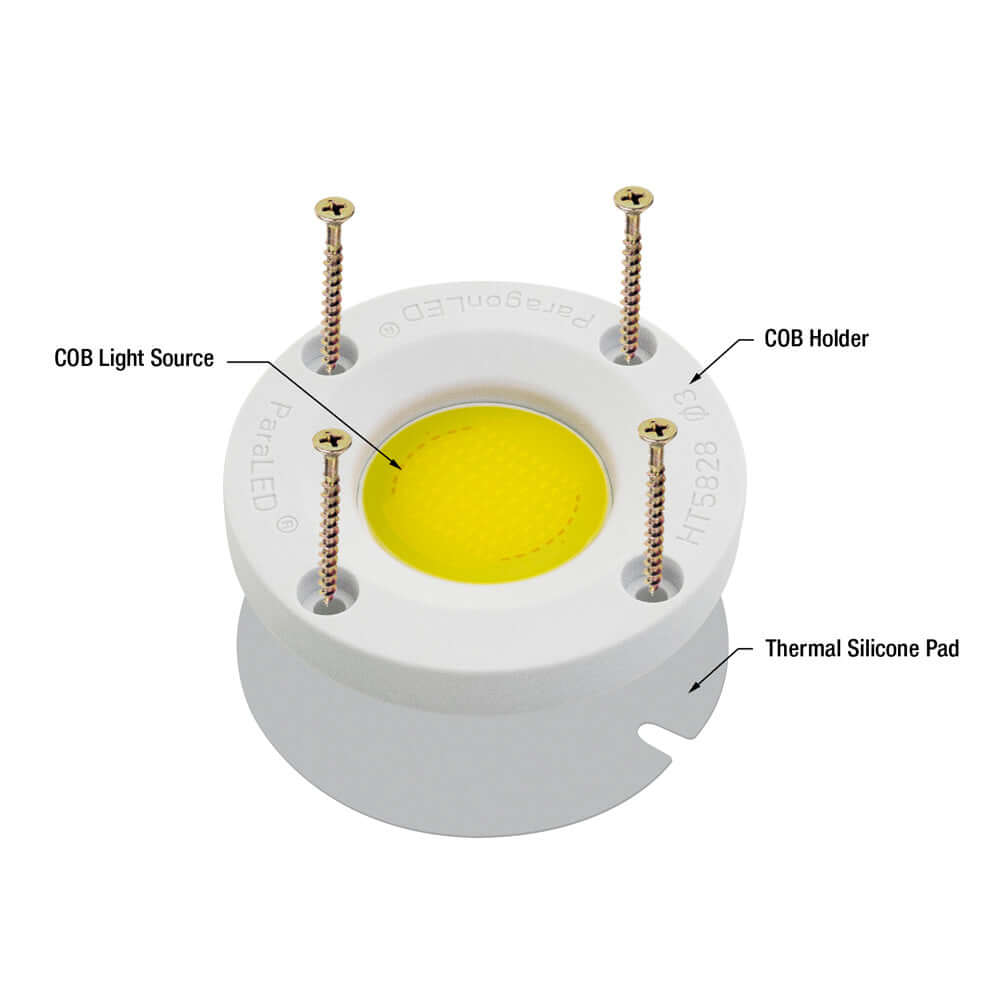

Included Content	COB Module, COB LED Holder, Thermal Pad
Weight	0.04 kg
Certifications

Features:

• It runs on 120V AC and has a power factor of PF>0.85, providing low power consumption and high energy efficiency

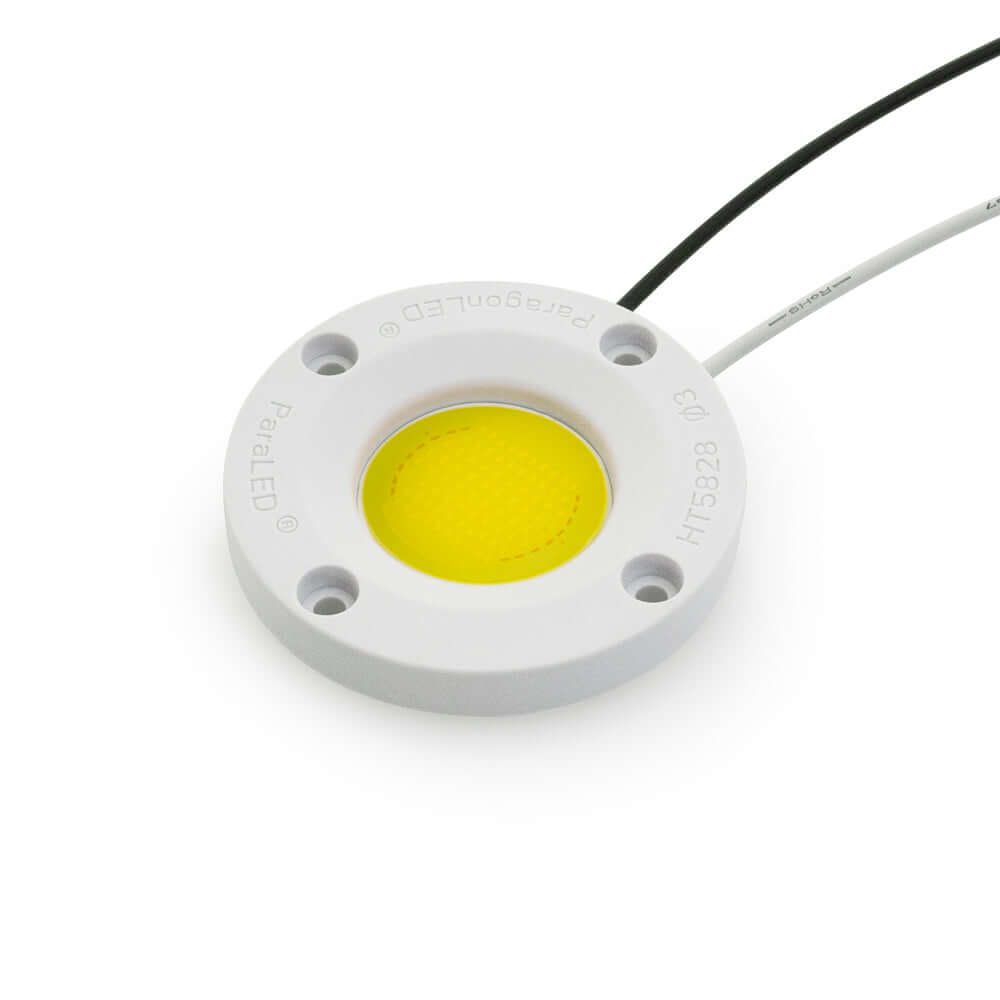

• It comes with a COB holder model no. HT5828, which allows for easy mechanical and electrical connections to a heat sink

• The module includes a thermal pad made of silicone grease, which provides a heat sink and helps in better heat dissipation, increasing the lifespan of the module
• COB Paragon LED Module Light 120V 10W 1100Lm
