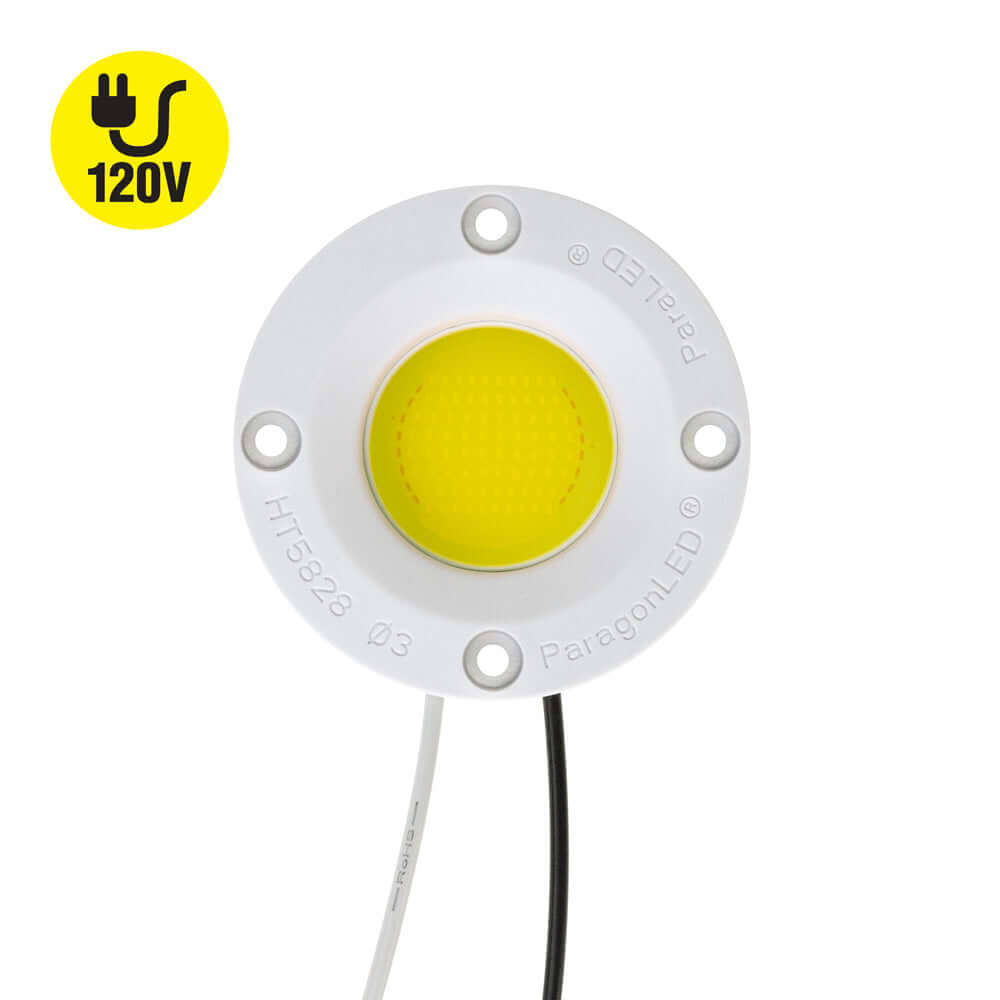

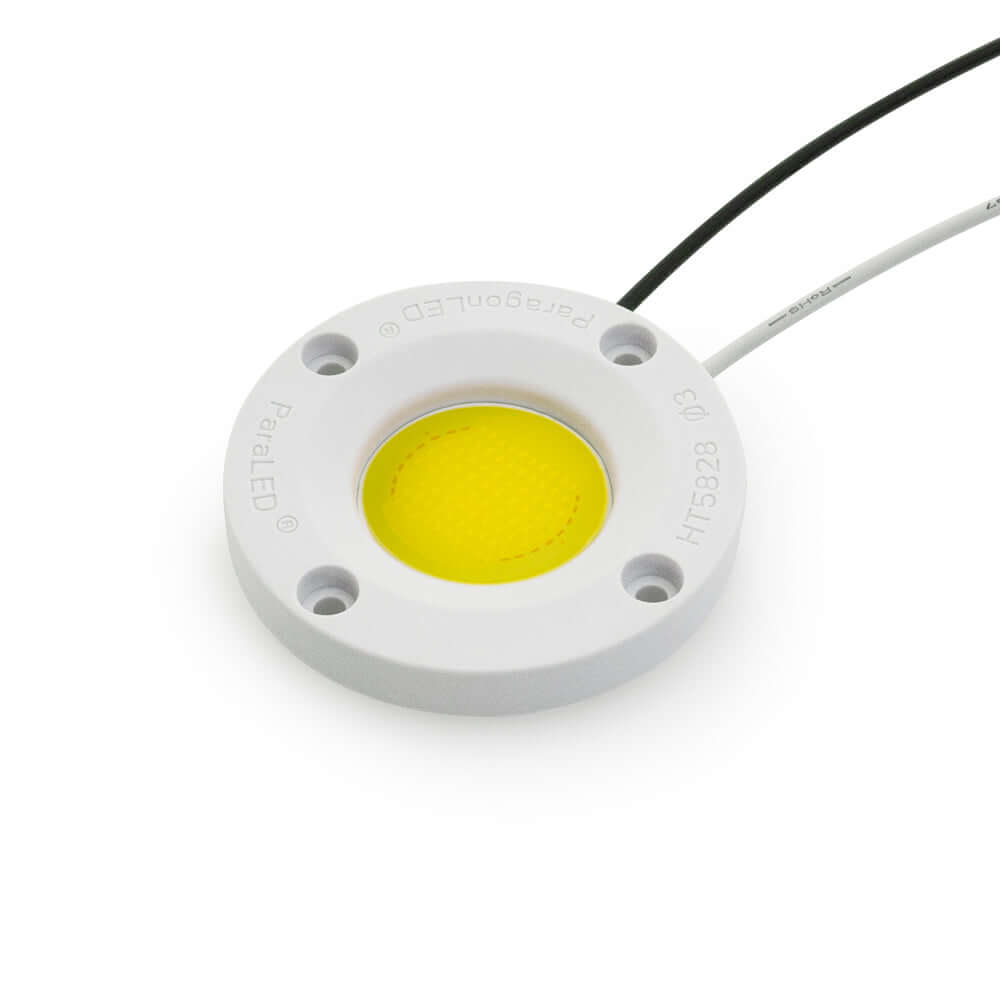

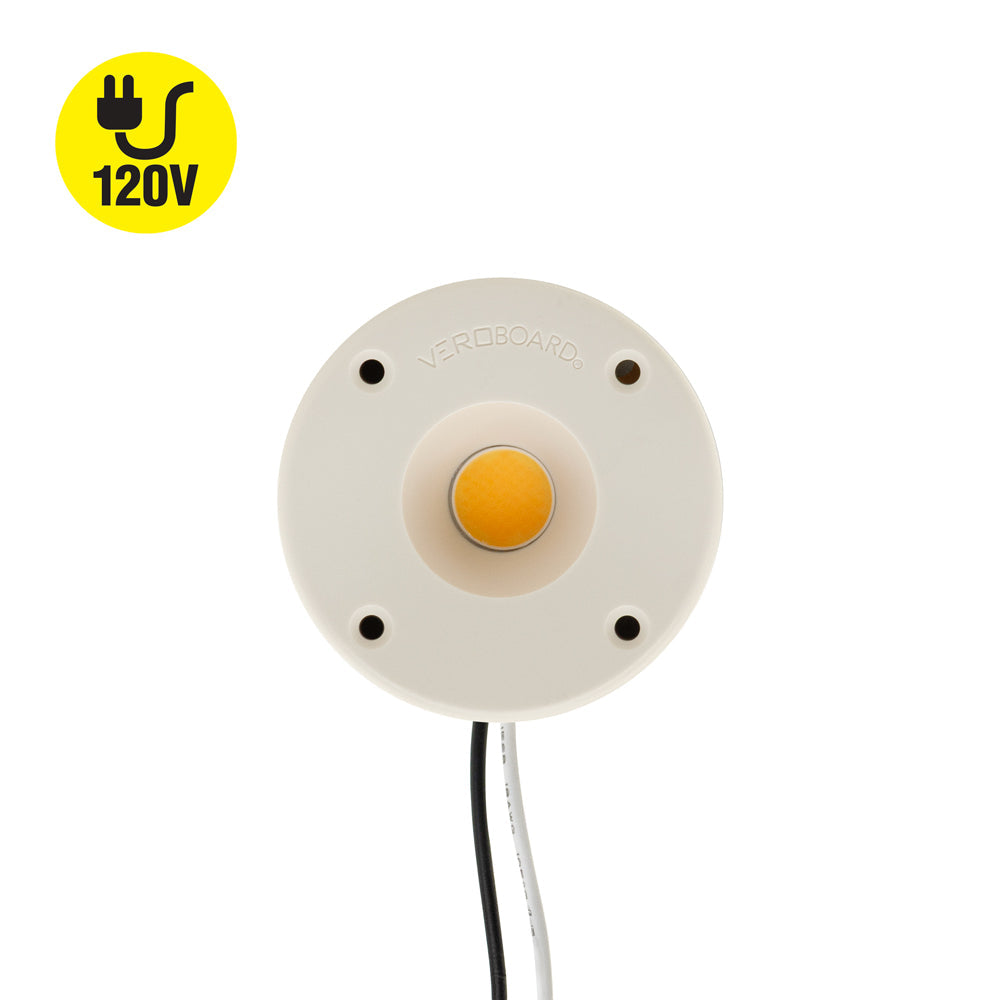

COB Paragon LED Module with HT5828 LED Holder 120V 20W CCT(2.7K, 3K, 4K, 5K), CDAC-80-5028-120V-50

Product	Paragon LED Module

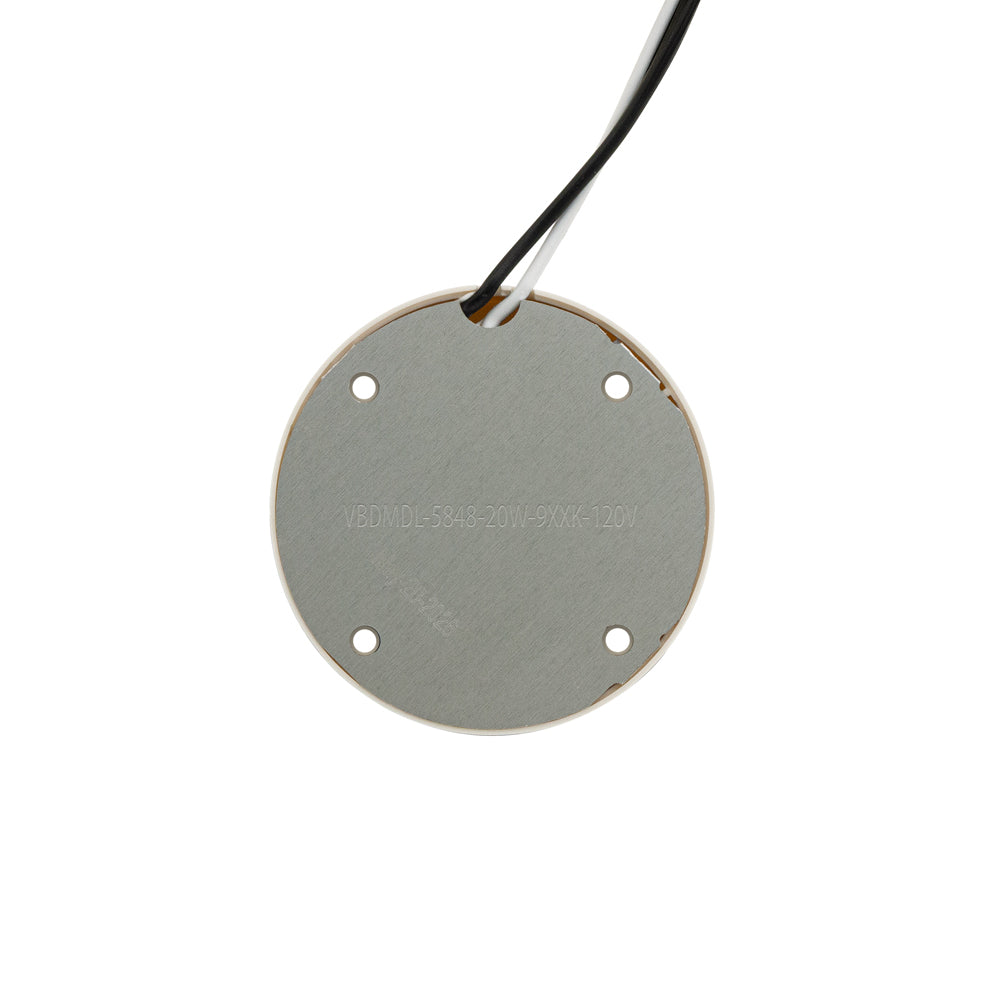

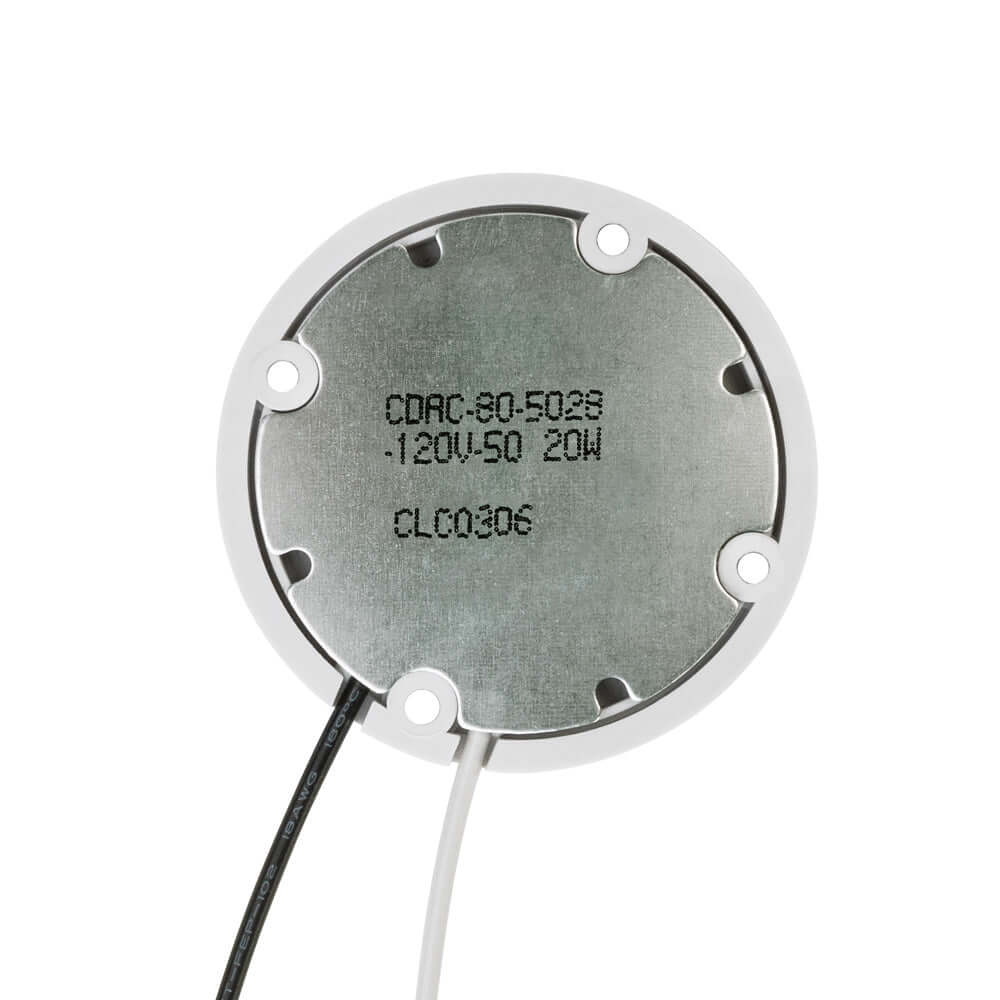

Model No	CDAC-80-5028-120V-50 (Paragon) VBDMDL-5848-20W-9XXK-120V (Veroboard)
COB Holder Model No	HT5828
LED Type	COB LED
No LED chips	80
Wattage	20W
Voltage	120V AC
Power Factor	PF>0.85

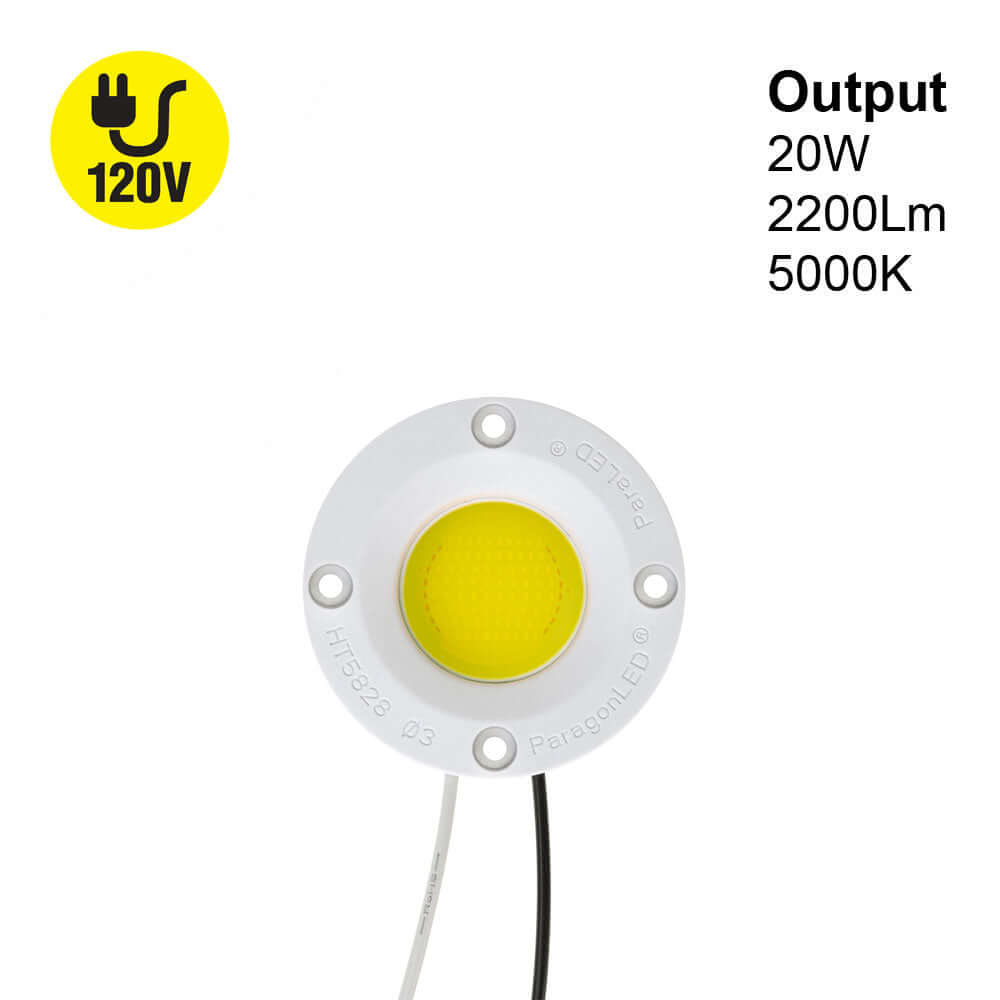

Luminous Intensity	2200 lumens

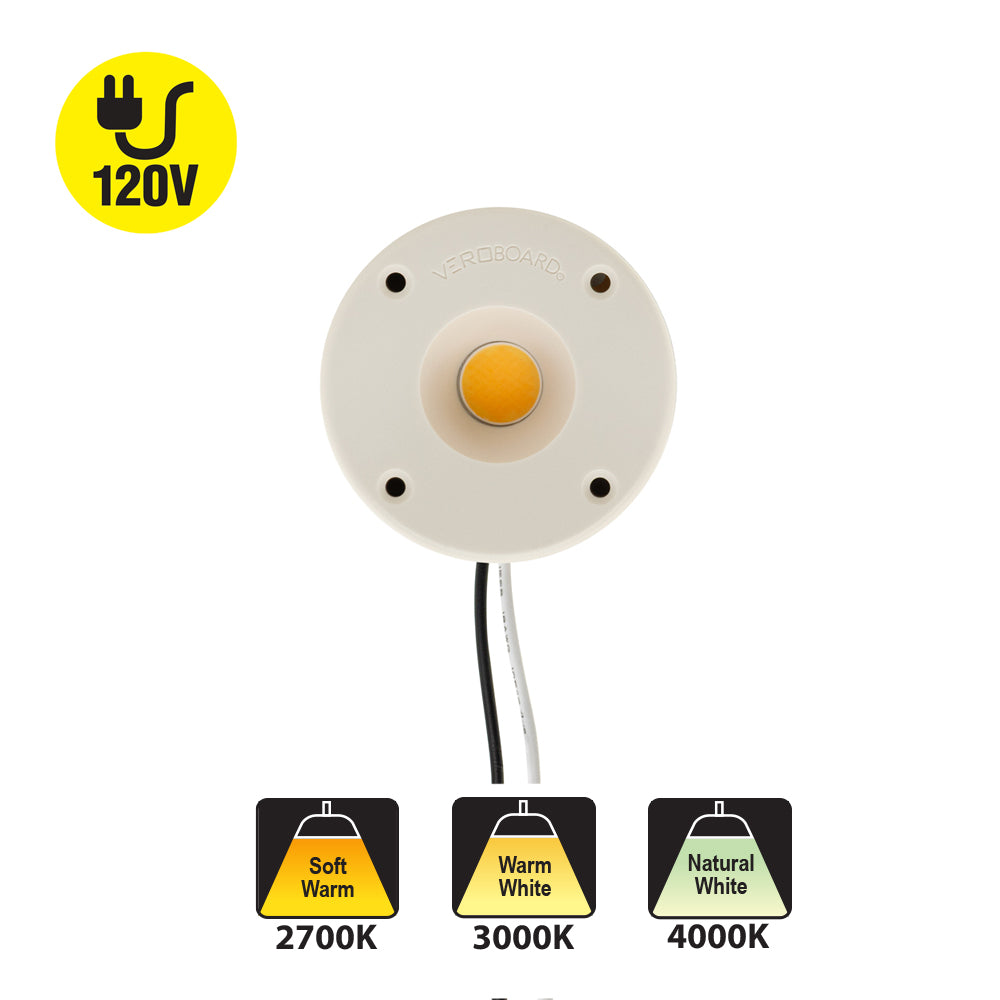

Color Temperature	(Paragon) 5000K (Daylight) (Veroboard) 2700K (Soft White) 3000K (Warm White) 4000K (Natural White)
Dimmable	Yes
Rendering Index	CRI>80 (Paragon) CRI>95 (Veroboard)
IP Rating	IP20 (Indoor rated)

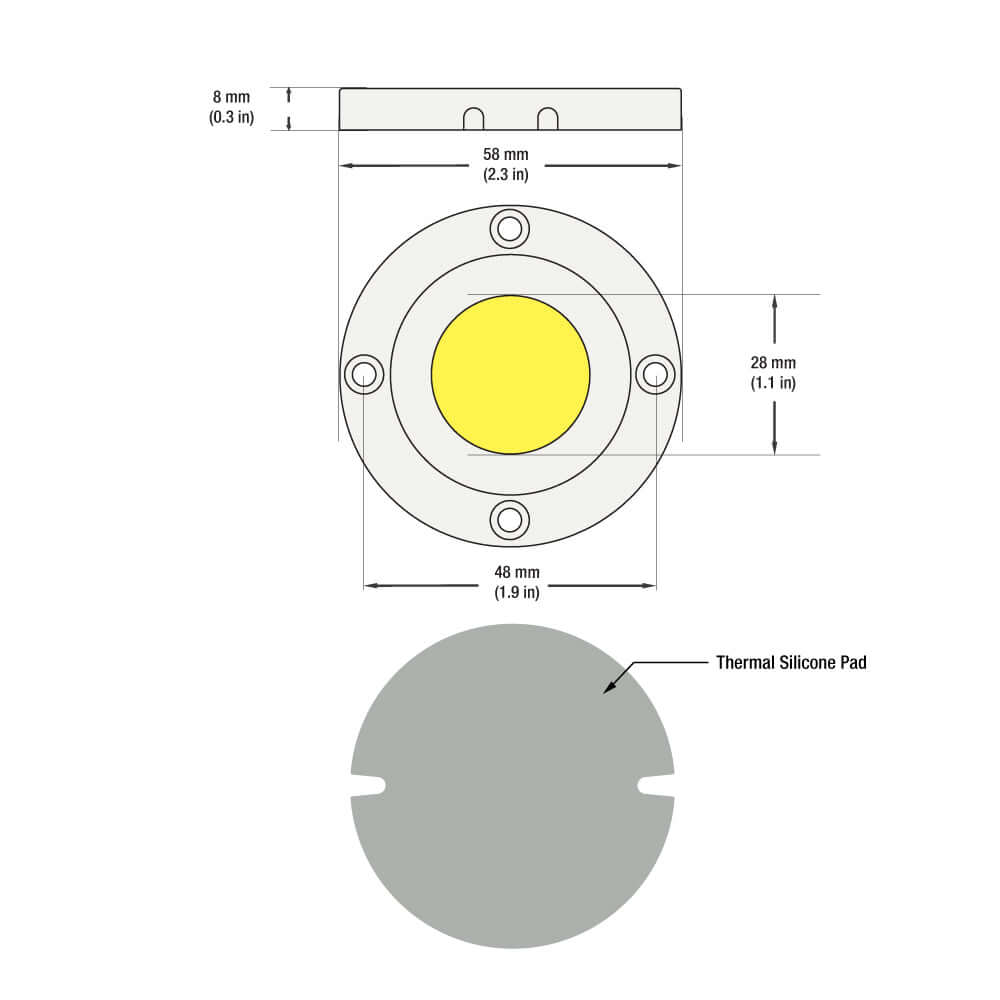

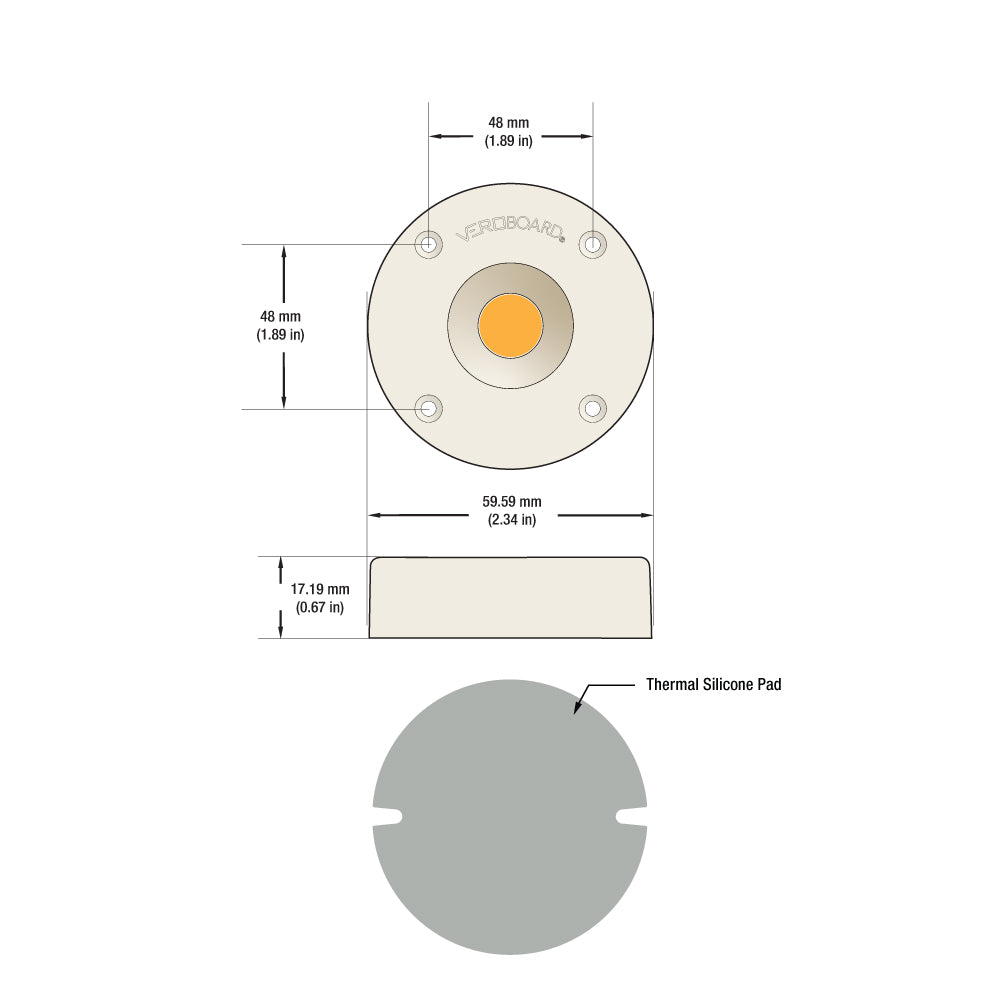

COB Holder Dimensions	(Paragon) ∅58mm (2.3in) x H8mm (0.3 in) (Veroboard) ∅59.5mm (2.3in) x H17.3mm (0.68 in)
COB Module Outer Diameter	∅28mm (1.1 in) (Paragon) ∅10mm (0.39in) (Veroboard)
Operating Temperature	-40 ~ +105℃
Storage Temperature	-40 ~ +105℃

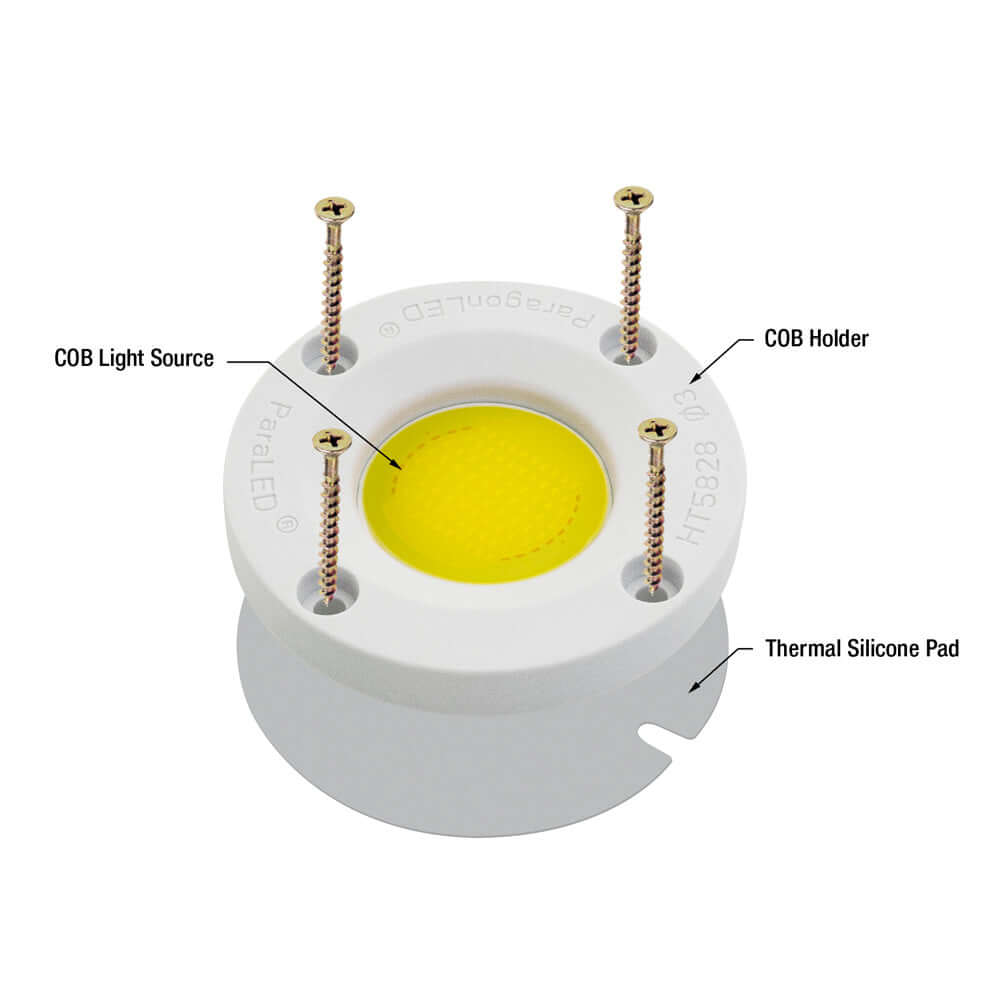

Included Content	COB Module, COB LED Holder, Thermal Pad
Weight	0.04 kg
Certifications

Features:

• Contains 80 LED chips and has a wattage of 20W
• Voltage rating of 120V AC and a power factor of PF>0.85

• Dimmable and has a color rendering index of CRI>80
• Suitable for indoor use only with an IP rating of IP20
• Can operate in a wide temperature range of -40 ~ +105℃
• Comes with a polycarbonate diffuser that can be easily attached or detached

• Requires an aluminum heat sink to prevent overheating and increase lifespan
• UL certified and consumes low power, making it energy-efficient
• COB LEDs used are brighter, consume less power, and produce a higher quality beam output compared to older LED technologies
