Description
| Product | Paragon LED Module |

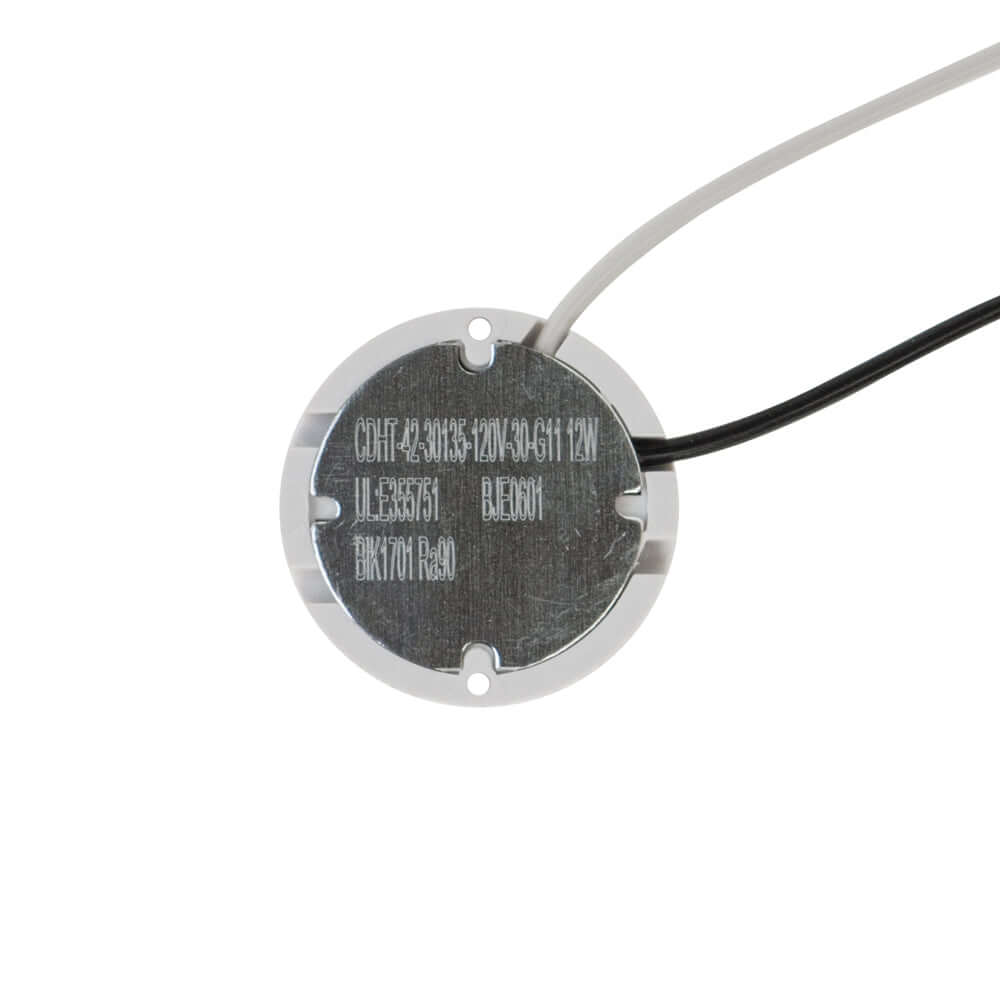

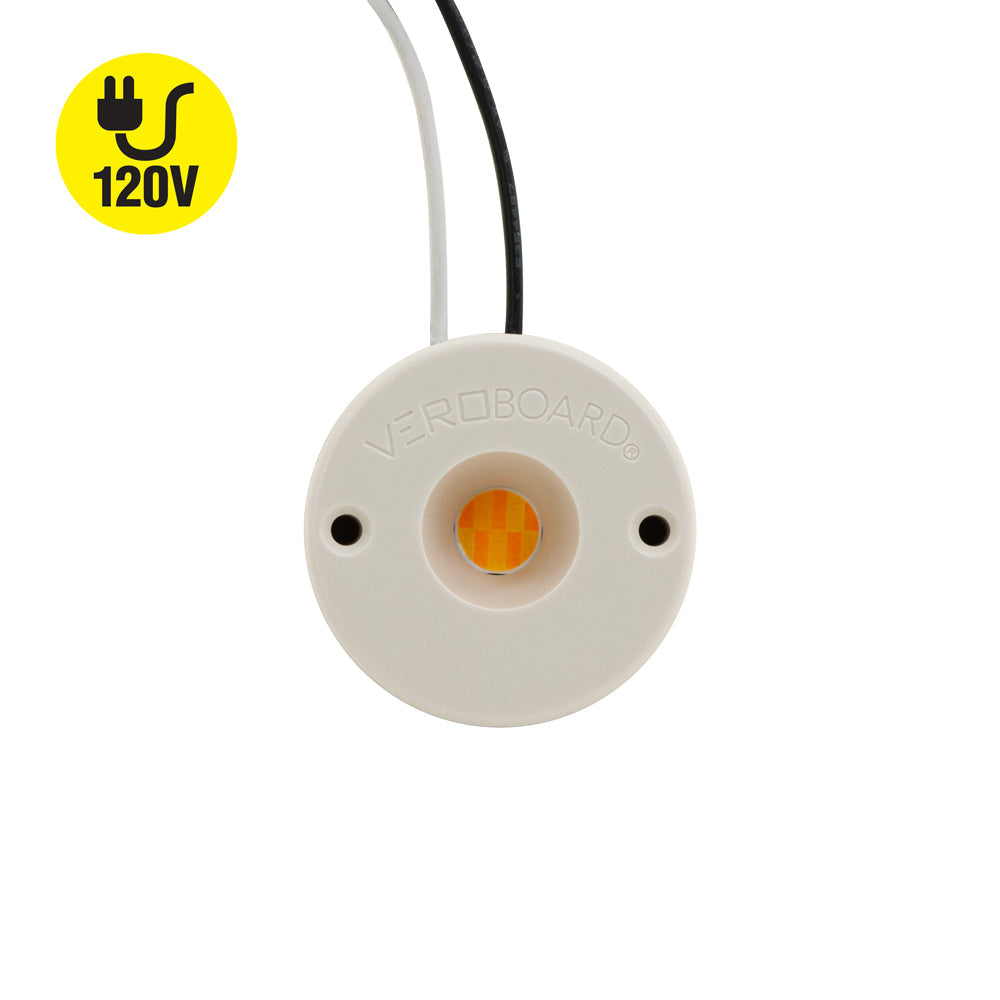

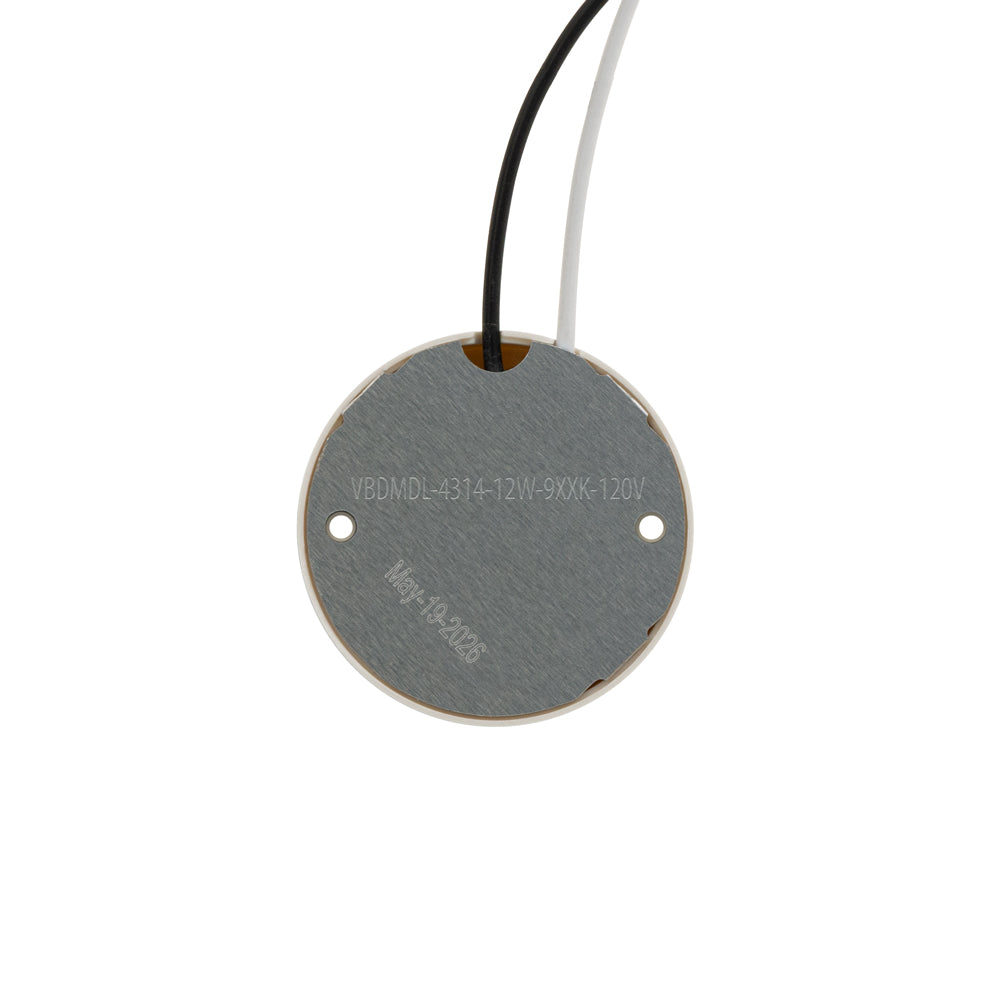

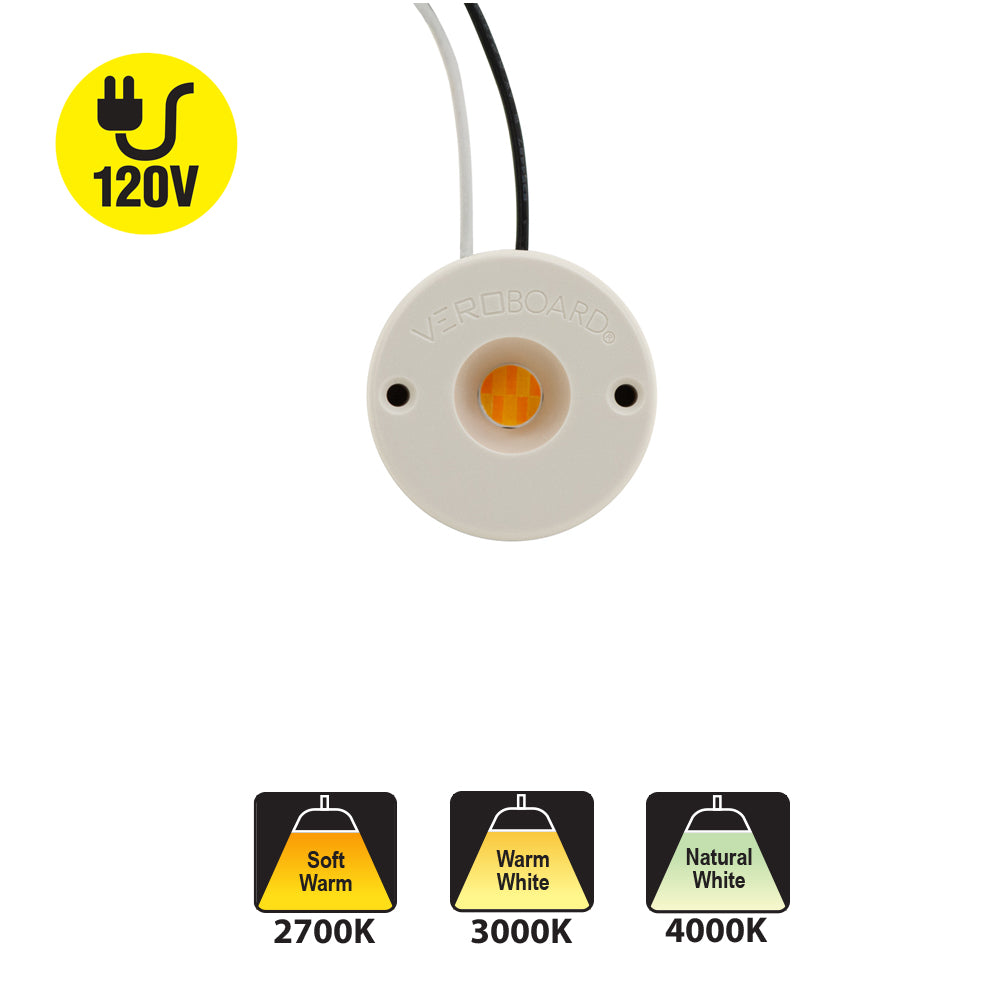

| Model No | CDHT-42-30135-120V-30-G11 (Paragon) VBDMDL-4314-12W-9XXK-120V (Veroboard) |

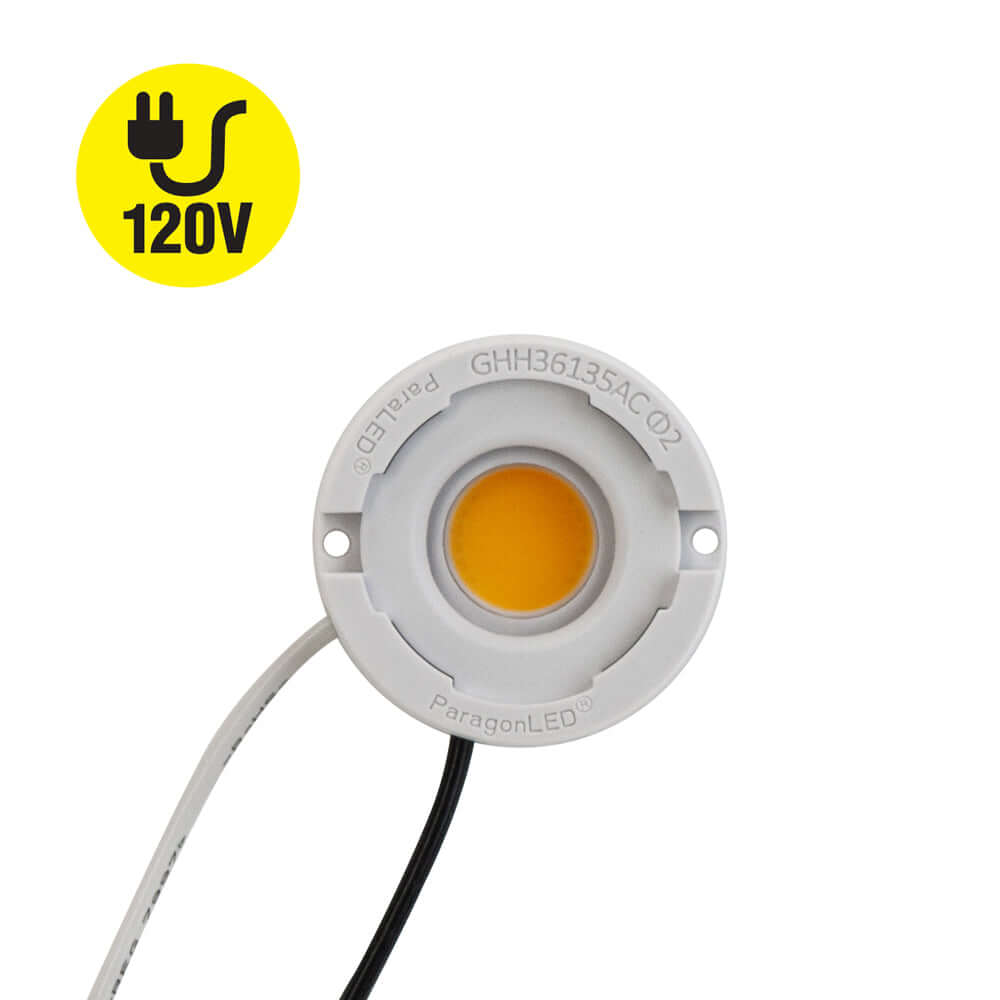

| COB Holder Model No | GHH36135AC |
|
LED Type |
COB LED |
| No LED chips | 42 |
| Wattage | 12W |
| Voltage | 120V AC |
| Power Factor | PF>0.98 |
| Luminous Intensity | 1000 lumens |
| Color Temperature |
(Paragon) (Veroboard) |
| Dimmable | Yes |
| Rendering Index | CRI>90 (Paragon) CRI>95 (Veroboard) |
| IP Rating | IP20 (Indoor rated) |

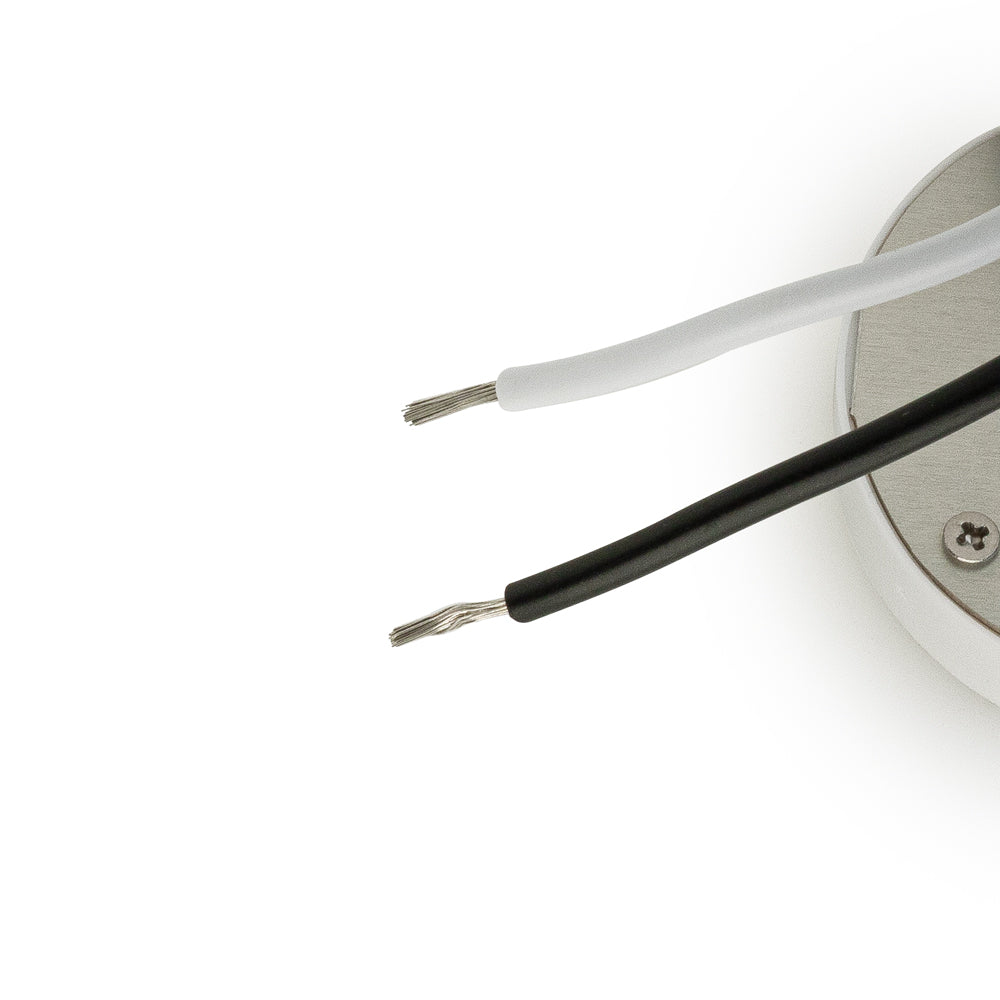

| Wire Size | 20mm (0.78in) 18 AWG |

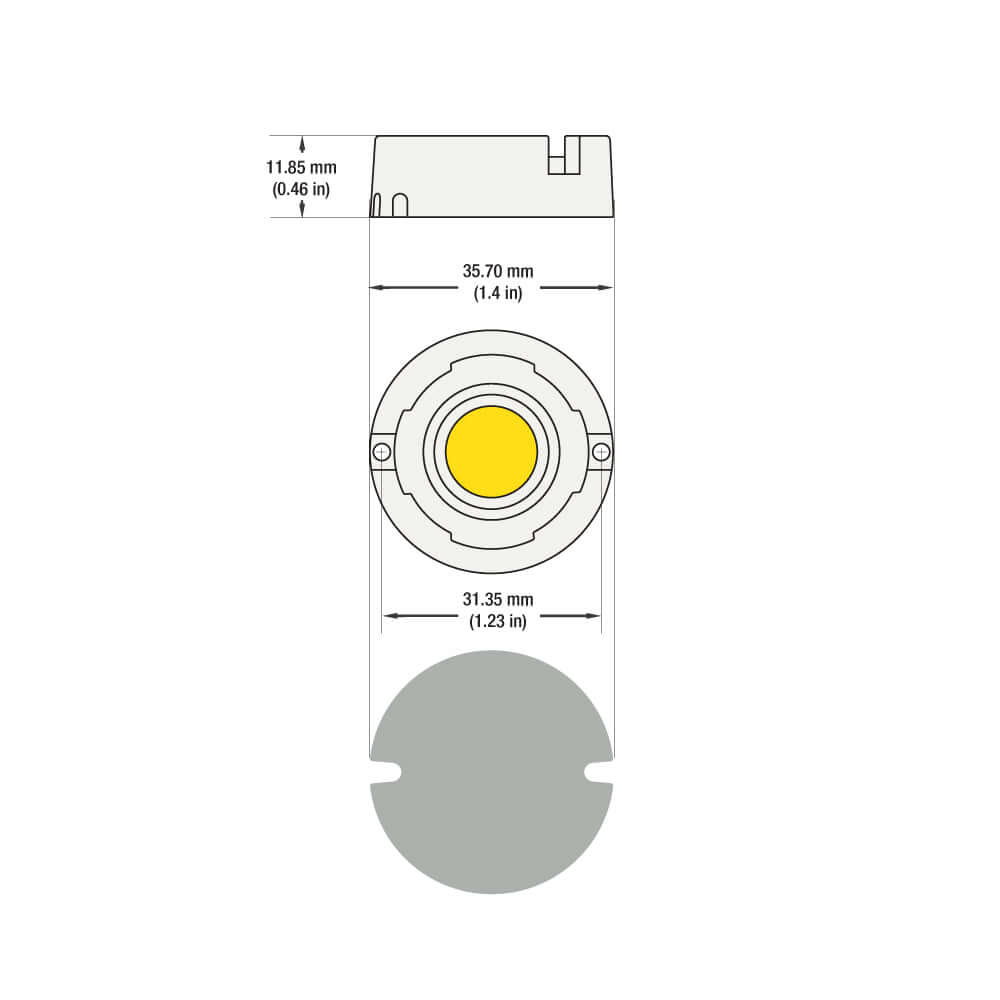

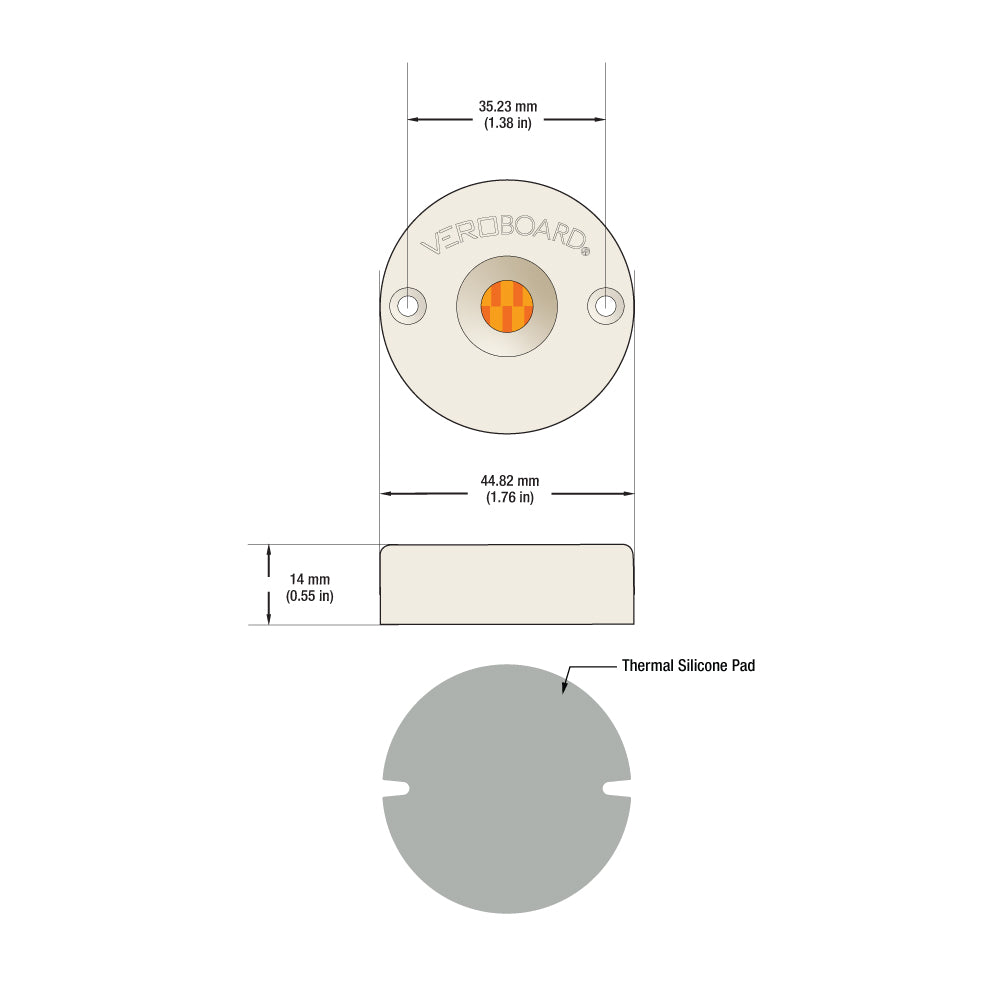

| COB Holder Dimensions |
(Paragon) (Veroboard) |
| COB Module Outer Diameter | ∅16.5mm (0.65in) (Paragon) ∅10mm (0.39in) (Veroboard) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB LED Holder, Thermal Pad |
| Weight | 0.03 kg |
| Certifications |  |
Features:
- Voltage of 120V AC and power factor greater than 0.98
- High rendering index of greater than 90 (CRI>90) and IP20 rating, suitable for use in damp locations
- Operating temperature range of -40 to +105℃
- Dielectric breakdown voltage of thermal pad greater than 4KV
- Package includes COB Module, COB LED Holder, and Thermal Pad
- Certified by UL
- Aluminum heat sink required during installation to prevent overheating and increase lifespan

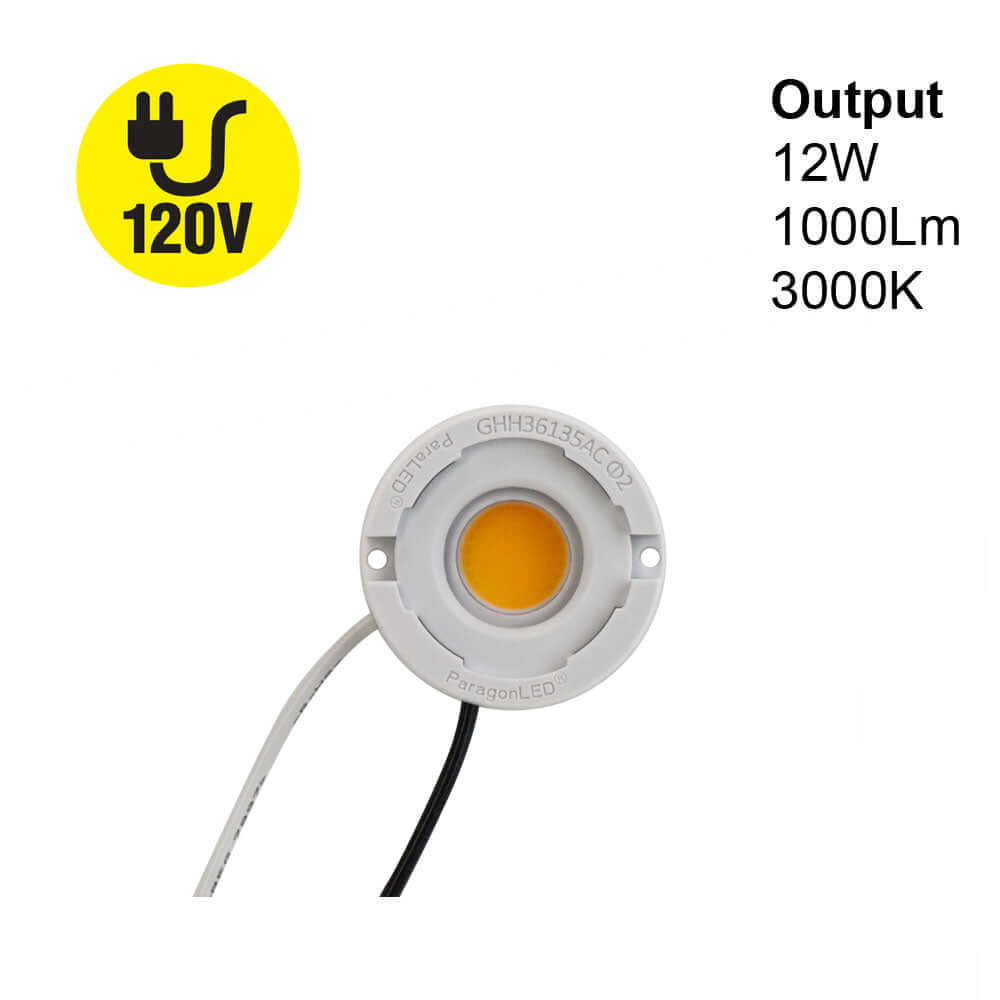

- COB Paragon LED Module Light 120V 12W 1000Lm
- COB holder allows for mechanical securing, electrical connection, and attachment to heat sink

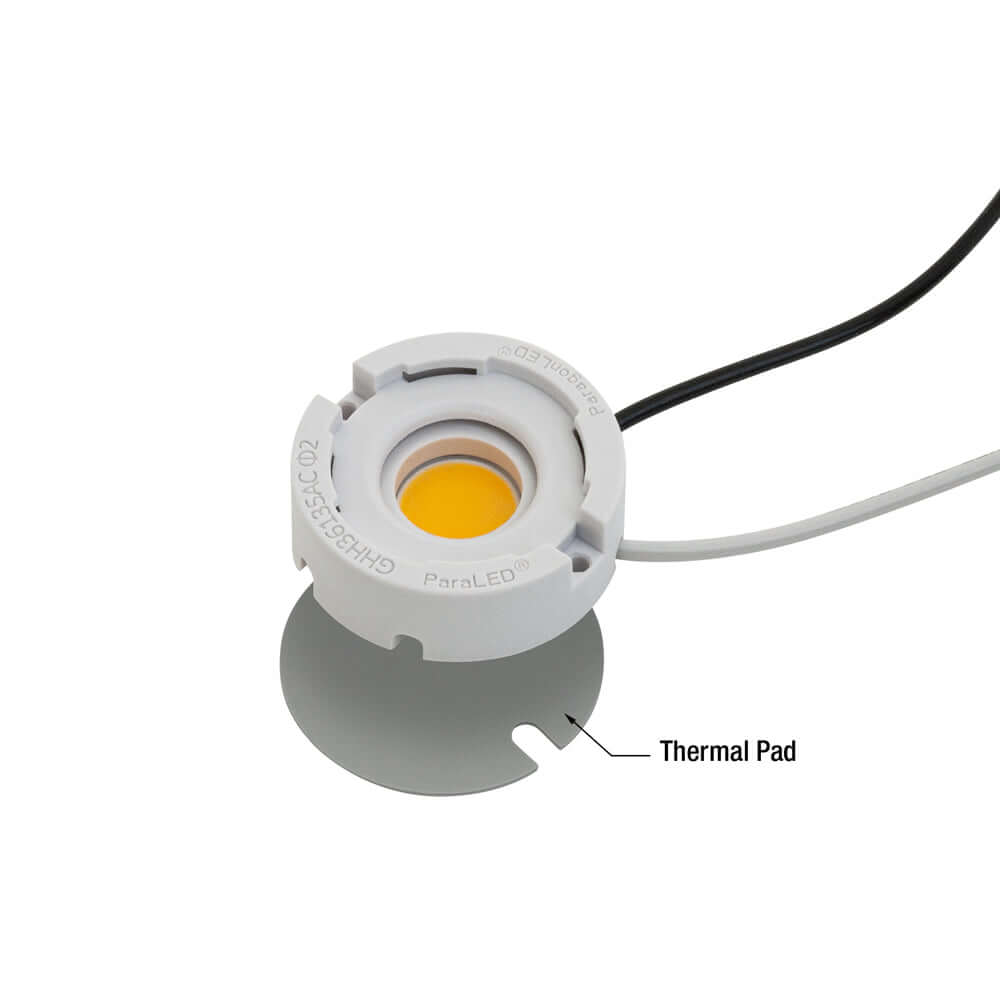

- Silicone grease thermal pad provides heat sink and improves heat dissipation
- Suitable for various luminaires but important to ground light fixtures while designing lamps.
