Description
| Product | LED Module |
| Model No | VBDMDL-4314-16W-9XXK-120V |
| Compatible Paragon Models | CDHT-42-30135-120V-30-G11 (12W-3000K) CBAC-42-30135-120V-27 (14W-2700K) |
|
LED Type |
COB LED |
| Wattage | 16W |
| Voltage | 120V AC |
| Power Factor | PF>0.85 |
| Luminous Intensity | 1280 lumens |
| Color Temperature |
2700K (Soft White) |
| Dimmable | Yes |
| Rendering Index | CRI>95 |
| IP Rating | IP20 (Indoor rated) |

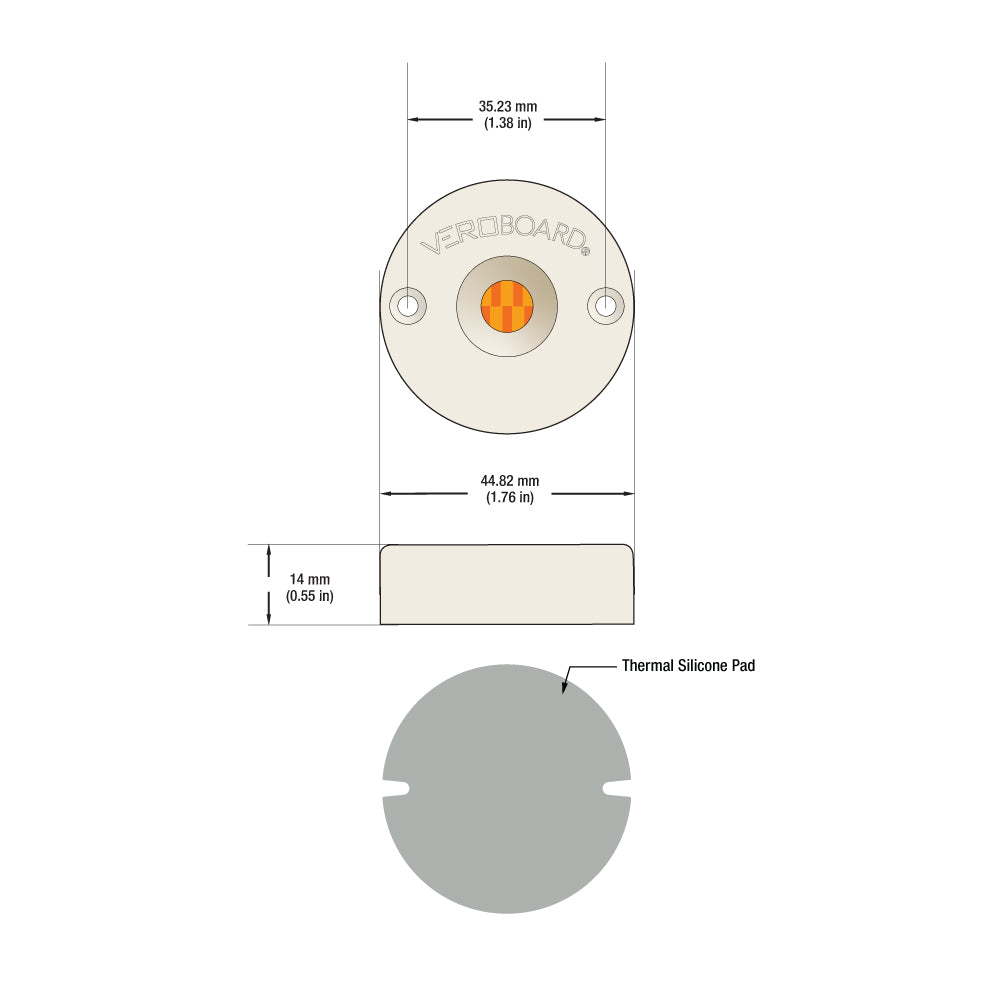

| COB Holder Dimensions |
∅ 44.7 x 14mm (1.7 x 0.5in) |
| COB Module Outer Diameter | ∅10mm (0.39in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Included Content | COB Module, COB LED Holder, Thermal Pad |
| Weight | 0.04 kg |
| Certifications |  |
Features:
- High-quality LED lighting module using COB LED technology
- Suitable for indoor lighting applications
- Dimmable with a power factor of PF>0.85
- Recommended to use with an aluminum heat sink to prevent overheating
- Operates in a wide temperature range (-40 ~ +105℃)
- Designed to be mechanically secured and electrically connected using the COB holder
- Comes with a polycarbonate diffuser that can be easily attached or detached
- Suitable for damp locations and is rated as IP20 (Indoor rated)
