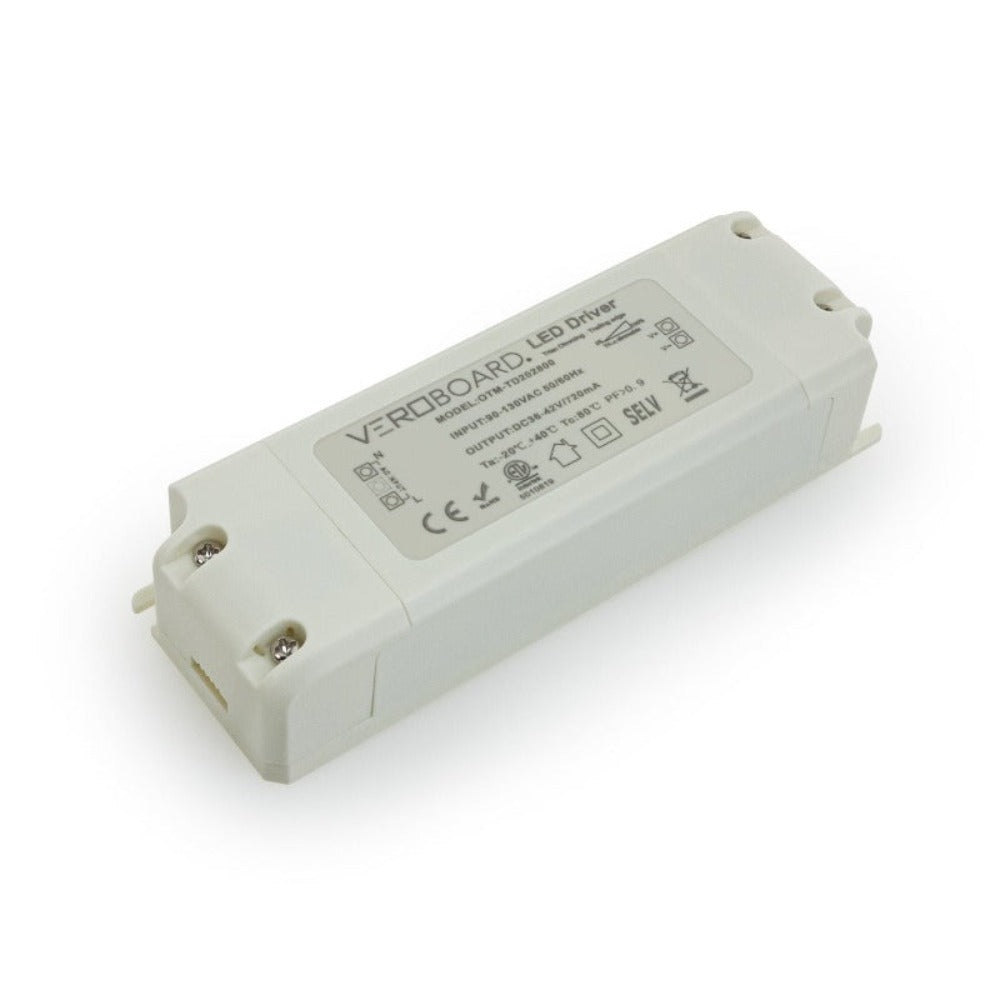

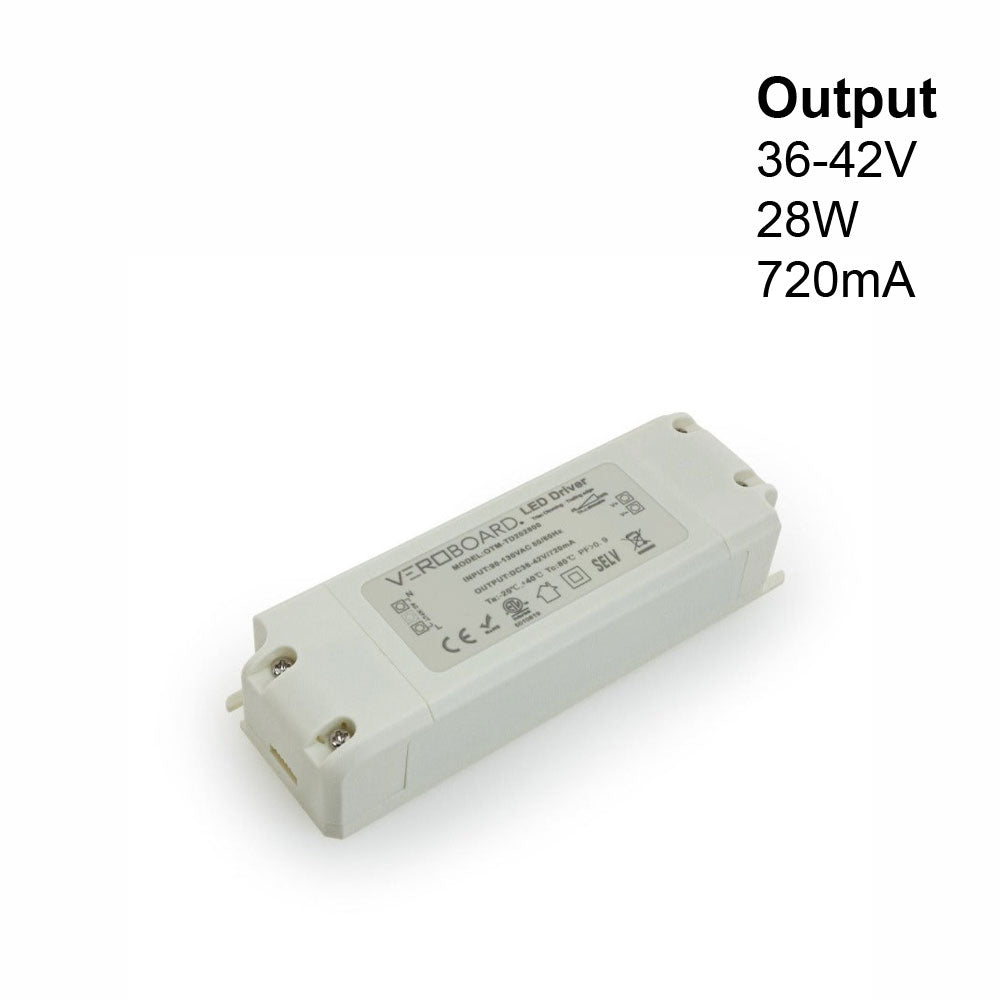

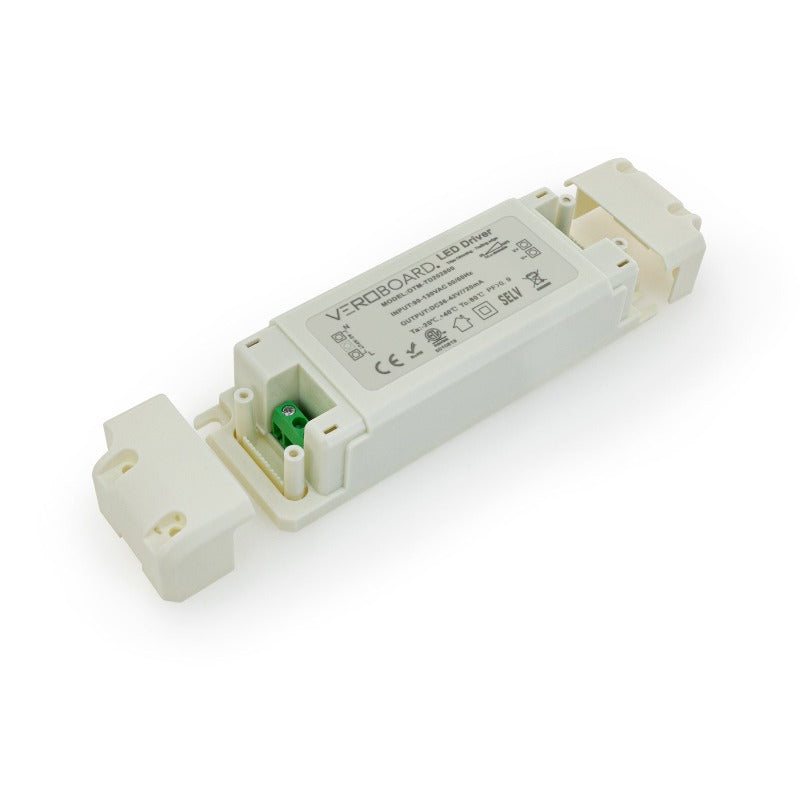

OTM-TD202800-720-28 Constant Current LED Driver, 720mA 36-42V 28W Dimmable

SKU: 666561426569

Inquiry

Description

Model OTM-TD202800-720-28
Input Voltage 90-130V AC
Input Current 0.9A
Input Frequency 50-60Hz
Power Factor PF>0.95
Efficiency >85%
Output Regulated Current 720mA
Output Power 28W
Output Voltage 36-42V DC
Dimmable Yes (Triac Dimming)
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 90°C
IP Rating IP20 (Dry and Damp Locations)

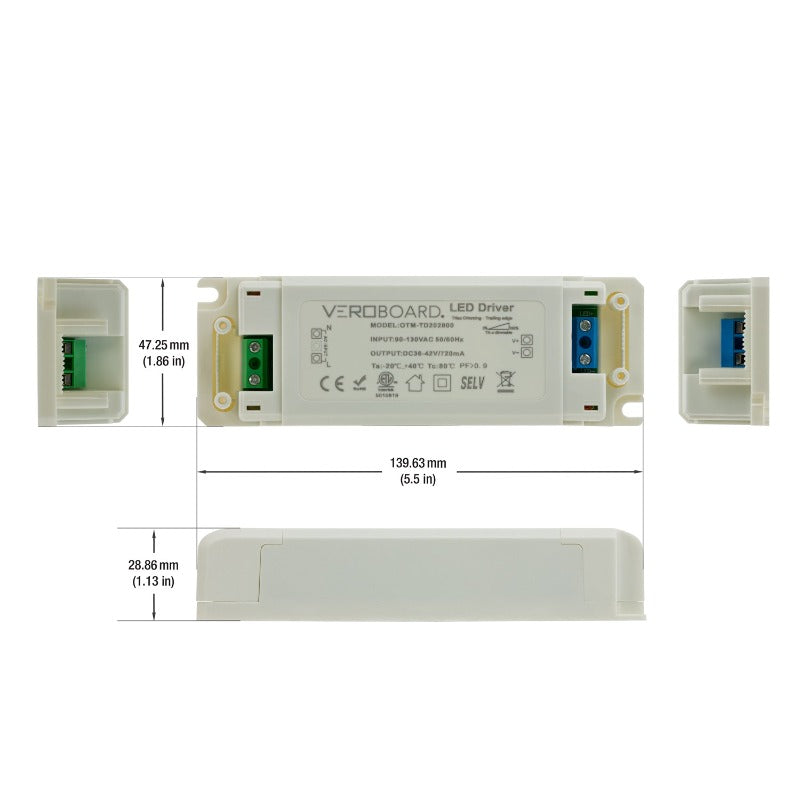

Dimensions 139.63mm x 47.25mm x 28.86mm
(5.5in x 1.86in x 1.13in)
Class Certification Class 2
Certification




Features:

  • The OTM-TD202800-720-28 is a Constant Current LED Driver designed to provide a constant current of 720mA to an LED light source.
  • The driver has a model number of OTM-TD202800-720-28 and an input voltage range of 90-130V AC, with an input current of 0.9A and an input frequency of 50-60Hz.
  • The driver has a high power factor of PF>0.95 and an efficiency of >85%, contributing to its energy-saving capabilities.
  • The OTM-TD202800-720-28 is a dimmable driver that can be used with Triac dimming systems.
  • The driver can operate in ambient temperatures of up to 40°C and has a maximum case temperature of 90°C, ensuring reliable and stable operation.
  • The driver has an IP20 rating, making it suitable for use in dry and damp locations.
  • The driver has a Class 2 certification, indicating that it has been designed to meet specific safety requirements for use in low voltage applications.
