Description
| Model No | 7WW14E33-Y6C (For 3000K, 3500K) 7W14E33-Y6C(For 4000K, 6000K) |
| Voltage | 21-23V (For 3000K) 20-22V (For 3500K, 4000K, 6000K) |
| Wattage | 7W |
| Current | 350mA |

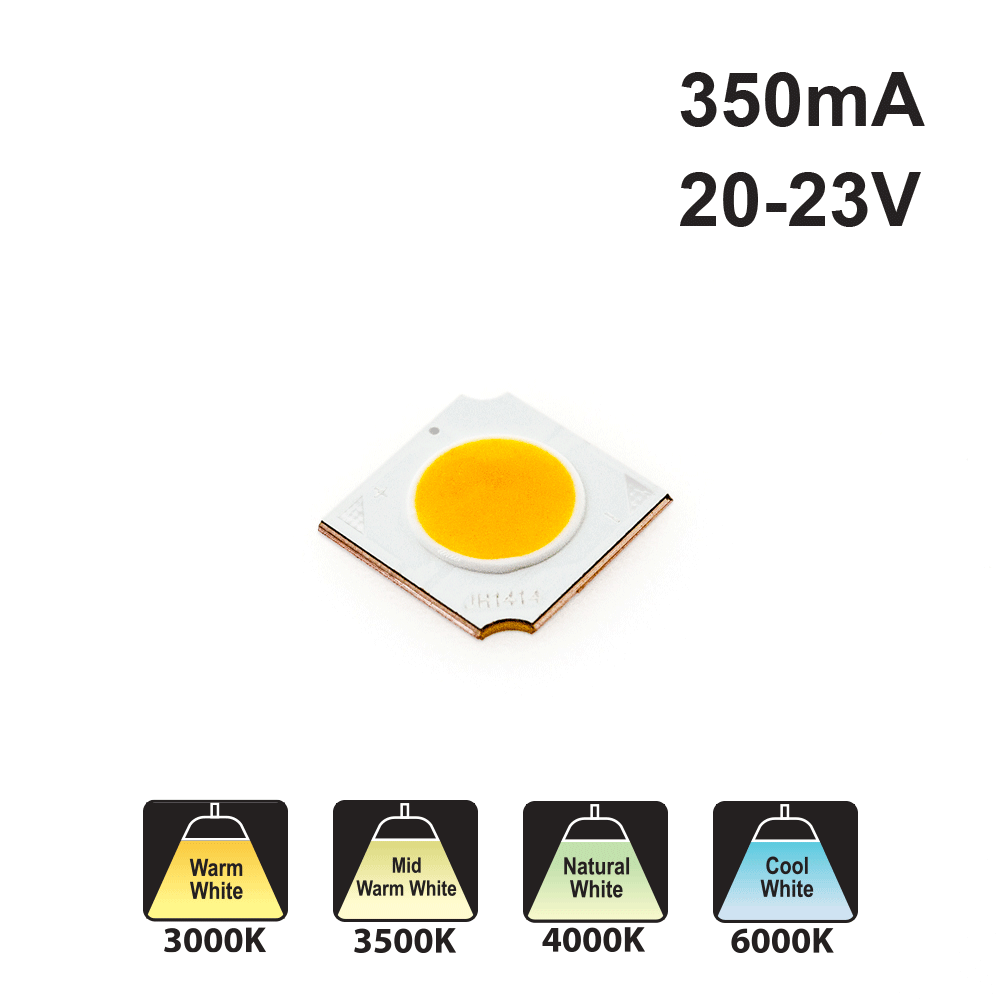

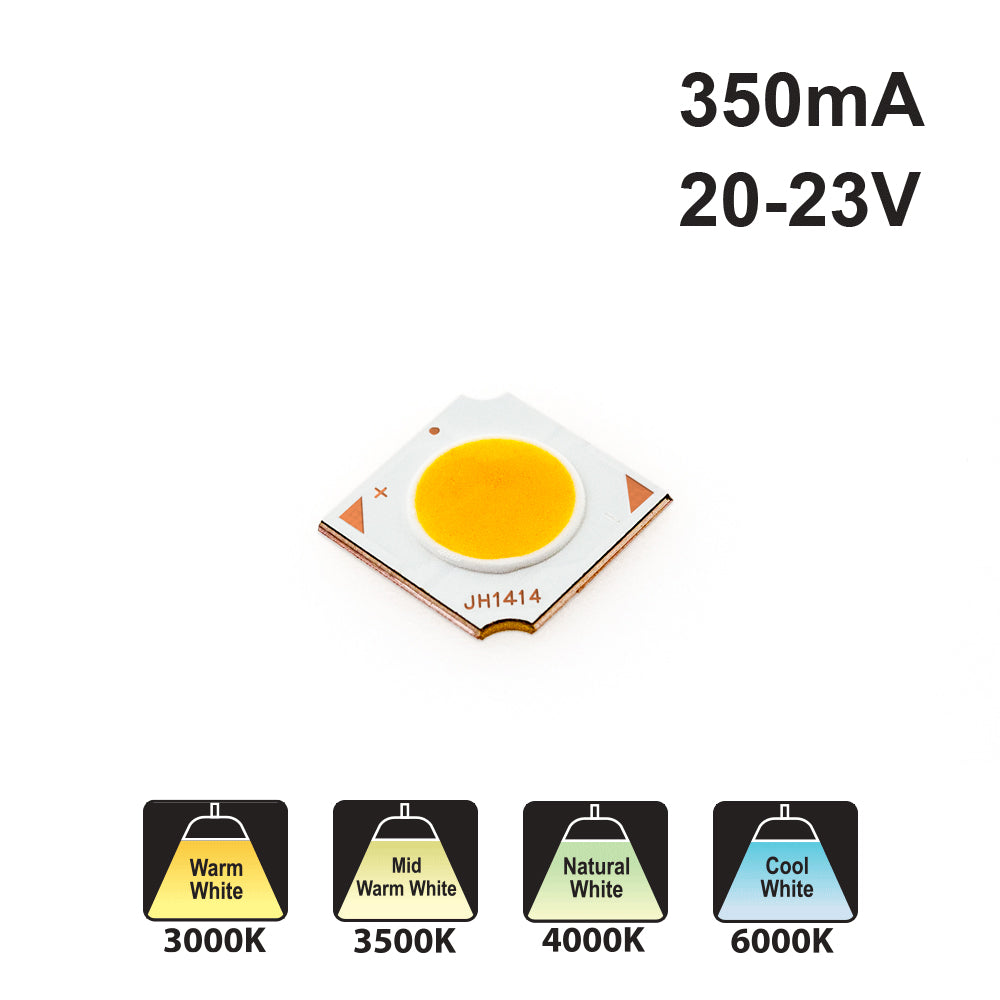

| Available Color Temperature | 3000K(Warm White) 3500K (Mid-Warm White) 4000K (Natural Light) 6000K (Cool White) |
| Material | Metallic base |
| Luminous Flux | 450-500lm (For 3000K) & 500-600lm (For 3500K, 4000K, 6000K) |

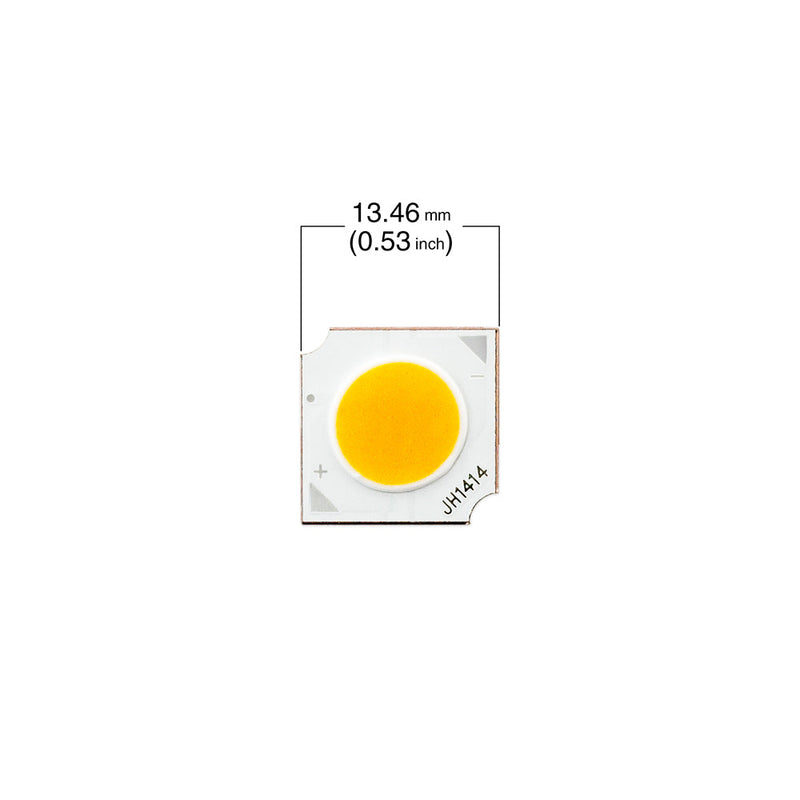

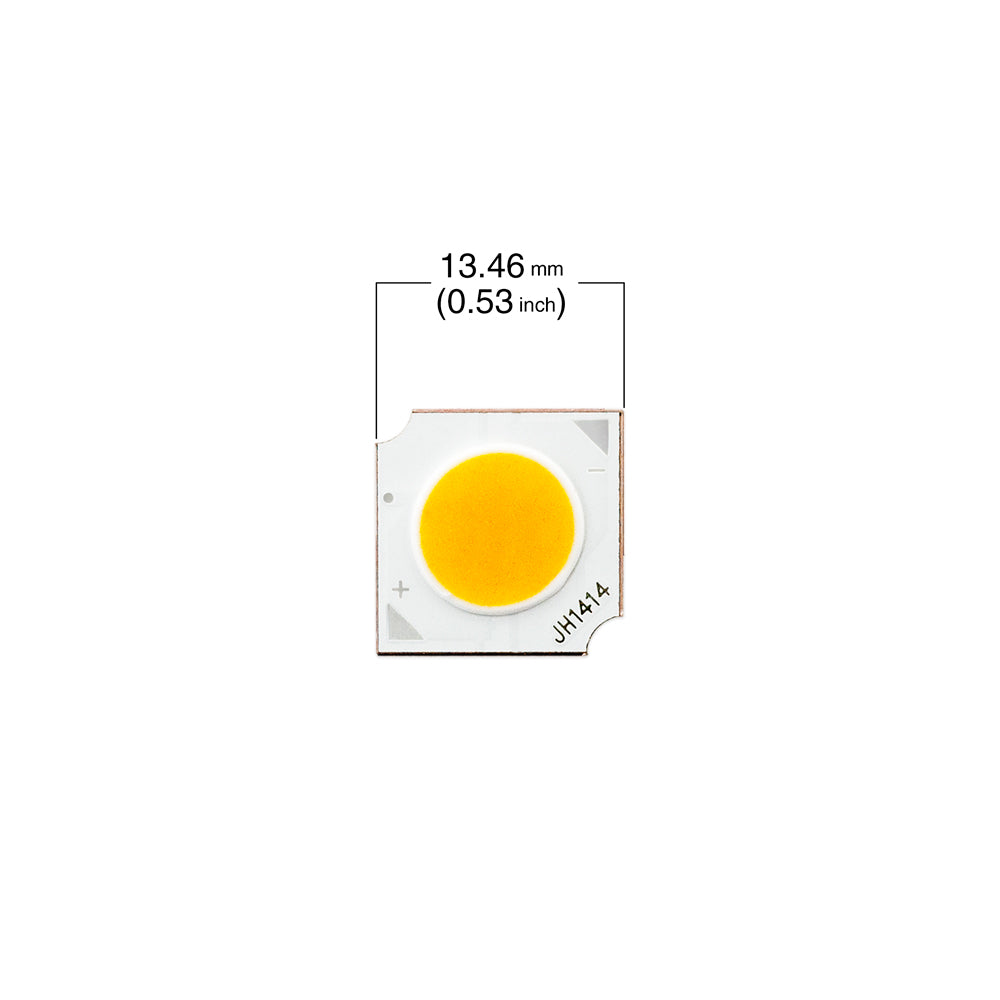

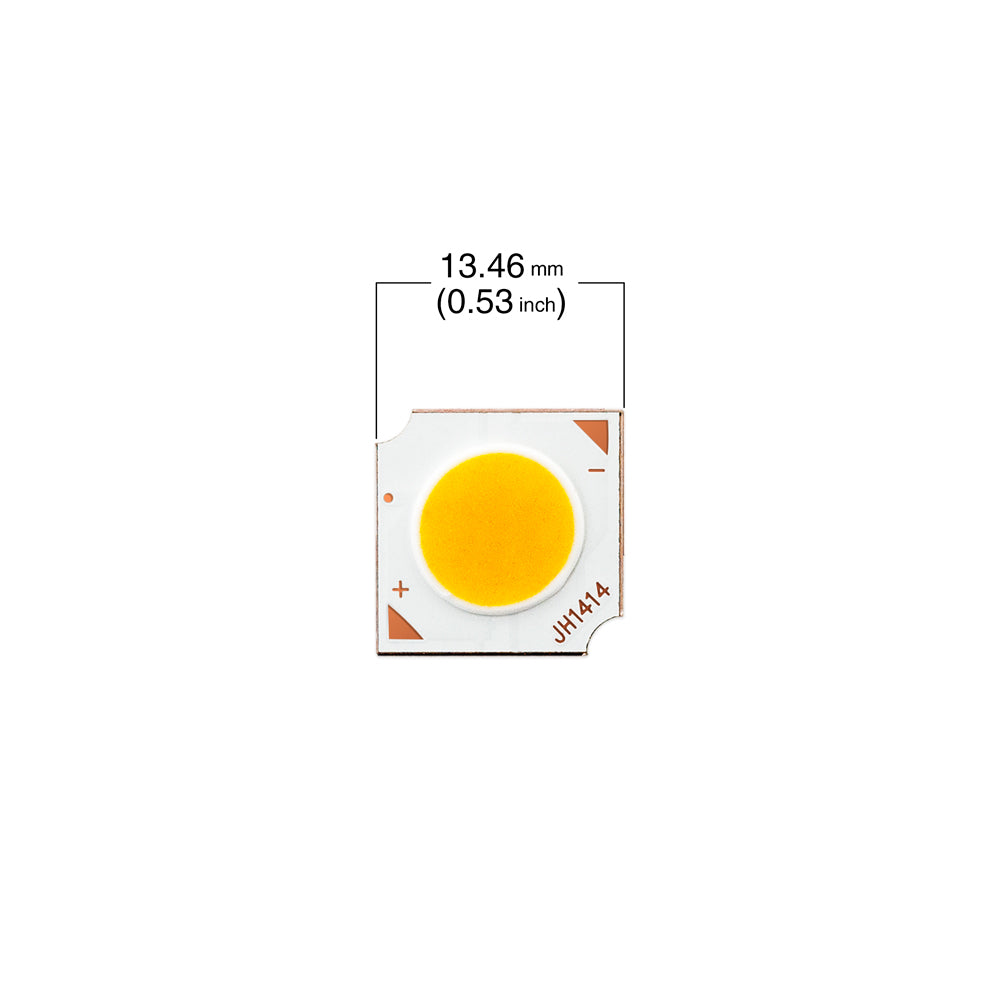

| Dimensions | 13.4 x 13.4 x 1.5mm (0.5 x 0.5 x 0.05inch) |
Features:
- High-quality lighting solution with efficient and bright illumination
- Available in two different models for different color temperatures
- Wattage of 7W and operates at a current of 350mA
- Voltage range of 21-23V DC for 3000K model and 20-22V DC for 3500K, 4000K, and 6000K models
- Luminous flux output of 450-500 lumens for 3000K model and 500-600 lumens for 3500K, 4000K, and 6000K models
- Metallic base and dimensions of 13.4 mm x 13.4 mm (0.5 inch x 0.5 inch)
- Good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage
- Available in different color temperatures providing flexibility in lighting design
- Low power consumption and high energy efficiency for eco-friendliness and cost-effectiveness
- Suitable for various indoor and outdoor applications including home, office, commercial, and industrial use.
- Use Thermal Grease or Thermal Pad for installation.
