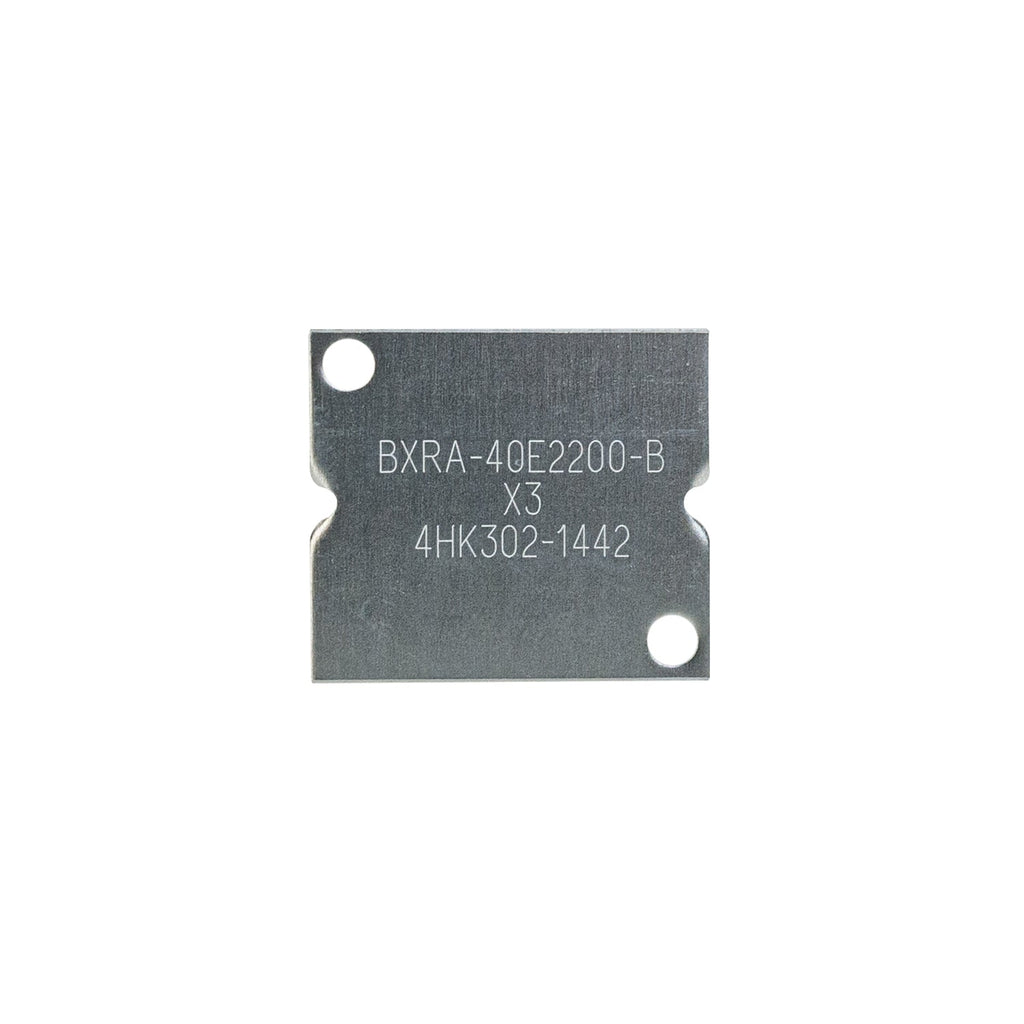

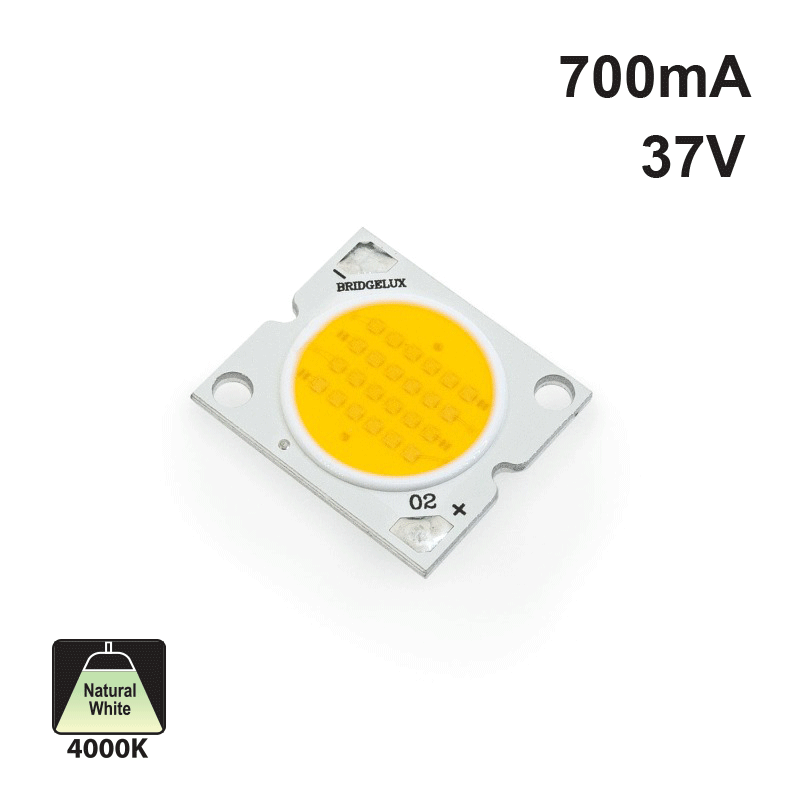

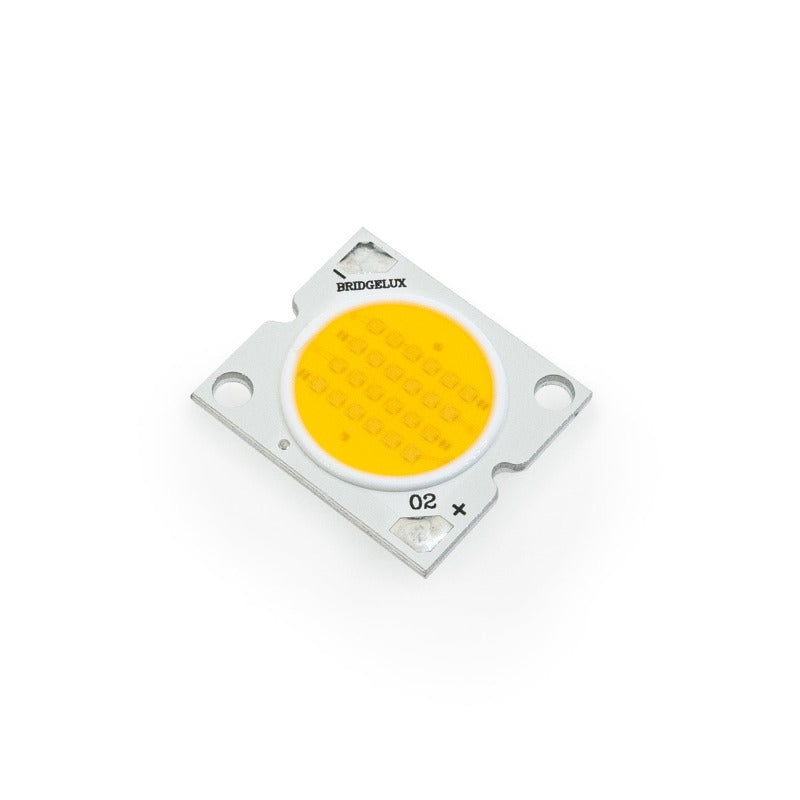

BXRA-40E2200-B Constant Current COB LED Module, 700mA 25.9W 4000K(Natural White)

SKU: 666661417079

Inquiry

Description


Model BXRA-40E2200-B
Brand Bridgelux
LED Type COB
Wattage 25.9W
Voltage 37V
Current 700mA
Luminous Flux 2750 lm
Color Temperature 4000K (Natural White)
Rendering Index CRI>80
Dimmable Yes
Beam Angle 120
Material Metallic base

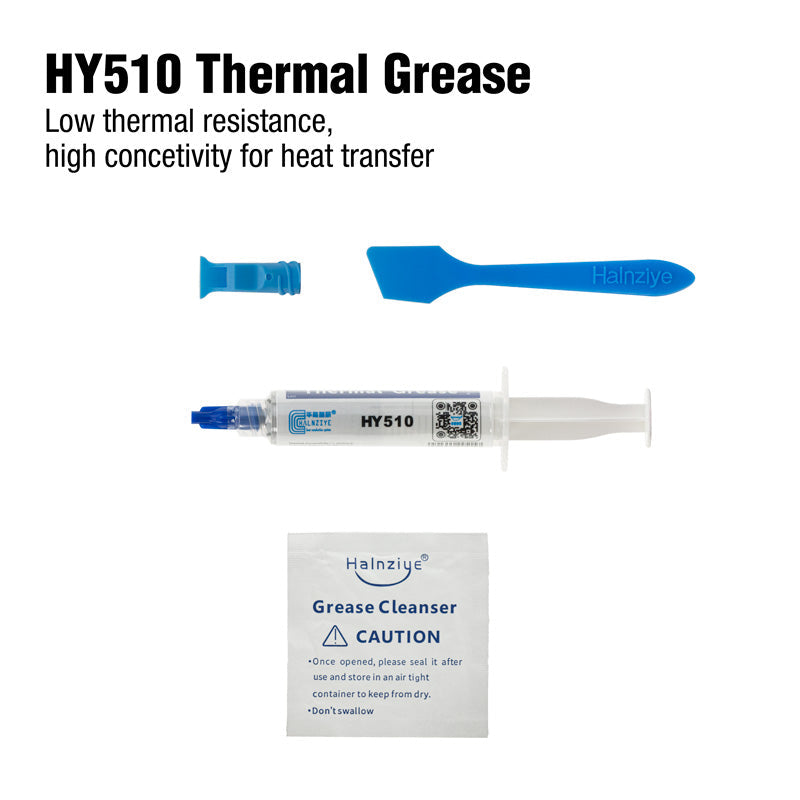

Thermal Grease We will include thermal grease to cover the quantity of LED modules ordered.

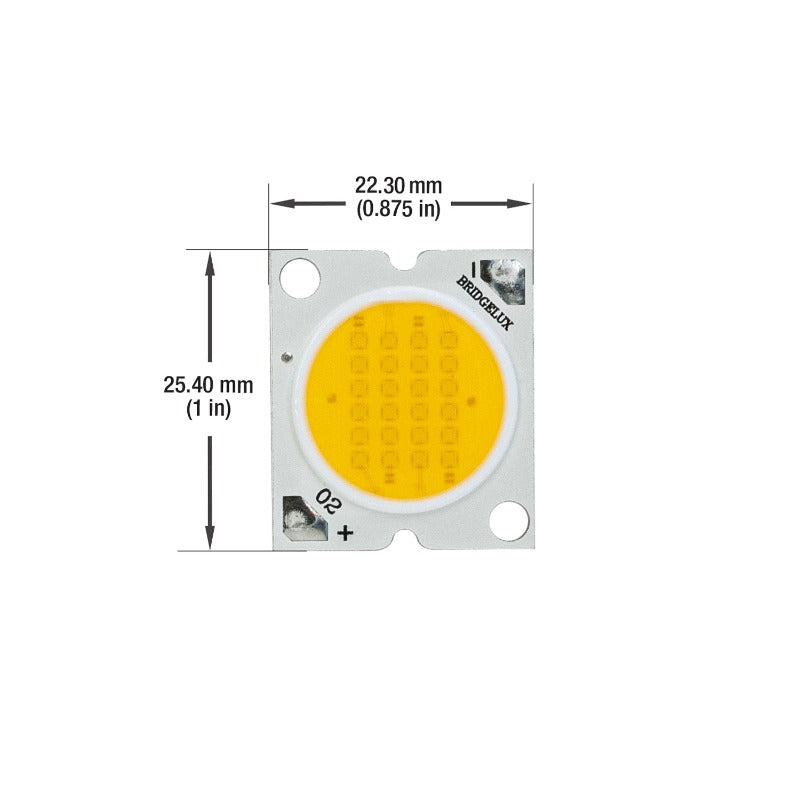

Dimensions 22.30 x 25.40 x 1.5mm (0.875 x 1 x 0.05in)








Features:

  • High-quality lighting component from the Bridgelux brand
  • Chip-On-Board (COB) LED type
  • Wattage: 25.9W, Voltage: 37V, Current: 700mA
  • Natural White light with a color temperature of 4000K and CRI>80
  • Luminous flux of 2750 lm for energy efficiency
  • Beam angle of 120 degrees for even light distribution
  • Dimensions: 22.30 x 25.40 mm (0.875 x 1 in) with a metallic base material
  • Dimmable for various lighting applications
  • Good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage
  • Available in different color temperatures and wattages for versatility
  • Fully engineered devices with consistent thermal and optical performance
  • Use Thermal Grease or Thermal Pad for installation.
