Description

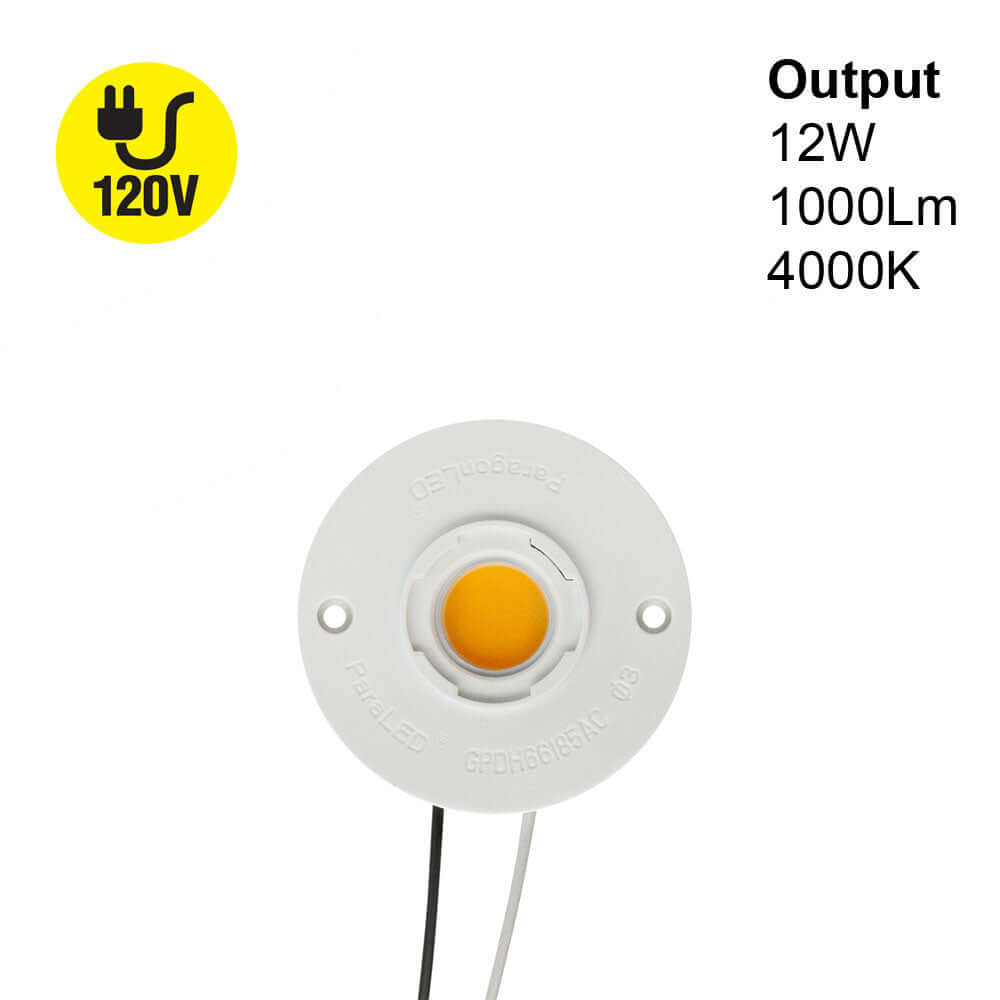

| Product | Paragon LED Module |

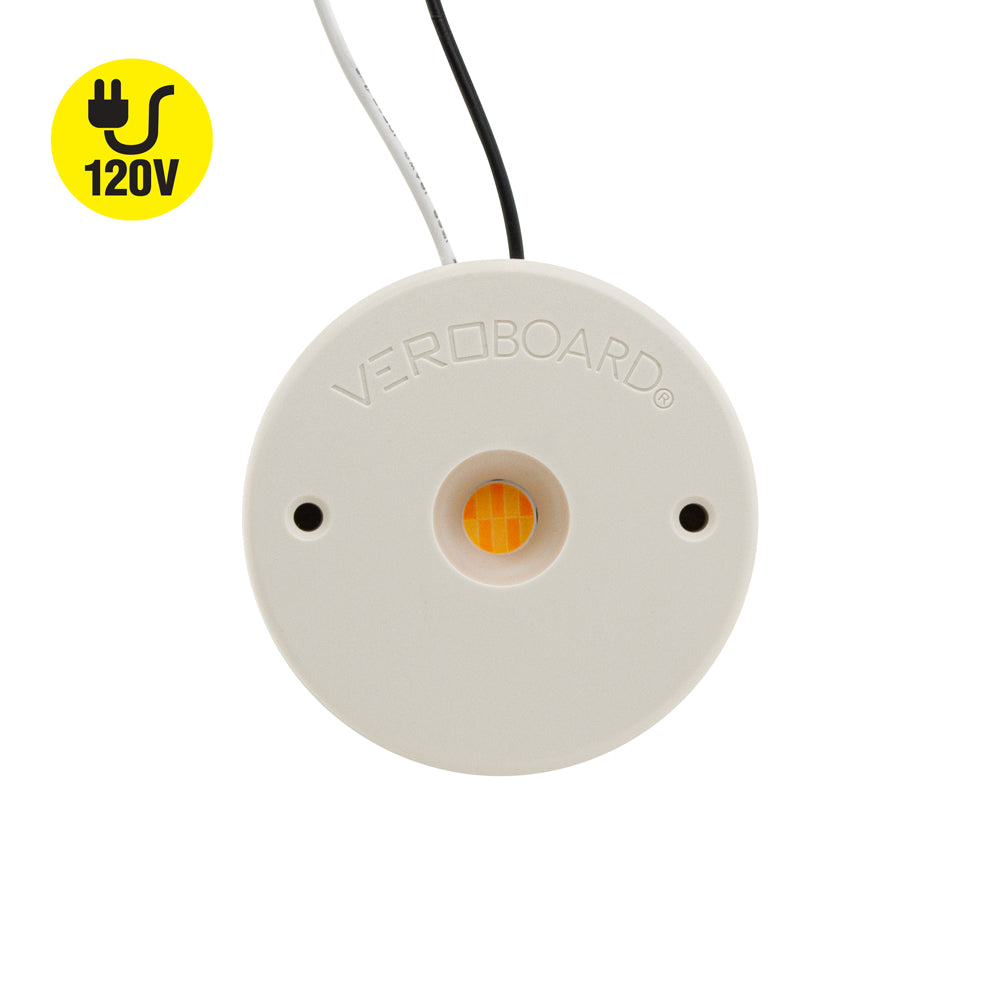

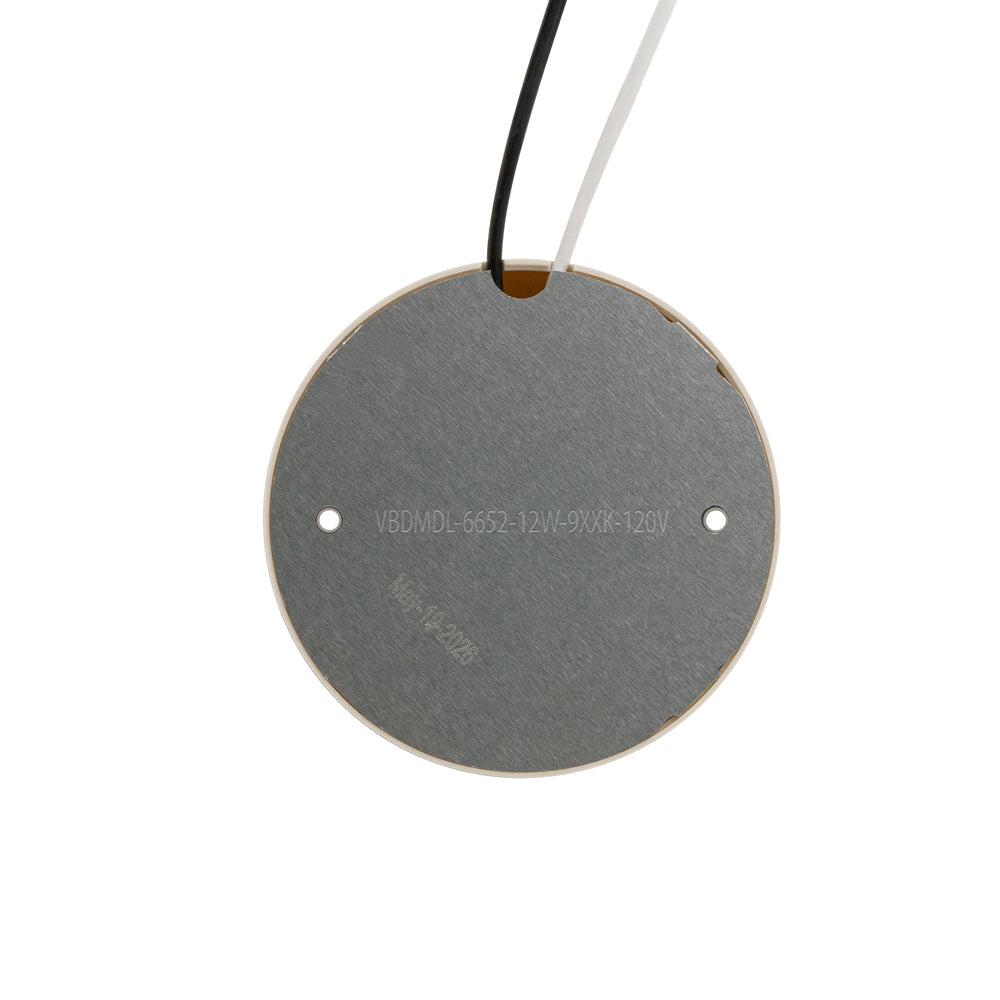

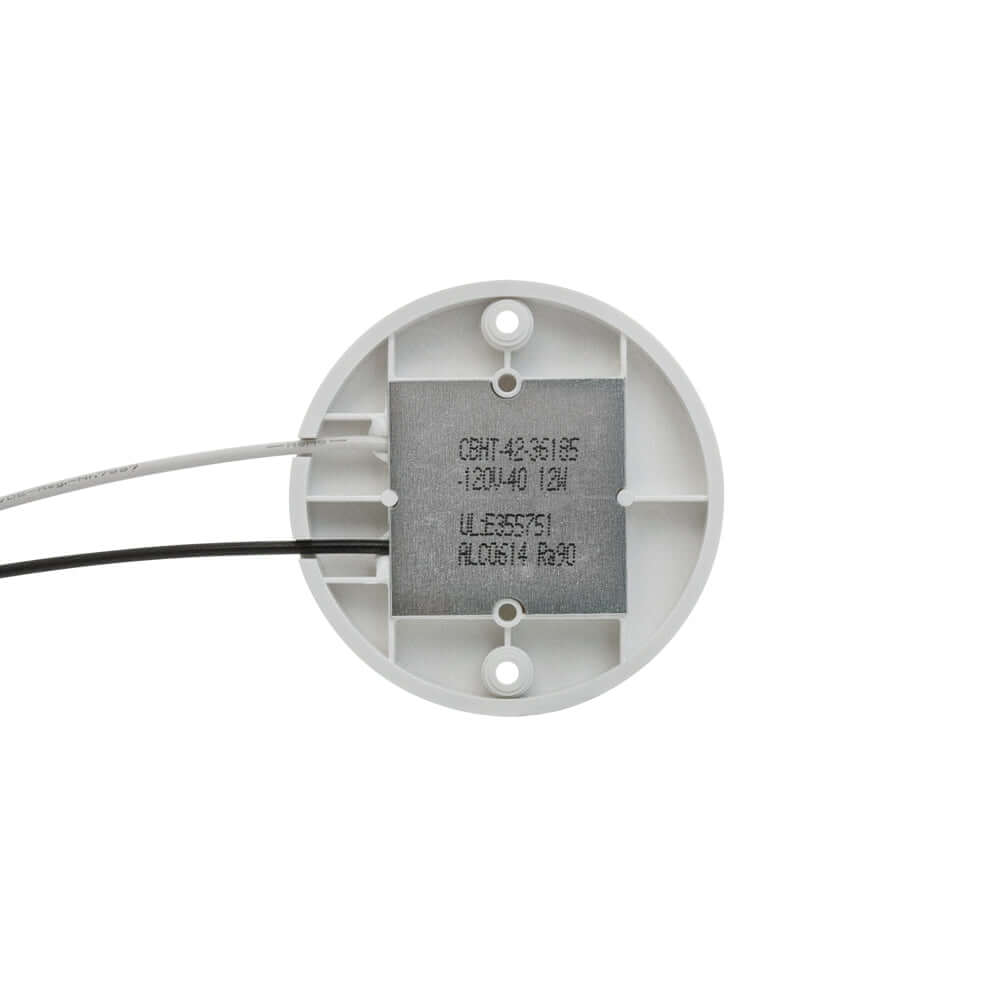

| Model No | CBHT-42-36185-120V-40 (Paragon) VBDMDL-6652-12W-9XXK-120V (Veroboard) |
| COB Holder Model No | GPDH66185AC |
|
LED Type |
COB LED |
| Wattage | 12W |
| Voltage | 120V AC |
| Power Factor | PF>0.98 |
| Luminous Intensity | 1000 lumens |

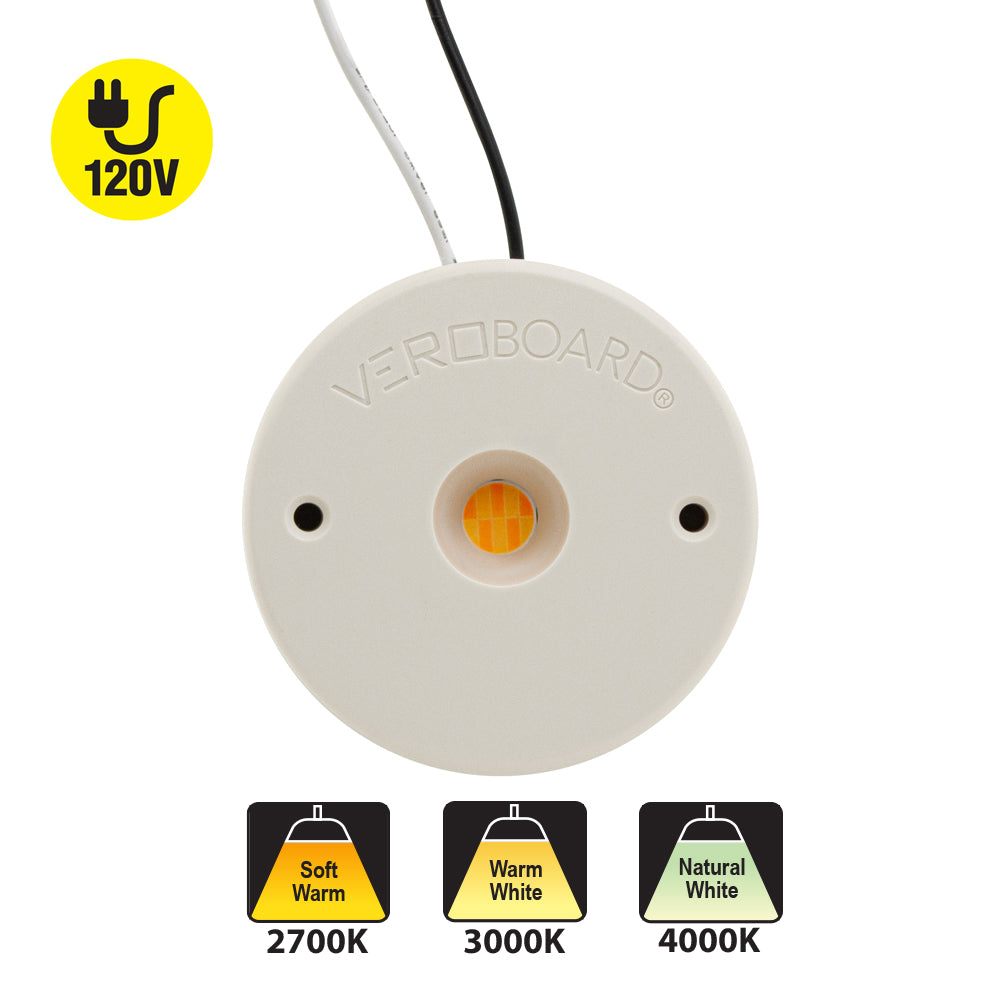

| Color Temperature |
(Paragon) (Veroboard) |
| Dimmable | Yes |
| Rendering Index | CRI>90 (Paragon) CRI>95 (Veroboard) |
| IP Rating | IP20 (Indoor rated) |

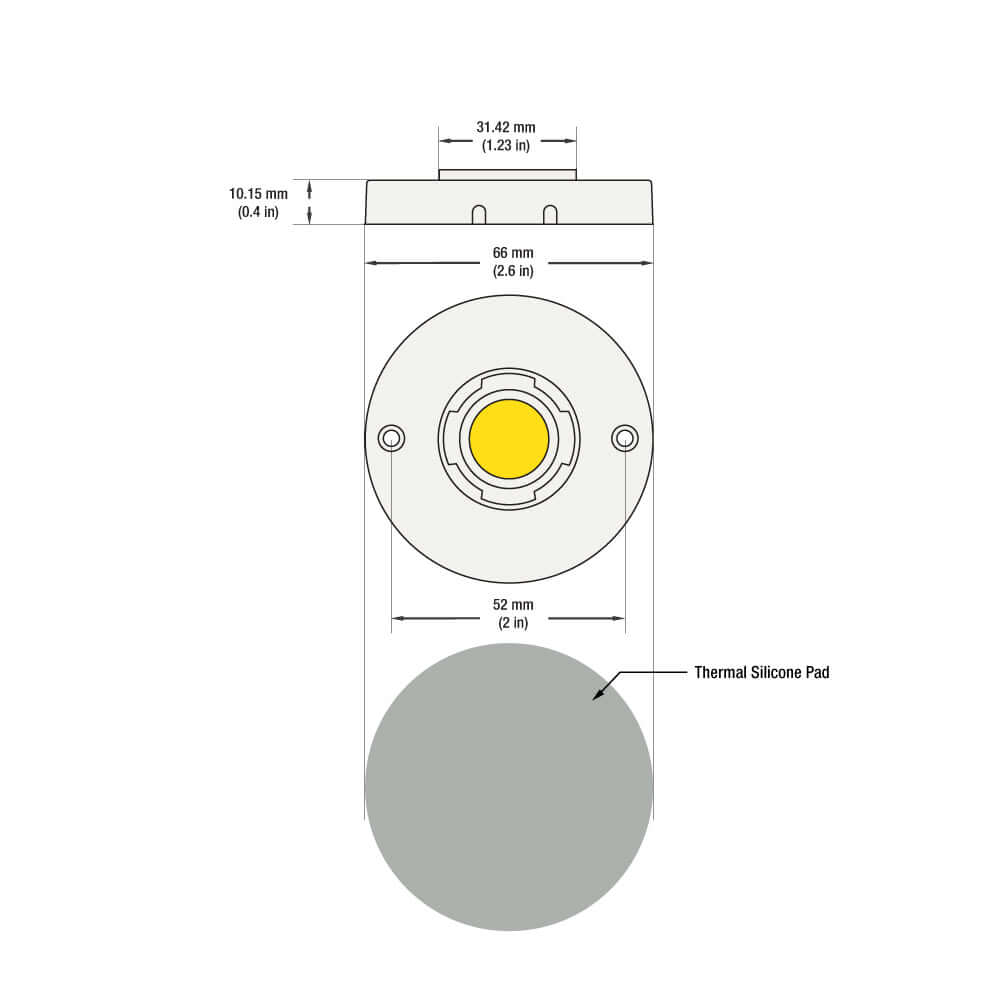

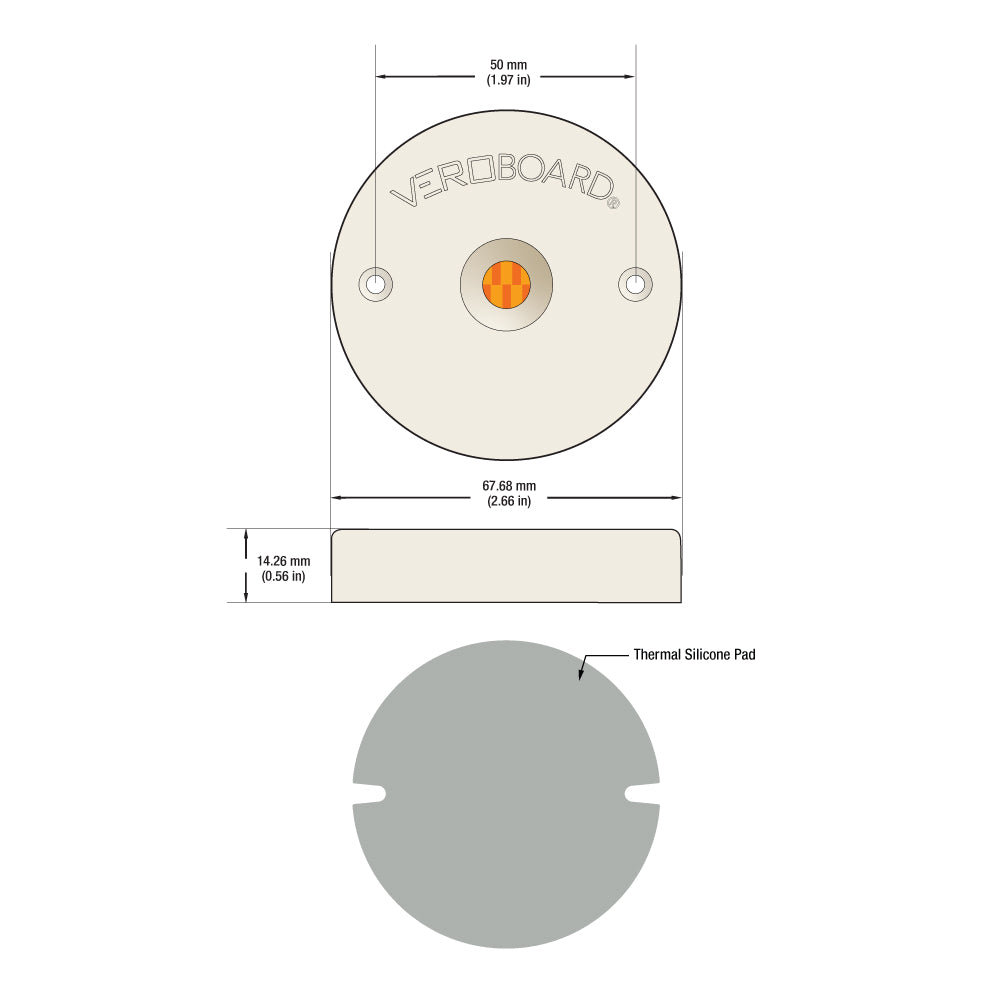

| COB Holder Dimensions |
(Paragon) (Veroboard) |
| COB Module Outer Diameter | ∅31.4 mm (1.2 in) (Paragon) ∅10mm (0.39in) (Veroboard) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB LED Holder, Thermal Pad |
| Weight | 0.04 kg |
| Certifications |  |
Features:
- COB LED module designed for indoor use with a power consumption of 12W and a voltage rating of 120V AC
- Dimmable module with a high color rendering index of over 90, ensuring accurate color display

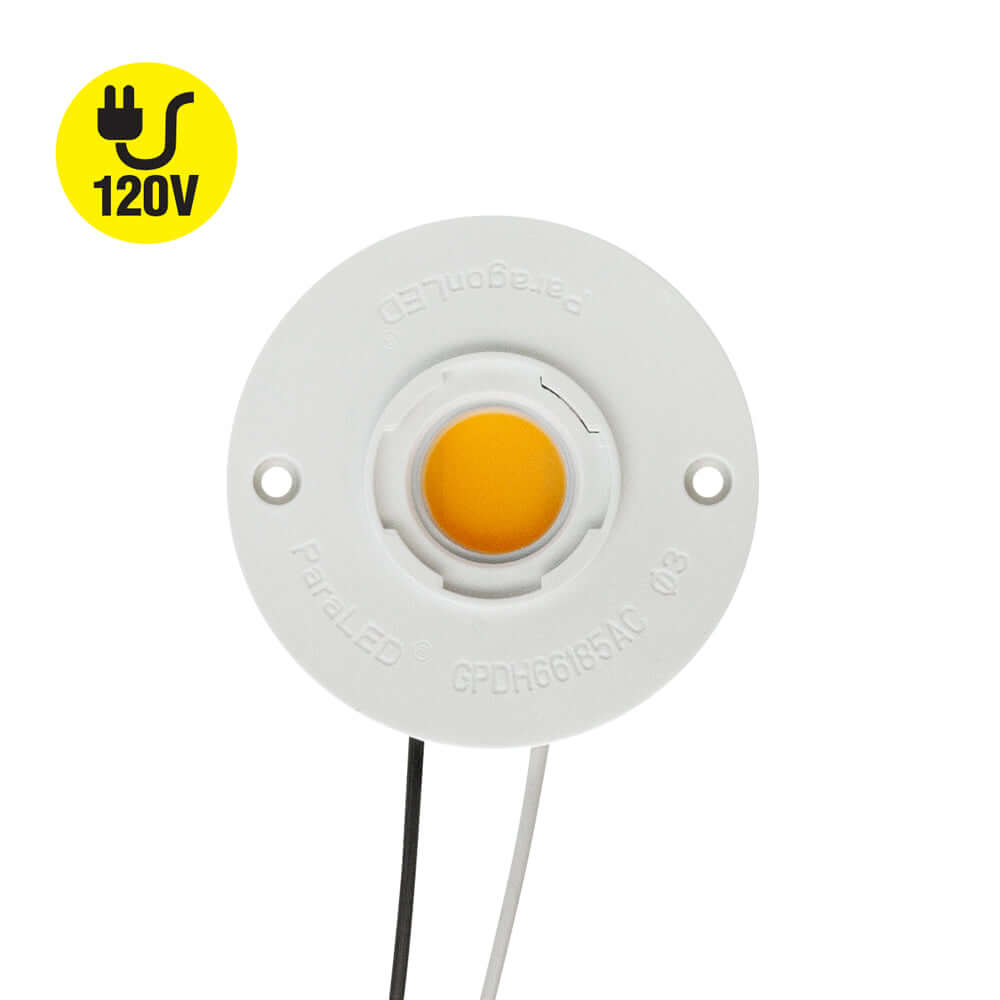

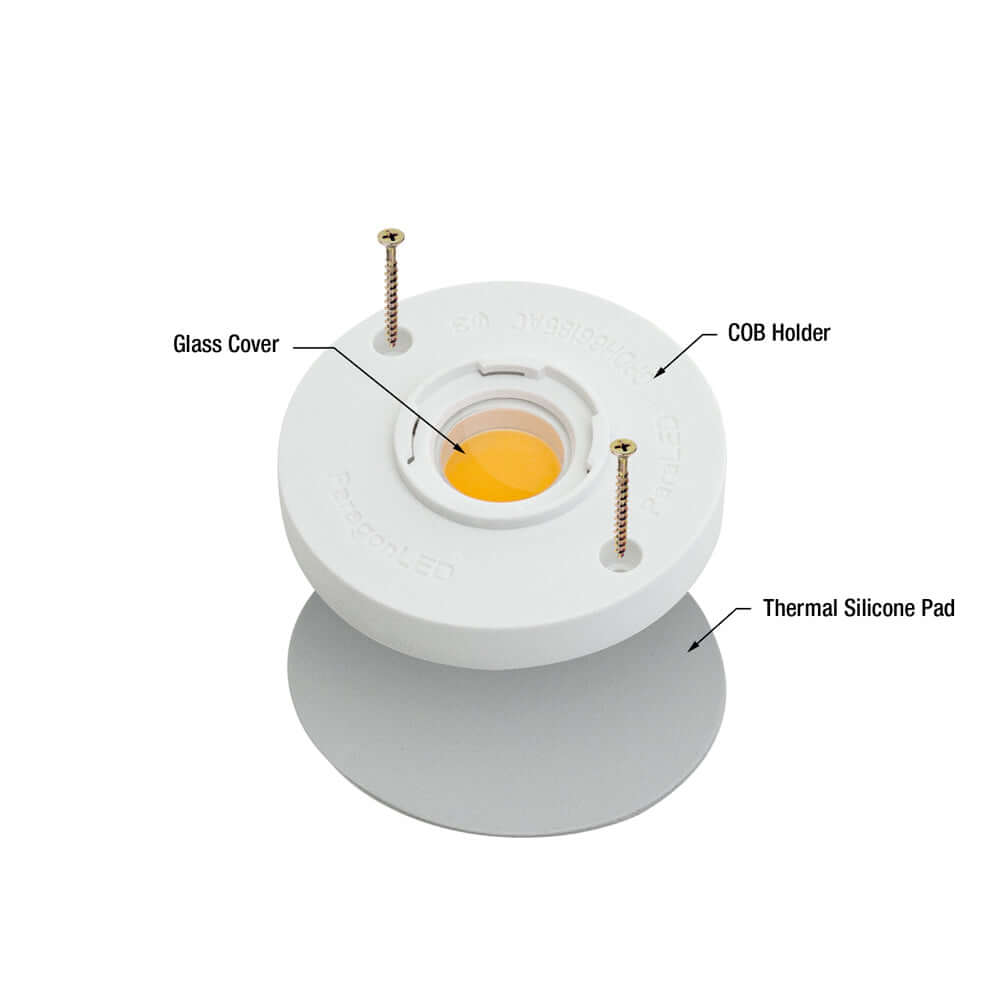

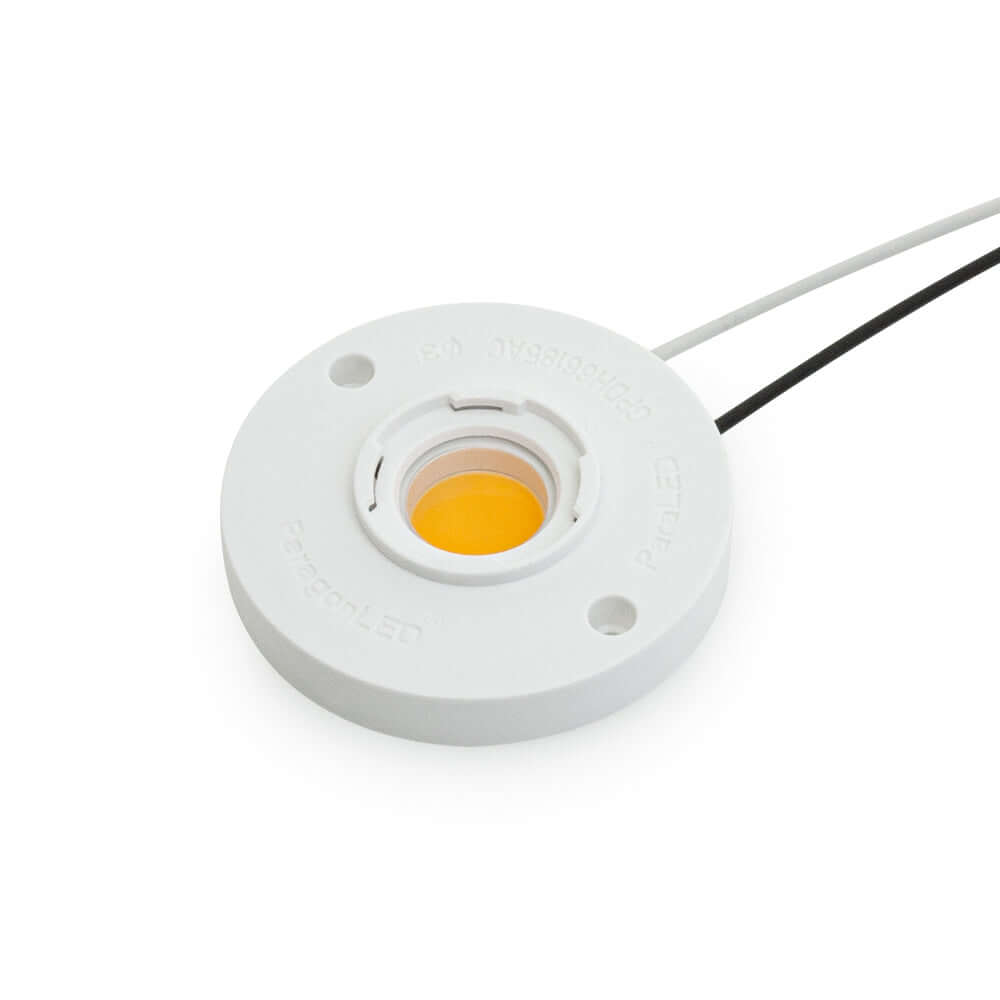

- Comes with a GPDH66185AC COB LED holder that allows for easy mechanical and electrical connections and secure attachment to a heat sink
- Recommended to use an aluminum heat sink and silicone grease thermal pad to prevent overheating and ensure longevity of the module
- Certified by UL and suitable for use in damp locations
- Important to ground light fixtures when designing lamps to ensure safe operation
- Operating temperature range: -40 ~ +105℃, storage temperature range: -40 ~ +105℃
- Assembly process temperature should not exceed 300℃ and the solder joint point temperature should not exceed 105℃
- Dielectric breakdown voltage of the thermal pad is greater than 4KV
