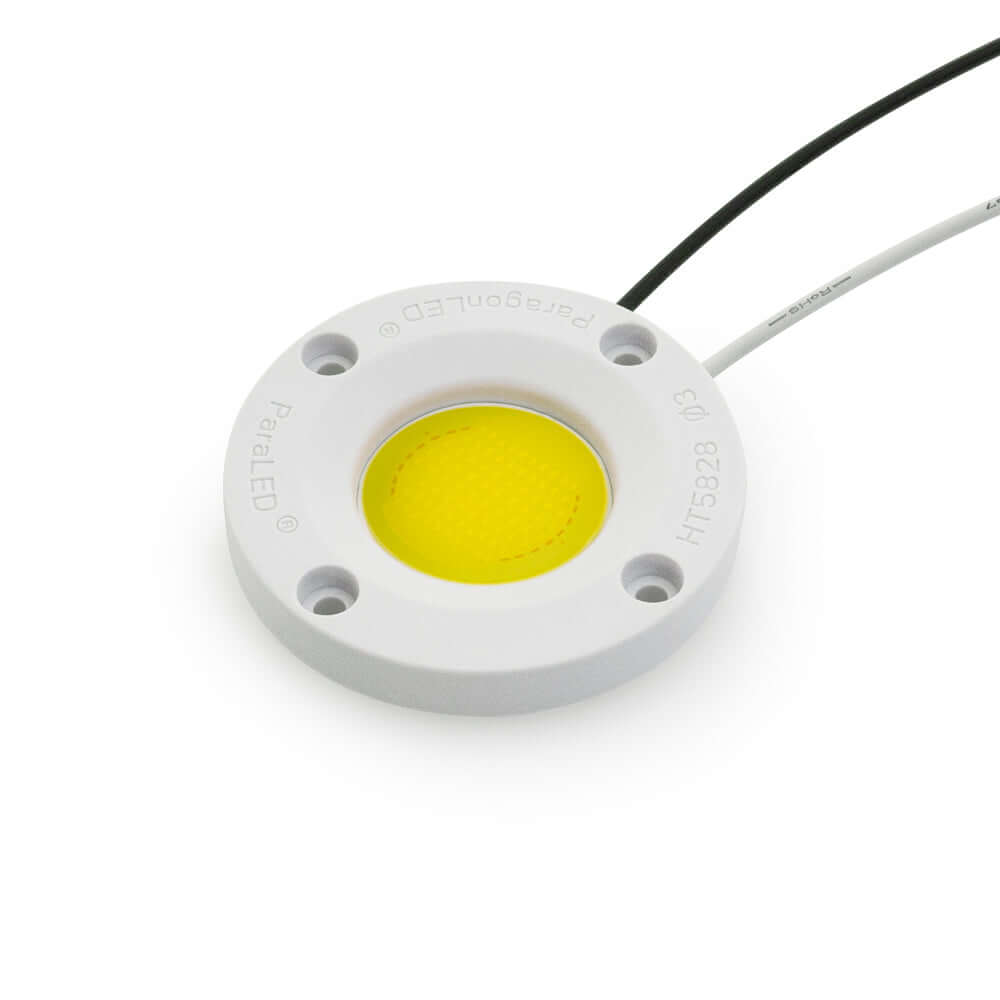

COB Paragon LED Module with HT5828 LED Holder 120V 30W CCT(2.7K, 3K, 4K, 5K), CDAC-80-5028-120V-50

Product	Paragon LED Module

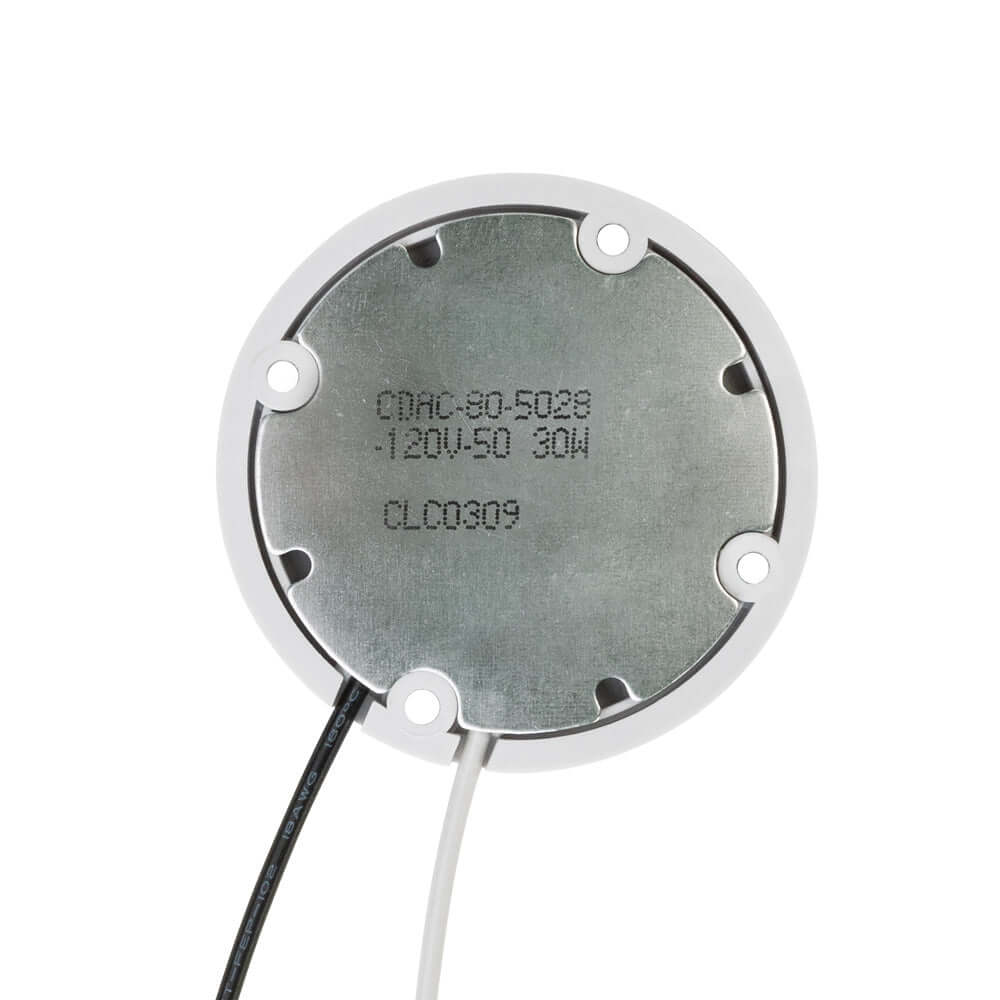

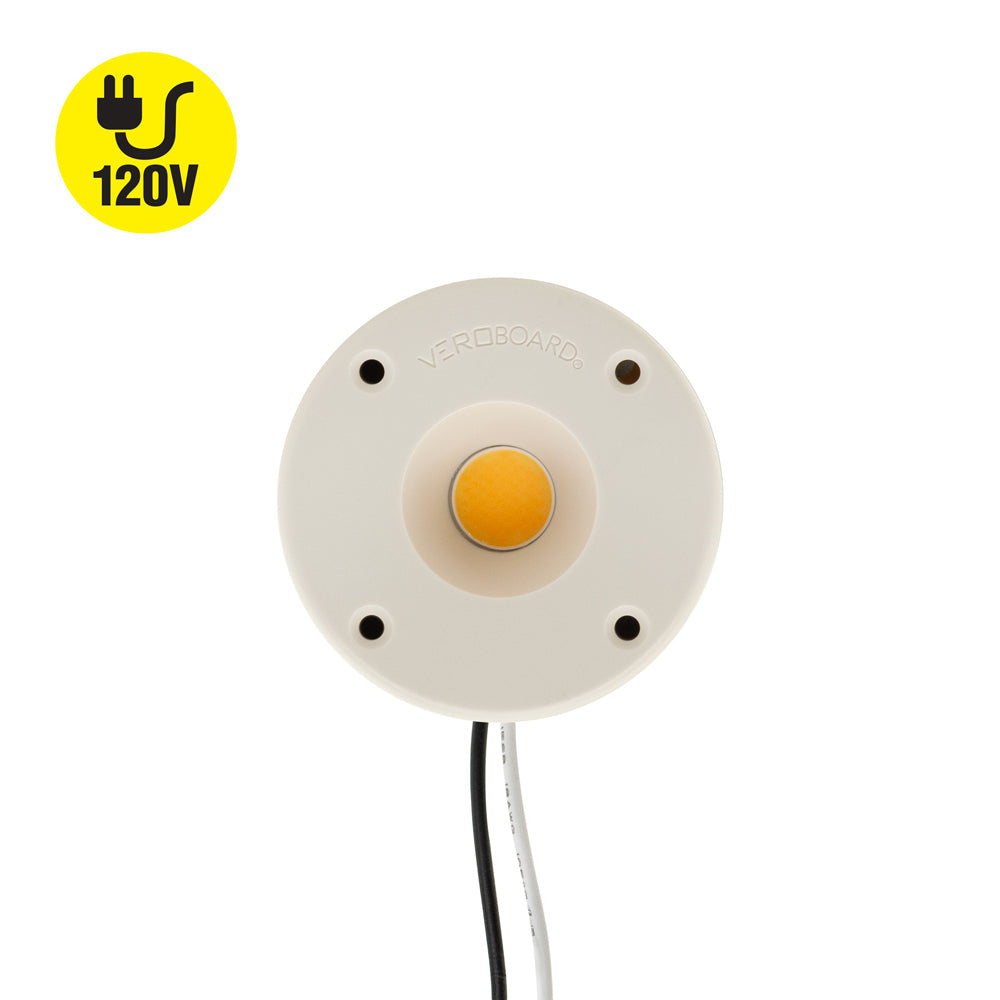

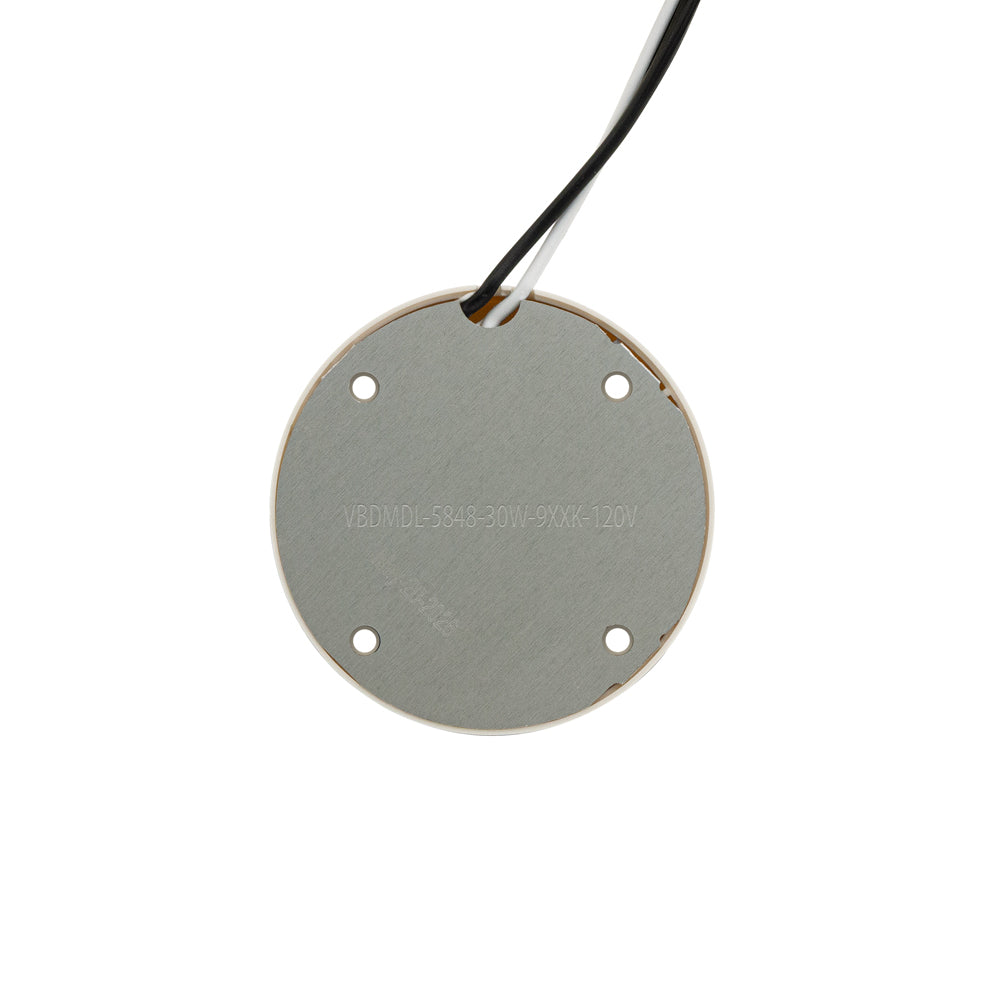

Model No	CDAC-80-5028-120V-50 (Paragon) VBDMDL-5848-30W-9XXK-120V (Veroboard)

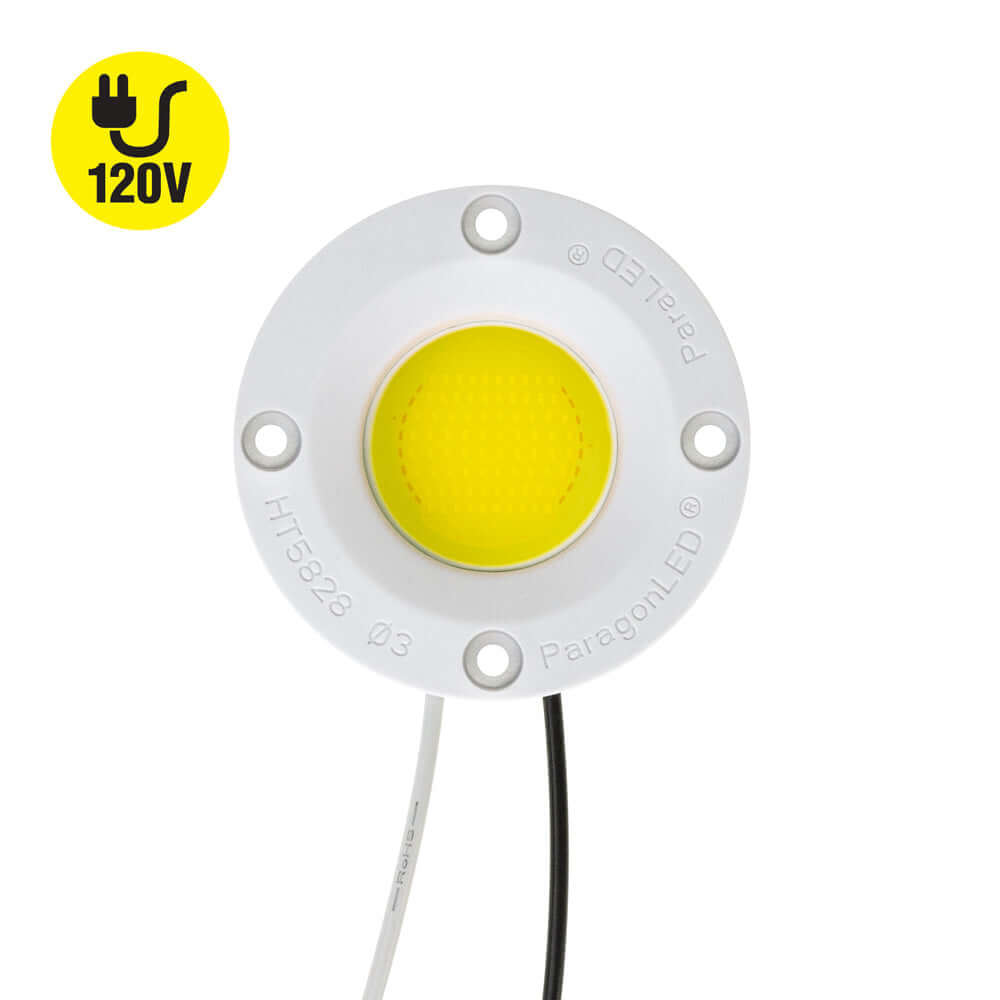

COB Holder Model No	HT5828
LED Type	COB LED
No LED chips	80

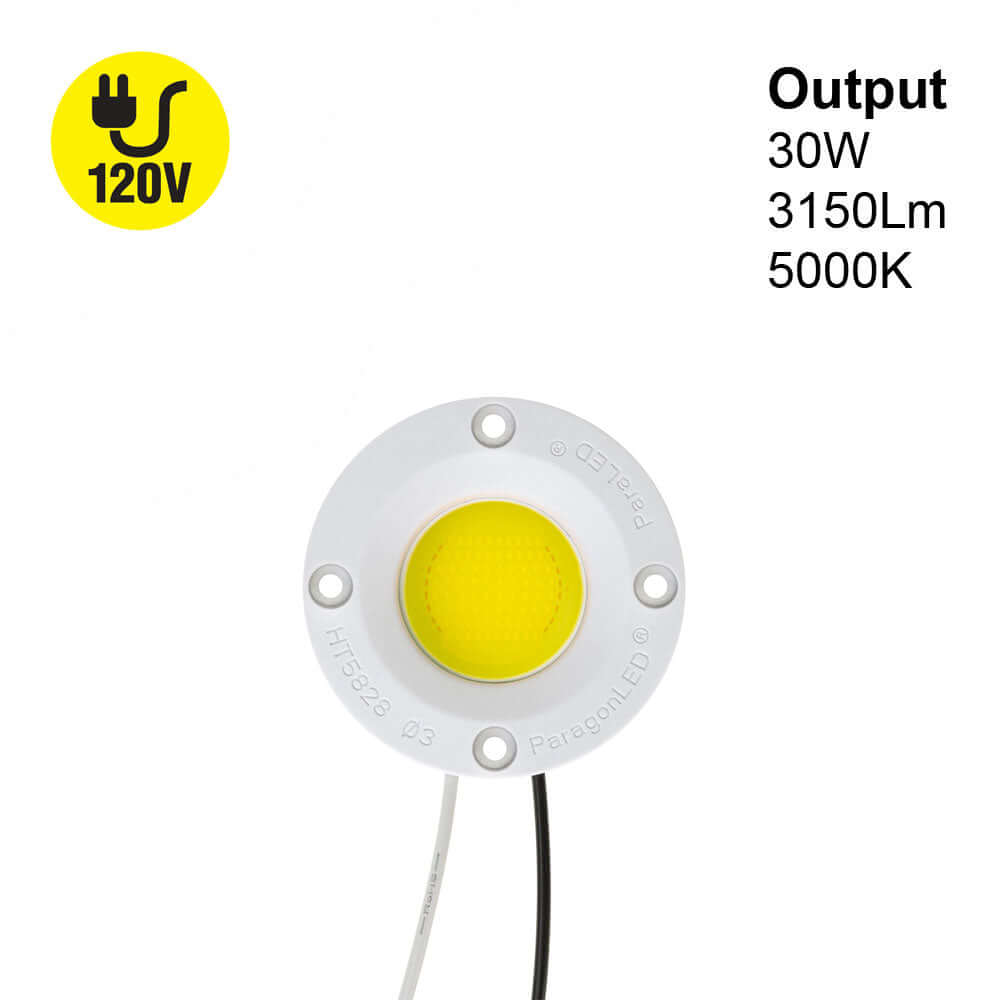

Wattage	30W
Voltage	120V AC
Power Factor	PF>0.85
Luminous Intensity	3150 lumens

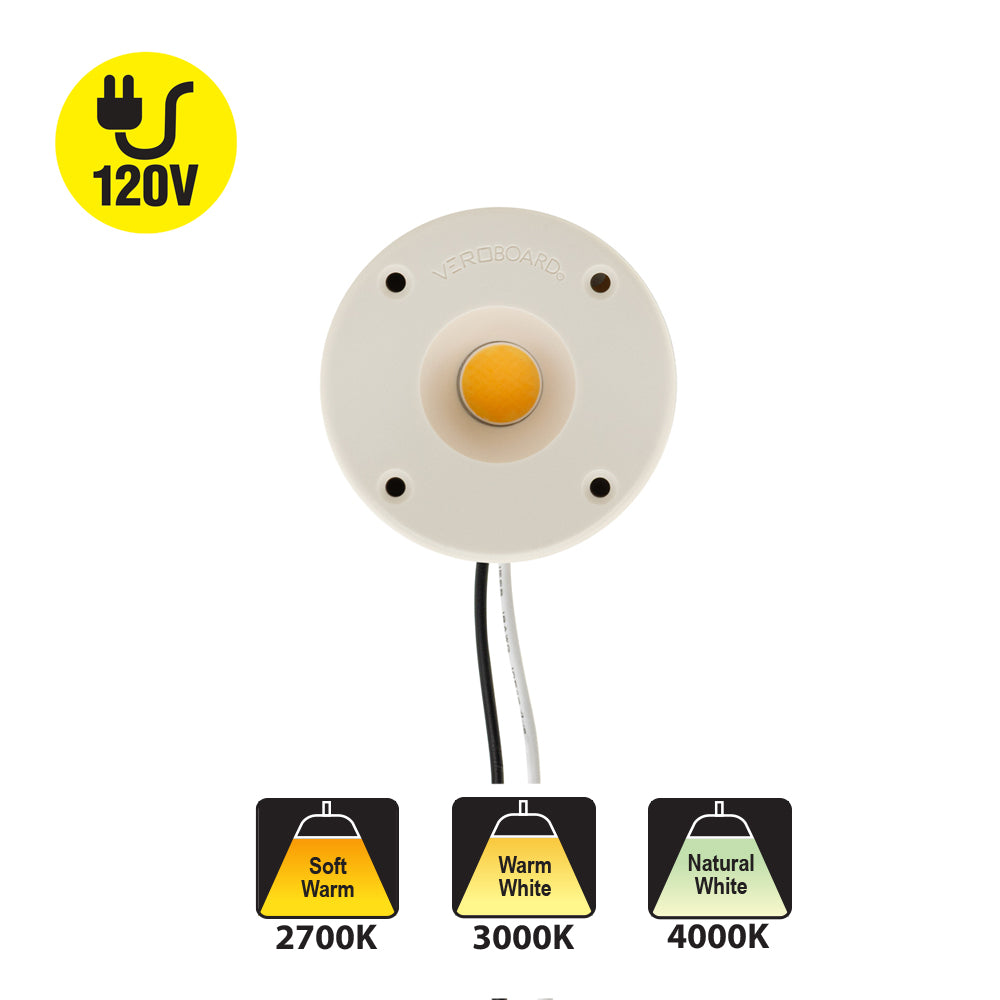

Color Temperature	(Paragon) 5000K (Daylight) (Veroboard) 2700K (Soft White) 3000K (Warm White) 4000K (Natural White)
Dimmable	Yes
Rendering Index	CRI>80 (Paragon) CRI>95 (Veroboard)
IP Rating	IP20 (Indoor rated)

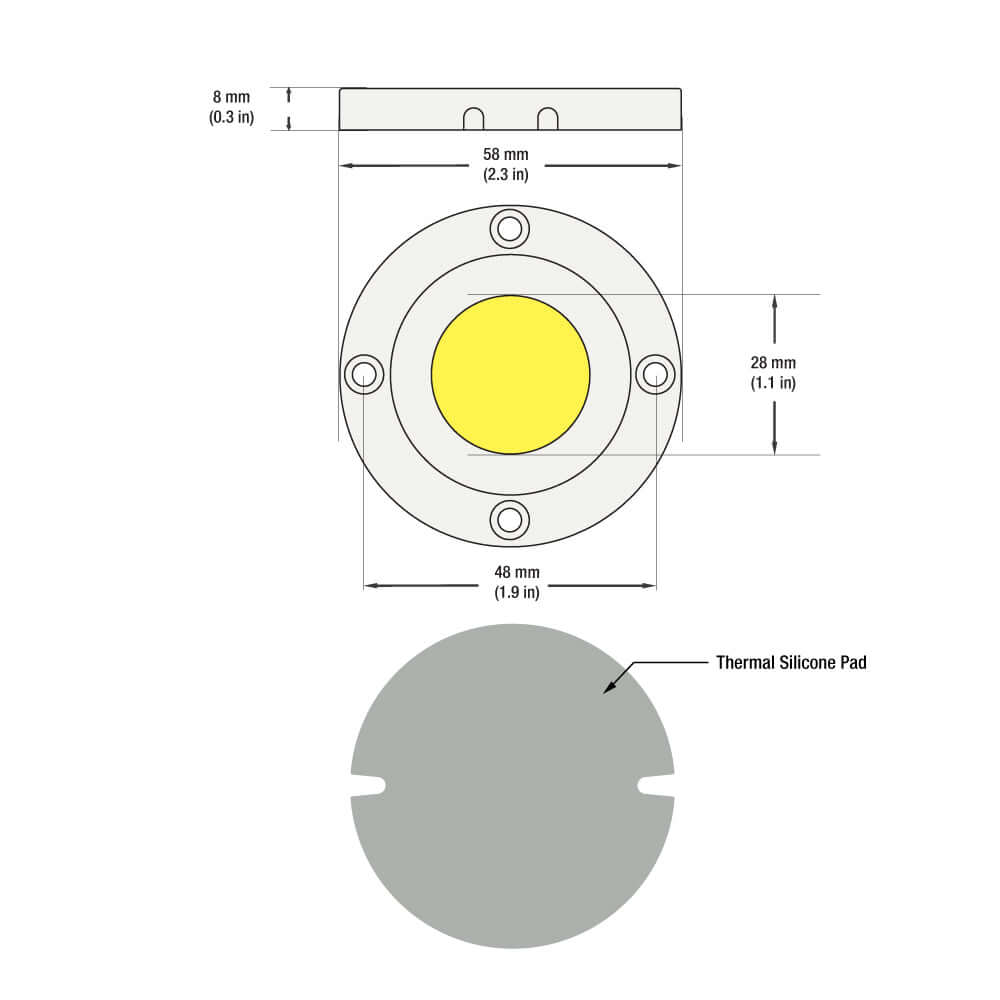

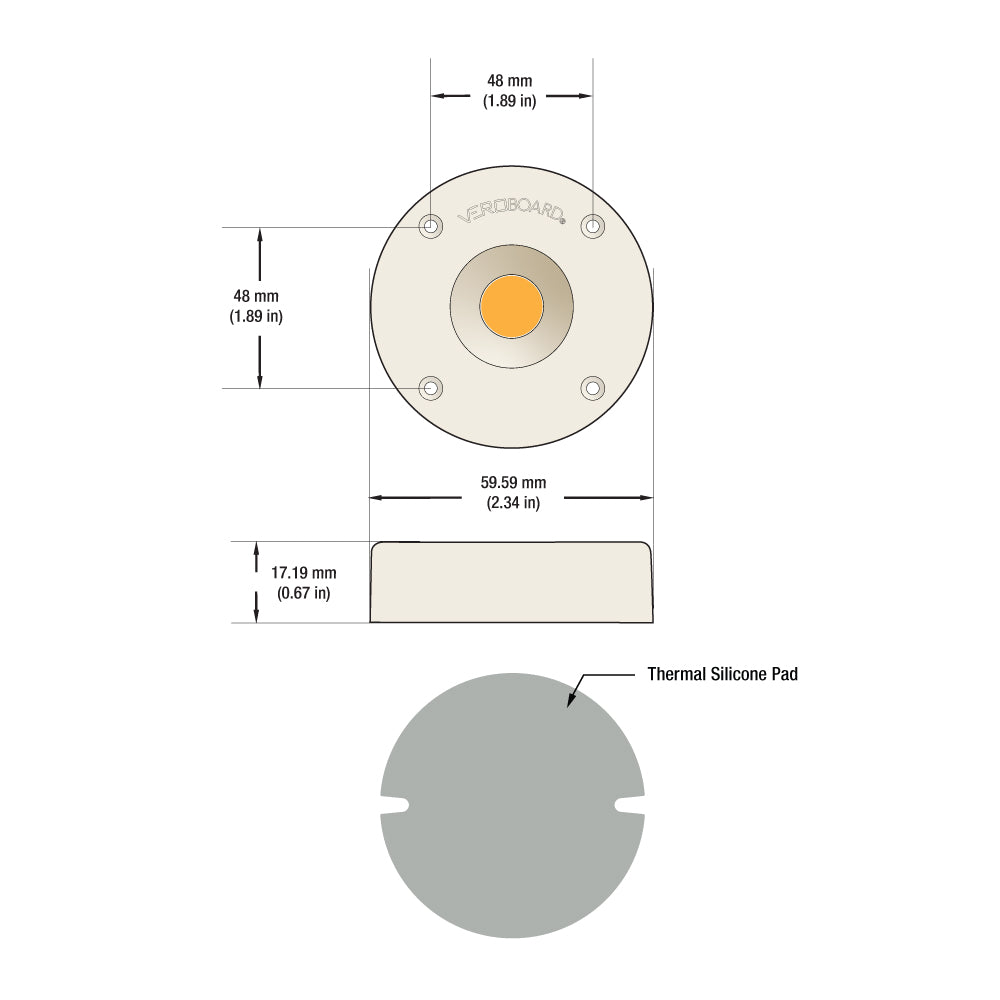

COB Holder Dimensions	(Paragon) ∅58mm (2.3in) x H8mm (0.3 in) (Veroboard) ∅59.5mm (2.3in) x H17.3mm (0.68 in)
COB Module Outer Diameter	∅28mm (1.1 in) (Paragon) ∅10mm (0.39in) (Veroboard)
Operating Temperature	-40 ~ +105℃
Storage Temperature	-40 ~ +105℃
Included Content	COB Module, COB LED Holder, Thermal Pad
Weight	0.04 kg
Certifications

Features:

• High-quality LED lighting module using COB LED technology
• Suitable for indoor lighting applications

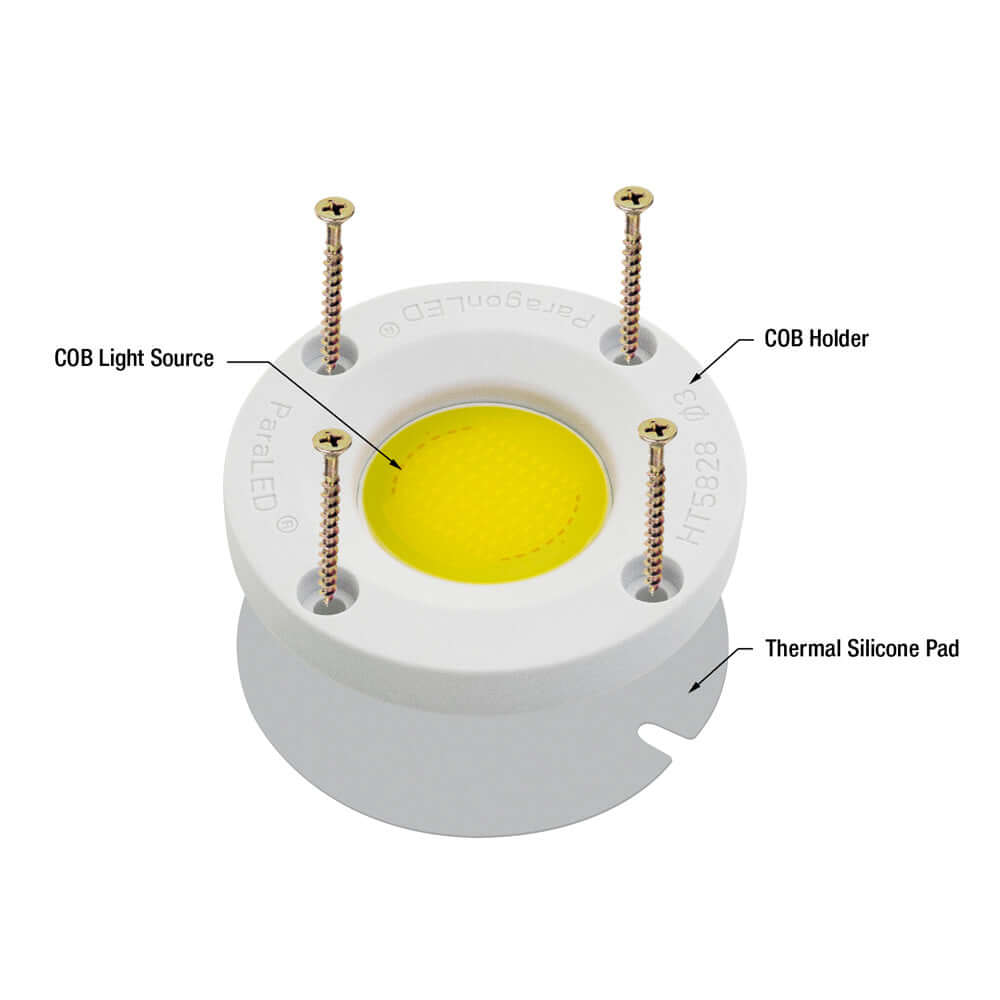

• Comes with COB LED array holder (HT5828), thermal pad, and COB module

• Dimmable with a power factor of PF>0.85
• Recommended to use with an aluminum heat sink to prevent overheating
• Operates in a wide temperature range (-40 ~ +105℃)
• Designed to be mechanically secured and electrically connected using the COB holder
• Comes with a polycarbonate diffuser that can be easily attached or detached
• Suitable for damp locations and is rated as IP20 (Indoor rated)
