Description
| Product | LED Module |

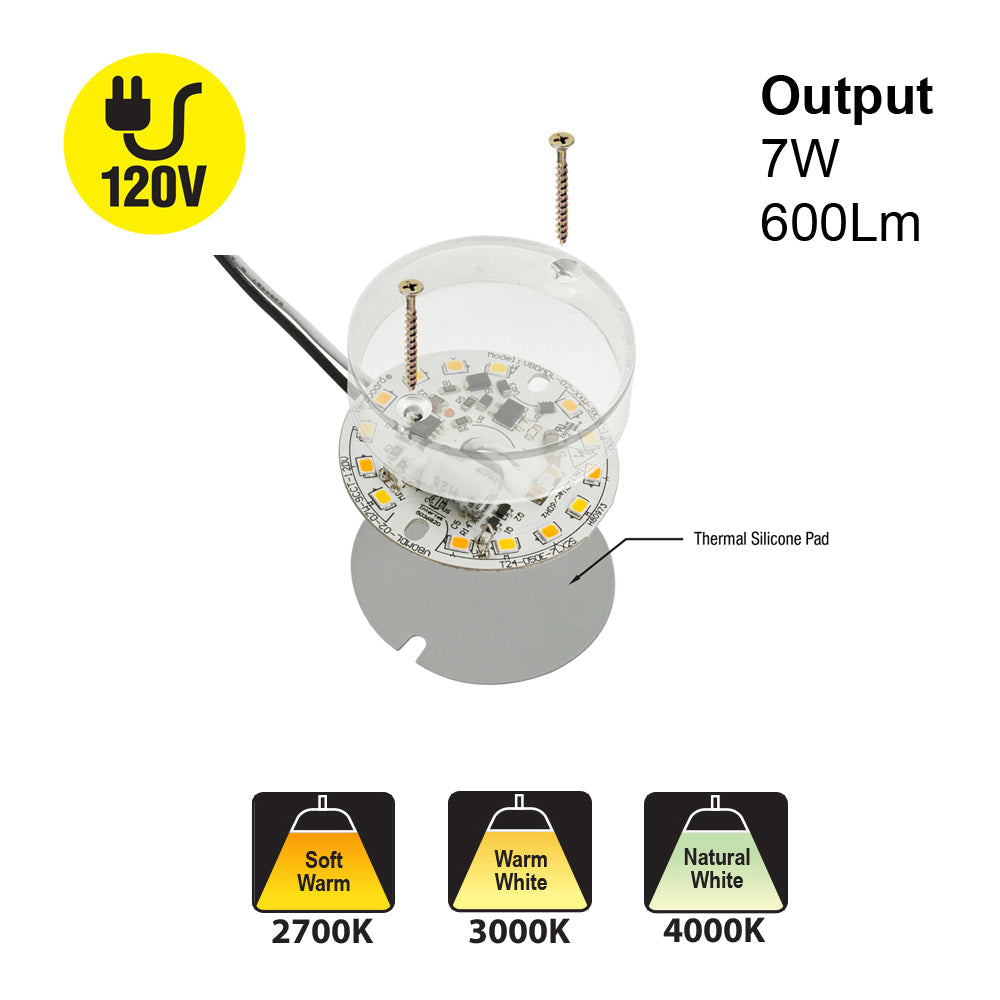

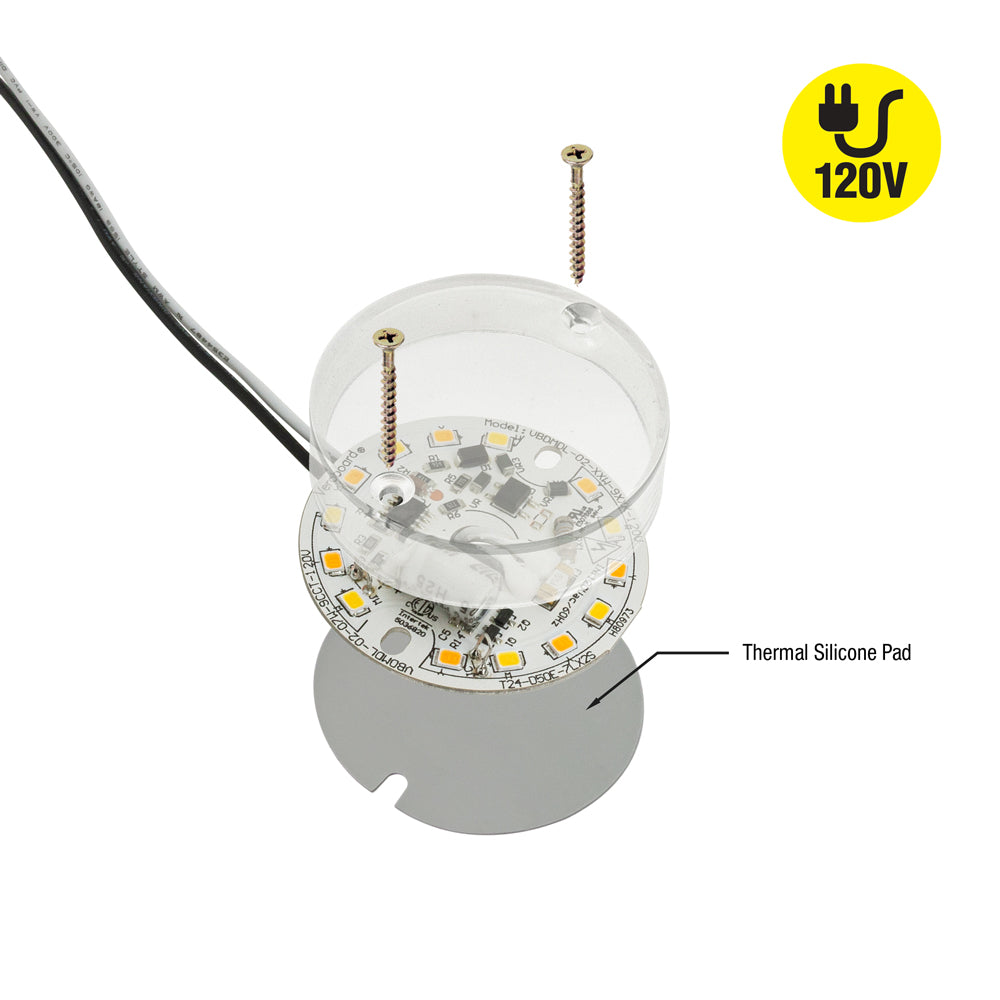

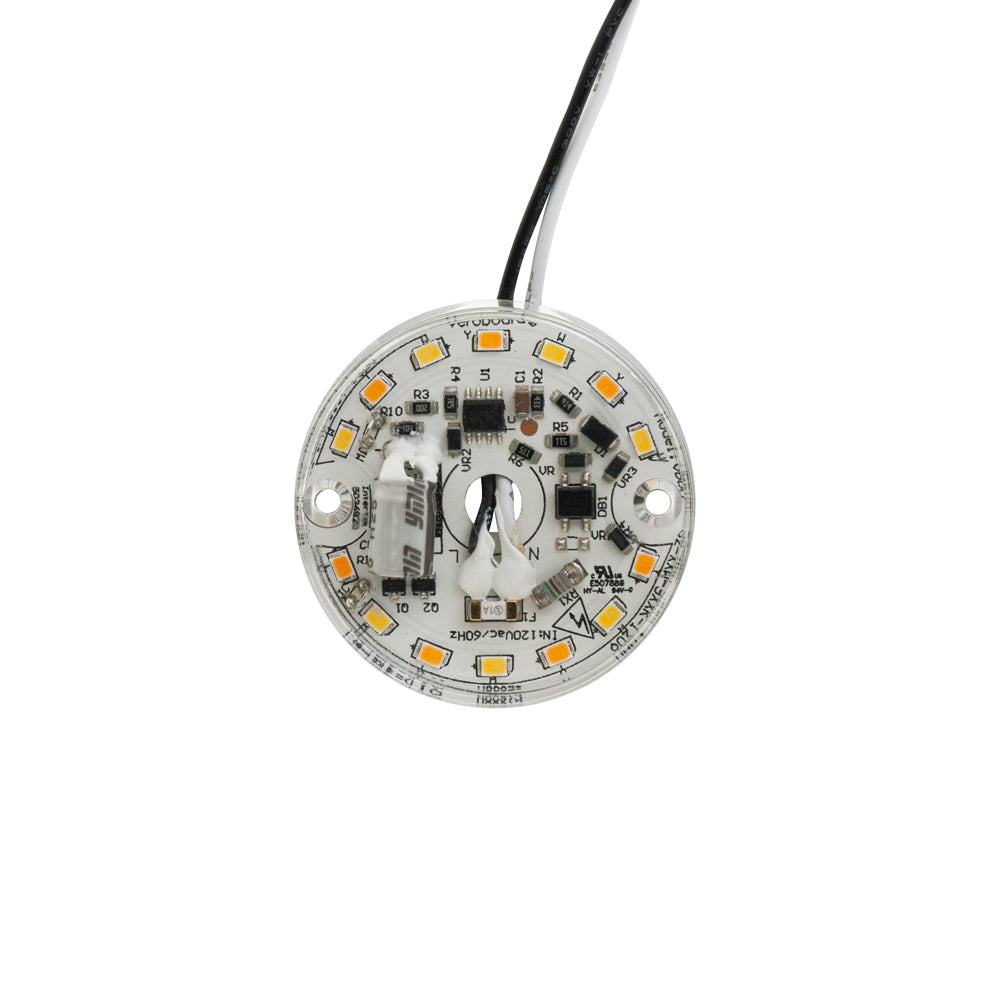

| Model No | DIS 02-007W-930-120-S1-Z1A (ZEGA) VBDMDL-02-07W-9XXK-120V (Veroboard) |
| Brand | YUNLT |
| No of LEDs | 20 |
| Wattage | 7W |
| Voltage | 120V AC |
| Luminous Flux | 600 lumens |
| Color Temperature |
(ZEGA) (Veroboard) |
| Rendering Index | CRI>90 (ZEGA) CRI>95 (Veroboard) |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum (Metallic Base) |
| Weight | 0.02 kg |
| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |
|
Dimensions |

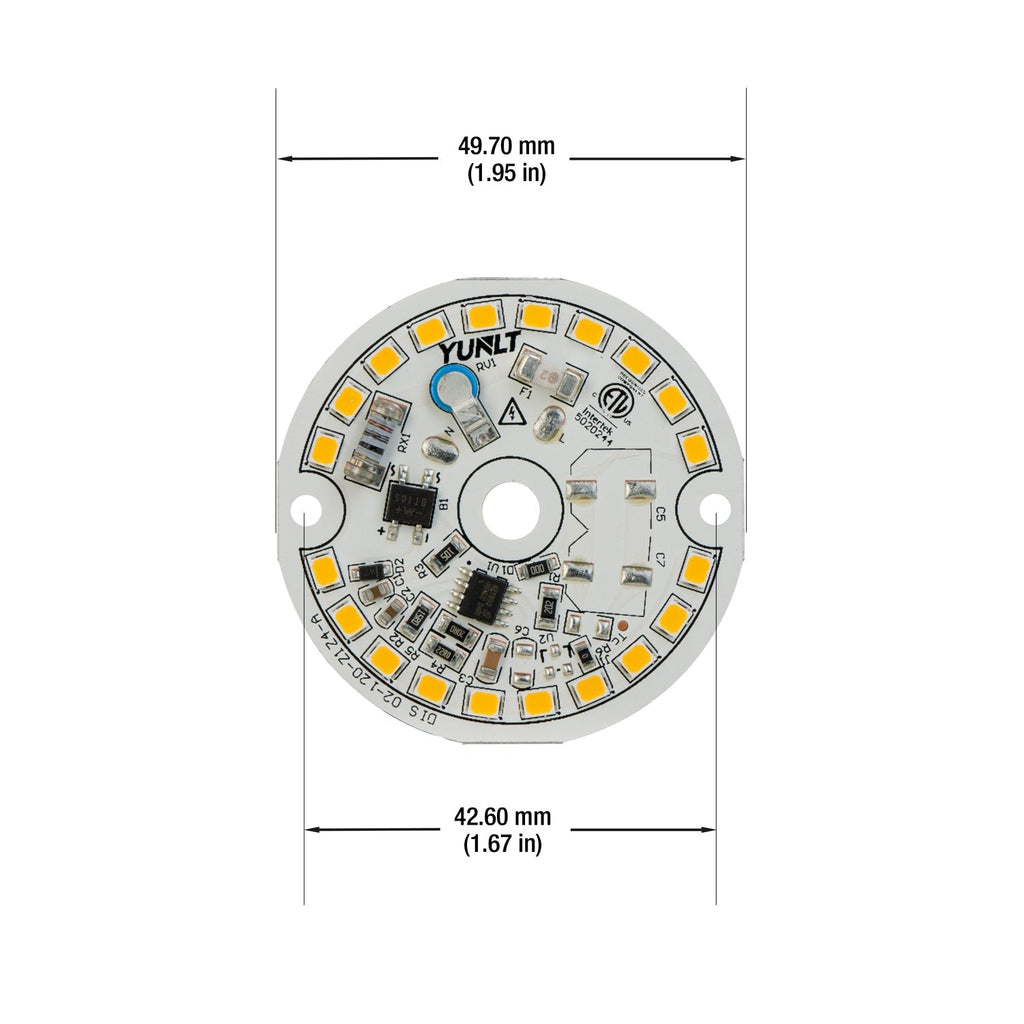

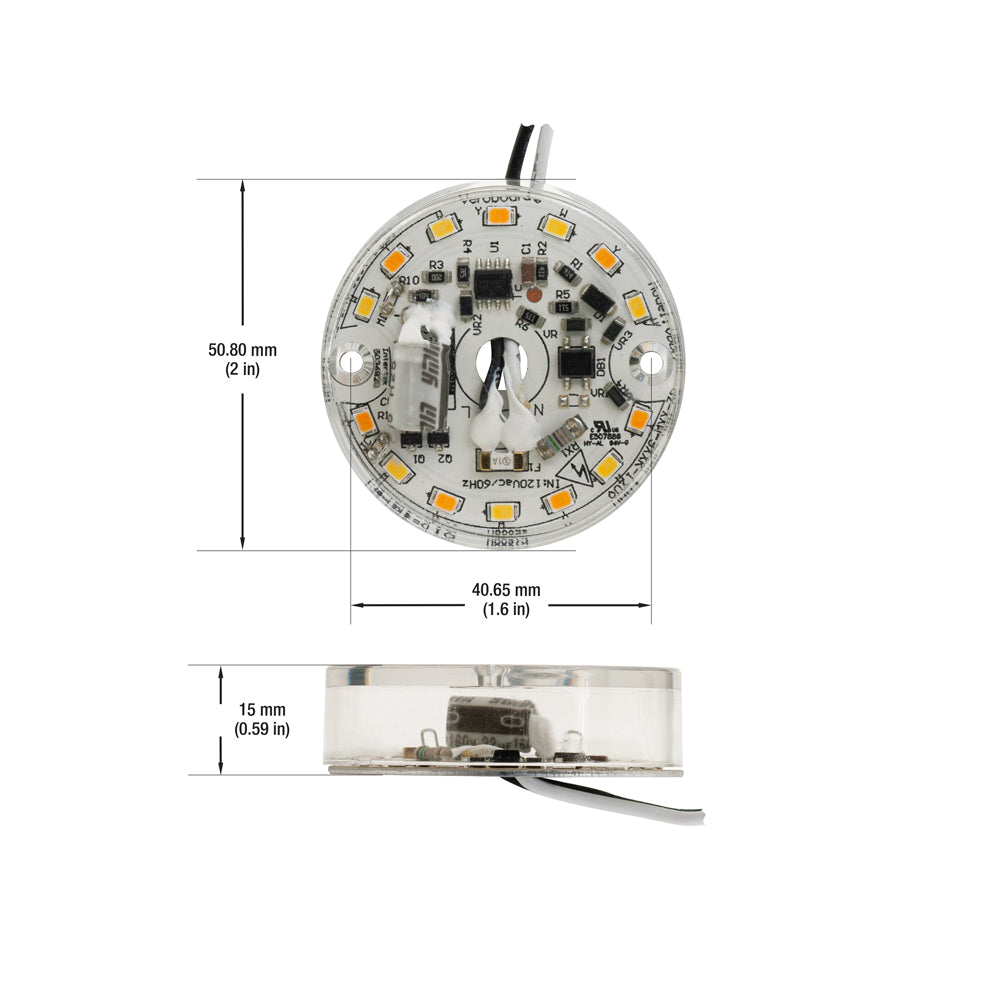

∅49.7mm x H 4.5mm (2 x 0.17 in) (ZEGA) ∅50.8mm x H 15mm (2 x 1.6 in) (Veroboard) |
| Inner Diameter (Hole) | ∅6 mm (0.23 in) |
| Diameter of the screw hole | ∅3 mm (0.12 in) |
| Certification |  |
Features:
- Low power consumption of 7W for energy efficiency and cost-saving
- Operates on 120V AC voltage and is dimmable for flexible lighting control
- Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
- ETL certified for high safety and quality standards
- High rendering index of CRI>90 for true-to-life color appearance

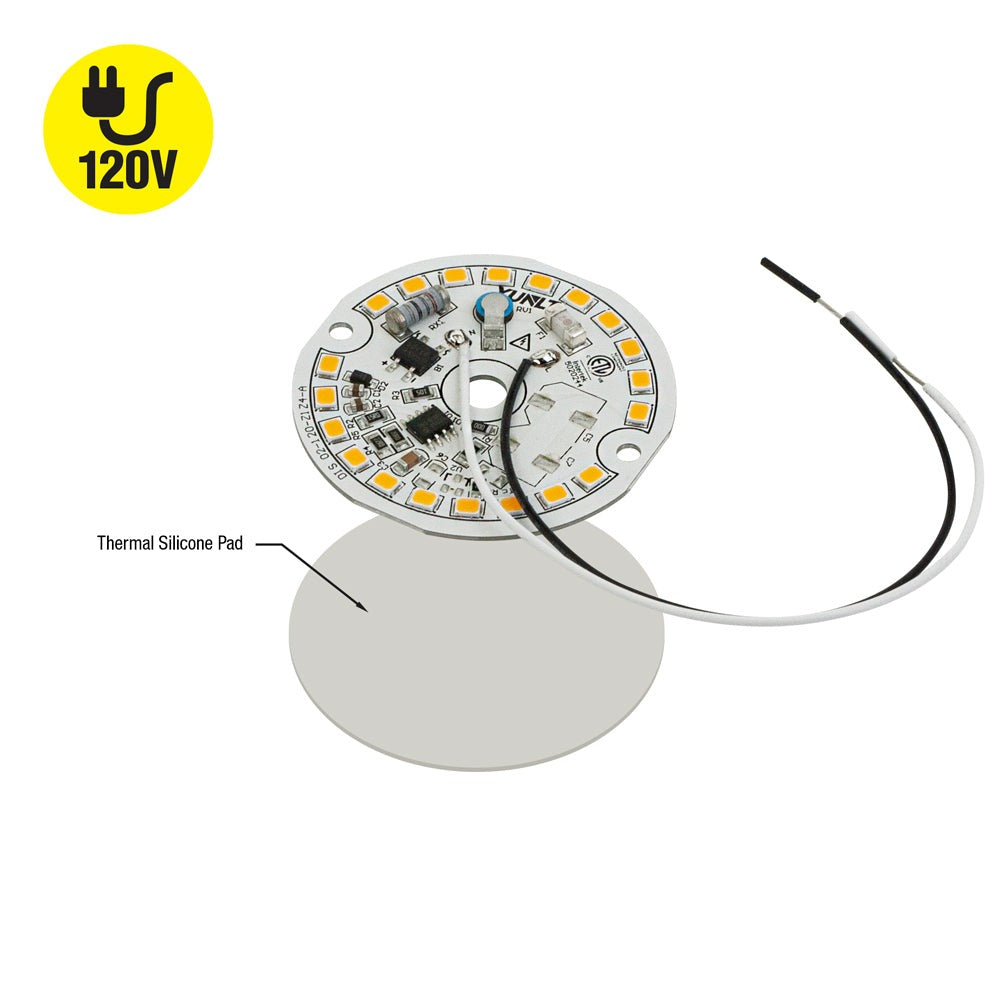

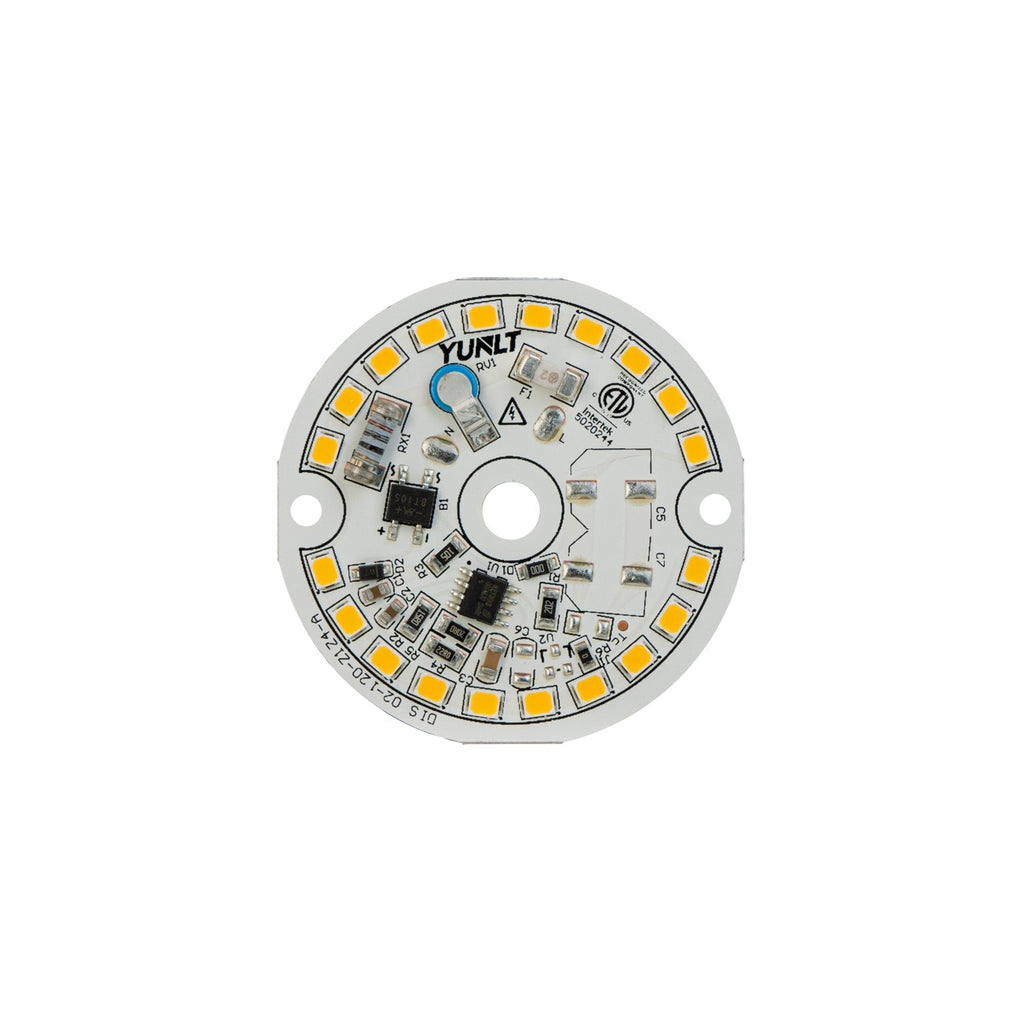

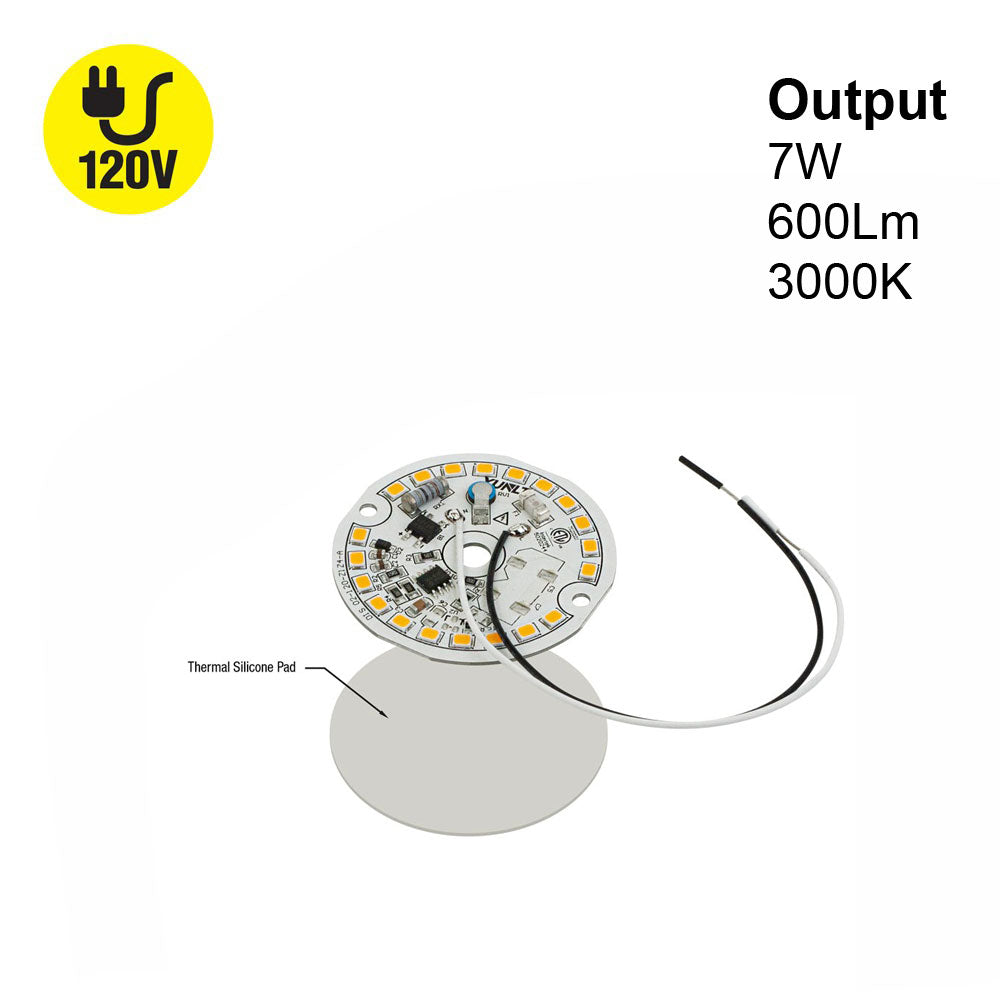

- 2 inch Round Disc ZEGA LED Module 120V 7W 3000K(Warm White), DIS 02-007W-930-120-S1-Z1A
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
