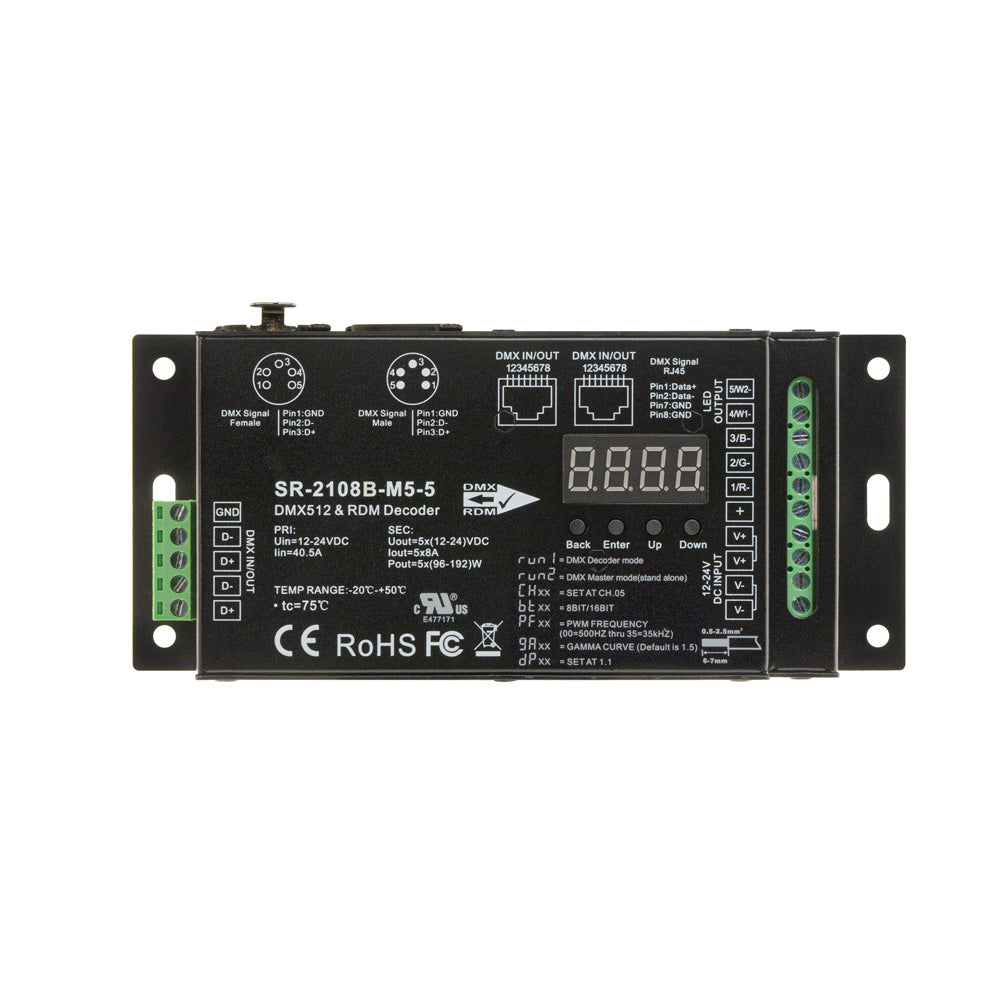

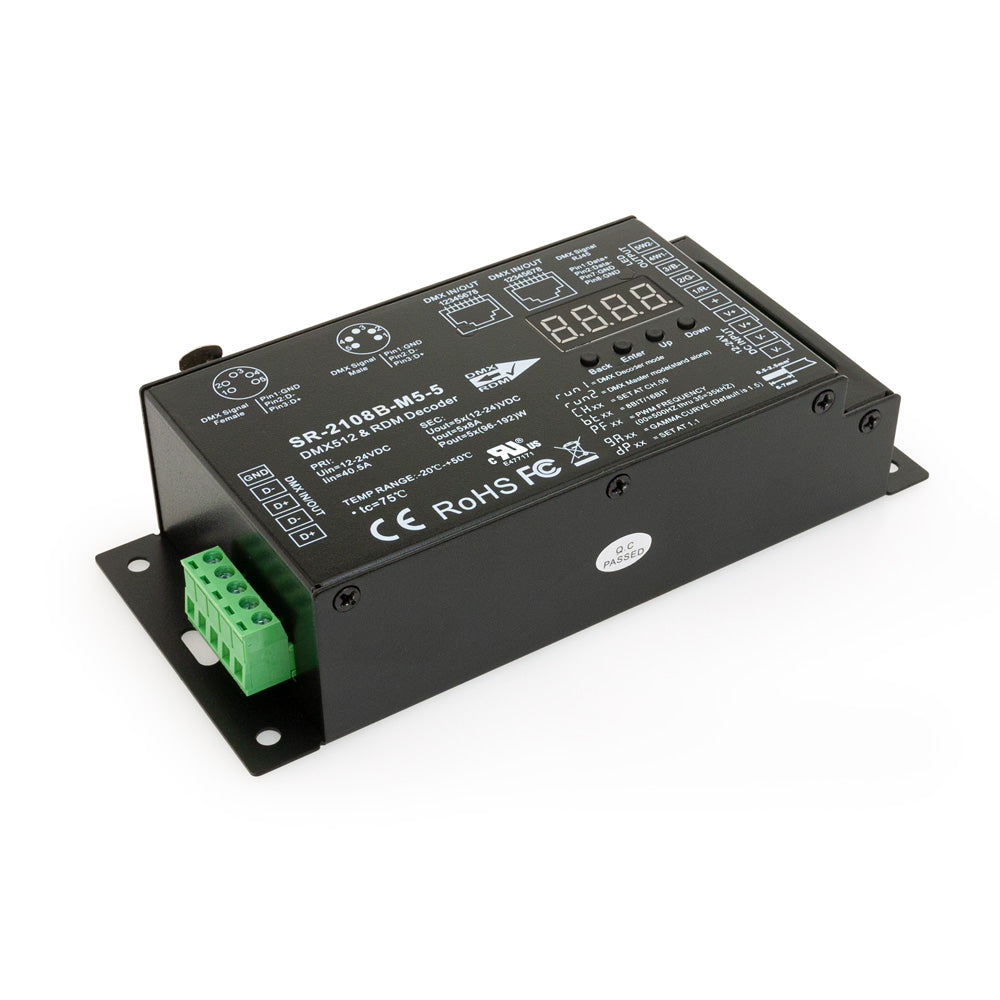

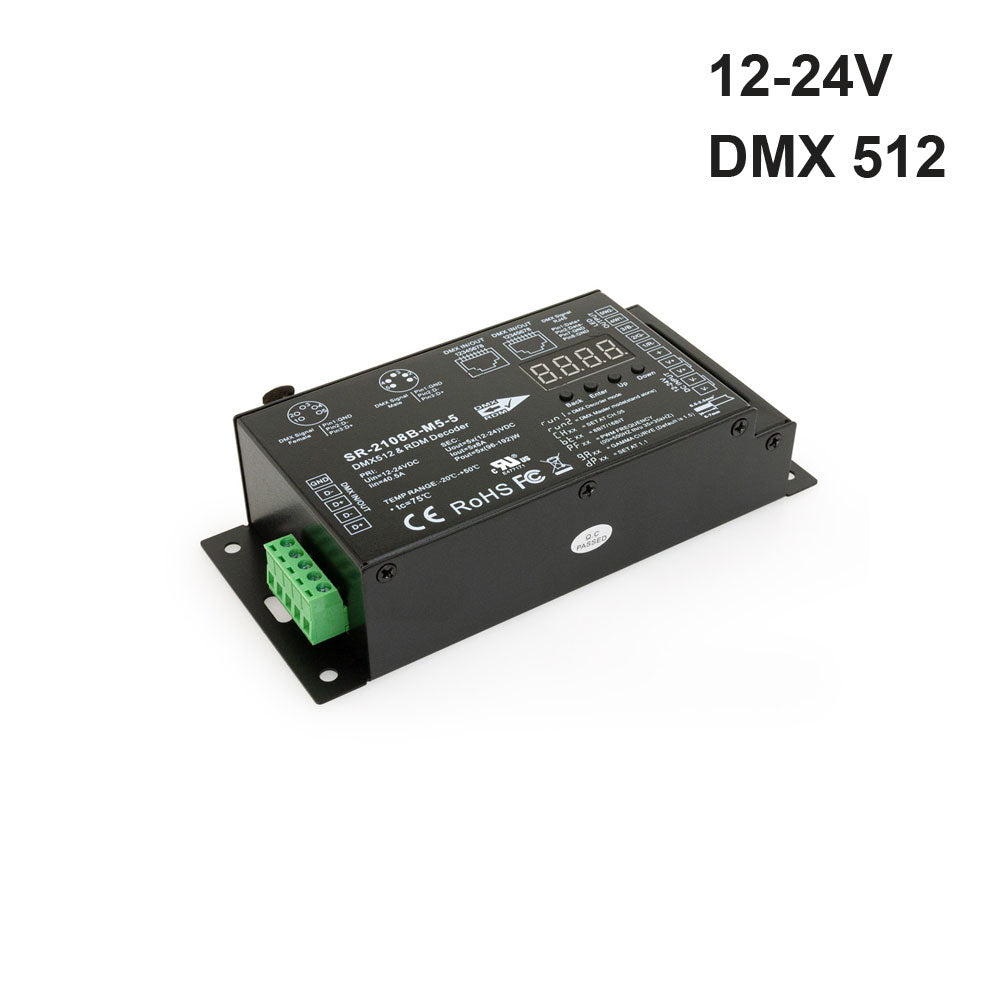

DMX512 and RDM Decoder 5 Channel 12-24V 8A SR-2108A-M5-5

SKU: 666561412623

Description



Model

SR-2108A-M5-5
Output Type Constant Voltage
Operating Voltage 12-24V DC
Input Current 40.5A
Output Current 40A max (8A/CH)
PWM Frequency 500Hz to 30K Hz
Power 5 x 192W for 24V and 5 x 96W for 12V
Control Channels 5 channels (5 CH)
Signal Input & Output DMX512

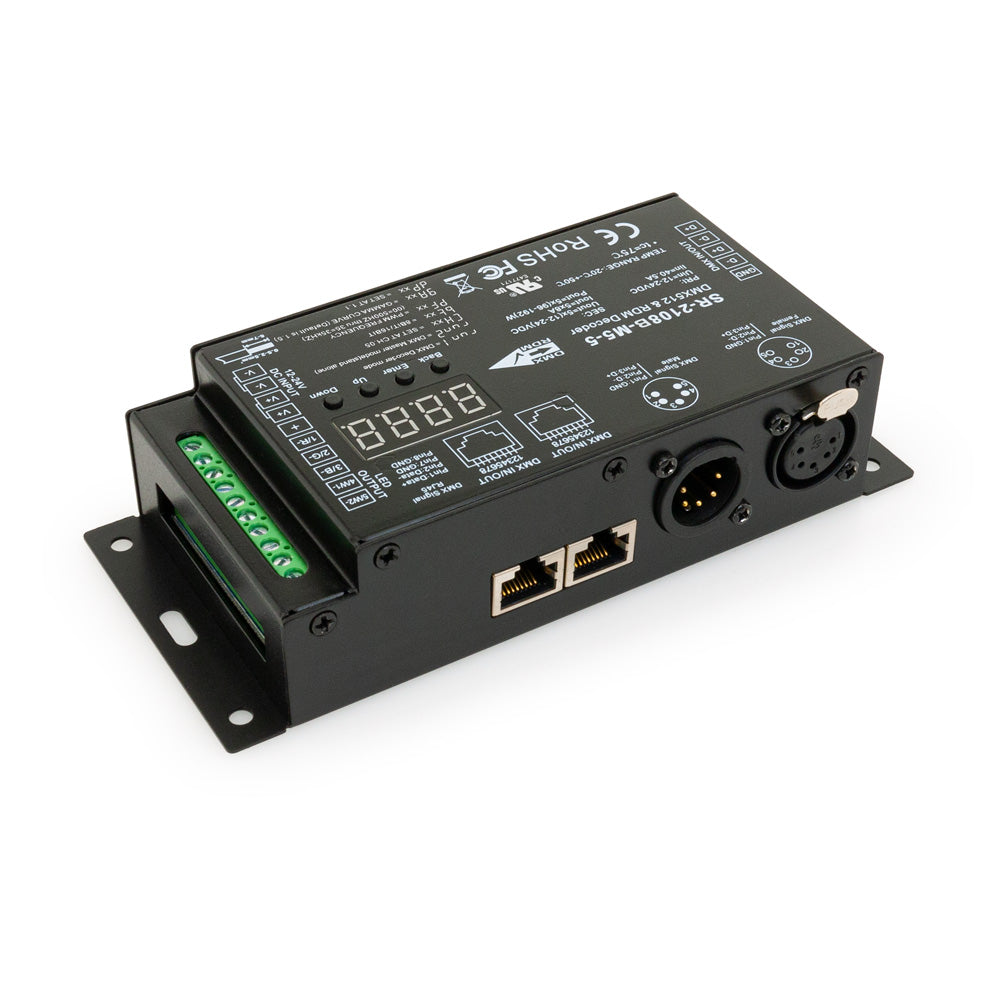

Terminals 3/5 pin XLR, RJ45, screw terminal
Bit Rate 8 bit/ 16 bit
Body Color Black
Material Die-cast Aluminum
Working Temperature -20°C~+50°C
IP Rating IP20
Protection Short circuit protection

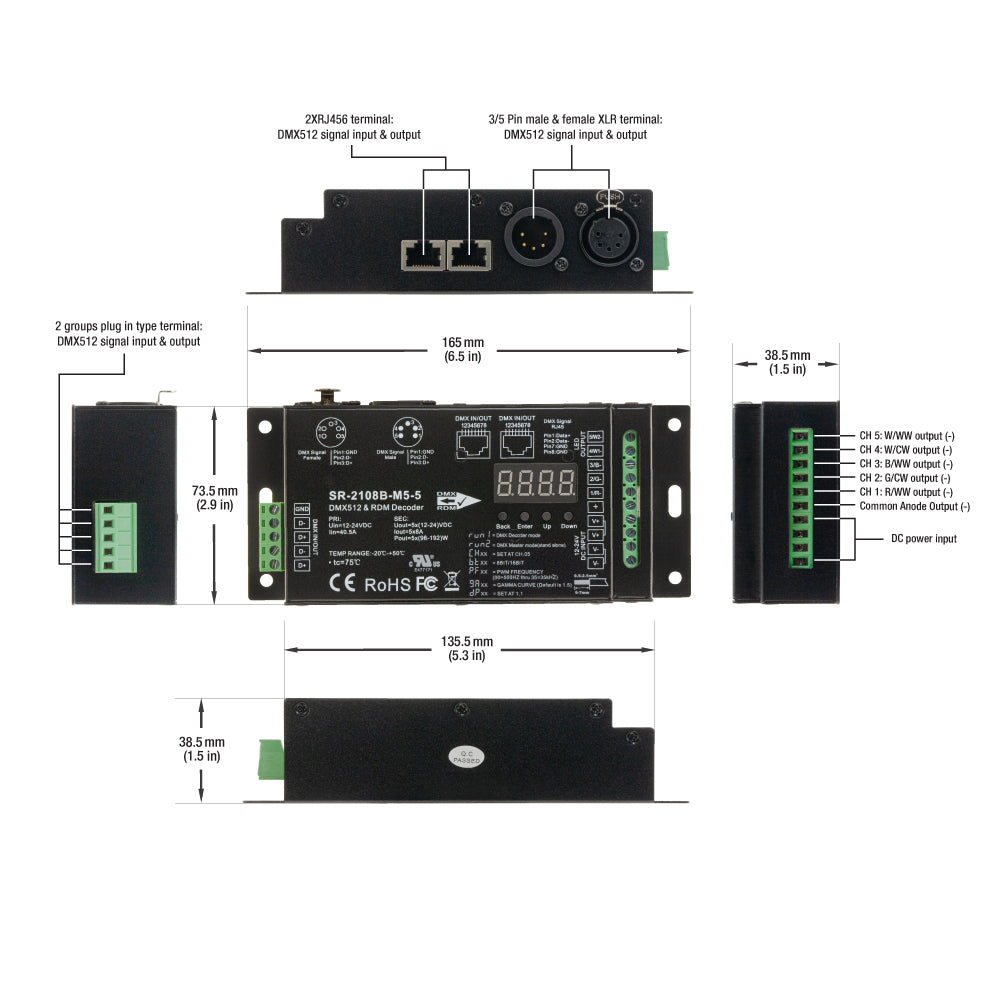

Dimensions 165 x 73 x 38 mm (6.5 x 2.9 x 1.5 in)
Certification



 Features:

  •  DMX512 RDM decoder, RDM function can realize intercommunication between DMX master and decoder.
  • Total 5 PWM output channels, common anode 5*8A. DMX channel quantity from 1CH~5CH settable
  •  PWM output resolution ratio 8bit, 16bit settable
  •  Output PWM frequency from 500HZ ~ 30K HZ settable
  • Output dimming curve gamma value from 0.1 ~ 9.9 settable.
  • Decoding mode settable
  • Master & decoder mode, RDM function
  • Metal housing, digital display to show data directly, easy to set and show DMX address.
