Description

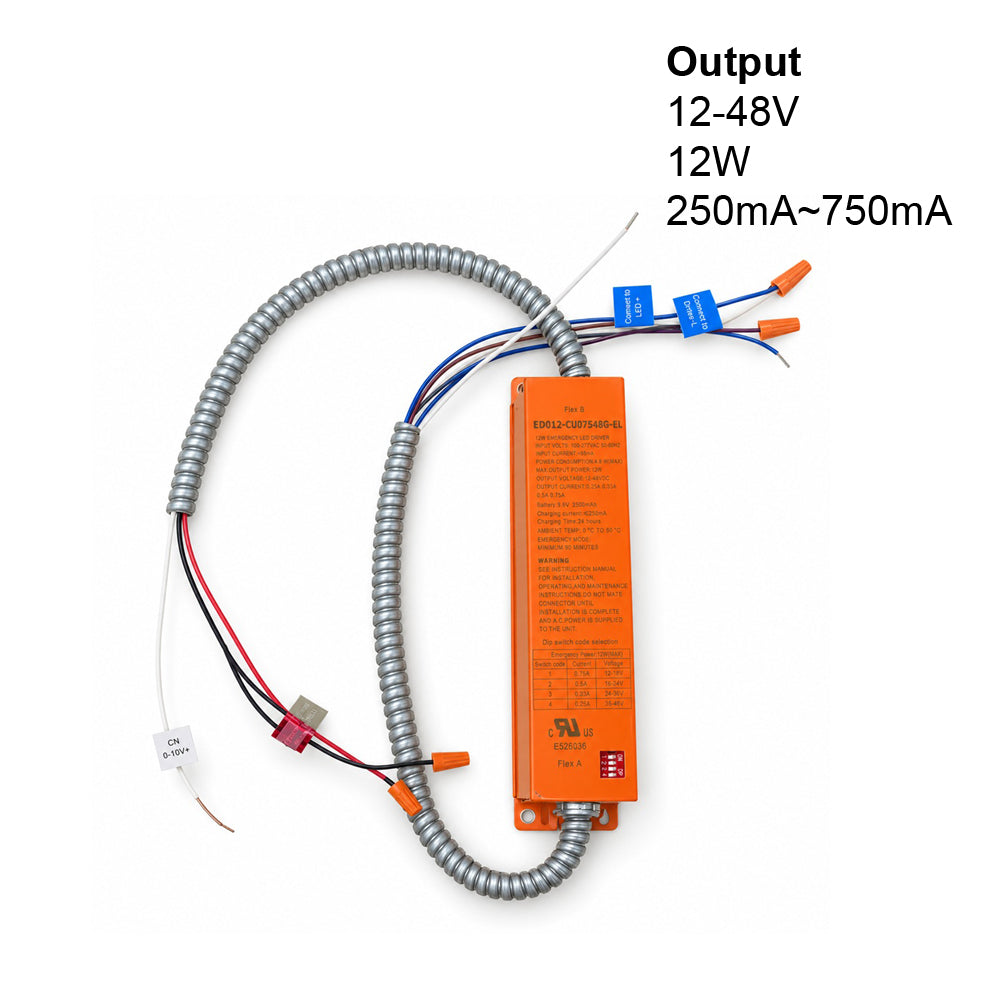

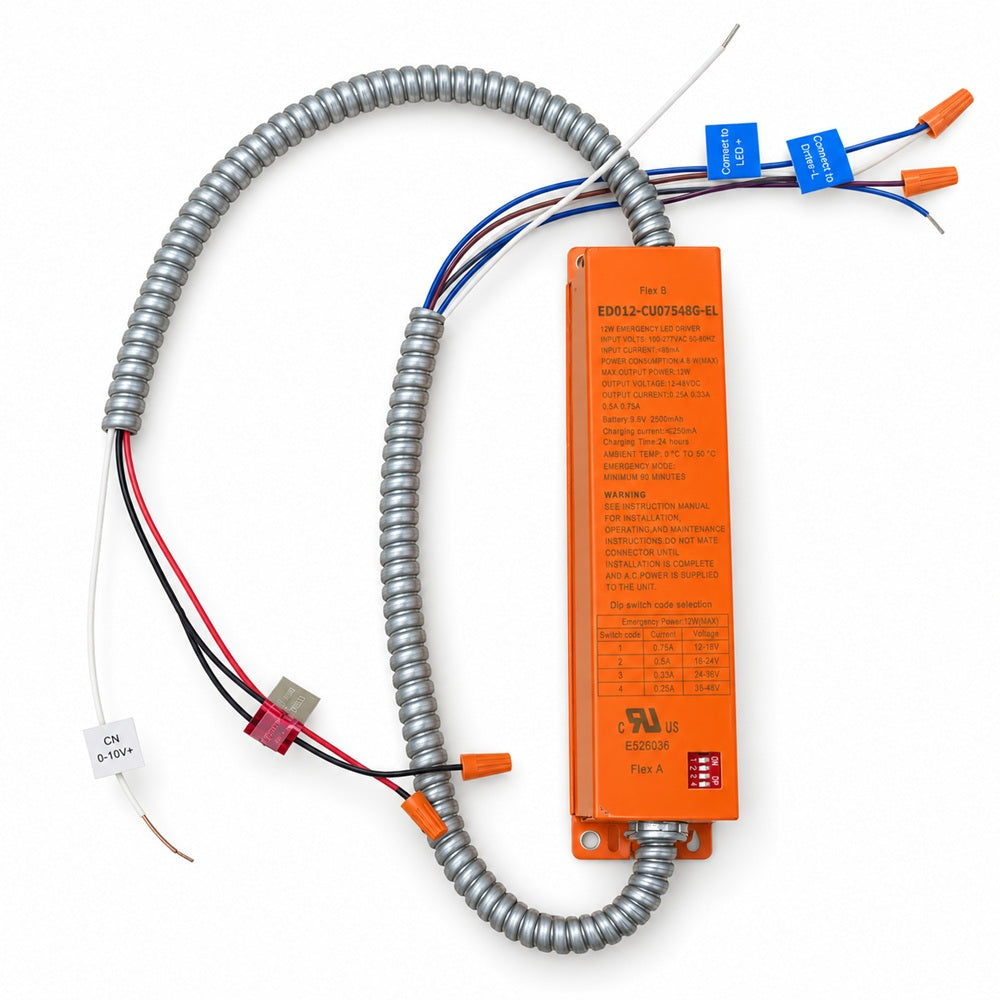

| Model | ED012-CU07548G-EL |
| Maximum emergency output | 12W |
| Input | 100–277VAC, 50/60Hz |
| Emergency output | 12–48VDC |
| Selectable output current | 0.25A, 0.33A, 0.5A or 0.75A (subject to output voltage range) |
| Battery | 9.6V, 2500mAh |
| Minimum emergency operation | 90 minutes |
| Charging time | 24 hours |
| Ambient temperature | 0°C to 50°C |

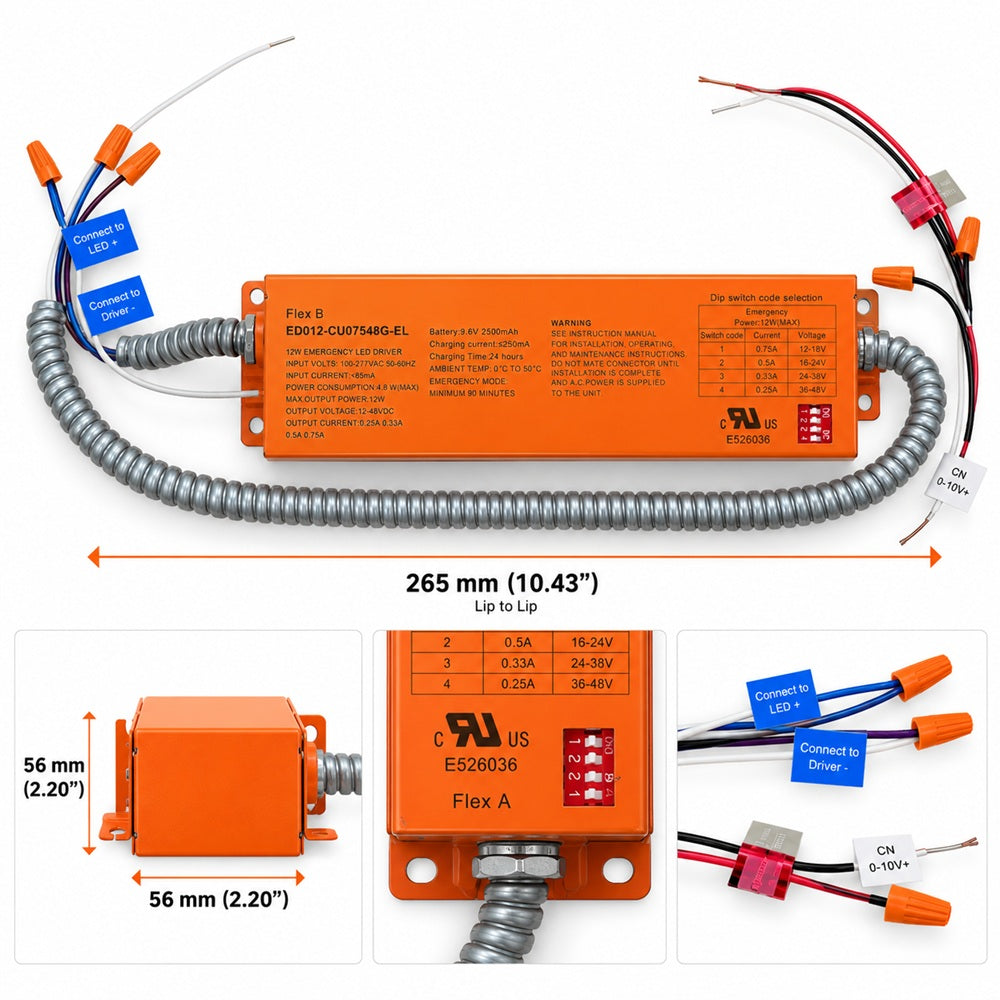

| Dimensions | 265 × 56 × 56 mm (10.43 × 2.20 × 2.20 in) |
Features:
- Automatic Emergency Backup: Keeps compatible LED fixtures illuminated during power outages.
- 90-Minute Emergency Runtime: Provides temporary lighting for improved visibility and safety.
- Wide Applications: Ideal for offices, retail stores, schools, warehouses, and commercial buildings.
- Emergency Lighting Areas: Suitable for compatible fixtures in hallways, corridors, stairwells, and exit access routes.
- Residential & Institutional Use: Supports compatible lighting in apartment common areas, healthcare facilities, and public buildings.
- Rechargeable Battery: Built-in battery provides backup power during electrical interruptions.
- Flexible Compatibility: Selectable output current and voltage range accommodate different compatible LED loads.
- Easy Installation: Compact housing with mounting flanges, flexible conduit, and labeled wiring.
