Description
Product Description
| Product | Constant Current LED Driver |
| Model | LD021D-CA05042-M18 |
| Input Voltage | 120V AC |
| Input Current | 0.3A |
| Frequency | 60 Hz |

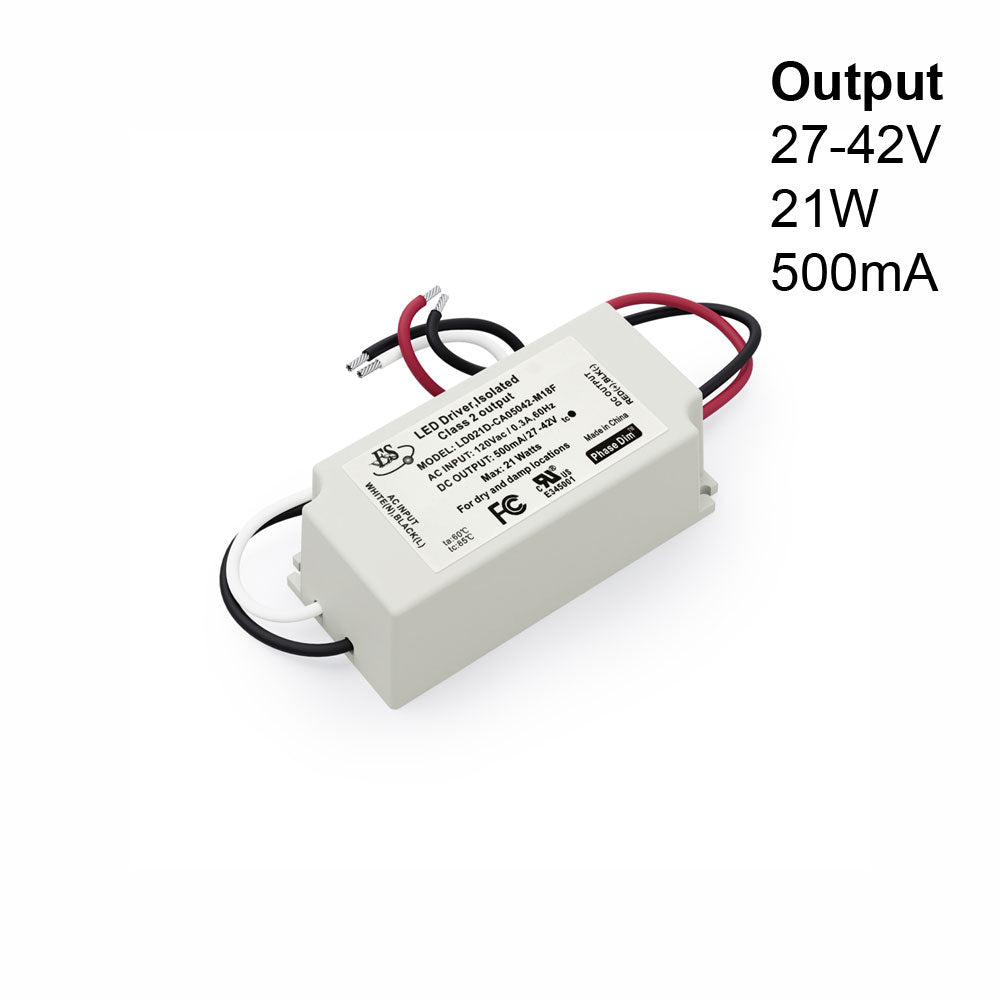

| Output Regulated Current | 500mA |
| Output Power | 21W |
| Output Voltage | 27-42V DC |
| Dimmable | Yes |
| Class Certification | Class 2/ Class II |

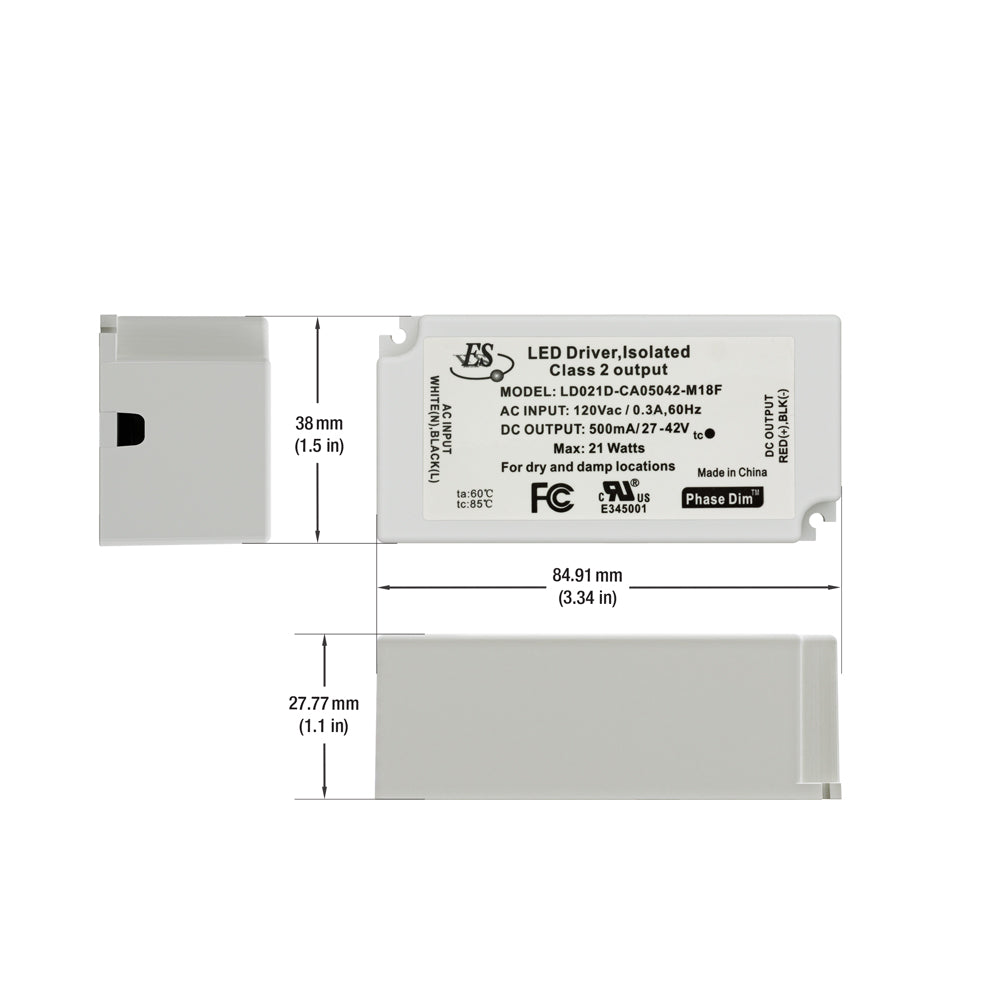

| Dimensions | |
| Certification |
   |
Features:
- The ES LD021D-CA05042-M18F is a Constant Current LED Driver designed for LED lighting applications.
- It is designed to work with an input voltage of 120V AC and has an input current of 0.3A at 60 Hz frequency.
- The driver provides a regulated output current of 500mA and a maximum output power of 21W.
- The output voltage range is 27-42V DC, making it suitable for powering LED lights with different voltage requirements within this range.
- The driver is dimmable, allowing for precise control over the brightness of the LED lighting.
- It is Class 2/Class II certified, ensuring safety and reliability for use in a variety of lighting applications.
