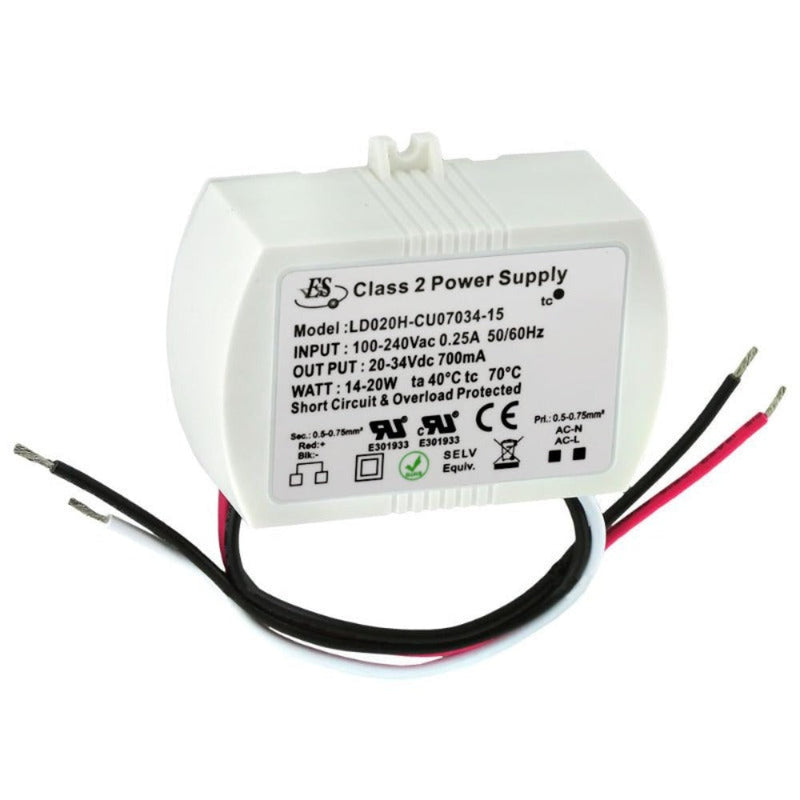

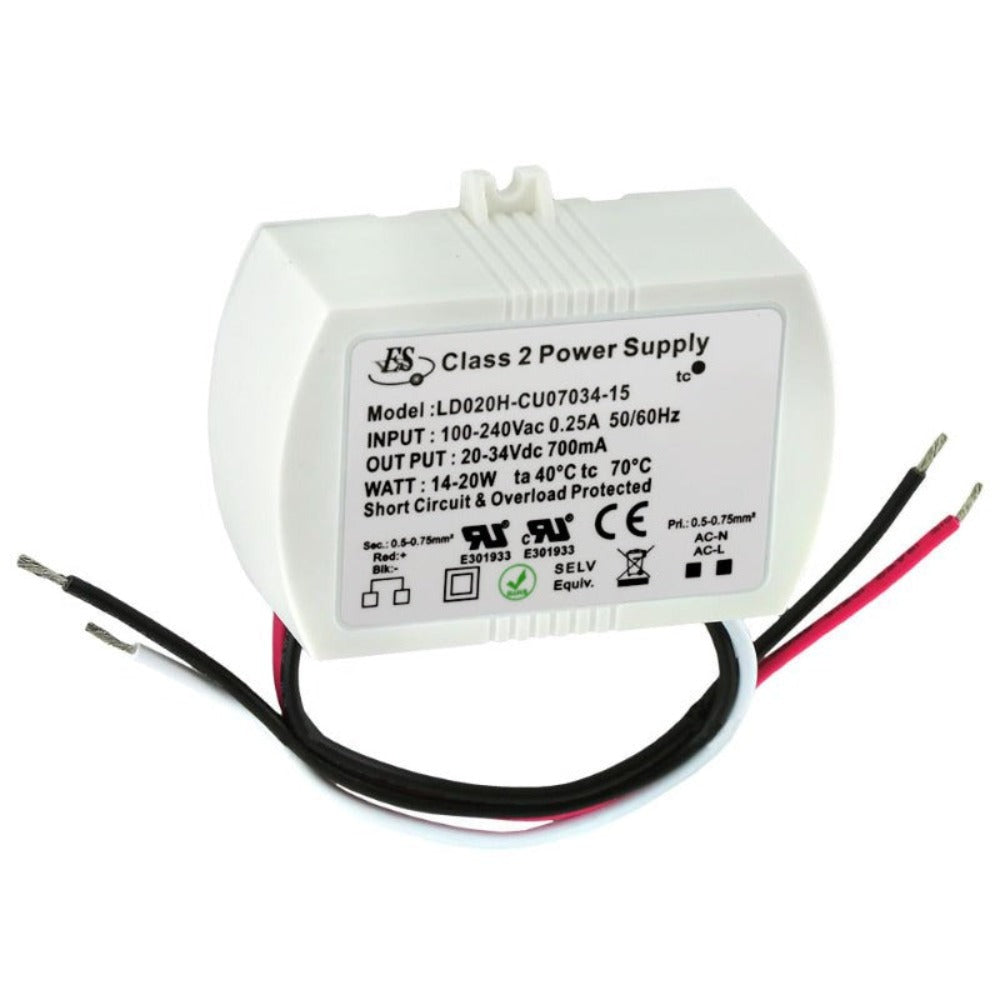

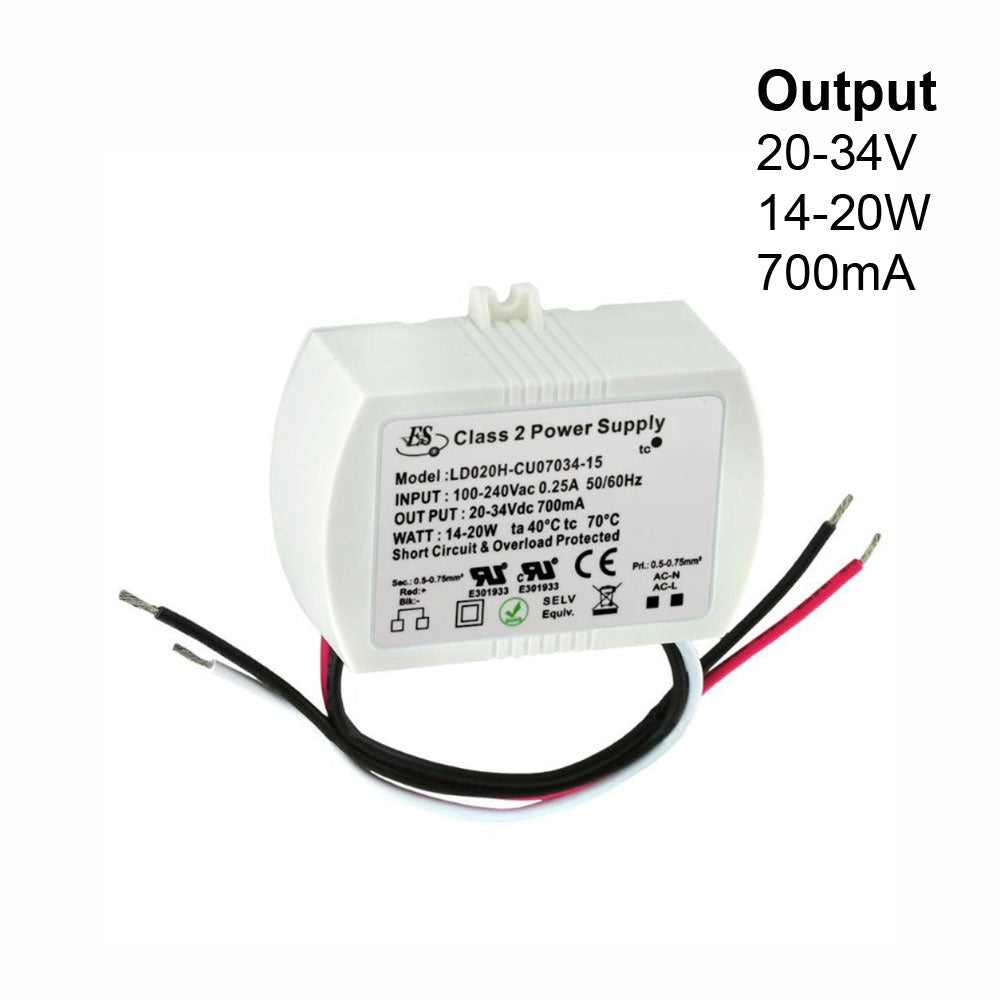

ES LD020H-CU07034-15 Constant Current LED Driver, 700mA 20-34V 14-20W max

SKU: 666561419585



Model LD020H-CU07034-15
Input Voltage 100-240V AC
Input Current 0.25A
Frequency 50/60Hz
Output Voltage 20-34V DC
Output Regulated Current 700mA
Output Power 14-20W Max.
Dimmable Yes

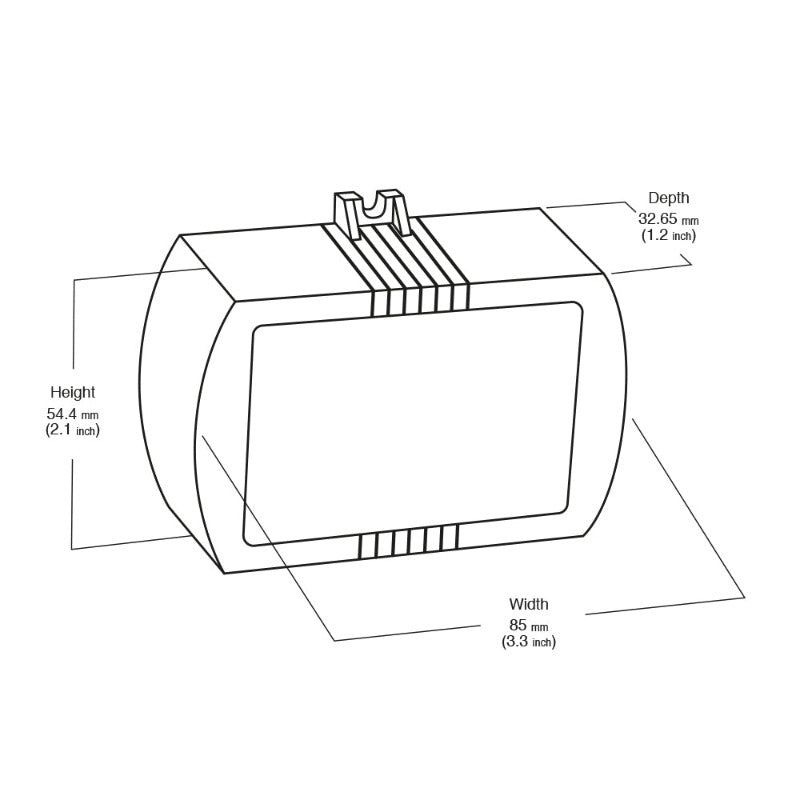

Dimensions 85 x 55 x 32.65mm (3.3 x 2.1 x 1.2in)
Class Certification Class 2/ Class II
Applicable for dry and damp locations
Suitable for operation with main supply dimmer



  • High-quality constant current LED driver for LED lighting applications
  • Regulated current of 700mA and output voltage range of 20-34V DC
  • Designed to operate on an input voltage range of 100-240V AC with a maximum input current of 0.25A at 50/60Hz frequency
  • Power factor (P.F) greater than 0.9 for high efficiency and maximum power delivery to the load
  • Maximum output power of 14-20W, suitable for various LED lighting applications
  • Dimmable feature allows for adjustable brightness of LED lighting
  • Class 2/Class II certified for safety and reliability
  • Compact dimensions of 85 x 55 x 32.65mm (3.3 x 2.1 x 1.2in) for easy installation in diverse applications
  • Reliable and efficient LED driver for powering LED lighting projects with stable and regulated current.
