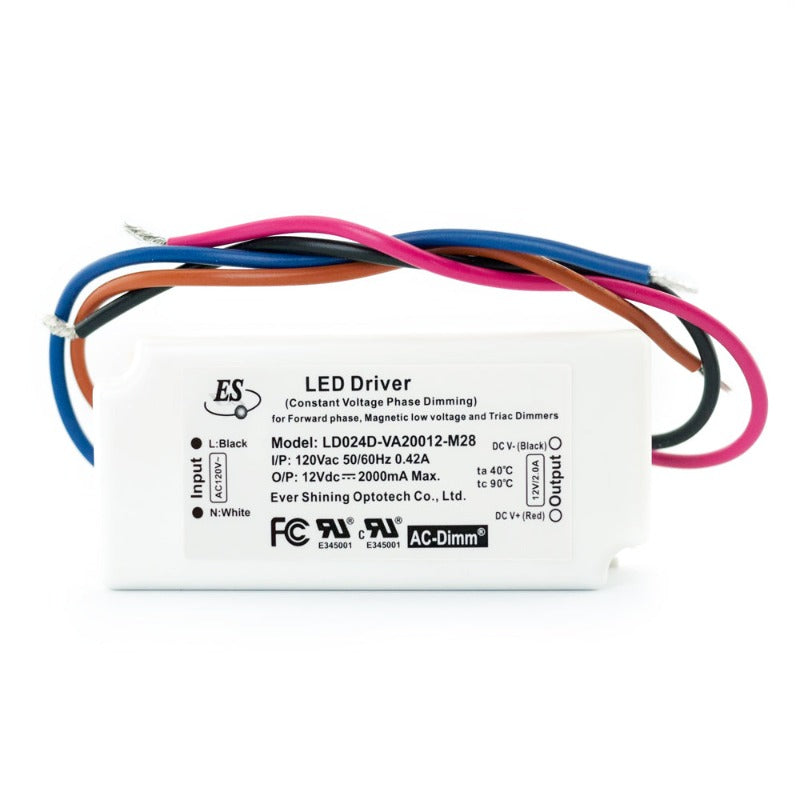

ES LD024D-VA20012-M28 J-Box Constant Voltage LED Driver, 12V 2A 24W

SKU: 666561418137



Model LD024D-VA20012-M28
Input voltage 120V AC
Input current 0.42A
Frequency 50-60Hz

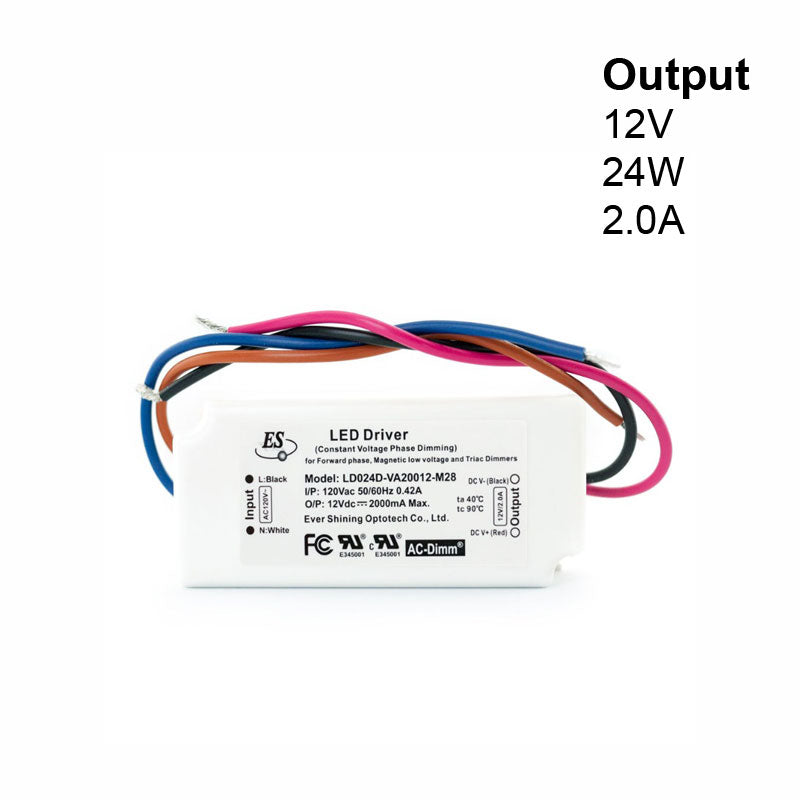

Output voltage 12V DC
Output regulated current 2000mA
Output max Power 24W max
Ambient Temperature (Ta) 40°C
Case temperature (Tc) 90°C
Dimmable Yes (Phase/ Triac/ Magnetic Low Voltage)
IP Rating IP20

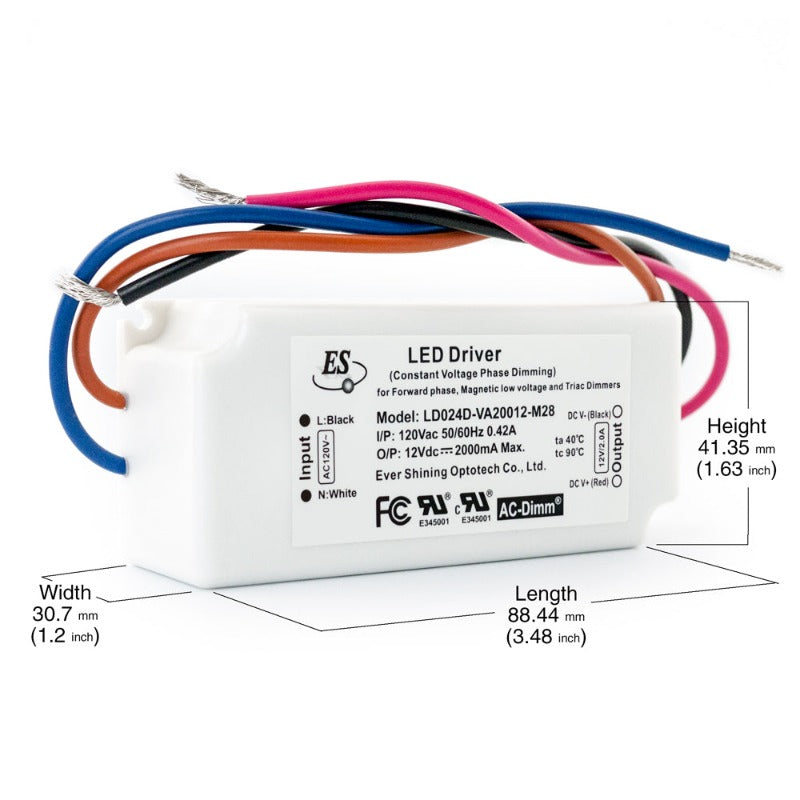

Dimensions 88.44 x 30.7 x 41.35mm (3.48 x 1.2 x 1.63in)
Applicable for Dry and Damp locations
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers



  • LED driver type: J-Box Triac Dimmable Constant Voltage
  • Input voltage: 120V AC
  • Input current: 0.42A
  • Frequency: 50-60Hz
  • Output voltage: 12V DC
  • Output regulated current: 2000mA
  • Output max power: 24W max
  • Dimming options: Phase, Triac, or Magnetic Low Voltage dimmers
  • IP rating: IP20 (suitable for indoor use)
  • Ambient temperature range: up to 40°C
  • Case temperature range: up to 90°C
  • Dimensions: 88.44 x 30.7 x 41.35mm (3.48 x 1.2 x 1.63in)
  • Certification: FCC certified
