Description
Product Description
| Product | Constant Current LED Driver |
| Model | EVT-C50-1300-T-38V |
| Input Voltage | 120-277V AC |
| Input Current | 0.53A |
| Input Frequency | 50-60Hz |
| Power Factor | PF>0.9 |
| Output Regulated Current | 1300mA |
| Output Power | 49.4W |
| Output Voltage | 18-42V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| Weight | 0.08 kg |
| IP Rating | IP20 (Indoor use only) |

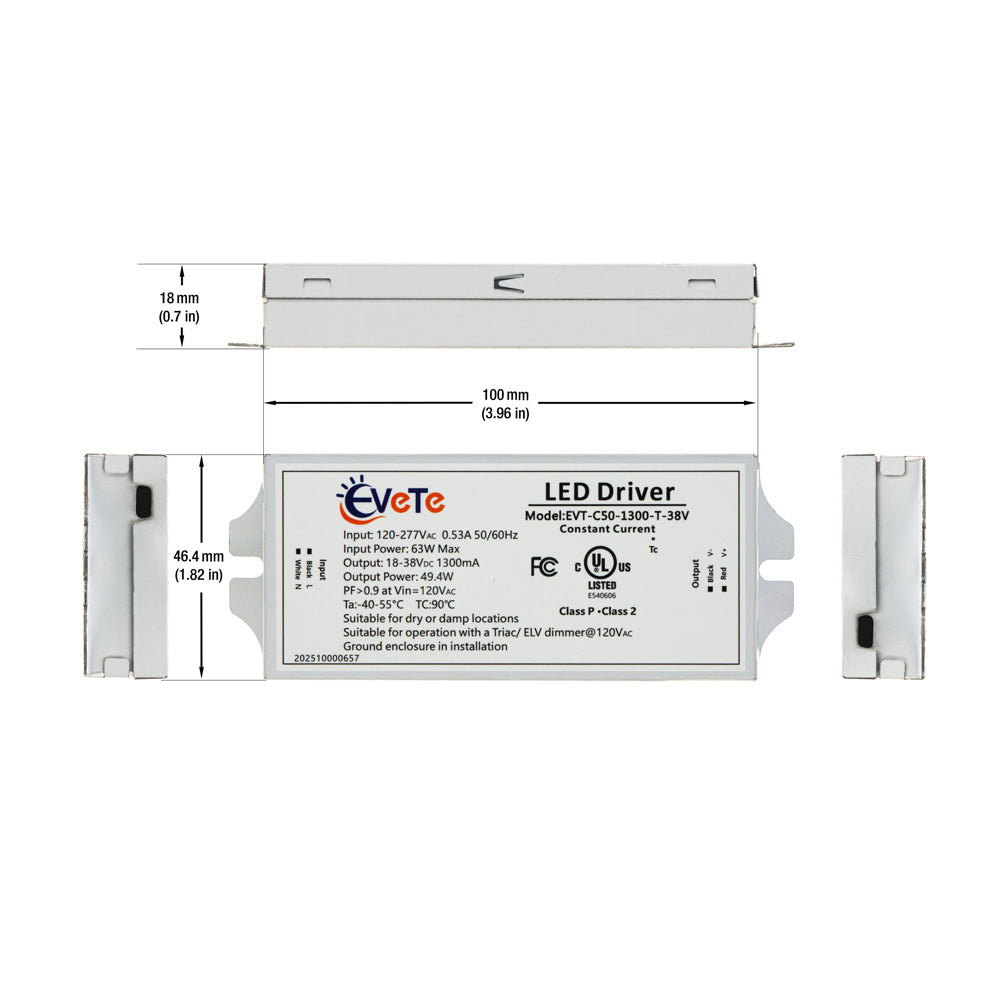

| Dimensions | 100 x 46.4 x 18 mm (3.9 x 1.8 x 0.7 in) |
| Class Certification | Class II |
| Certification |
 |
Features:
- The EVT-C50-1300-T-38V is a Constant Current LED Driver designed to power LED lights with a regulated output current of 1300mA and output power of 49.4W.
- The driver has an input voltage range of 120-277V AC, input current of 0.41A, and input frequency of 50-60Hz.
- The driver has a high power factor of PF>0.9 and efficiency of over 85%.
- The driver is dimmable using Triac dimming technology.
- The ambient temperature rating of the driver is 40°C and the case temperature rating is 90°C.
- The driver is designed for indoor use only and has an IP20 rating.
