Description
Product Description
| Model | LD012H-VU10012-Q12P |
| Input Voltage | 110-277V AC |
| Input Current | 0.15~0.05A |
| Frequency | 50/60 Hz |
| Output voltage | 12V DC |
| Output regulated current | 1000mA |
| Output Power | 12W |
| Dimmable | Yes (0/10V Dimming) |
| Class Certification | Class 2 |
| IP Rating | IP20 (Indoor Rated) |

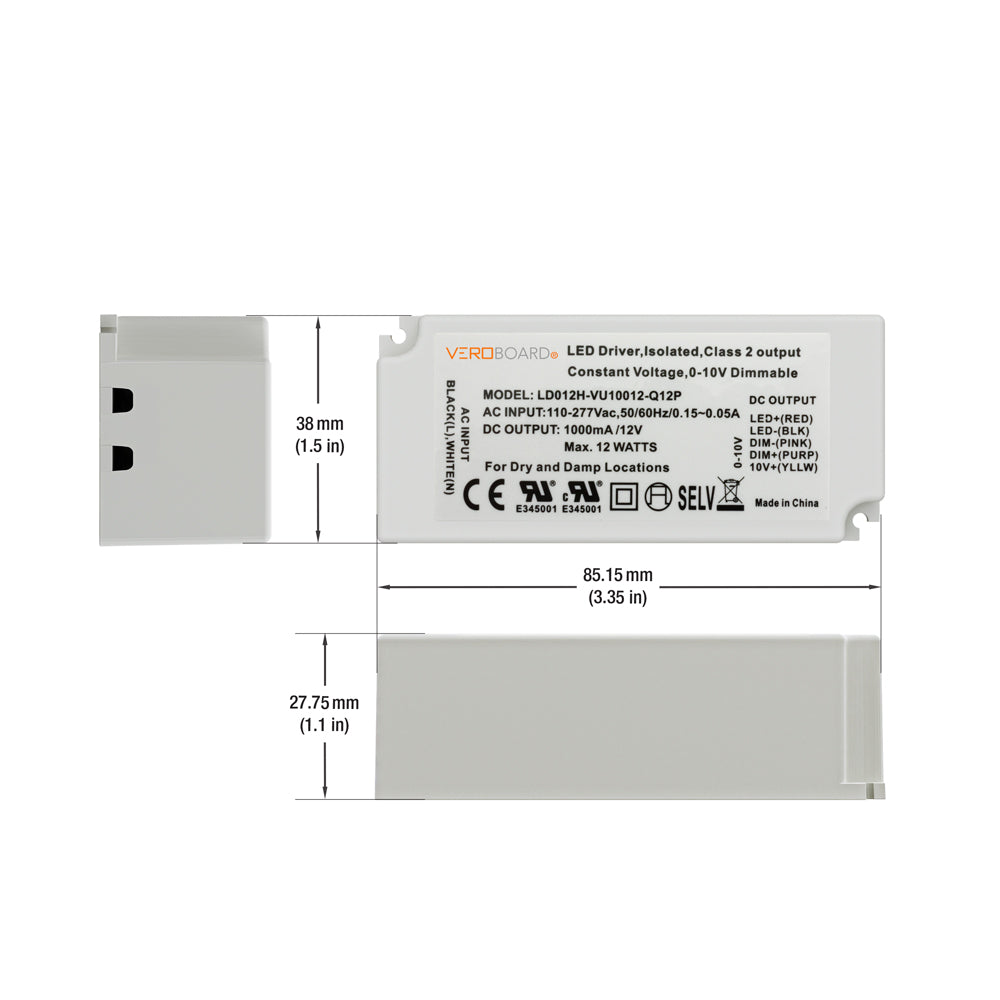

| Dimensions | 85.15 x 38 x 27.7mm (3.3 x 1.5 x 1.1in) |
| Certifications |   |
Features:
- Operates with an input voltage range of 110-277V AC and supports a frequency of 50-60 Hz.
- Draws an input current between 0.15A and 0.05A.
- Provides a stable output voltage of 12V DC, ideal for LED lighting systems.
- Delivers a power output of 12W.
- Supplies a consistent output current of 1000mA.
- Features 0-10V dimming functionality for adjustable brightness levels.
- Rated IP20, making it suitable for dry and damp indoor locations.
- Compatible with any standard 0-10V dimming switches for flexible lighting control.
