Description

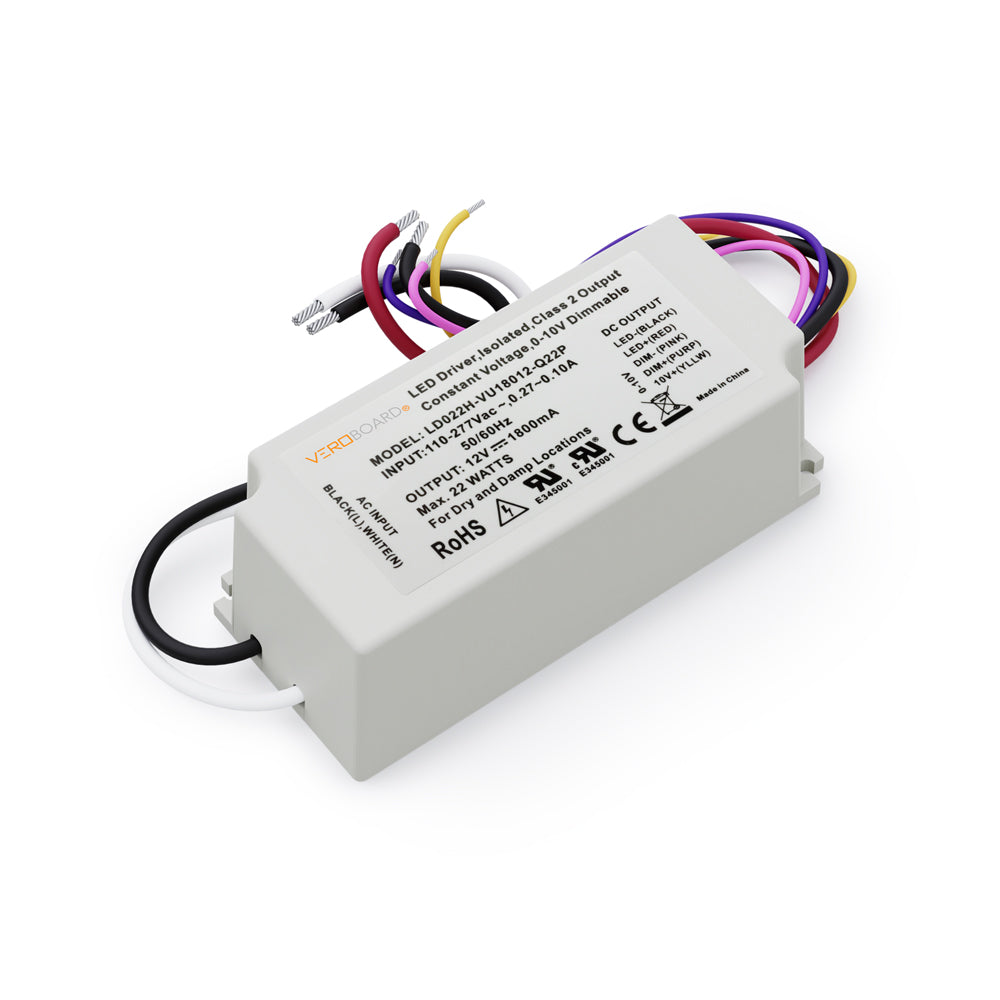

| Model | LD022H-VU18012-Q22P |
| Input Voltage | 110-277V AC |
| Input Current | 0.27~0.10A |
| Frequency | 50/60 Hz |

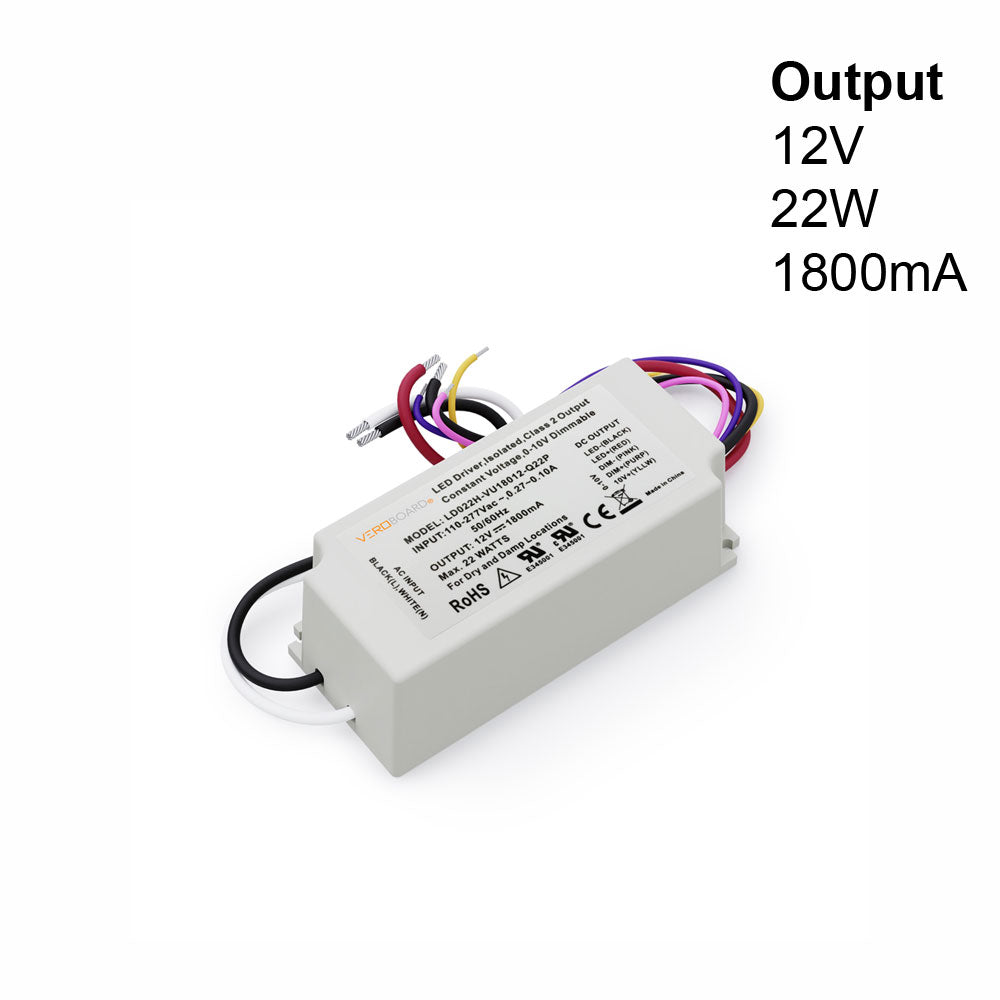

| Output voltage | 12V DC |
| Output regulated current | 1800mA |
| Output Power | 22W |
| Dimmable | Yes (0/10V Dimming) |
| Class Certification | Class 2 |
| IP Rating | IP20 (Indoor Rated) |

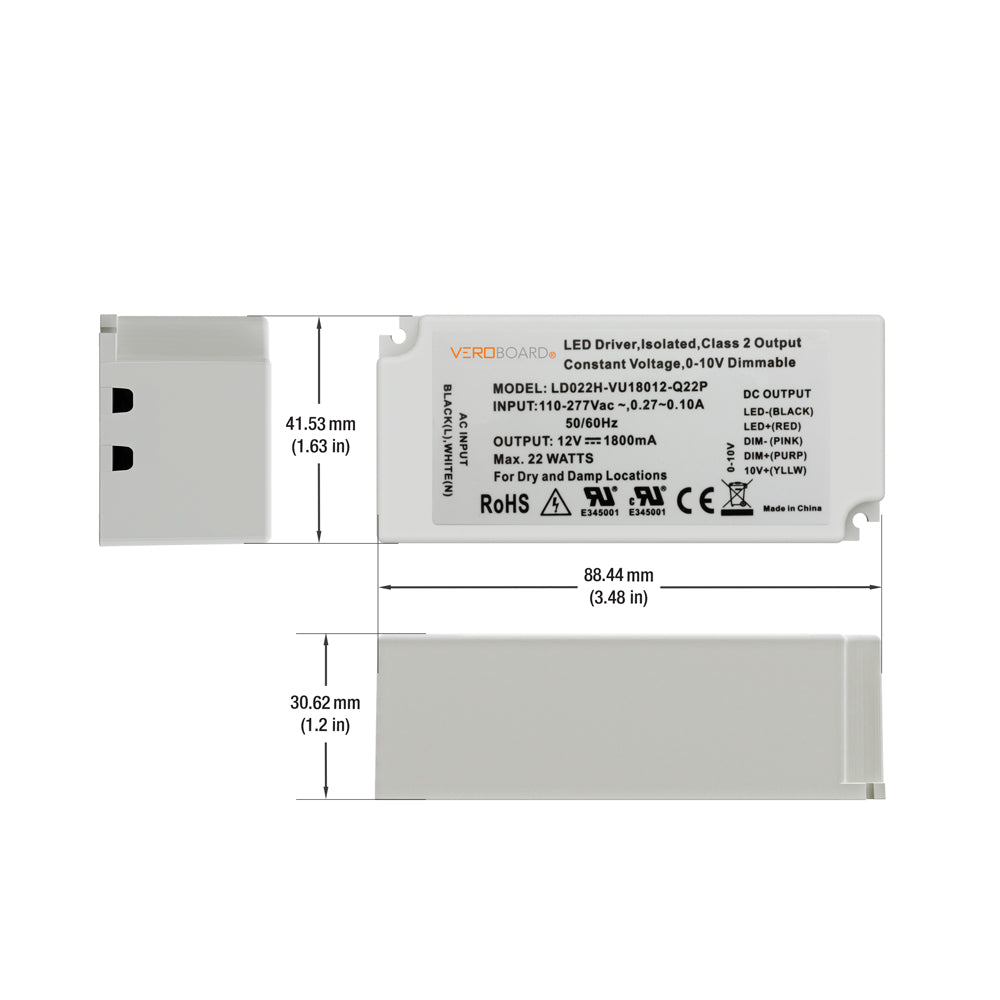

| Dimensions | 88.4 x 41.5 x 30.6mm (3.4 x 1.6 x 1.2in) |
| Certifications |   |
Features:
- Operates with an input voltage range of 110-277V AC and supports a frequency of 50-60 Hz.
- Draws an input current between 0.27A and 0.10A.
- Provides a stable output voltage of 12V DC, ideal for LED lighting systems.
- Delivers a power output of 22W.
- Supplies a consistent output current of 1800mA.
- Features 0-10V dimming functionality for adjustable brightness levels.
- Rated IP20, making it suitable for dry and damp indoor locations.
- Compatible with any standard 0-10V dimming switches for flexible lighting control.
