18 inch Linear LED Module Driverless Engine LIN 18-020W-930-120-S3-Z1B, 120V 20W 3000K(Warm White)

SKU: 666561427894

Inquiry

Description

Model No LIN 18-020W-930-120-S3-Z1B
No of LEDs 80
Wattage 20W
Voltage 120V AC
Luminous Flux 1800 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum
Package Components  LED Module
Thermal Silicon Pad
6inch Black and White power feed

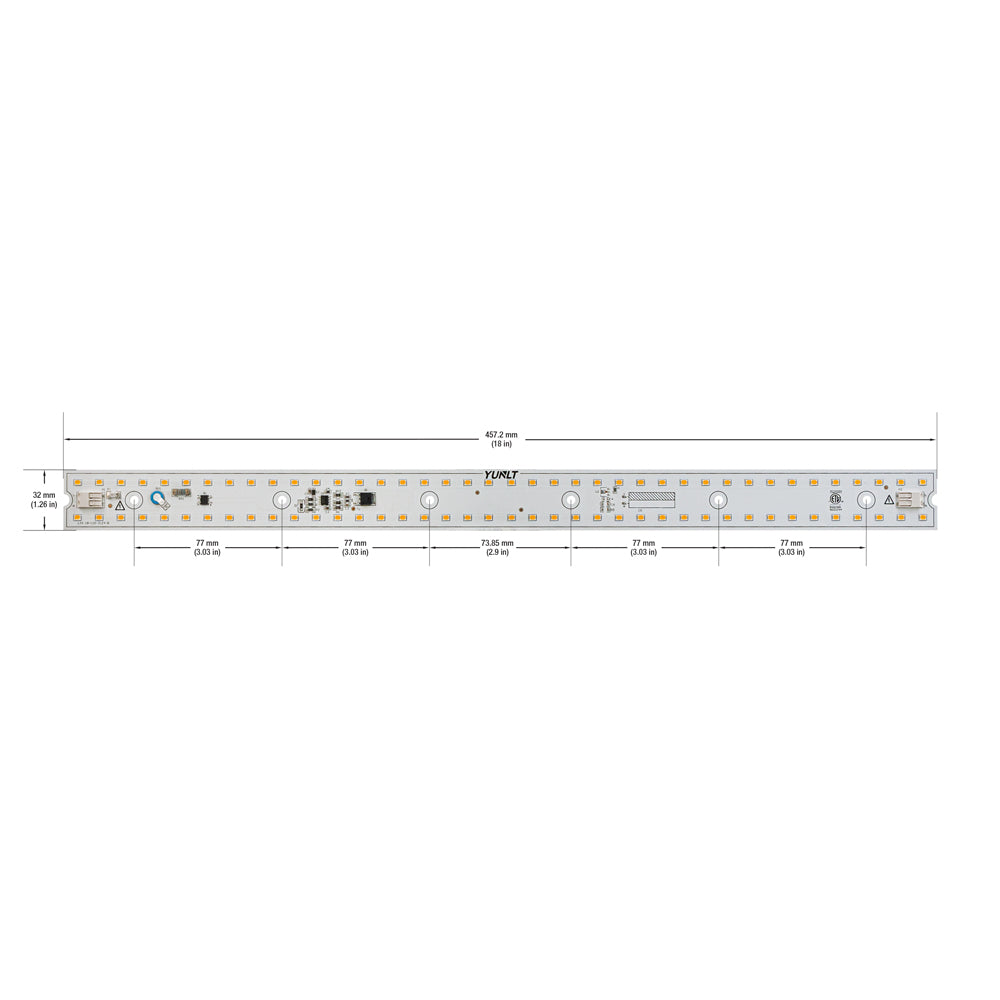

Dimensions 457.0mm (18 inch) x 32 mm (1.25 inch)
Diameter of the screw hole 3.5mm (0.14 in)
Height 6mm (0.23in)
Certification


Features

  • A premier quality light engine. It produces up to 1800 lumens of exceptional light.
  • Low power consumption, high energy efficiency.
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.
  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
