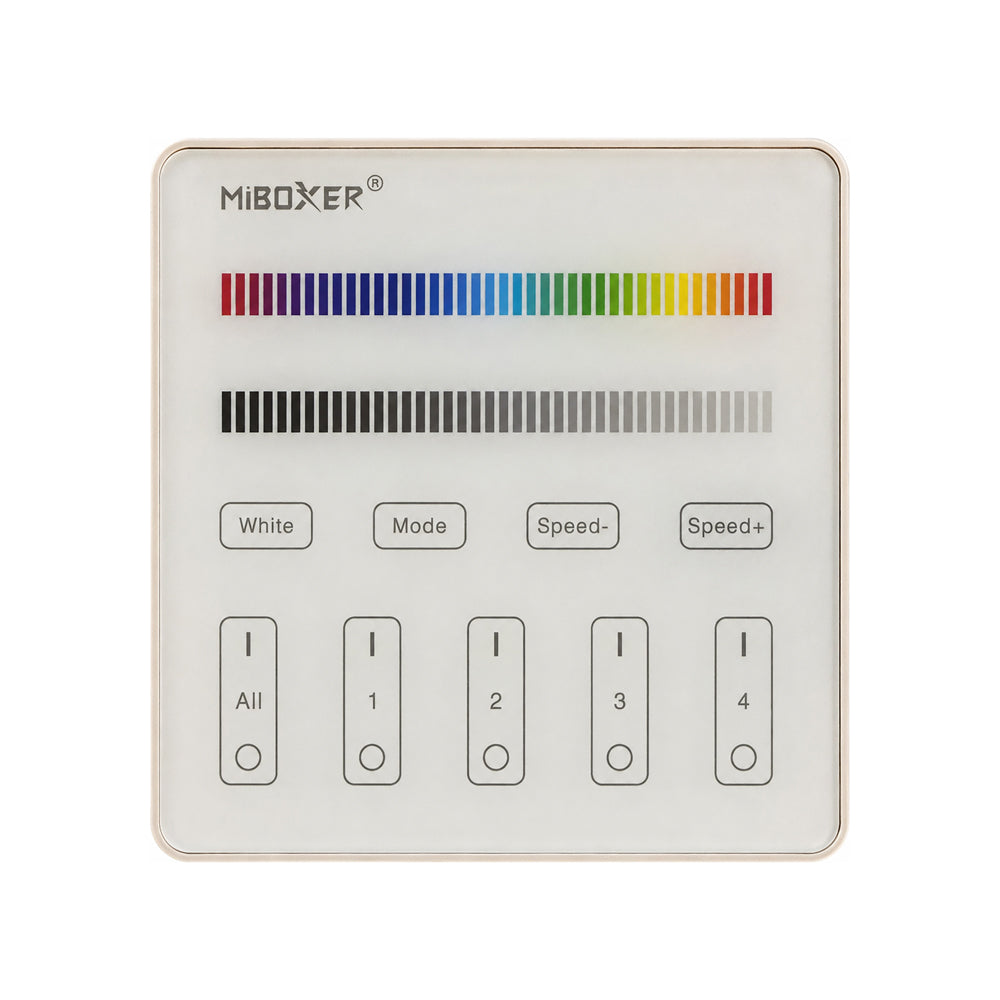

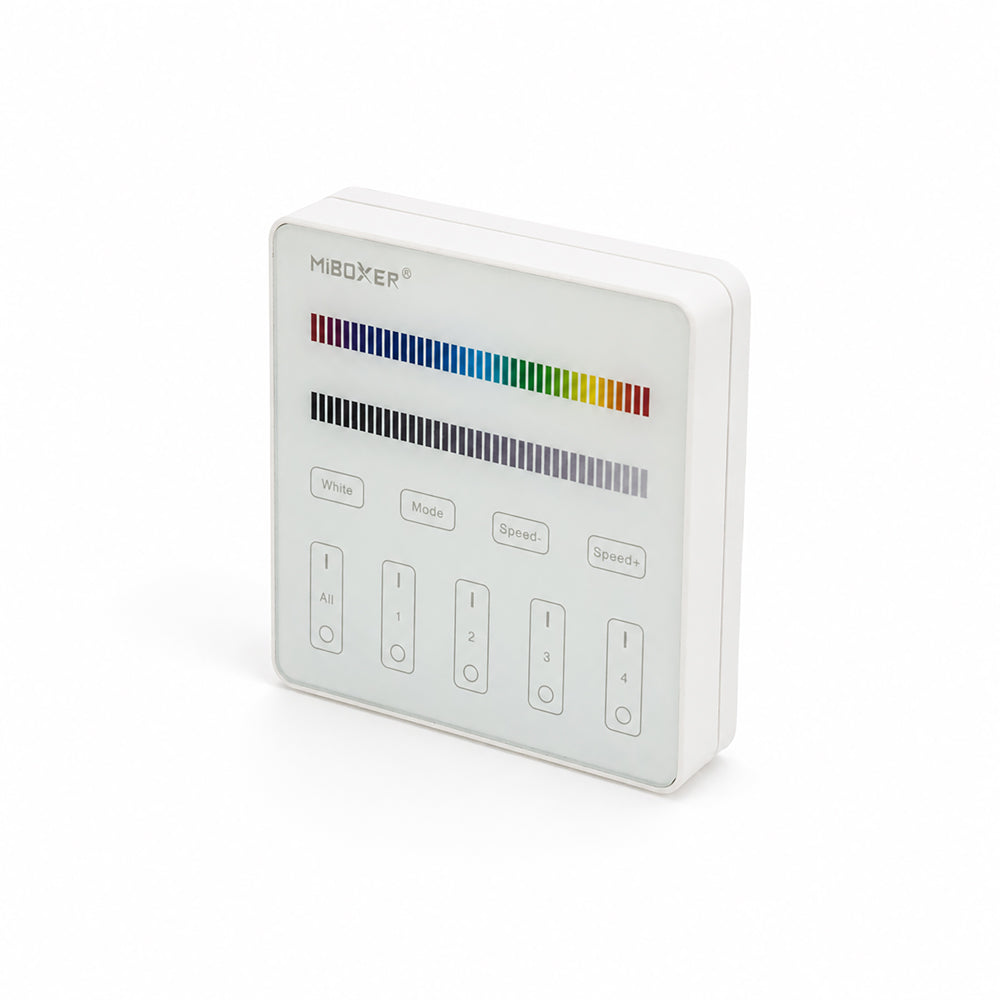

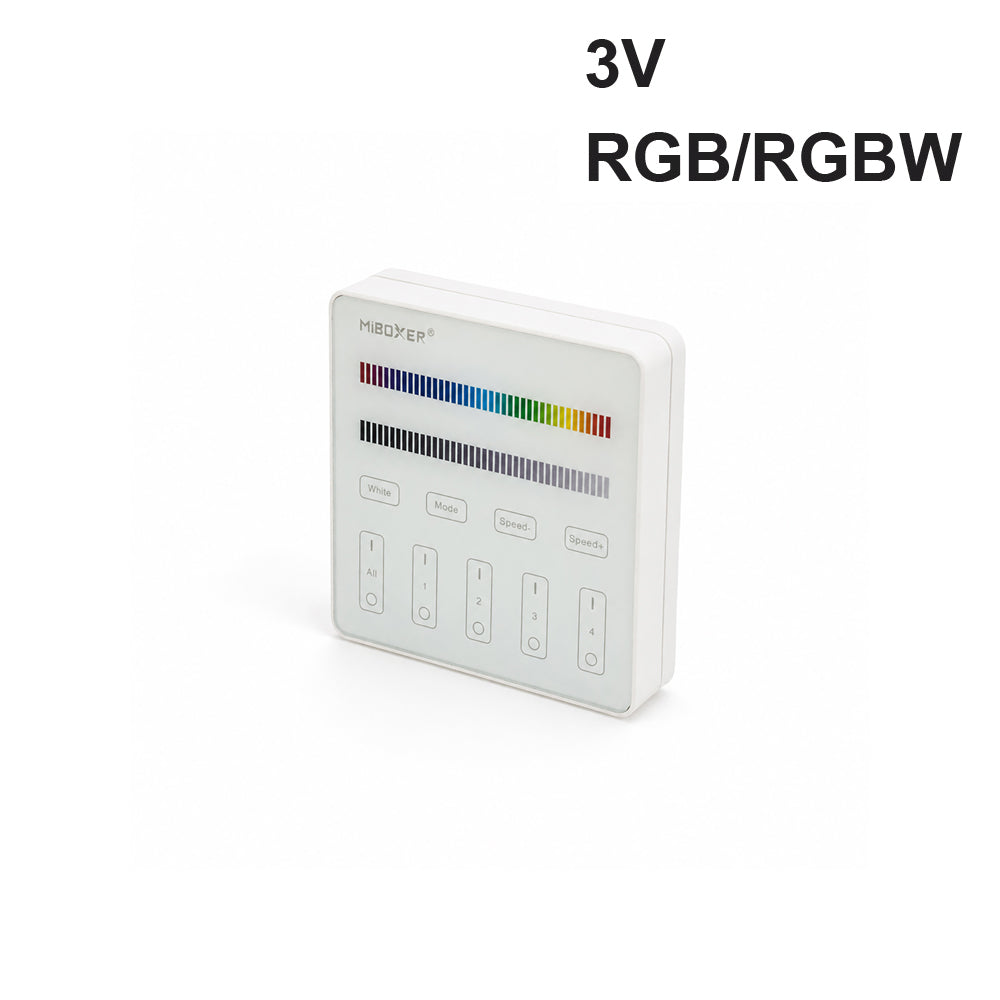

Mi-Light B3 4-Zone RGB RGBW Smart Touch Panel Remote Controller

SKU: 666561412913

Inquiry

Description

Model
B3
Voltage
3V (2*AAA Battery)
Transmission Frequency 2.4 GHz
Transmitting Power 6 dBm
Control Distance 30m
Working Temperature -20~60°C
Standby Power 20uA

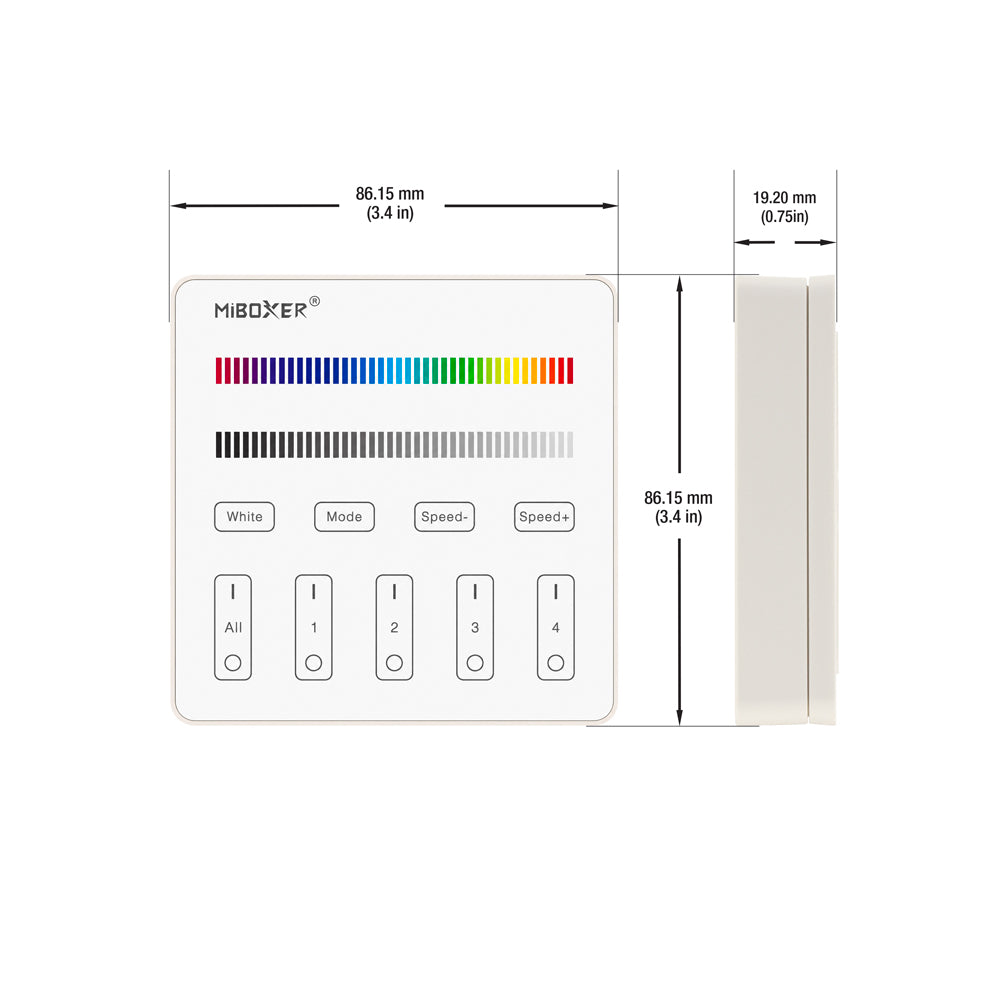

Dimensions 86mm (3.38 in) x 86mm (3.38in) x 19mm (0.73in)






Features:

  • Mi-Light – 4-Zone RGB / RGBW Smart touch B3 Panel Remote Controller allows you to control the lighting system throughout the house with its 4-zone undivided group lighting feature

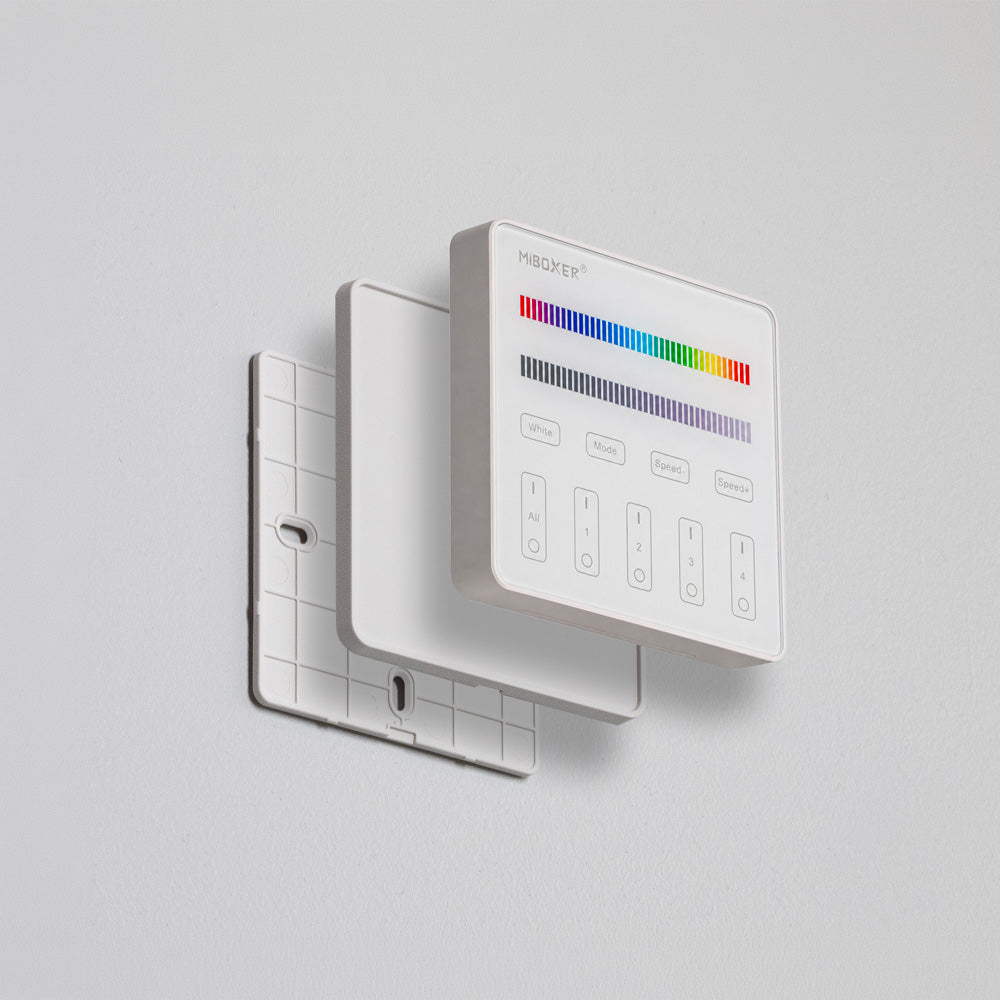

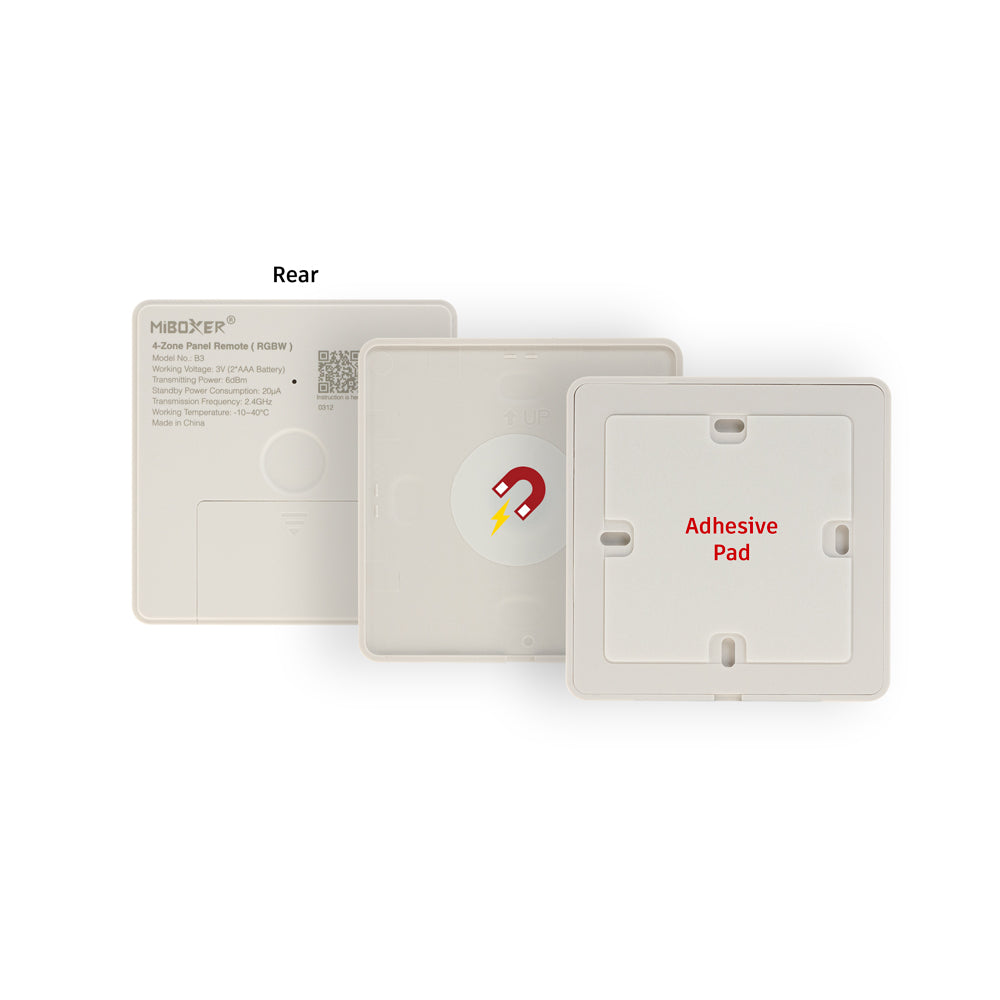

  • It has magnetic mount features, that help for easy mounting to any metal object.
  • The controller is dedicated to the 12-24V LEDs, which have the ability to change the color of its light (RGB/ RGBW).
  • It quickly and easily changes the color of the LED to further emphasize the mood and decor of the room.
  • Having this type of controller allows you to manage four separate zones. Each zone needs one FUT037 or FUT038 receiver for transmitting signals from the lights to the wireless panel controller.
  • It can also adjust the brightness of the daylight white color of the strip light (when used with the FUT038 LED controller).
  • Additionally, the “M” (mode) key on the remote controls assigns 9 dynamic color-changing modes to lights.
    Basically, the remote can change the color and speed, dim or brighten the lights, and functions different programs.
  • This is an appealing gadget that will become a great addition to your home decoration in a modern style.
  • Dimming works on the principle of the touch panel to control the whole unit, which is quite intuitive.

Link: Turn off the power, then turn on again 5 seconds, press ”I” 3 times within 3 seconds. The Led light blinks 3 times slowly when it is done. Unlink: Turn off the power, then turn on again after 5 seconds, press “I” 5 times within 3 seconds. The Led light blinks 10 times swiftly when it is done.
