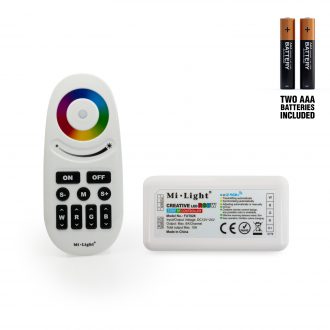

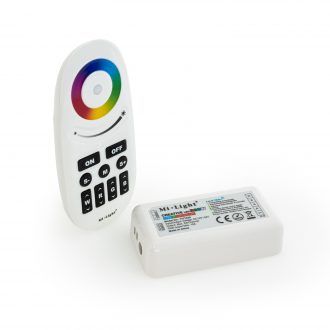

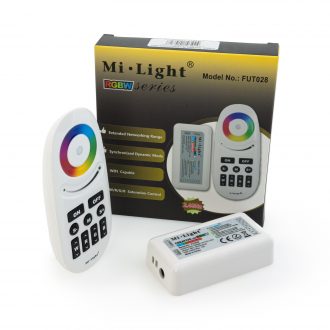

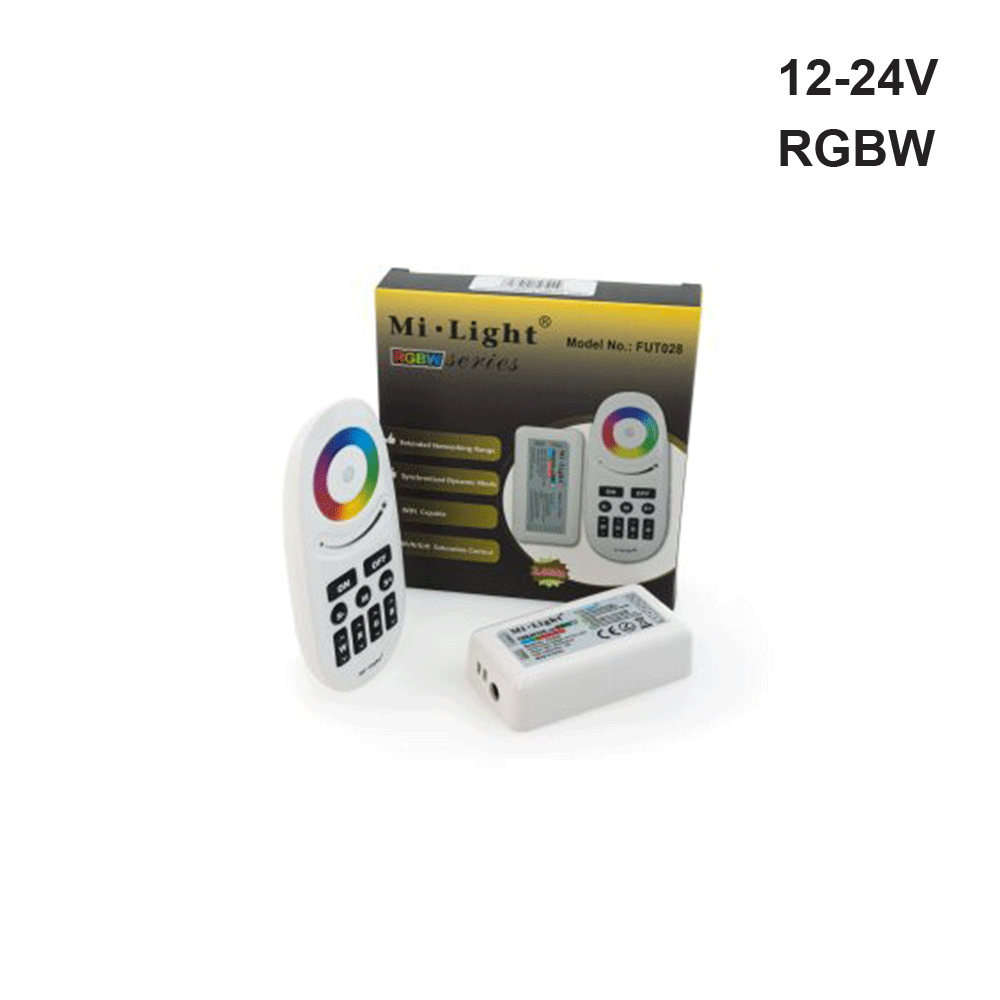

Mi-Light Touch Screen RGBW LED Controller 2.4GHz FUT028

SKU: 666561410728



Voltage  12~24V DC
Signal Type Radio Frequency (RF)
Power 2*AAA Battery
Transmission Type 2-way
Transmission Frequency 2.4GHz
Output Current 6A per channel max
Total Current 10A Max
Output Channels 4 channels (R-G-B-W)-Common anode
Control Distance 30m
IP Rating IP20 (Indoor rated)
Dimensions (Controller) 85 x 45 x 22 mm (3.3 x 1.7 x 0.8 in)
Dimensions (Remote) 110 x 52 x 20 mm (4.3 x 2 x 0.78 in)


  • It uses advanced PWM control technology, controlling all RGB LED products with four lines and three circuits, owning 640 thousand colors
  • and 20 automatic changing modes.
  • The construction of the Mi-Light series allows full access to the color palette of up to 16 million colors.
  • The color tone in question depends on the precision of the control, which is usually achieved with the touch transmitter.
  • With 2.4GHz high frequency wireless remote control, it has the characteristics of low power consumption, long-distance transmission, and strong anti-interference ability.
  • It is widely used for controlling RGBW LED lighting applications (RGBW LED strips,  spotlights, and so on)
  • We also carry a remote holder to wall mount this easy hand remote.
