Description
| Model | PIR-3-B |
| Voltage | 12~24V DC |
| Current | 3A |
| Wattage | 36W @12V / 72W @24V |
| Effective Range | 2.4m±0.6m |
| Detection Angle | 110° |
| Delay Time | 30 Seconds |
| Finish Color | Black |
| Sensor Type | Infrared (PIR) |
| Temperature | -20~45°C |
| Connection Type | Dupont Connectors |
| Wire Size | 1 Meter (39 inches) 20AWG |

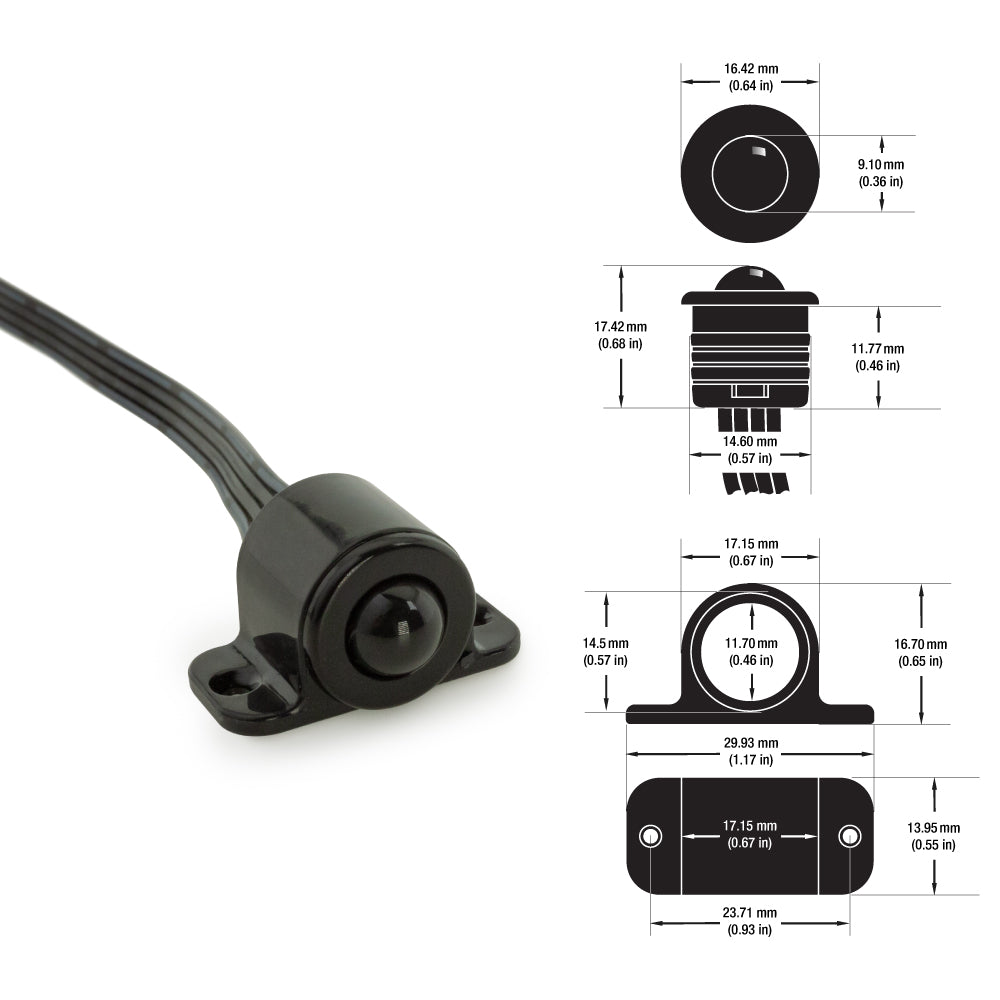

| Dimensions |
Diameter: 16.42mm |
Feature:
- PIR sensors are used in thermal sensing applications, such as security and motion detection.
- It automatically turns your 12V/24V LED lights ON/OFF.
- This sensor switch is designed for small luminaire LEDs like closet lighting, wardrobe, cabinet lights, or low voltage lamps
- It switches off when motion has ceased after 30 seconds.
- Please ensure that the power supply output current does not exceed 3A
- This sensor has a broader detection angle (110°) thereby, they can be easily recessed to hide it except the sensor area.
